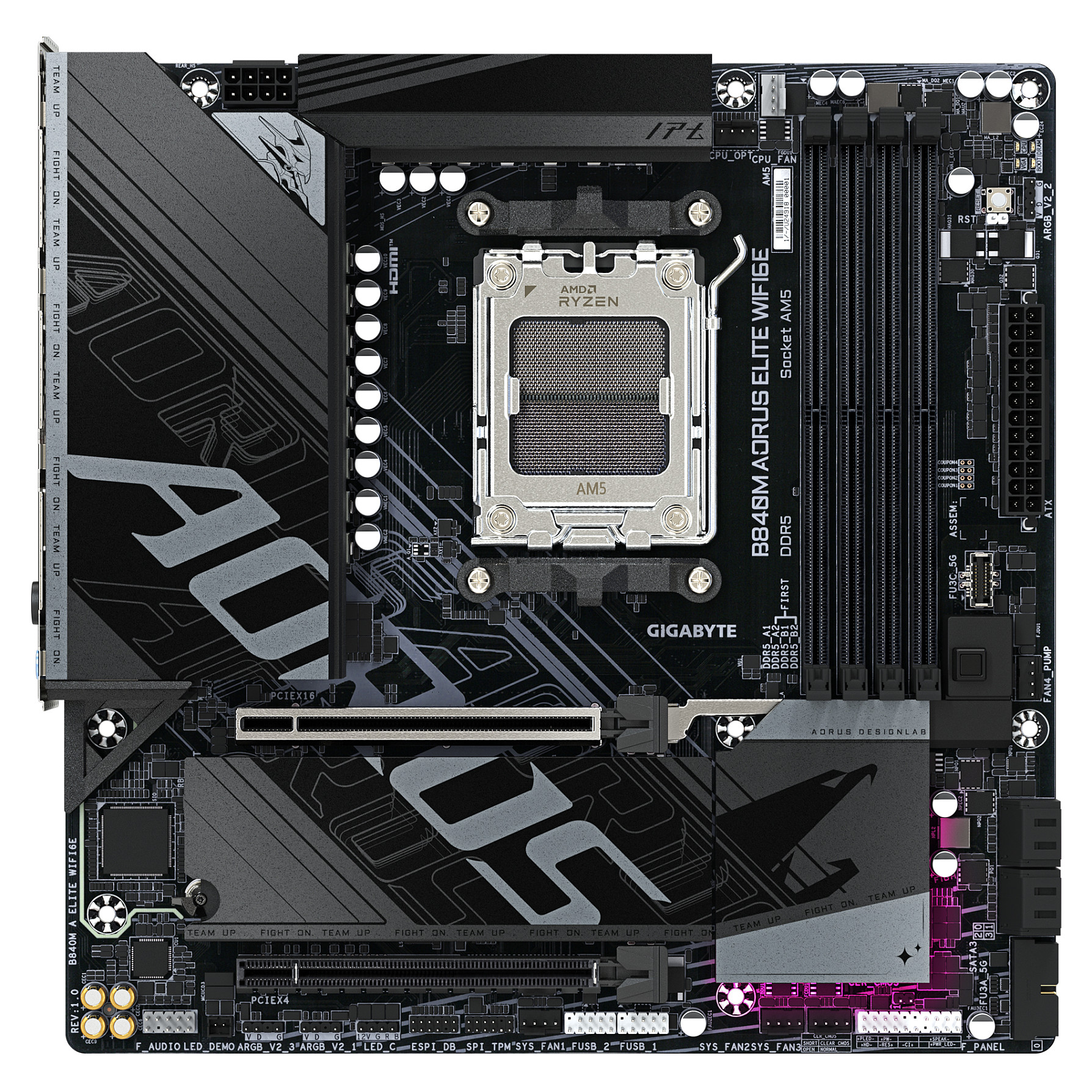

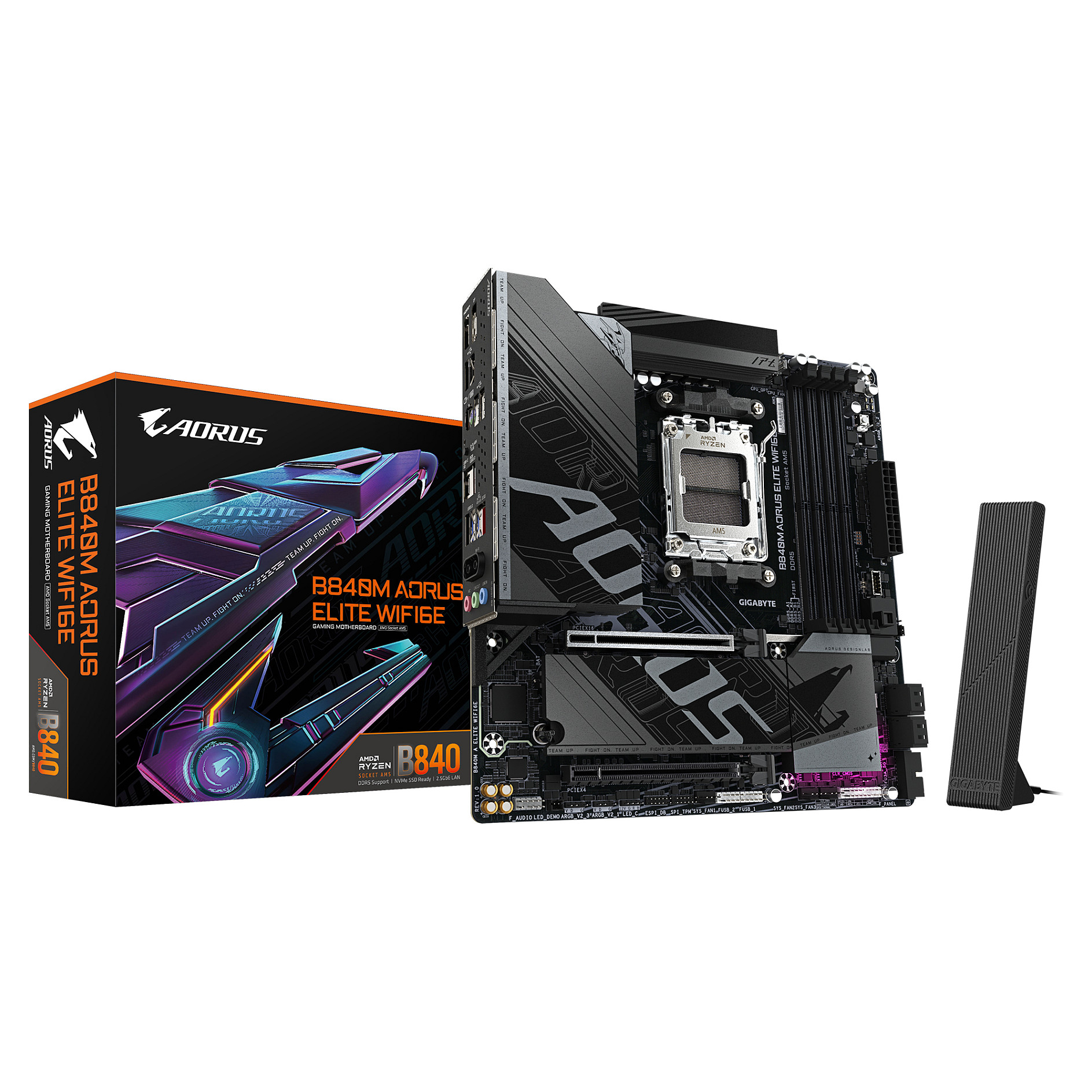

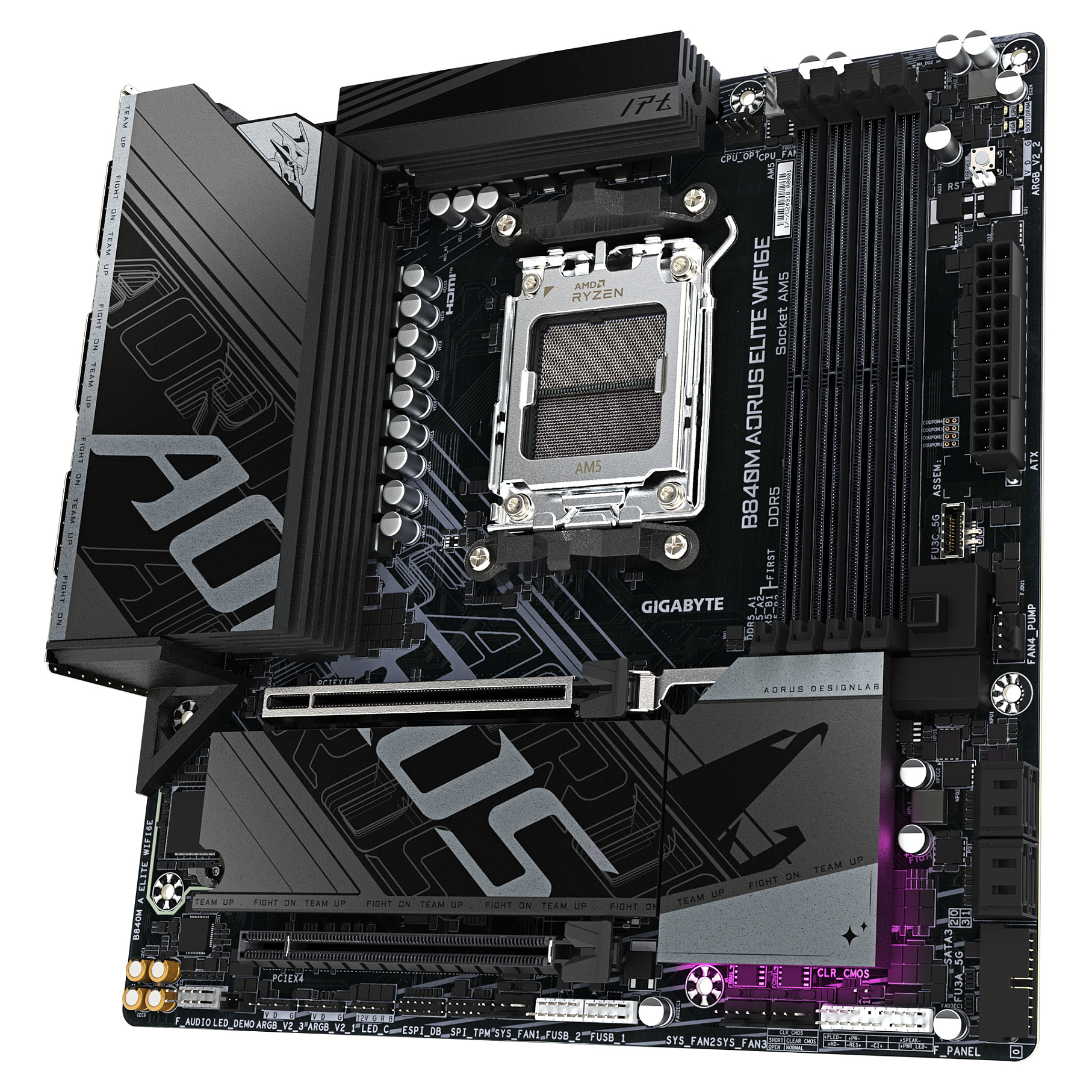

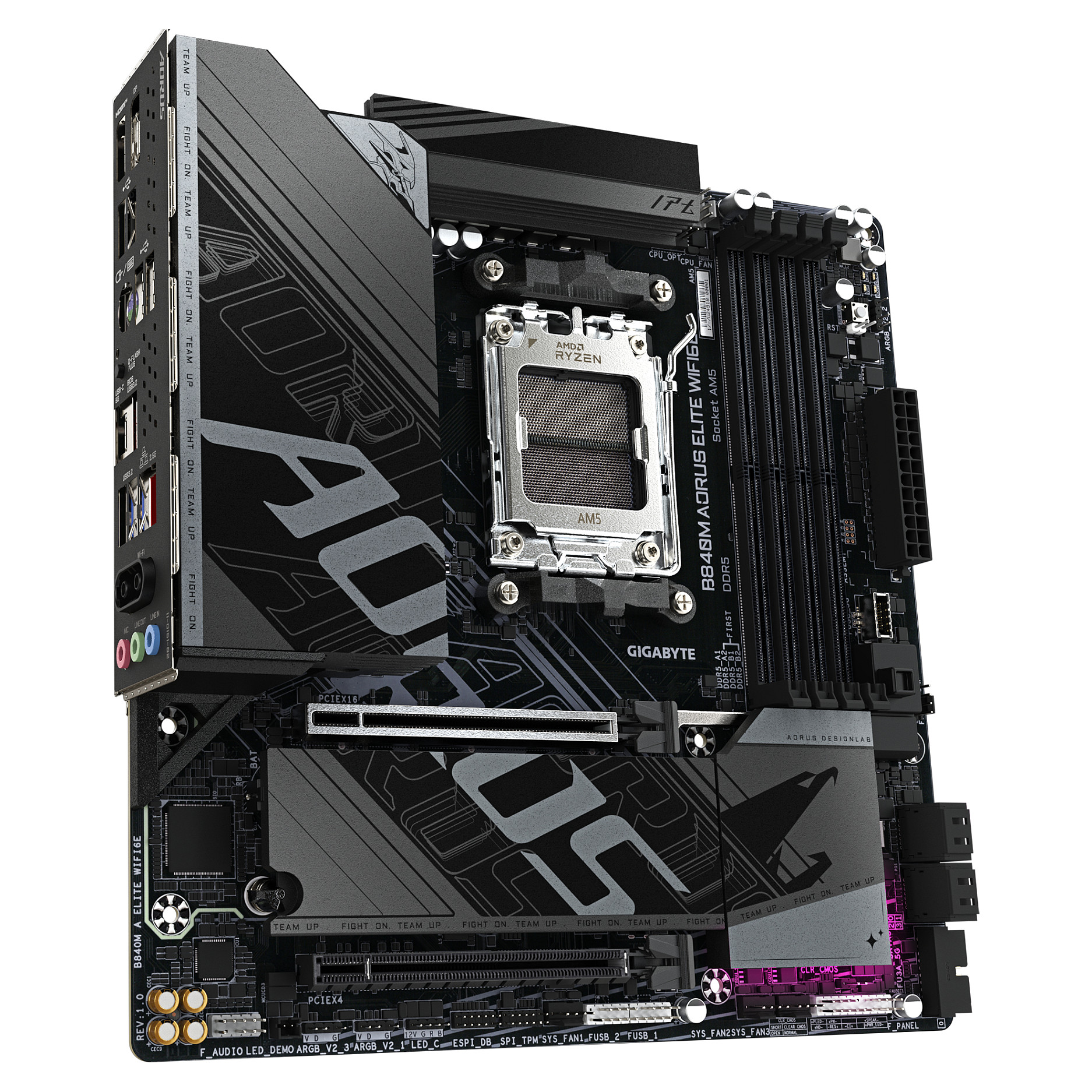

Gigabyte B840M Elite WIFI6E (B840.AM5.mATX.DDR5)
Pre-Order
€162.99
VAT (19%) included
Description
X3D Turbo Mode: Unleash new era gaming performance DDR5 OC up to 8200MT/s AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors Digital twin 10+2+2 phases VRM solution Dual Channel DDR5: 4*DIMMs with AMD EXPO Memory Module Support WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design EZ-Latch Click: M.2 heatsinks with screwless design Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard Ext Fast Networking: 2.5GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna PCIe UD Slot: PCIe x16 slots with 10X strength for graphics card & Better Heat dissipation effect
Technical Specifications
SKU
KB840M A Elite WIFI6E
Processor Manufacturer
AMD
Processor Socket
Socket AM5
Compatible Processor Series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported Processor Sockets
Socket AM5
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
Non-ECC
Supported Memory Clock Speeds
8200, 8000, 7950, 7900, 7800, 7600, 7400, 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5200, 4800, 4400 MHz
Supported Memory Clock Speed (Max)
8200 MHz
Maximum Internal Memory
256 GB
Maximum Internal Memory Per Slot
64 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, PCI Express 4.0, SATA III
Number Of Hdds Supported
4
Number Of Storage Drives Supported
6
Raid Levels
0, 1, 10
Parallel Processing Technology Support
Not supported
Maximum Resolution
4096 x 2160 pixels
Directx Version
12.0
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
2
Number Of Sata Iii Connectors
4
Number Of Cpu Fan Connectors
2
Number Of Chassis Fan Connectors
4
Number Of Eps Power Connectors (8-Pin)
1
Number Of Water Pump Connectors
2
Number Of Rgb Led Pin Headers
4

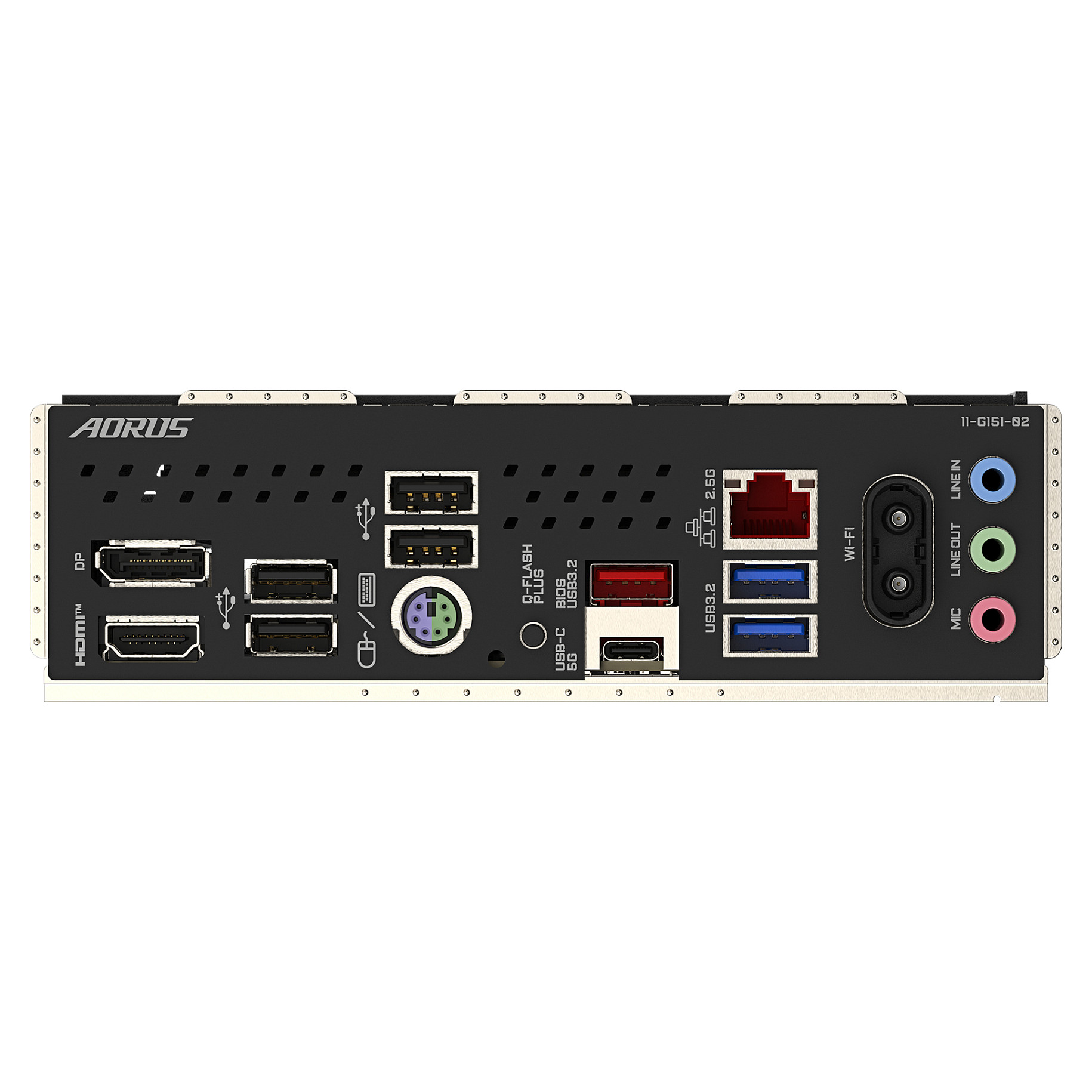

Usb 2.0 Ports Quantity
4
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-C Ports Quantity
1
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
1
Ethernet Lan (Rj-45) Ports
1
Ps/2 Ports Quantity
1
Hdmi Ports Quantity
1
Hdmi Version
2.1
Displayports Quantity
1
Displayport Version
1.4
Headphone Outputs
1
Wifi-Ap Antenna Jack
2
Ethernet Interface Type
2.5 Gigabit Ethernet
Lan Controller
Realtek RTL8125
Top Wi-Fi Standard
Wi-Fi 6E (802.11ax)
Wi-Fi Standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Wlan Controller Model
Realtek RTL8852CE
Bluetooth Version
5.3
Motherboard Chipset
AMD B840
Audio Chip
Realtek ALC897
Audio Output Channels
7.1 channels
Product Colour
Dark brown
Pc Health Monitoring
Fan, Temperature, Voltage, Water cooling
Component For
PC
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
AMD
Cooling Type
Passive
Power Source Type
ATX
Windows Operating Systems Supported
Windows 10 x64, Windows 11 x64
Pci Express X16 (Gen 3.X) Slots
1
Pci Express X16 (Gen 4.X) Slots
1
Number Of M.2 (M) Slots
2
1St M.2 Largest Key Size
2580
1St M.2 Highest Pci Express Generation
4.0
2Nd M.2 Largest Key Size
22110
2Nd M.2 Highest Pci Express Generation
4.0
Bios Type
UEFI AMI
Bios Memory Size
256 Mbit
Acpi Version
5.0
Desktop Management Interface (Dmi) Version
2.7
System Management Bios (Smbios) Version
2.7
Products Per Shipping (Inner) Case
1 pc(s)
Battery Weight
3 g
Lithium Weight Per Battery
0.07 g
Number Of Battery Cells
1
Battery Technology
Lithium-Manganese Dioxide (LiMnO2)
Battery Type
CR2032
Package Width
270 mm
Package Depth
268 mm
Package Height
68 mm
Package Weight
1.59 kg
Width
244 mm
Depth
244 mm
Height
35 mm
Bundled Software
Norton® Internet Security (OEM version) LAN bandwidth management software
Weight
1.5 kg
Warranty Period
3 year(s)
