ASUS

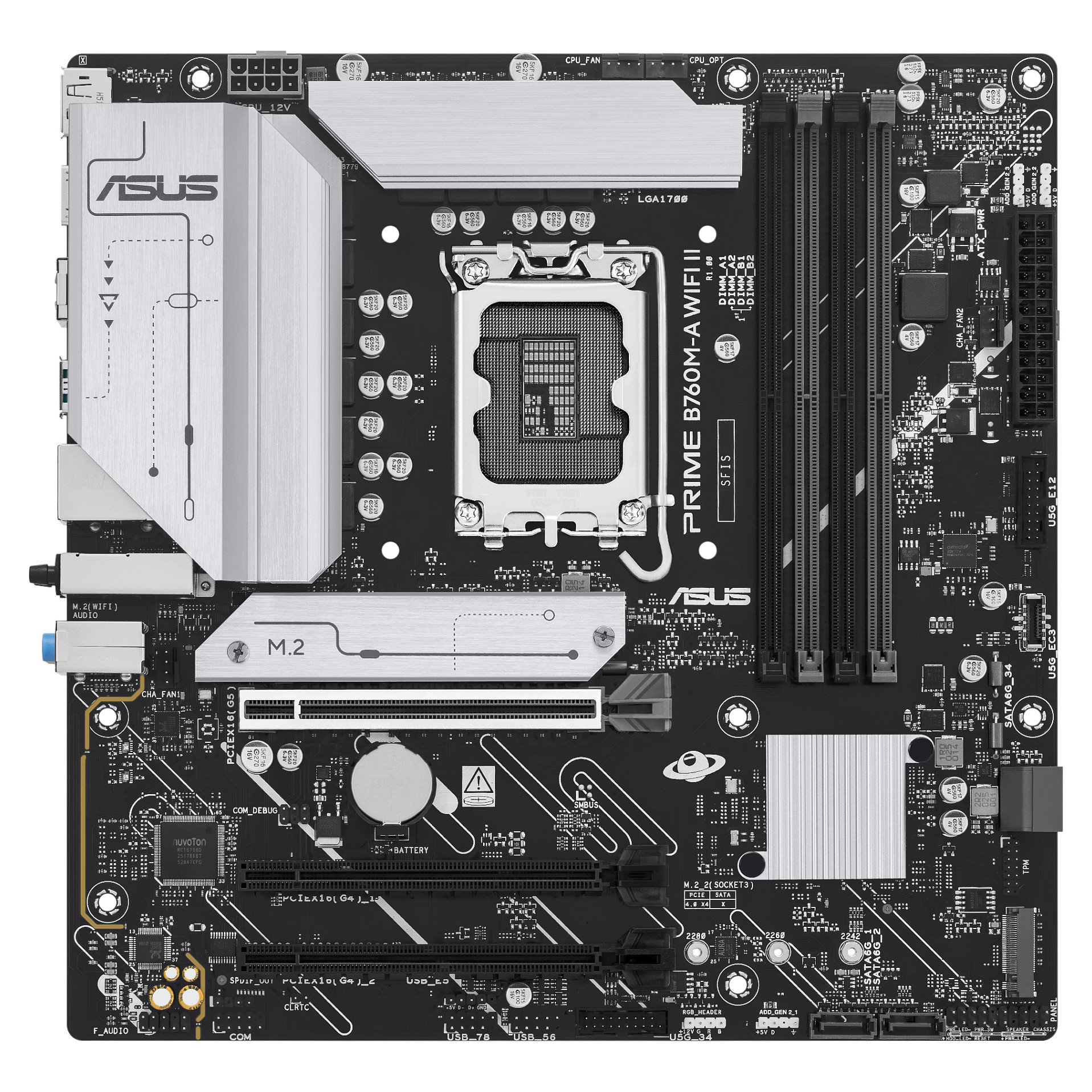

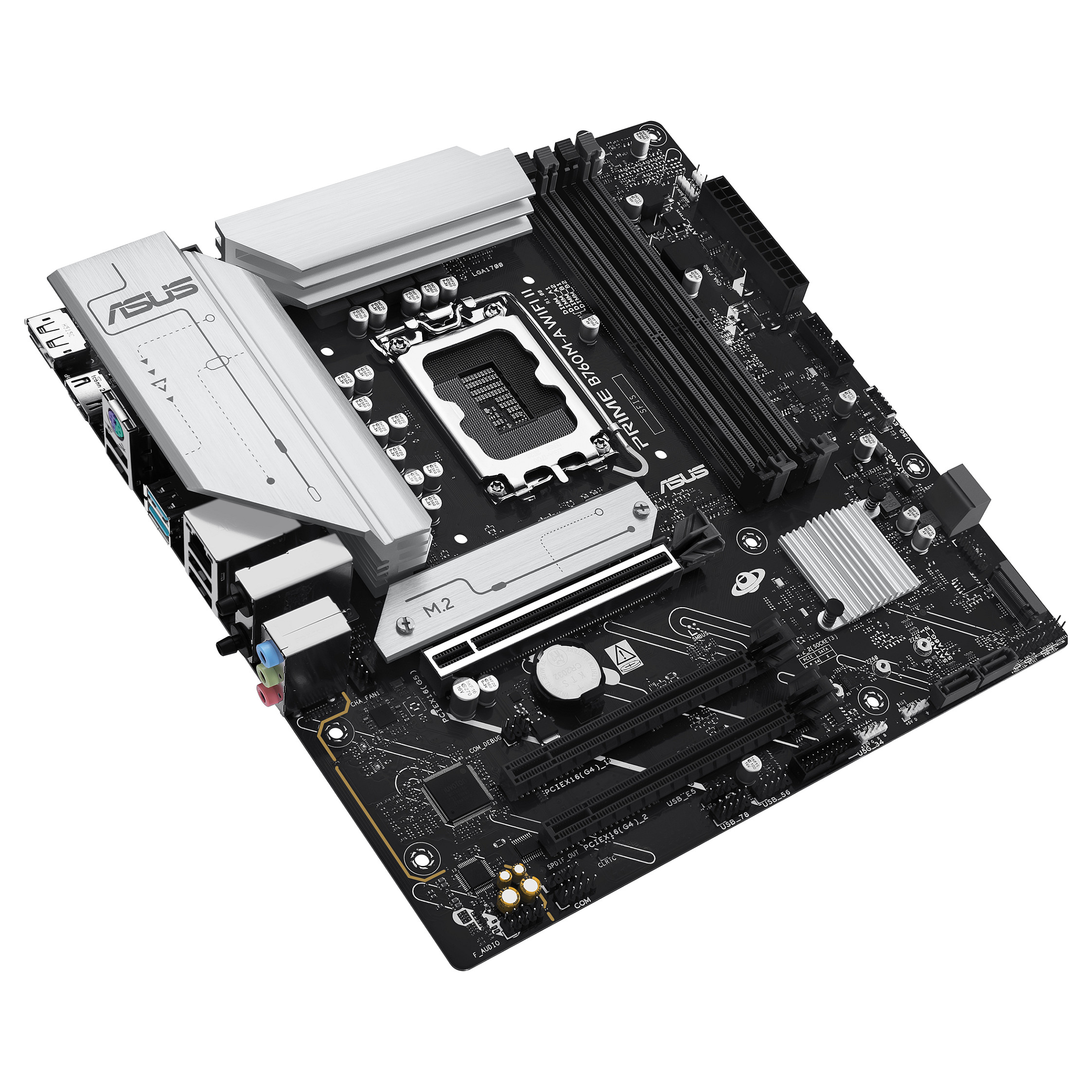

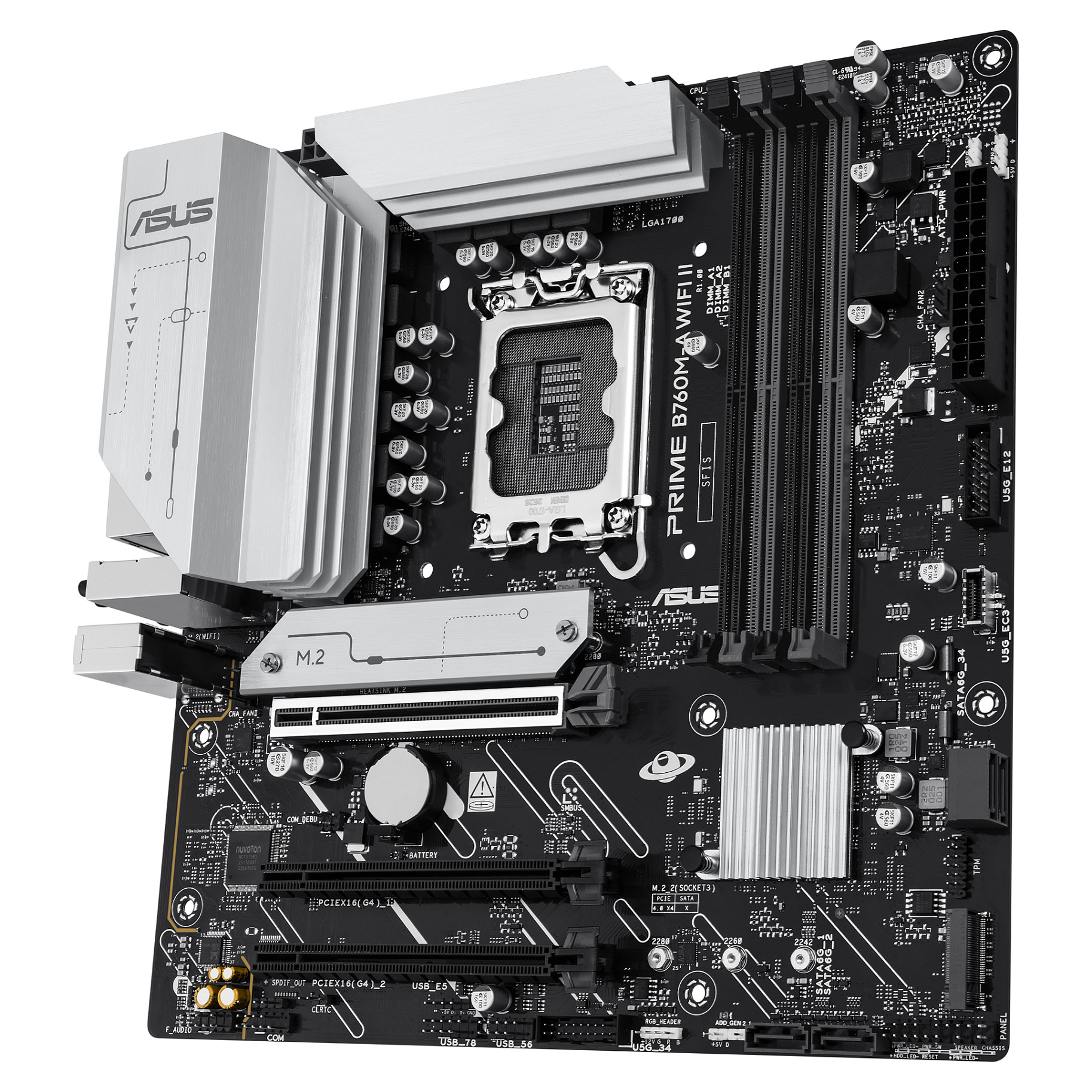

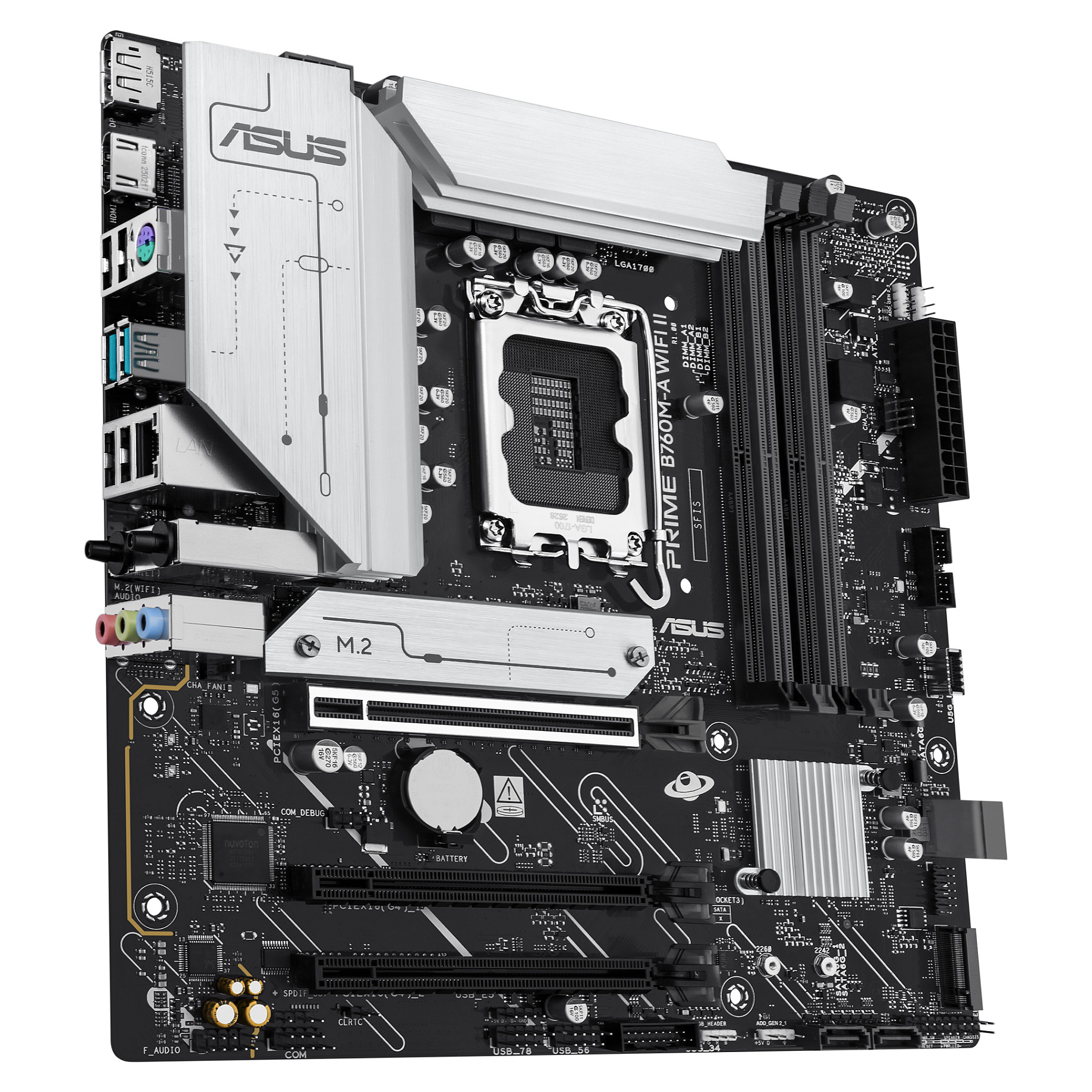

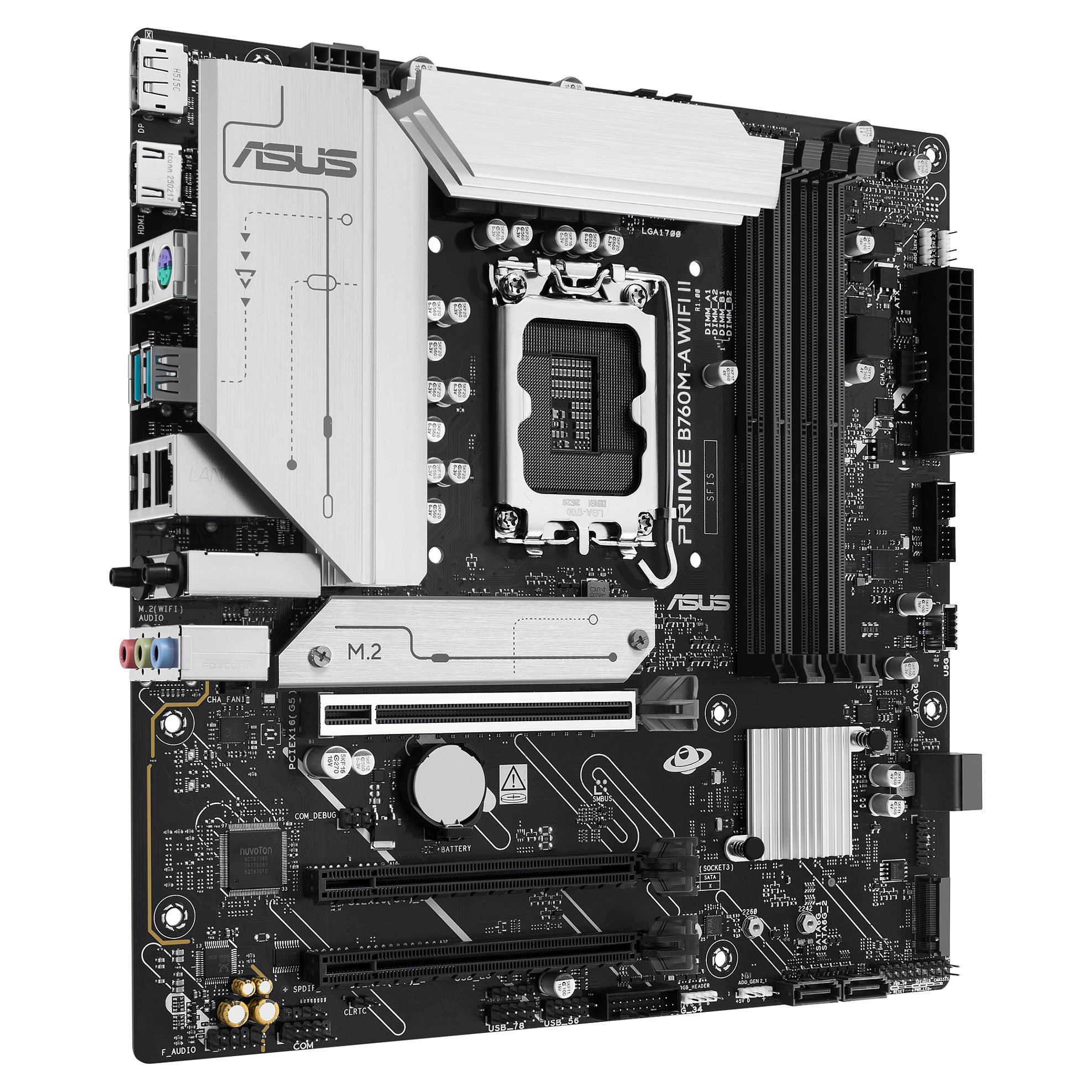

ASUS PRIME B760M-A WiFi II-mATX Mainboard Sockel 1700 HDMI/DP
Pre-Order
€178.99
VAT (19%) included
Description
Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications Intel® LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel® Core™ processors Ultrafast Connectivity: WIFI 6E, PCIe 5.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 10Gbps Type-A ports, front USB 5Gbps Type-C® connector Comprehensive Cooling: VRM heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+ Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences Renowned Software: Armoury Crate, ASUS DriverHub
Technical Specifications
SKU
K90MB1NF0-M0EAY0
Processor Manufacturer
Intel
Processor Socket
LGA 1700
Compatible Processor Series
Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® Gold
Supported Processor Sockets
LGA 1700
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
Non-ECC
Supported Memory Clock Speeds
7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
Supported Memory Clock Speed (Max)
7200 MHz
Maximum Internal Memory
256 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Hdds Supported
4
Number Of Storage Drives Supported
6
Raid Levels
0, 1, 5, 10
Parallel Processing Technology Support
Not supported
Usb 2.0 Connectors
3
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
3
Number Of Sata Iii Connectors
4
Number Of Chassis Fan Connectors
2
Number Of Com Connectors
1
Usb 2.0 Ports Quantity
4
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
2
Ethernet Lan (Rj-45) Ports
1
Ps/2 Ports Quantity
1
Hdmi Ports Quantity
1
Displayports Quantity
1
Wifi-Ap Antenna Jack
1
Ethernet Interface Type
2.5 Gigabit Ethernet
Top Wi-Fi Standard
Wi-Fi 6E (802.11ax)
Wi-Fi Standards
Wi-Fi 6E (802.11ax)
Bluetooth Version
5.4
Motherboard Chipset
Intel B760
Audio Output Channels
7.1 channels
Component For
PC
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
Intel
Windows Operating Systems Supported
Windows 10 x64, Windows 11
Pci Express X16 (Gen 4.X) Slots
2
Pci Express X16 (Gen 5.X) Slots
1
Number Of M.2 (M) Slots
2
1St M.2 Largest Key Size
2280
1St M.2 Highest Pci Express Generation
4.0
2Nd M.2 Largest Key Size
2280
2Nd M.2 Highest Pci Express Generation
4.0
3Rd M.2 Highest Pci Express Generation
3.0
Bios Type
UEFI AMI
Bios Memory Size
128 Mbit
Package Width
275 mm
Package Depth
275 mm
Package Height
67.5 mm
Package Weight
1.4 kg
Width
244 mm
Depth
244 mm
Cables Included
SATA
