ASRock

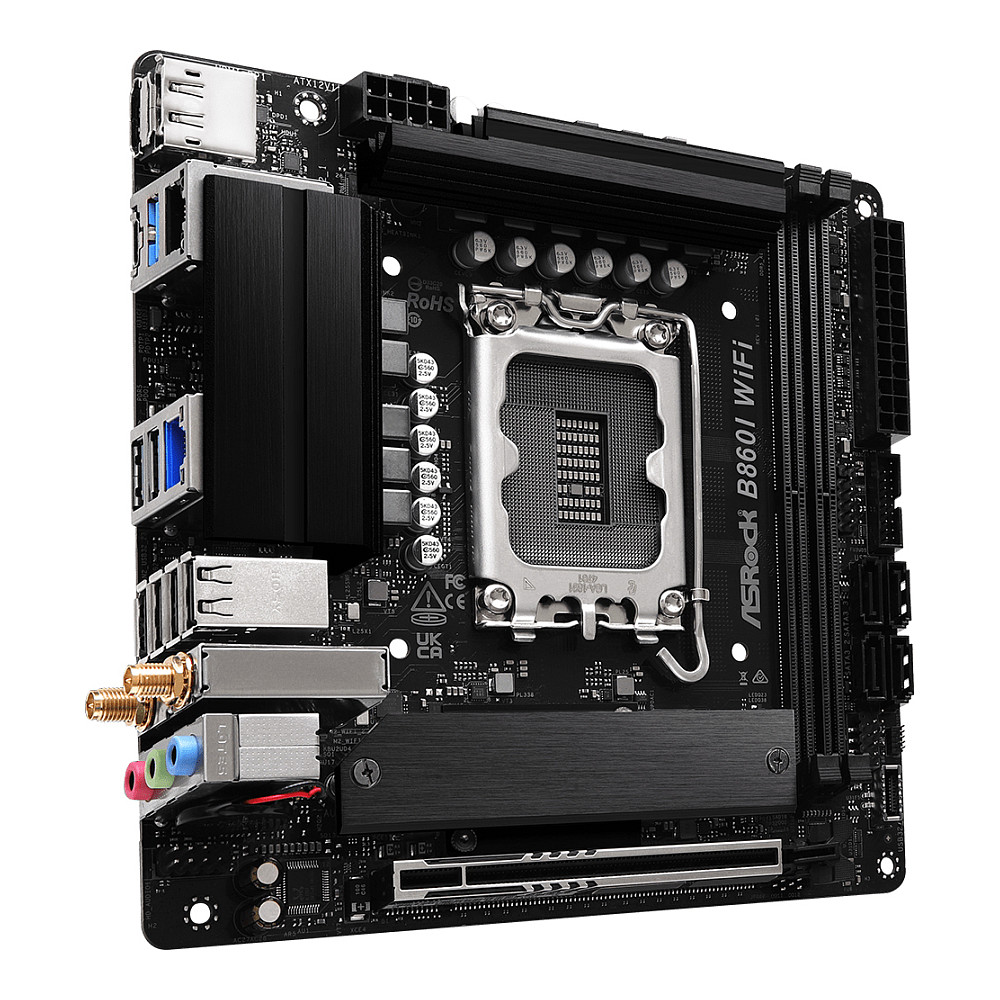

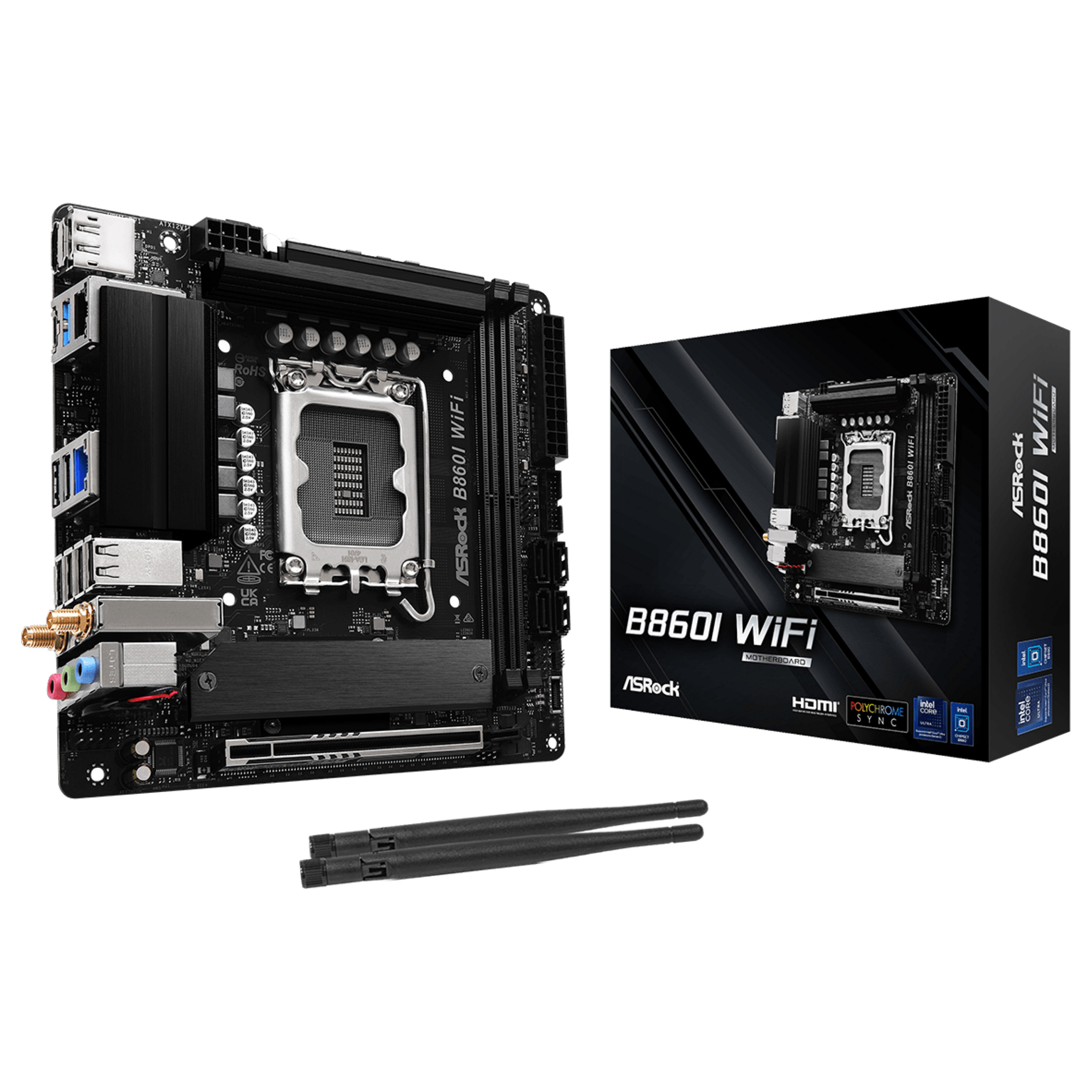

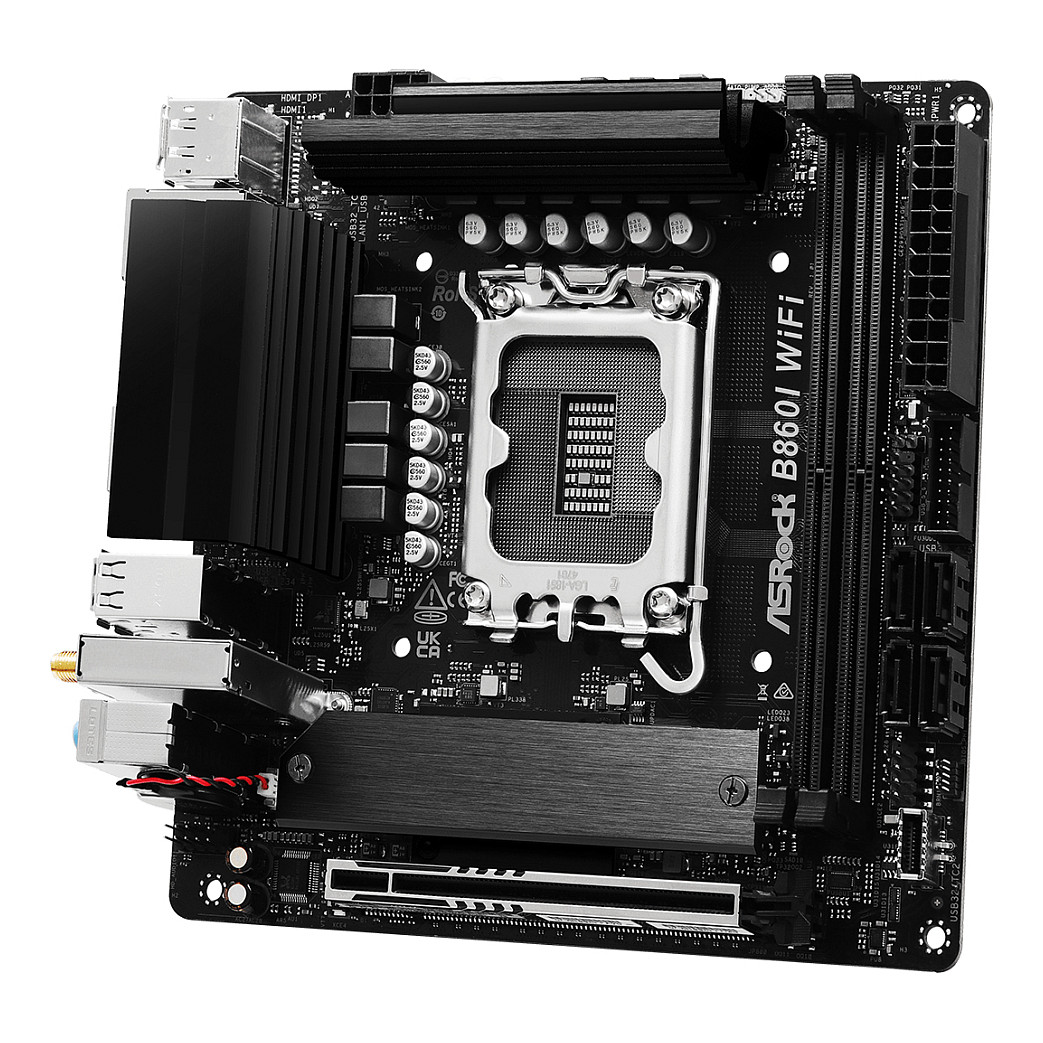

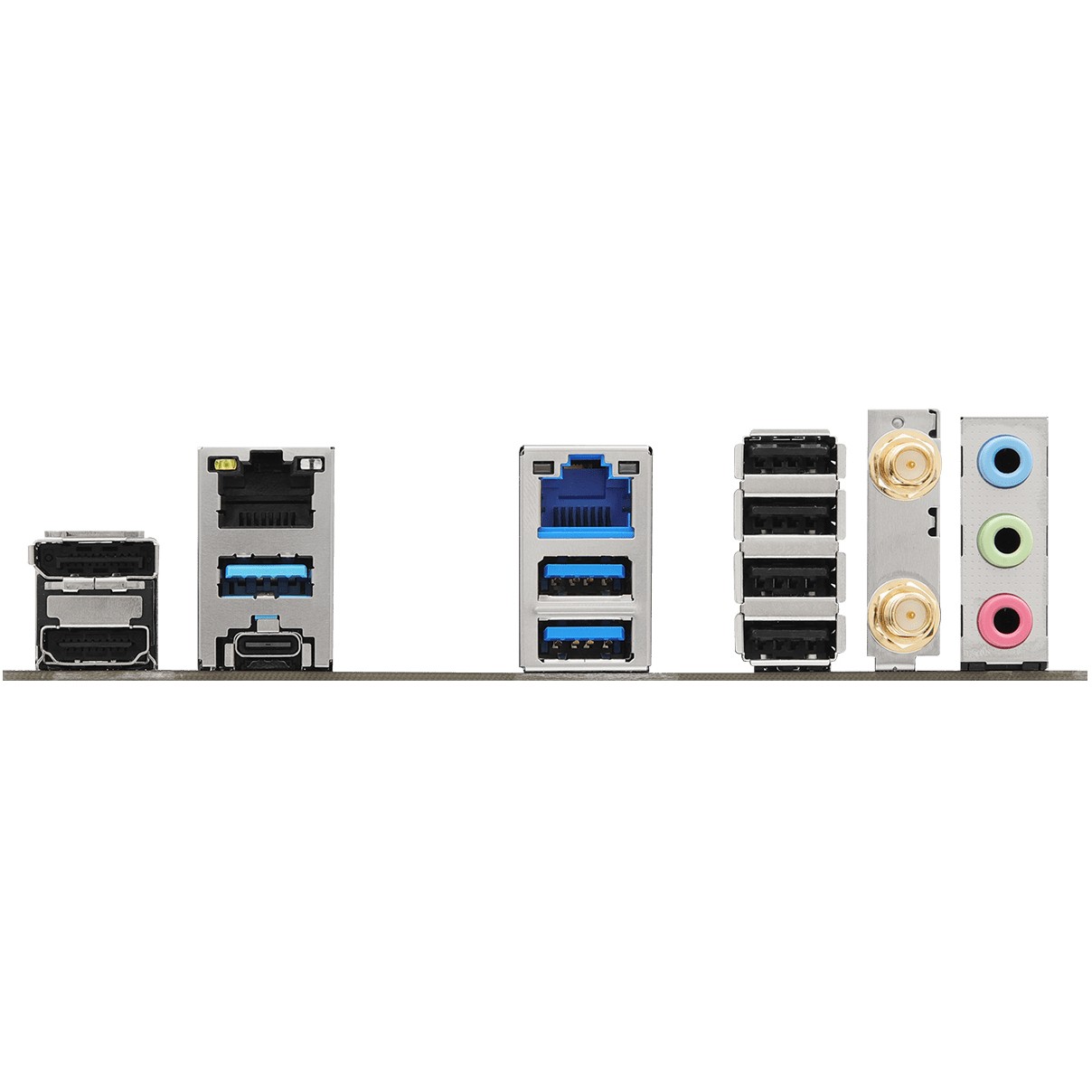

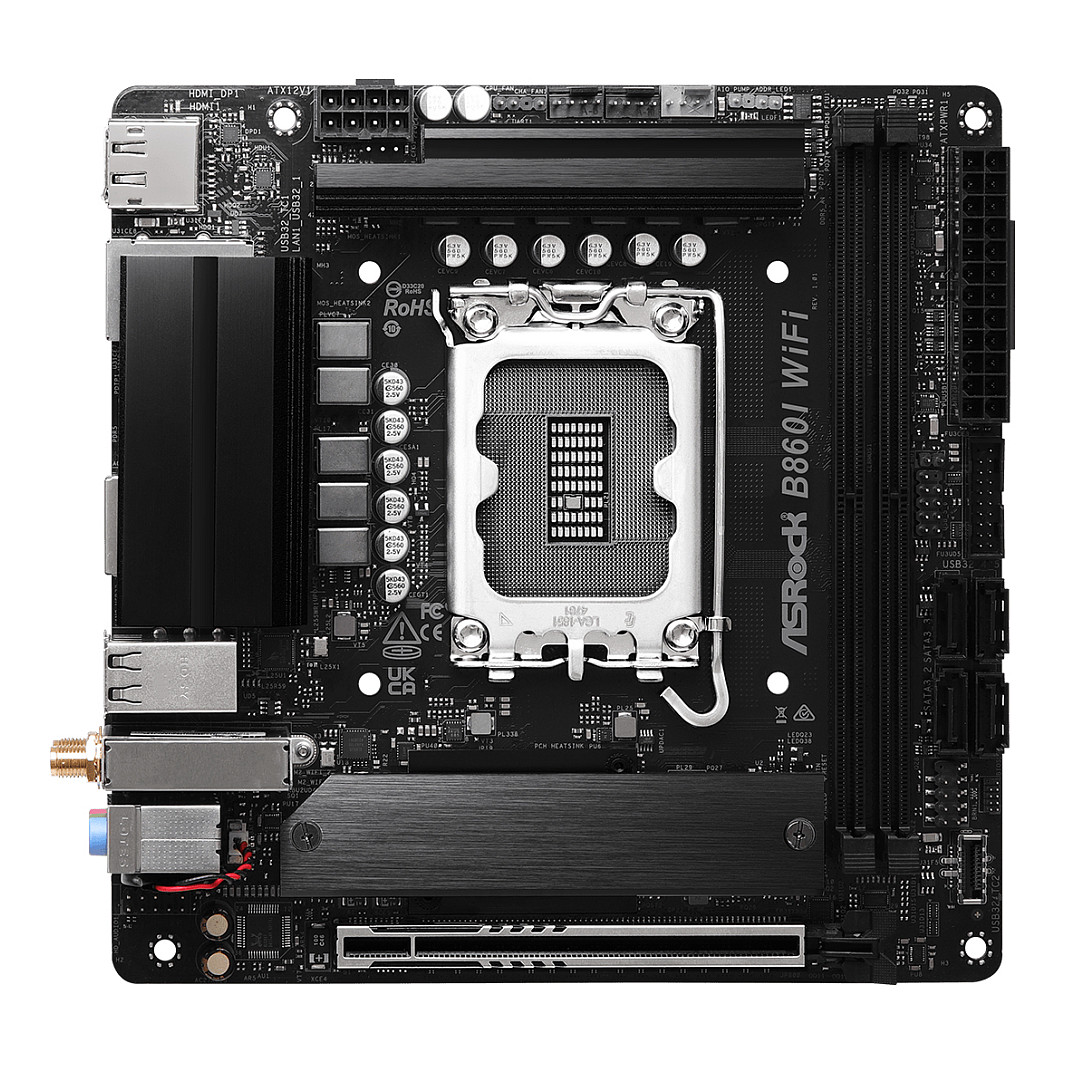

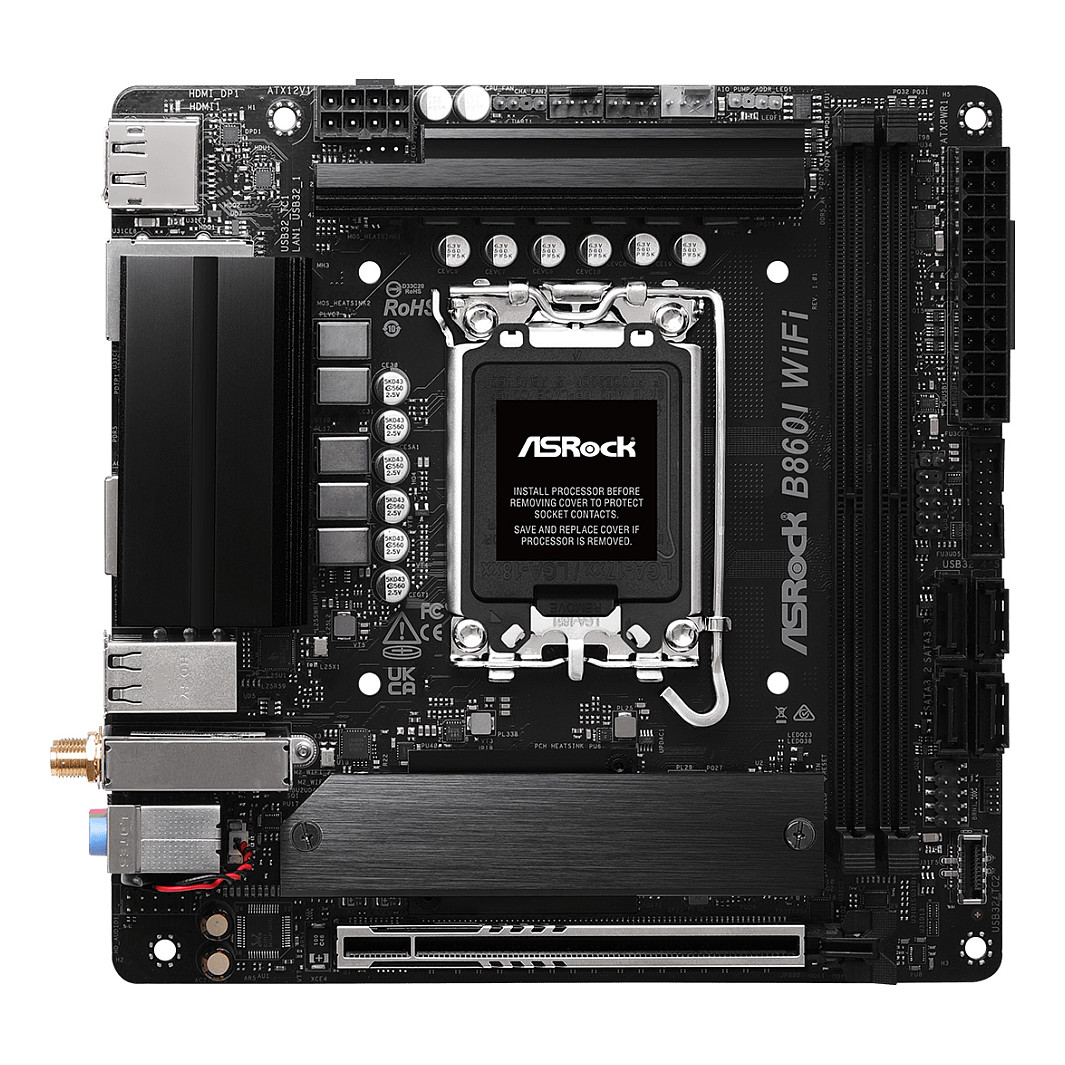

B860I WiFi 1851 mITX HDMI/DP DDR5
Pre-Order
€165.99
VAT (19%) included
Description
Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851) 8+1+1+1+1 Power Phase, SPS for VCore+GT+SA 2 x DDR5 DIMMs Supports Dual Channel, up to 8933+ (OC) 1 PCIe 5.0 x16 Graphics Output Options: 1 HDMI, 1 DisplayPort Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio 4 SATA3 1 Blazing M.2 (PCIe Gen5x4) 1 Hyper M.2 (PCIe Gen4x4) 1 USB 3.2 Gen2x2 Type-C (Rear) 1 USB 3.2 Gen2 Type-C (Front) 1 USB 3.2 Gen2 Type-A (Rear) 4 USB 3.2 Gen1 (2 Rear, 2 Front) 6 USB 2.0 (4 Rear, 2 Front) Realtek 2.5G LAN Intel® Gigabit LAN 802.11axe WiFi 6E + Bluetooth
Technical Specifications
SKU
K90-MXBQQ0-A0UAYZ
Processor Manufacturer
Intel
Processor Socket
LGA 1851 (Socket V1)
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
2
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
Non-ECC
Maximum Internal Memory
128 GB
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Storage Drives Supported
6
Raid Levels
0, 1, 5, 10
Graphics Card Family
Intel
Usb 2.0 Connectors
1
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors
1
Number Of Sata Iii Connectors
4
Number Of Cpu Fan Connectors
1
Number Of Chassis Fan Connectors
1
Number Of Eps Power Connectors (8-Pin)
1
Number Of Rgb Led Pin Headers
1
Usb 2.0 Ports Quantity
4
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
2
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
1
Usb 3.2 Gen 2X2 Type-C Ports Quantity
1
Ethernet Lan (Rj-45) Ports
2
Hdmi Ports Quantity
1
Displayports Quantity
1
Displayport Version
1.4
Ethernet Interface Type
2.5 Gigabit Ethernet
Lan Controller
Dragon RTL8125BG
Top Wi-Fi Standard
Wi-Fi 6E (802.11ax)
Wi-Fi Standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth Version
5.3
Motherboard Chipset
Intel B860
Audio Chip
Realtek ALC897
Audio Output Channels
7.1 channels
Component For
PC
Motherboard Form Factor
mini ITX
Motherboard Chipset Family
Intel
Windows Operating Systems Supported
Windows 11 x64
Pci Express X16 (Gen 5.X) Slots
1
Number Of M.2 (M) Slots
2
Bios Type
UEFI AMI
Bios Memory Size
256 Mbit
Width
170 mm
Depth
170 mm
Cables Included
SATA
