Gigabyte

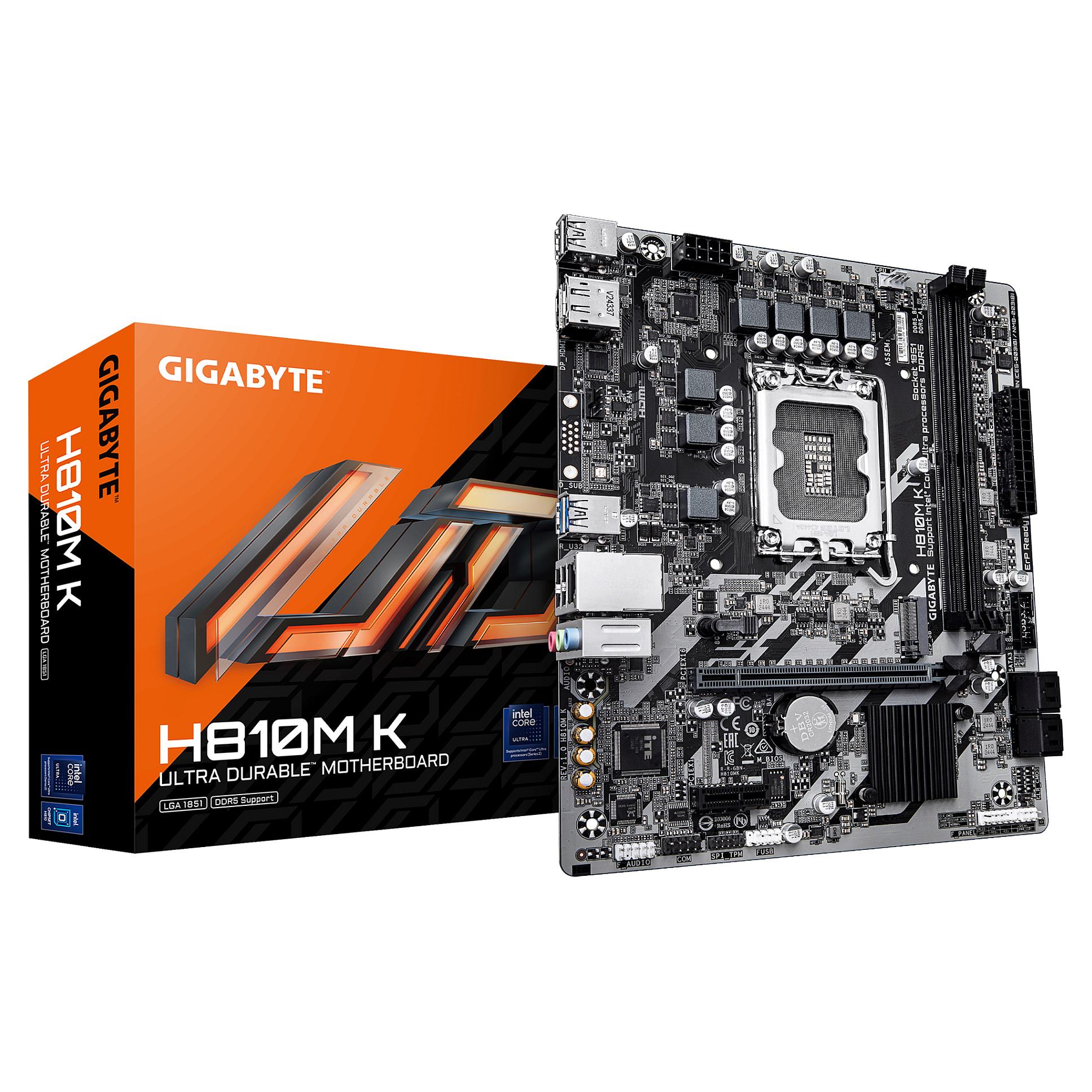

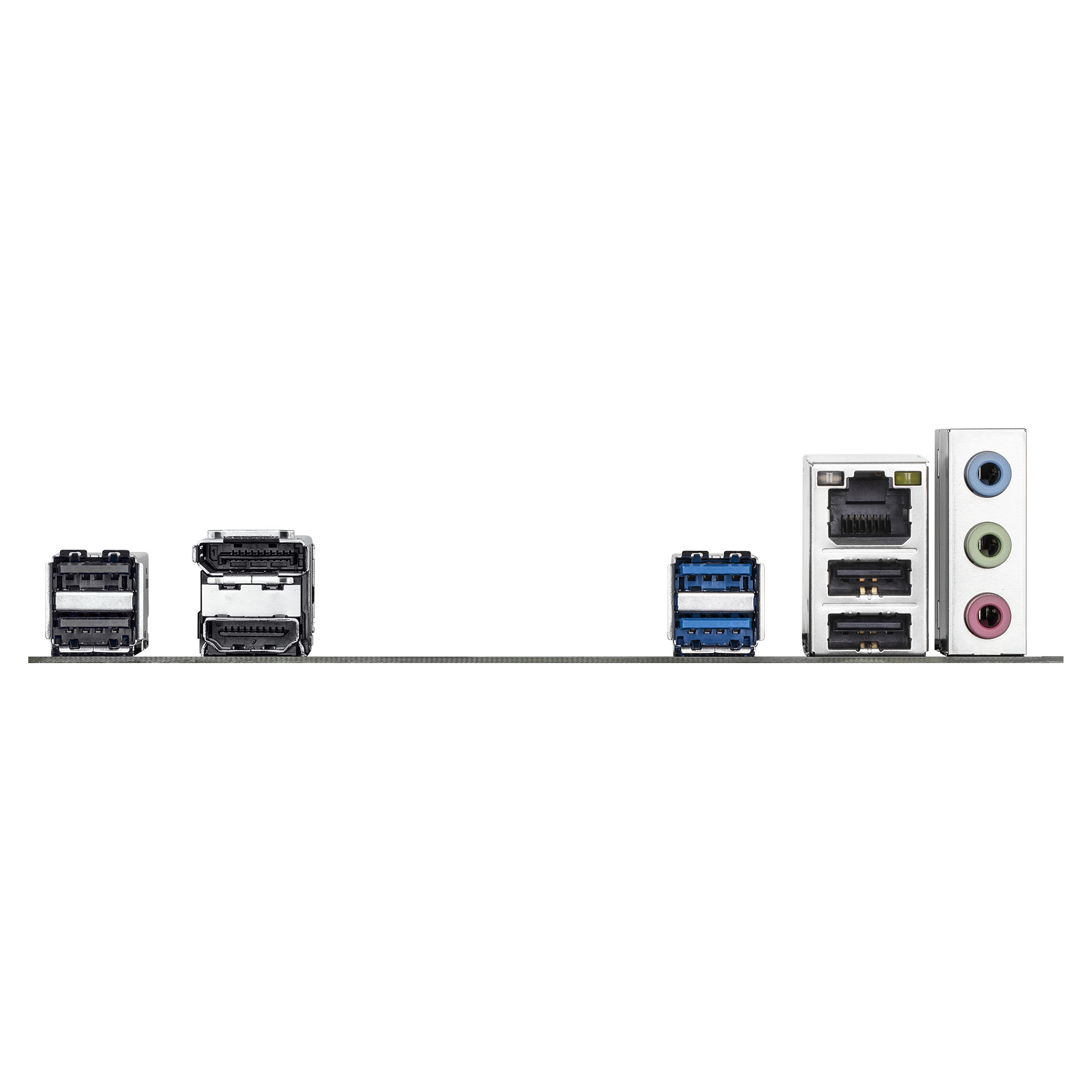

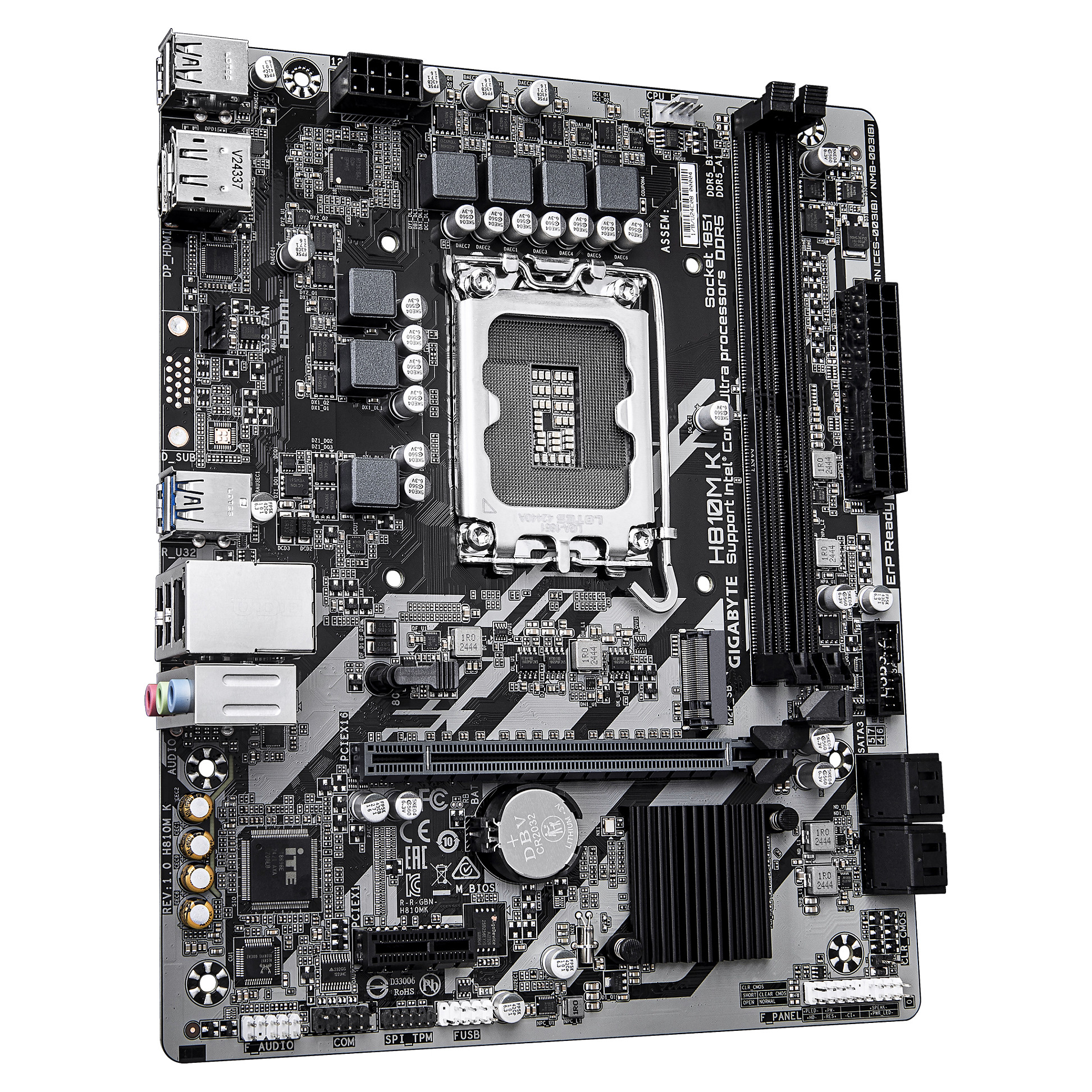

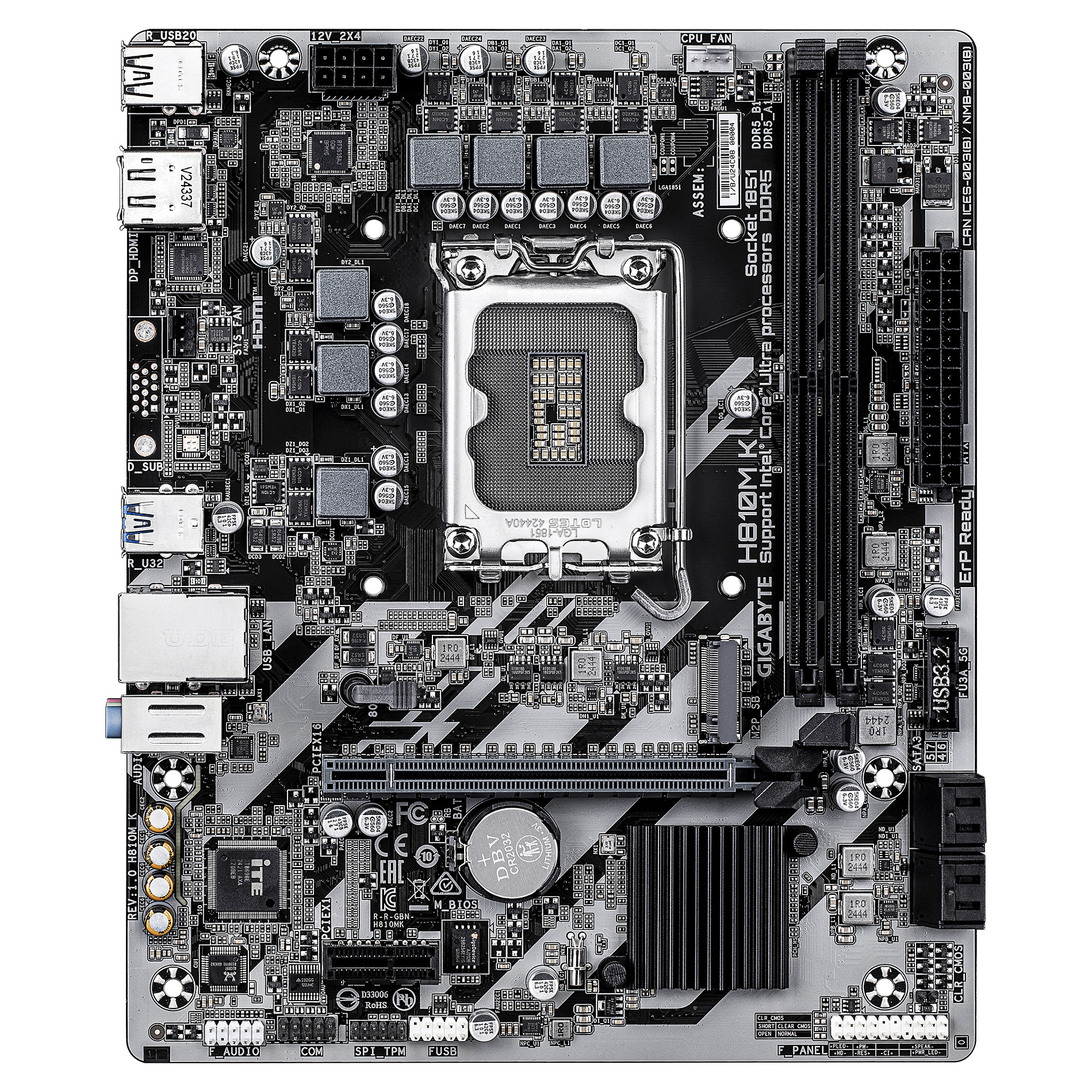

Gigabyte GA-H810M K (1851) (D)
Pre-Order
€94.99
VAT (19%) included
Description
Supports Intel Core Ultra processors (Series 2) Hybrid 3+1+2 phases VRM solution EZ-Latch: PCIe x16 Slot with Quick Release Design Friendly UI: Multi-Theme and Q-Flash Auto Scan in BIOS and SW Next Generation Storage: PCIe 4.0 x4 M.2 Connectors Fast Networking: GbE LAN Extended Connectivity: HDMI, DisplayPort
Technical Specifications
SKU
KH810M K
Processor Manufacturer
Intel
Processor Socket
LGA 1851 (Socket V1)
Compatible Processor Series
Intel Core Ultra (Series 2)
Supported Processor Sockets
LGA 1851
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
2
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
ECC & Non-ECC
Supported Memory Clock Speeds
5600, 6400 MHz
Supported Memory Clock Speed (Max)
6400 MHz
Maximum Internal Memory
128 GB
Maximum Internal Memory Per Slot
64 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, PCI Express 4.0, SATA III
Number Of Hdds Supported
4
Number Of Storage Drives Supported
5
Raid Levels
0, 1, 5, 10
Parallel Processing Technology Support
Not supported
Maximum Resolution
4096 x 2160 pixels
Directx Version
12.0
Usb 2.0 Connectors
1
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Number Of Sata Iii Connectors
4
Number Of Cpu Fan Connectors
1
Number Of Chassis Fan Connectors
1
Number Of Eps Power Connectors (8-Pin)
1
Serial Port Headers
1
Usb 2.0 Ports Quantity
4
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
2
Ethernet Lan (Rj-45) Ports
1
Hdmi Ports Quantity
1
Hdmi Version
2.1
Displayports Quantity
1
Displayport Version
2.1
Headphone Outputs
1
Ethernet Interface Type
Gigabit Ethernet
Lan Controller
Realtek RTL8111H
Motherboard Chipset
Intel H810
Audio Chip
Realtek ALC897
Audio Output Channels
7.1 channels
Product Colour
Dark brown
Pc Health Monitoring
Fan, Temperature, Voltage, Water cooling
Component For
PC
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
Intel
Cooling Type
Passive
Power Source Type
ATX
Windows Operating Systems Supported
Windows 10 x64, Windows 11 x64
Pci Express X1 (Gen 3.X) Slots
1
Pci Express X16 (Gen 4.X) Slots
1
Number Of M.2 (M) Slots
1
1St M.2 Largest Key Size
2280
1St M.2 Highest Pci Express Generation
4.0
Bios Type
UEFI AMI
Bios Memory Size
256 Mbit
Acpi Version
5.0
Desktop Management Interface (Dmi) Version
2.7
System Management Bios (Smbios) Version
2.7
Country Of Origin
China
Products Per Shipping (Inner) Case
1 pc(s)
Battery Weight
3 g
Lithium Weight Per Battery
0.07 g
Number Of Battery Cells
1
Battery Technology
Lithium-Manganese Dioxide (LiMnO2)
Battery Type
CR2032
Package Width
265 mm
Package Depth
265 mm
Package Height
54 mm
Package Weight
766.6 g
Width
226 mm
Depth
185 mm
Height
35 mm
Bundled Software
Norton® Internet Security (OEM version) LAN bandwidth management software
Weight
688 g
Warranty Period
3 year(s)
