ASUS

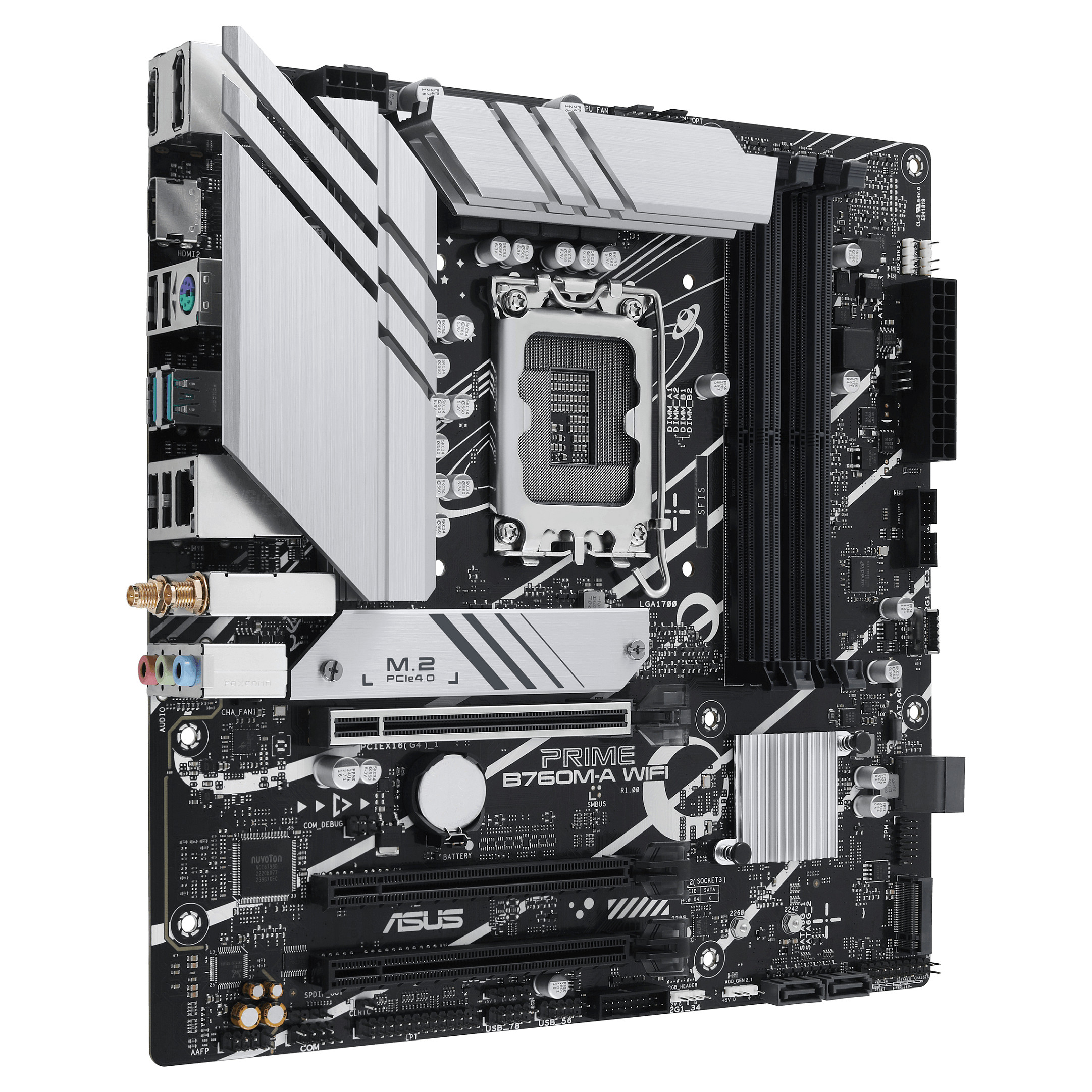

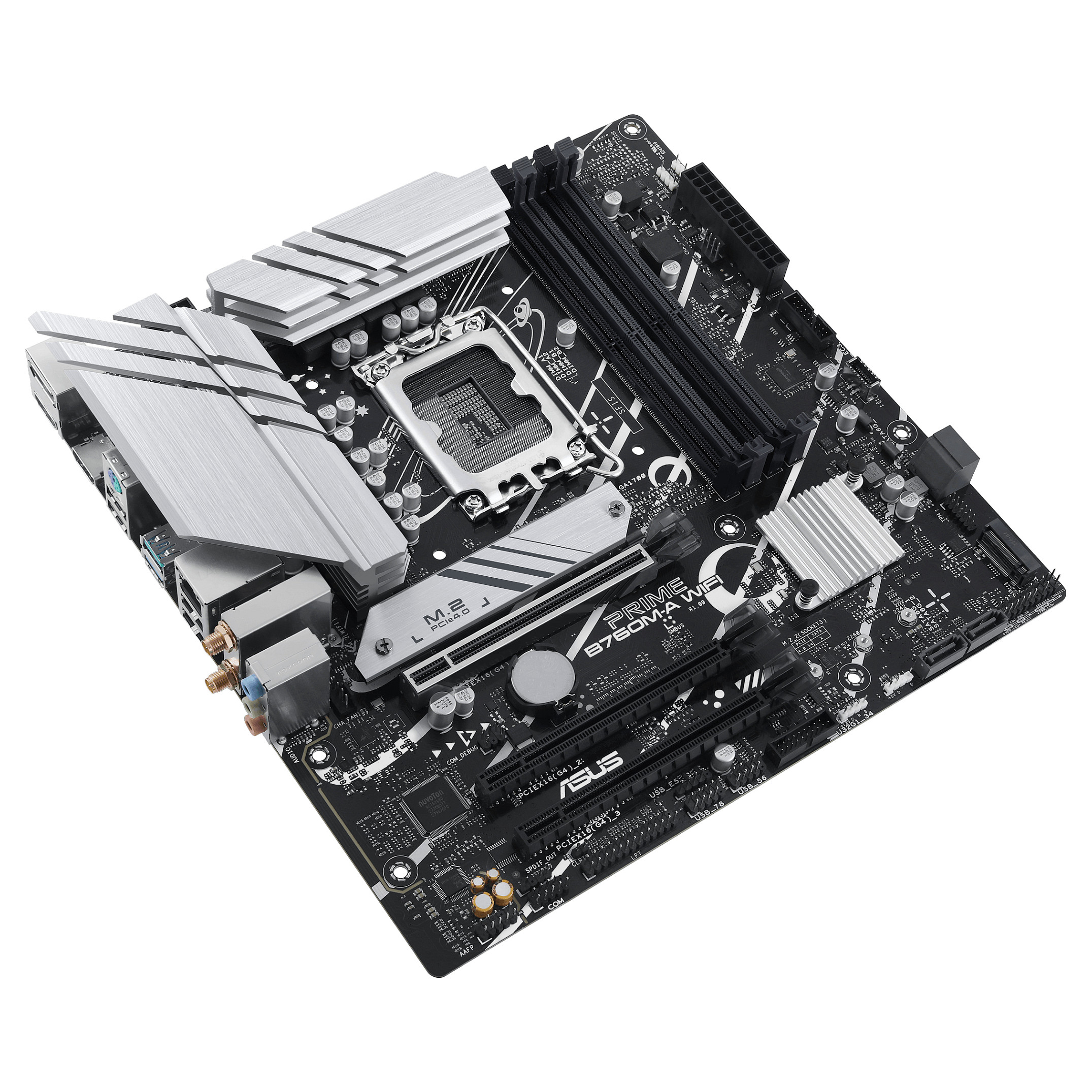

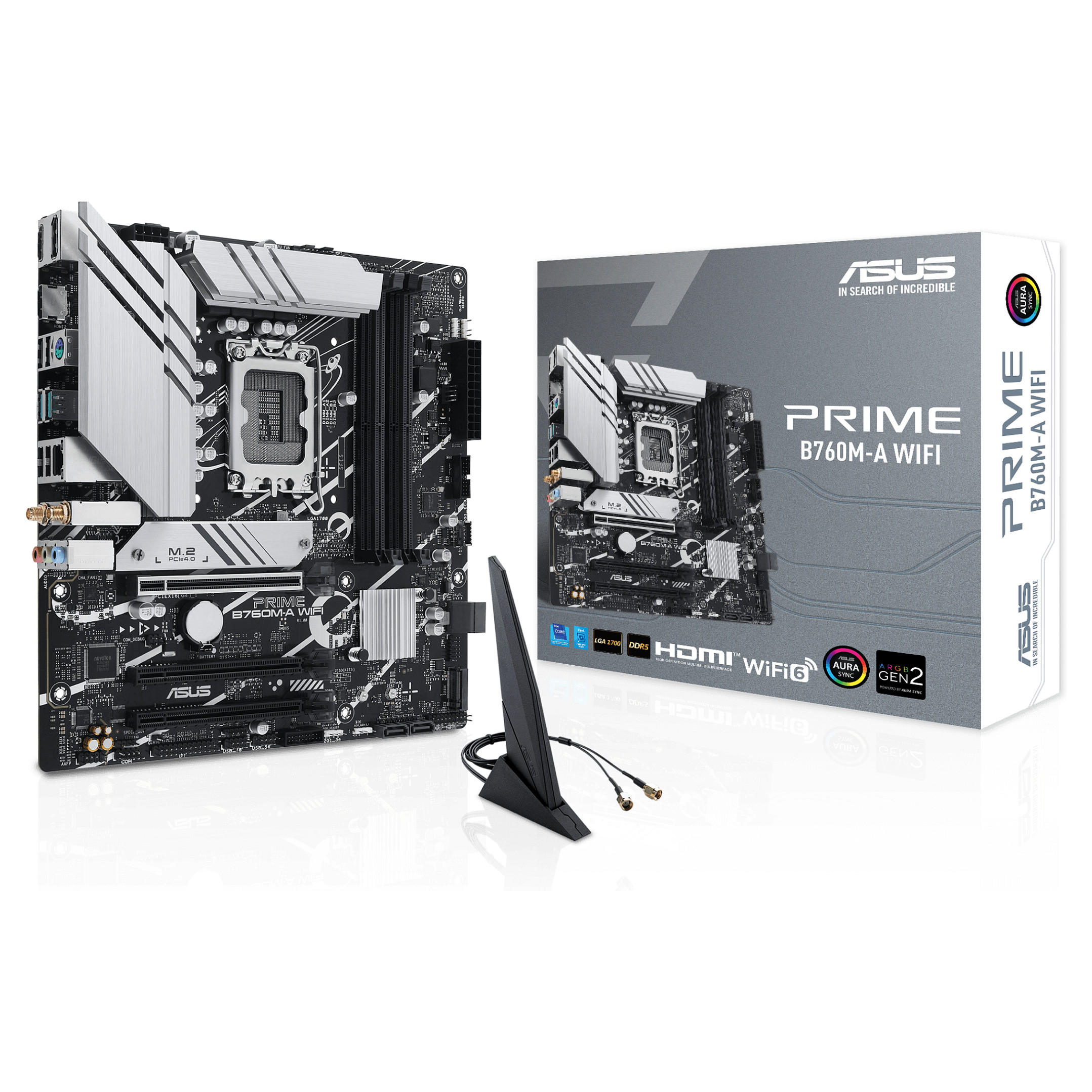

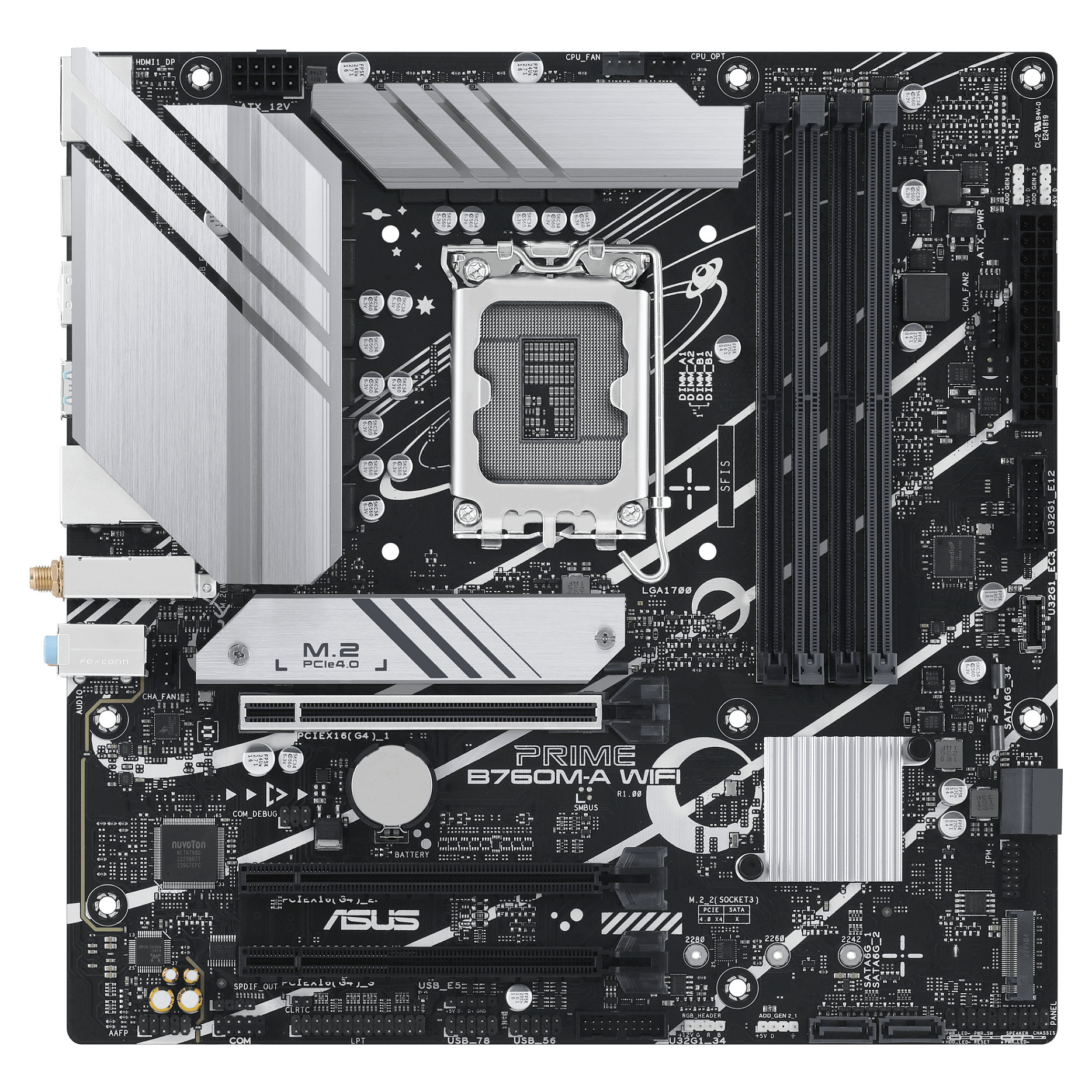

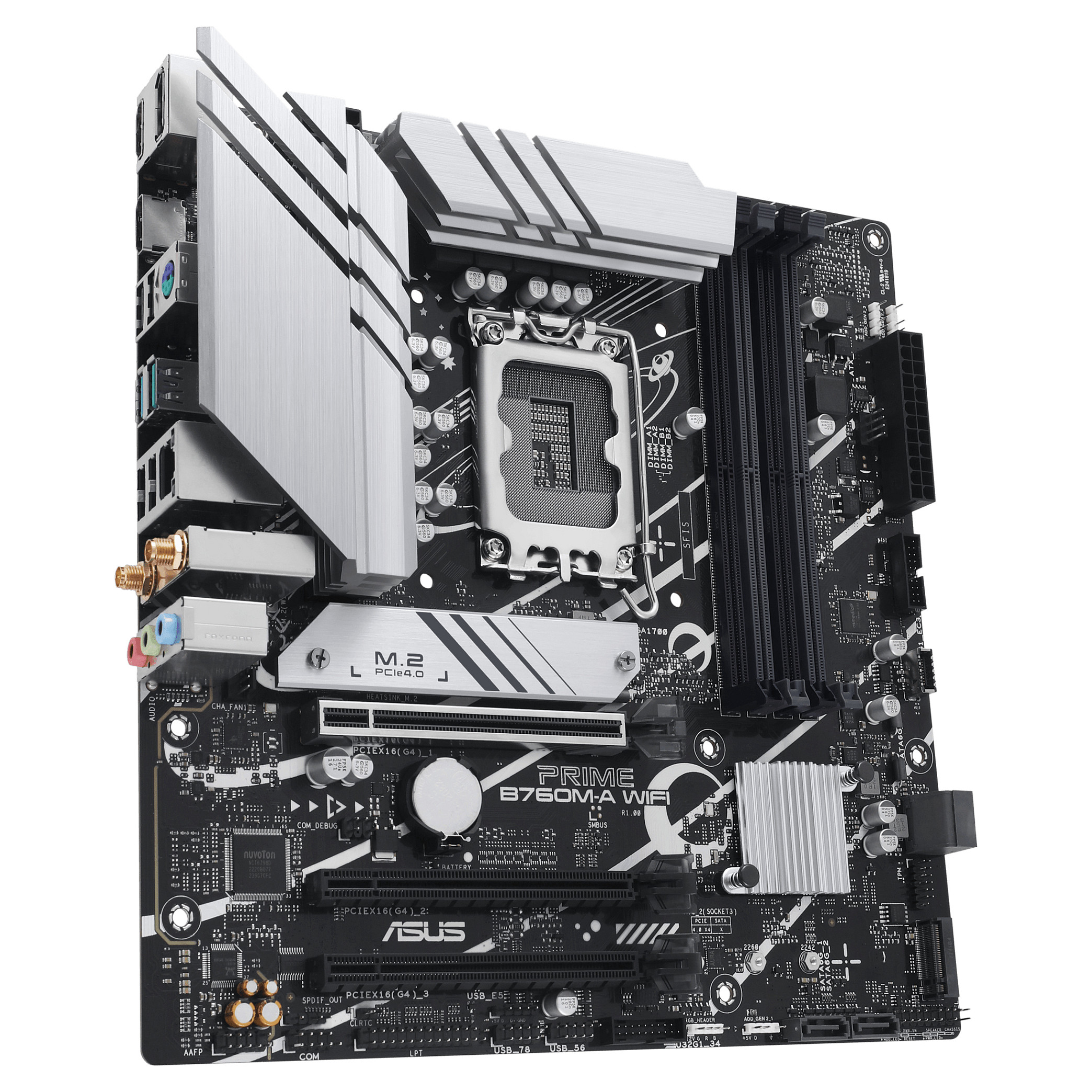

ASUS PRIME B760M-A WIFI S1700/DDR5/2xHDMI-1xDP/µATX Optional: 1x COM. 1x LPT
Pre-Order
€180.99
VAT (19%) included
Description
Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C® Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+ Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
Technical Specifications
SKU
K90MB1EL0-M1EAY0
Processor Manufacturer
Intel
Processor Socket
LGA 1700
Compatible Processor Series
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Supported Processor Sockets
LGA 1700
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
Non-ECC
Supported Memory Clock Speeds
7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
Supported Memory Clock Speed (Max)
7200 MHz
Maximum Internal Memory
128 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Hdds Supported
4
Number Of Storage Drives Supported
6
Raid Levels
0, 1, 5, 10
Parallel Processing Technology Support
Not supported
Usb 2.0 Connectors
3
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
3
Number Of Sata Iii Connectors
4
Number Of Chassis Fan Connectors
2
Number Of Com Connectors
1
Usb 2.0 Ports Quantity
4
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
2
Ethernet Lan (Rj-45) Ports
1
Ps/2 Ports Quantity
1
Hdmi Ports Quantity
2
Hdmi Version
2.1
Displayports Quantity
1
Displayport Version
1.4
Wifi-Ap Antenna Jack
2
Ethernet Interface Type
2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Top Wi-Fi Standard
Wi-Fi 6 (802.11ax)
Wi-Fi Standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth Version
5.2
Motherboard Chipset
Intel B760
Audio Output Channels
7.1 channels
Component For
PC
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
Intel
Cooling Type
Passive
Power Source Type
ATX
Windows Operating Systems Supported
Windows 10 x64, Windows 11
Pci Express X16 (Gen 4.X) Slots
2
Number Of M.2 (M) Slots
2
Bios Type
UEFI AMI
Bios Memory Size
128 Mbit
Package Width
275 mm
Package Depth
275 mm
Package Height
67.5 mm
Package Weight
1.4 kg
Width
244 mm
Depth
244 mm
Height
50 mm
Cables Included
SATA
Weight
886 g
