Gigabyte

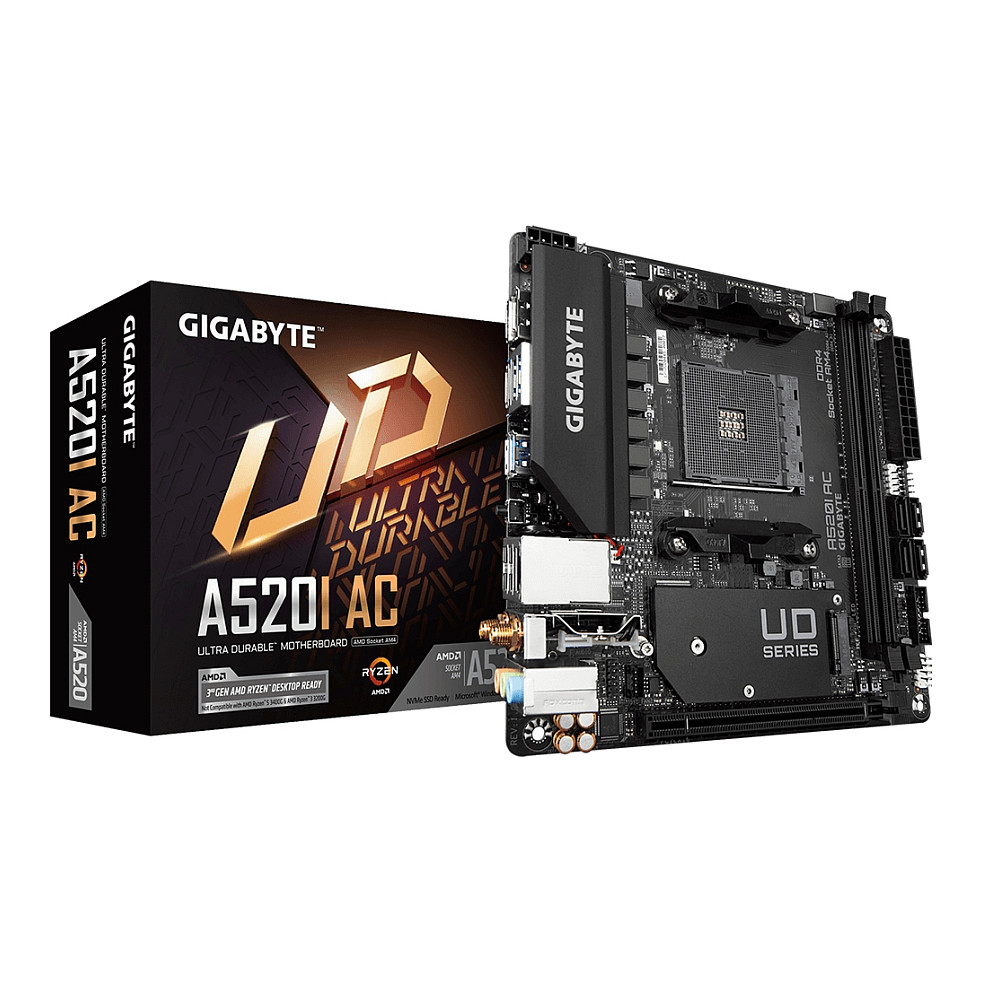

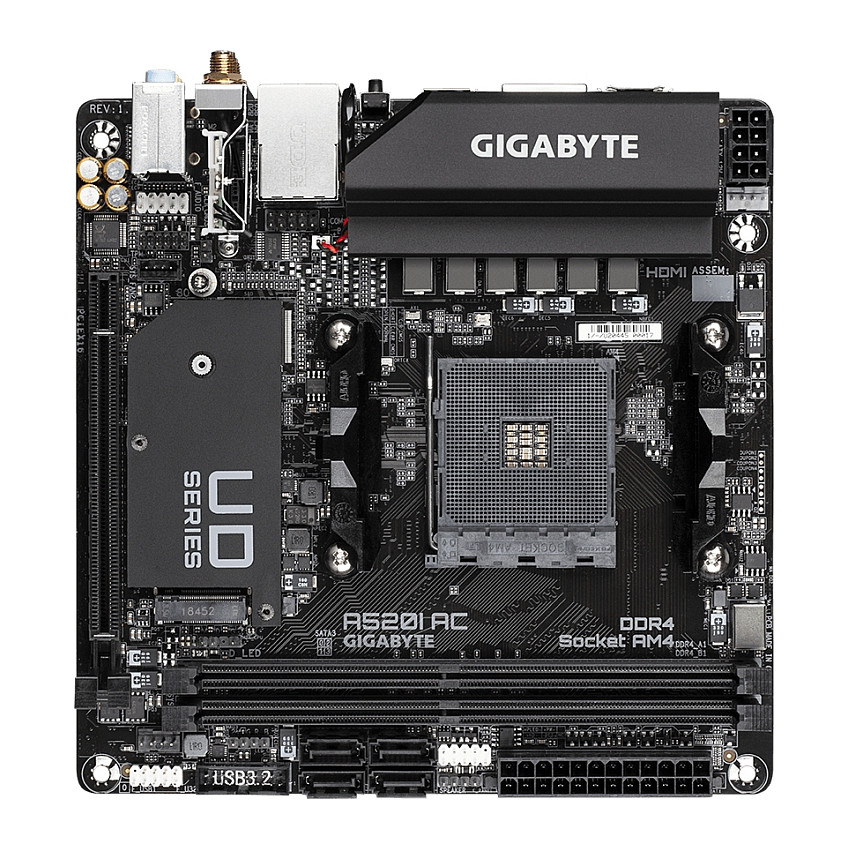

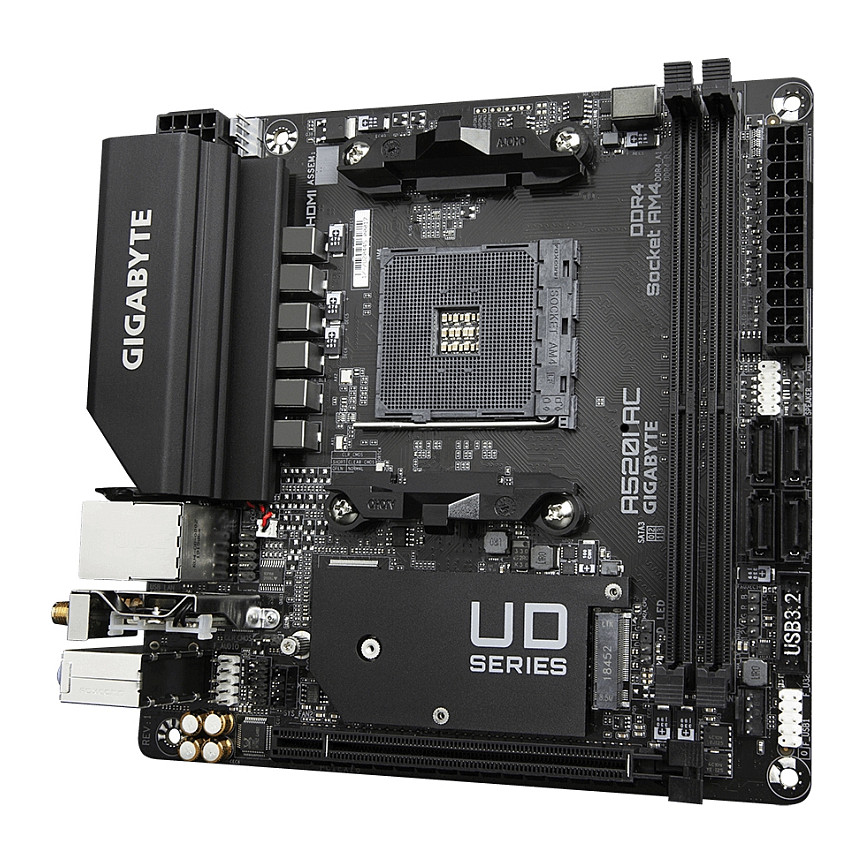

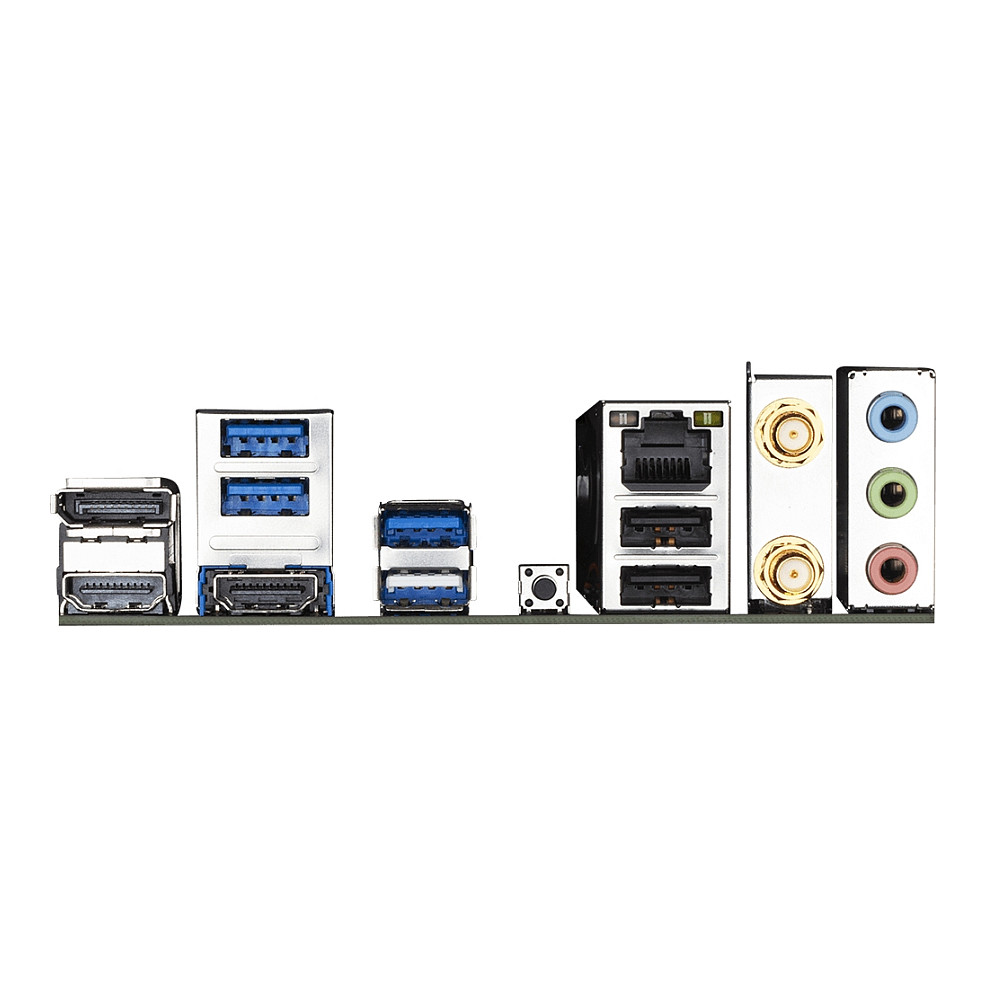

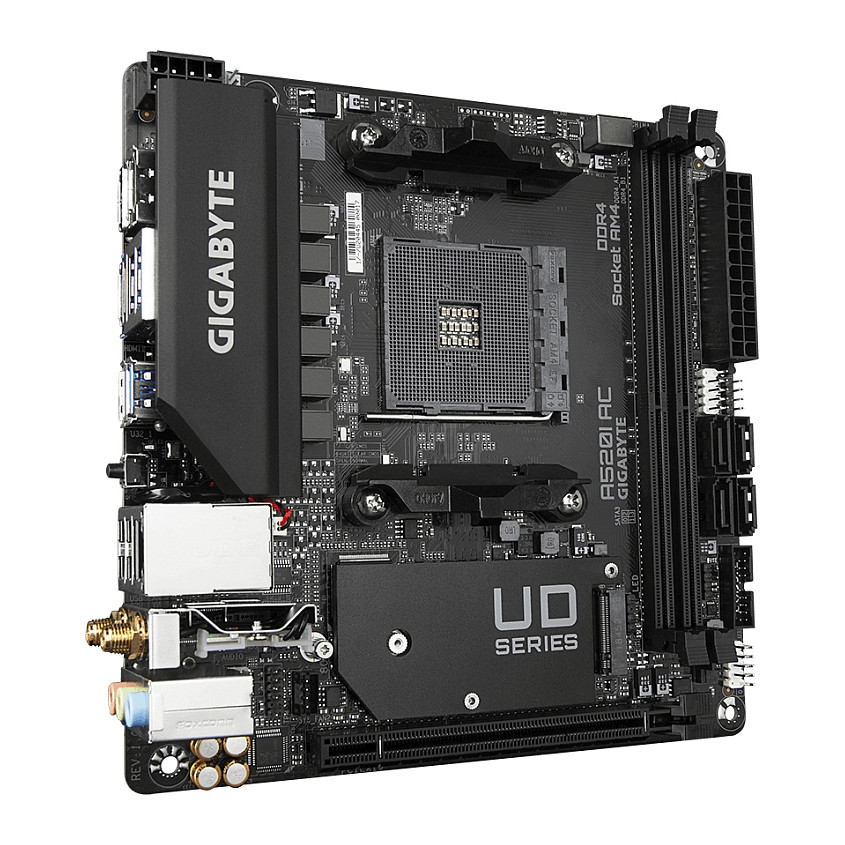

Gigabyte A520I AC (A520.AM4.mITX.DDR4)
Pre-Order
€121.99
VAT (19%) included
Description
Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs Direct 6 Phases Digital VRM Solution with 55A DrMOS Ultra-Fast NVMe PCIe 3.0 x4 M.2 Onboard Dual Band 802.11ac WIFI & BT 4.2 with Ultra Durable Antenna Realtek GbE LAN with Bandwidth Management DisplayPort, Dual HDMI for for Multiple Display RGB FUSION 2.0 with Addressable LED & RGB LED Strips Support Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card Anti-Sulfur Resistors Design
Technical Specifications
SKU
KA520I AC
Processor Manufacturer
AMD
Processor Socket
Socket AM4
Compatible Processor Series
AMD Ryzen 3000 Series
Supported Processor Sockets
Socket AM4
Maximum Internal Memory Supported By Processor
64 GB
Supported Memory Types
DDR4-SDRAM
Number Of Memory Slots
2
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
ECC & Non-ECC
Supported Memory Clock Speeds
2133, 2400, 2667, 2933, 3200, 3333, 3600, 4000, 4400, 4600, 4866, 5000, 5100, 5200 MHz
Supported Memory Clock Speed (Max)
5300 MHz
Maximum Internal Memory
64 GB
Supported Memory Module Capacities
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Hdds Supported
4
Number Of Storage Drives Supported
5
Raid Levels
0, 1, 10
Parallel Processing Technology Support
Not supported
Maximum Resolution
5120 x 2880 pixels
Directx Version
12.0
Number Of Displays Supported
3
Usb 2.0 Connectors
1
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Number Of Sata Iii Connectors
4
Total Number Of Sata Connectors
4
Serial Port Headers
1
Usb 2.0 Ports Quantity
2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
4
Ethernet Lan (Rj-45) Ports
1
Hdmi Ports Quantity
2
Hdmi Version
2.1
Displayports Quantity
1
Displayport Version
1.4
Headphone Outputs
3
Wifi-Ap Antenna Jack
2
Ethernet Interface Type
Gigabit Ethernet
Top Wi-Fi Standard
Wi-Fi 5 (802.11ac)
Wi-Fi Standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth Version
4.2
Motherboard Chipset
AMD A520
Audio Chip
Realtek ALC887
Audio Output Channels
7.1 channels
Product Colour
Black
Pc Health Monitoring
Fan, Temperature, Voltage
Component For
PC
Motherboard Form Factor
mini ITX
Motherboard Chipset Family
AMD
Windows Operating Systems Supported
Windows 10 x64, Windows 11 x64
Pci Express X16 Slots
1
Number Of M.2 (M) Slots
1
Bios Type
UEFI AMI
Bios Memory Size
128 Mbit
Acpi Version
5.0
Desktop Management Interface (Dmi) Version
2.7
System Management Bios (Smbios) Version
2.7
Country Of Origin
China
Products Per Shipping (Inner) Case
1 pc(s)
Battery Weight
3 g
Lithium Weight Per Battery
0.07 g
Number Of Battery Cells
1
Battery Technology
Lithium-Manganese Dioxide (LiMnO2)
Battery Type
CR2032
Package Width
222 mm
Package Depth
189 mm
Package Height
78 mm
Package Weight
800 g
Width
170 mm
Depth
170 mm
Height
35 mm
Bundled Software
Norton® Internet Security (OEM version), Realtek® 8118 Gaming LAN Bandwidth Control Utility
Warranty Period
3 year(s)
