MSI

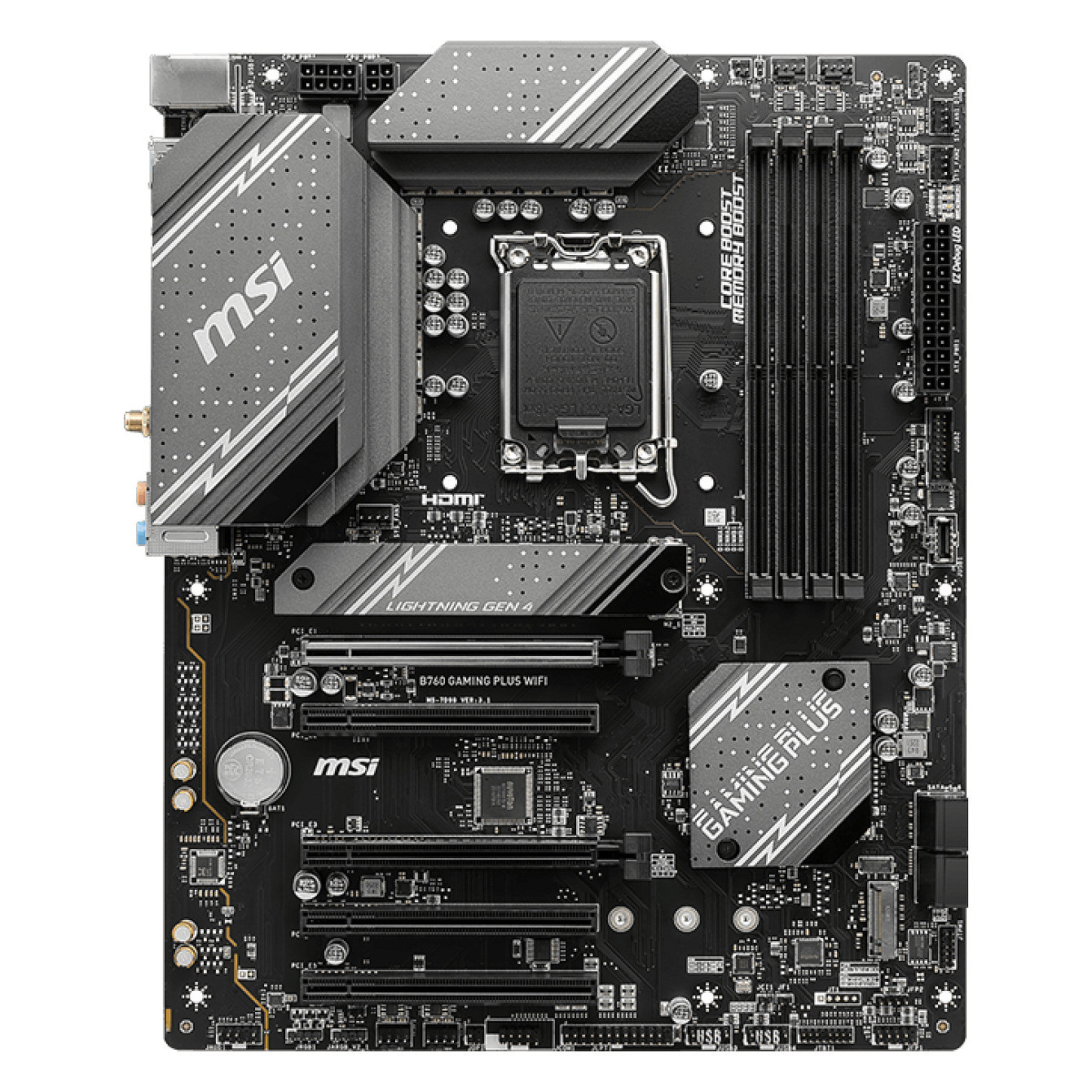

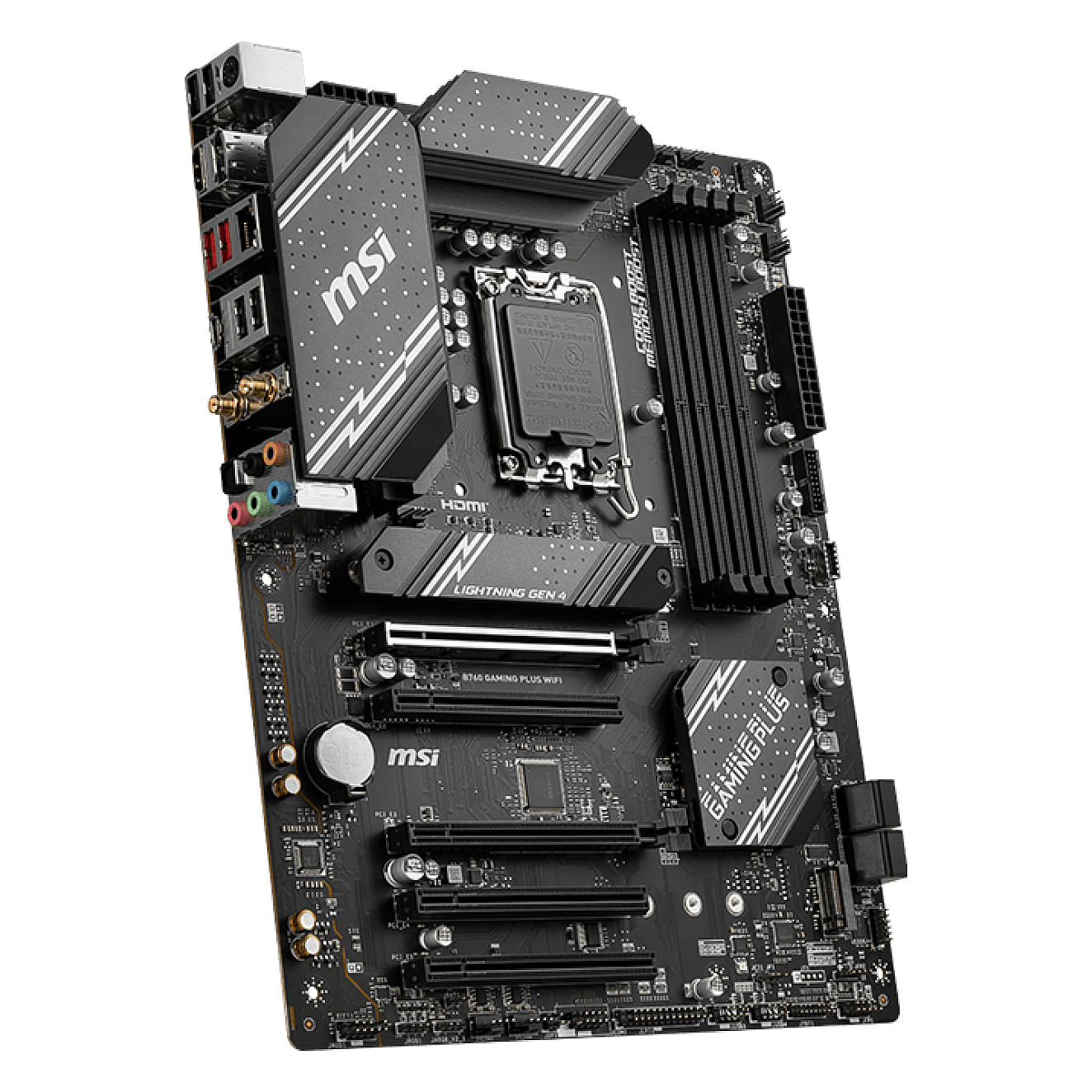

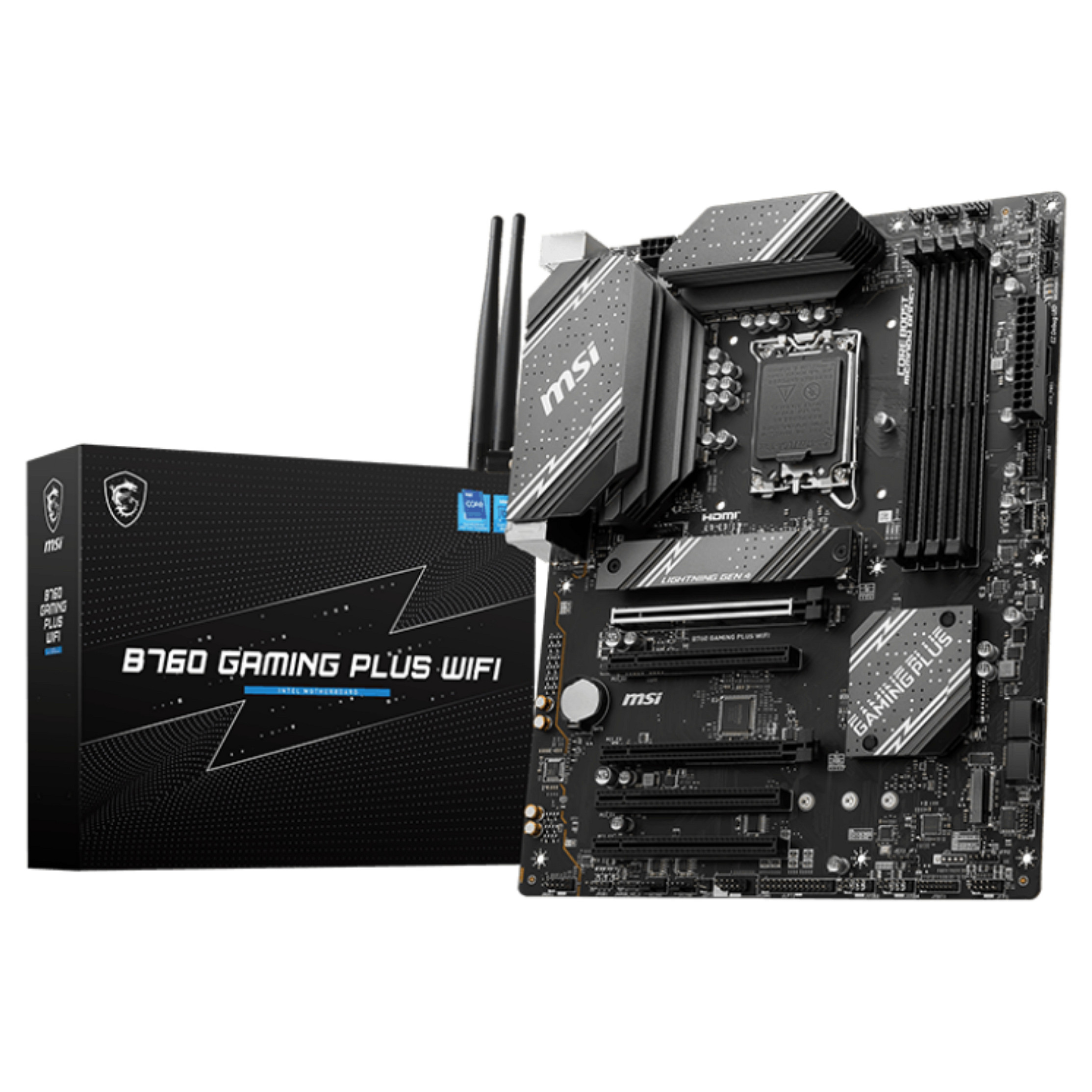

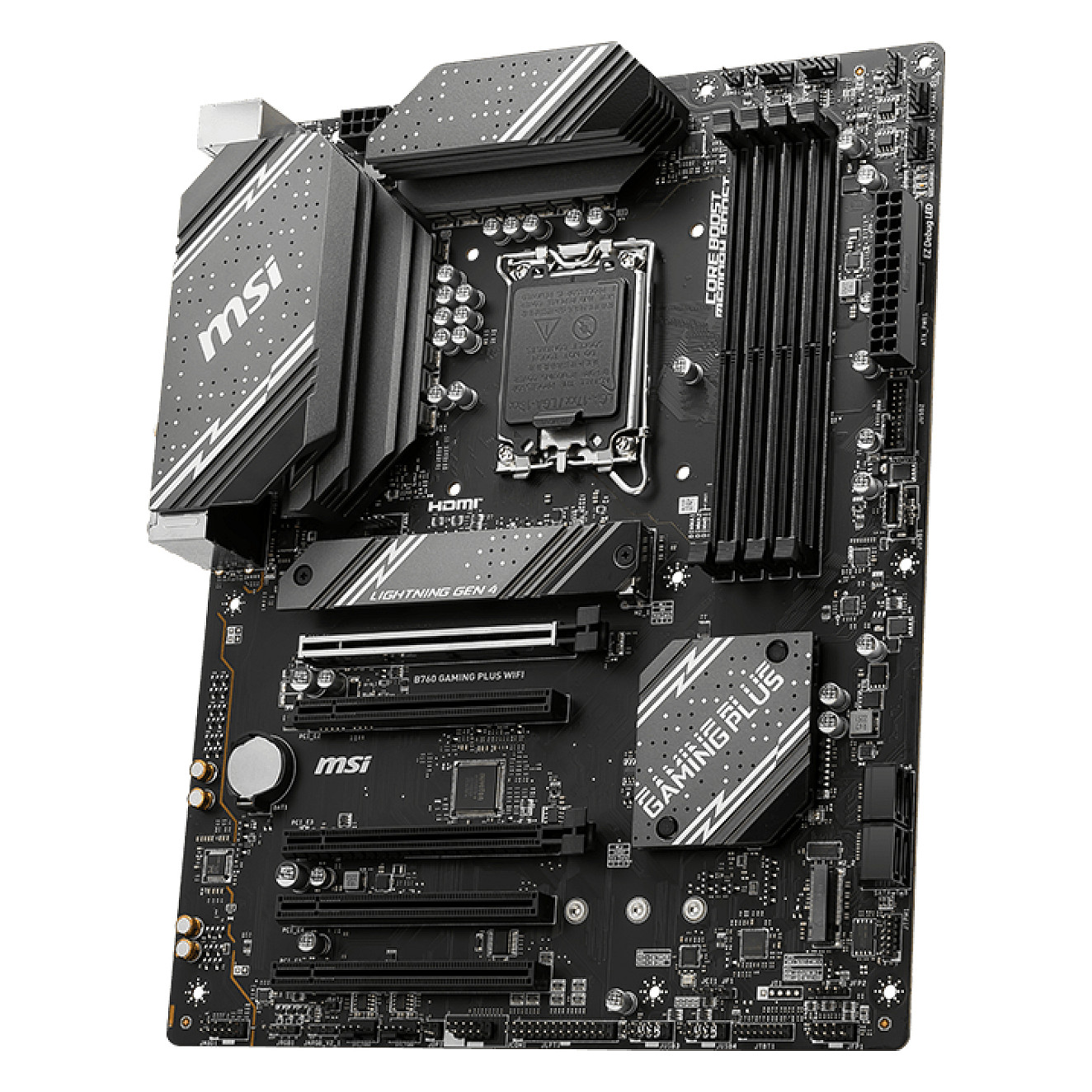

1700 MSI PRO B760 Gaming Plus WIFI
Pre-Order
€157.99
VAT (19%) included
Description
Intel LGA 1700 Intel® Celeron®, Intel® Pentium® Gold PC ATX Intel B760 Realtek ALC897 7.1 channels DDR5-SDRAM 4 DIMM Maximum internal memory: 192 GB M.2, SATA RAID support Number of storage drives supported: 6 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.3
Technical Specifications
SKU
K7D98-007R
Processor Manufacturer
Intel
Processor Socket
LGA 1700
Compatible Processor Series
Intel® Celeron®, Intel® Pentium® Gold
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
Non-ECC
Maximum Internal Memory
192 GB
Supported Storage Drive Interfaces
M.2, SATA
Number Of Storage Drives Supported
6
Raid Levels
0, 1, 5, 10
Usb 2.0 Connectors
4
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
3
Number Of Sata Iii Connectors
4
Usb 2.0 Ports Quantity
4
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
2
Usb 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity
1
Ethernet Lan (Rj-45) Ports
1
Hdmi Ports Quantity
1
Hdmi Version
2.1
Displayports Quantity
1
Displayport Version
1.4
Ethernet Interface Type
2.5 Gigabit Ethernet
Lan Controller
Dragon RTL8125BG
Top Wi-Fi Standard
Wi-Fi 6E (802.11ax)
Bluetooth Version
5.3
Motherboard Chipset
Intel B760
Audio Chip
Realtek ALC897
Audio Output Channels
7.1 channels
Product Colour
Black
Component For
PC
Motherboard Form Factor
ATX
Motherboard Chipset Family
Intel
Windows Operating Systems Supported
Windows 10 x64, Windows 11 x64
Pci Express X1 Slots
3
Pci Express X1 (Gen 3.X) Slots
3
Pci Express X16 Slots
2
Pci Express X16 (Gen 4.X) Slots
2
Number Of M.2 (M) Slots
2
Width
243.8 mm
Depth
304.8 mm
