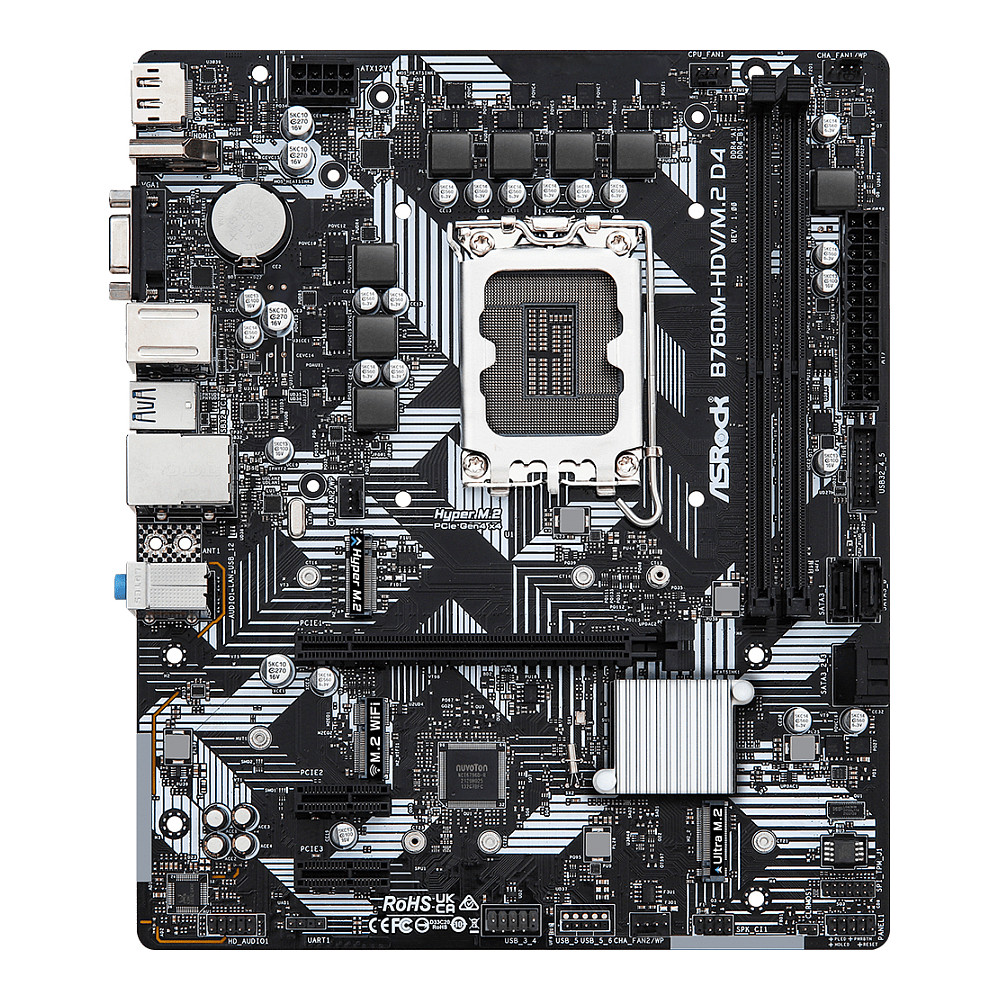

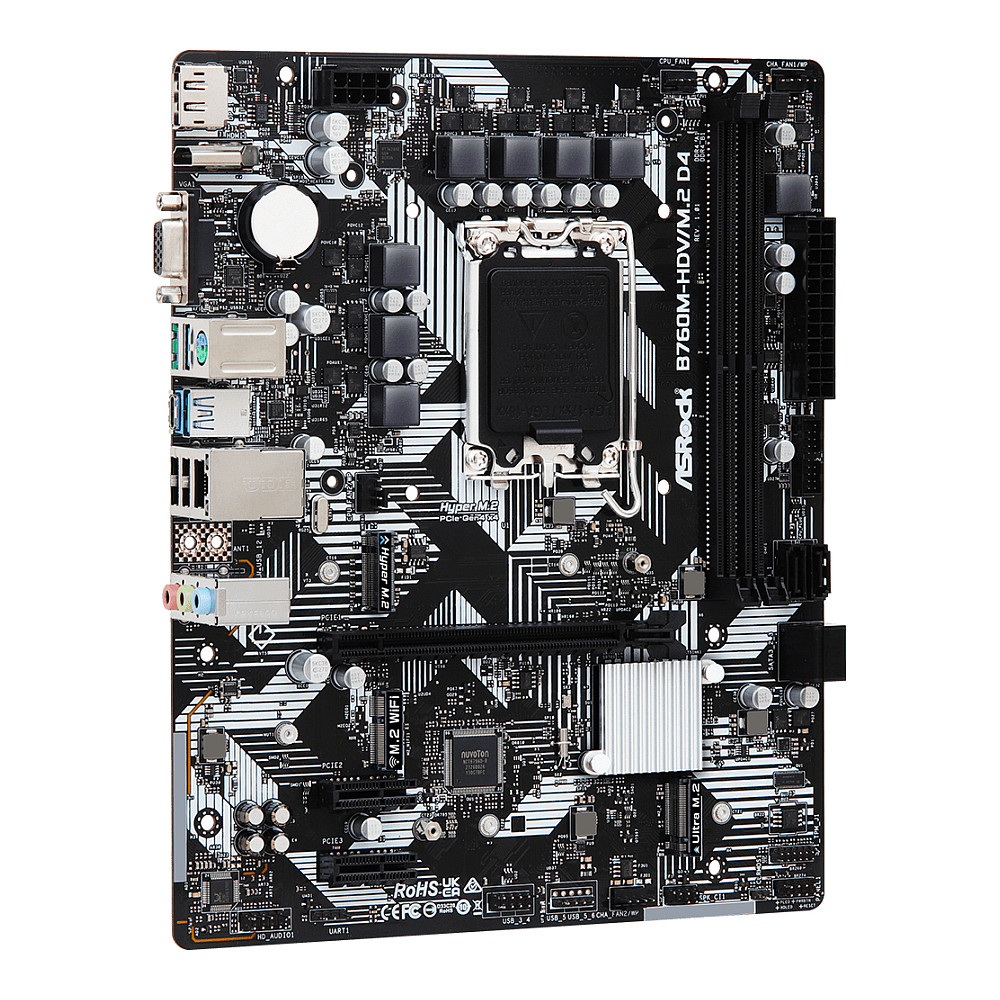

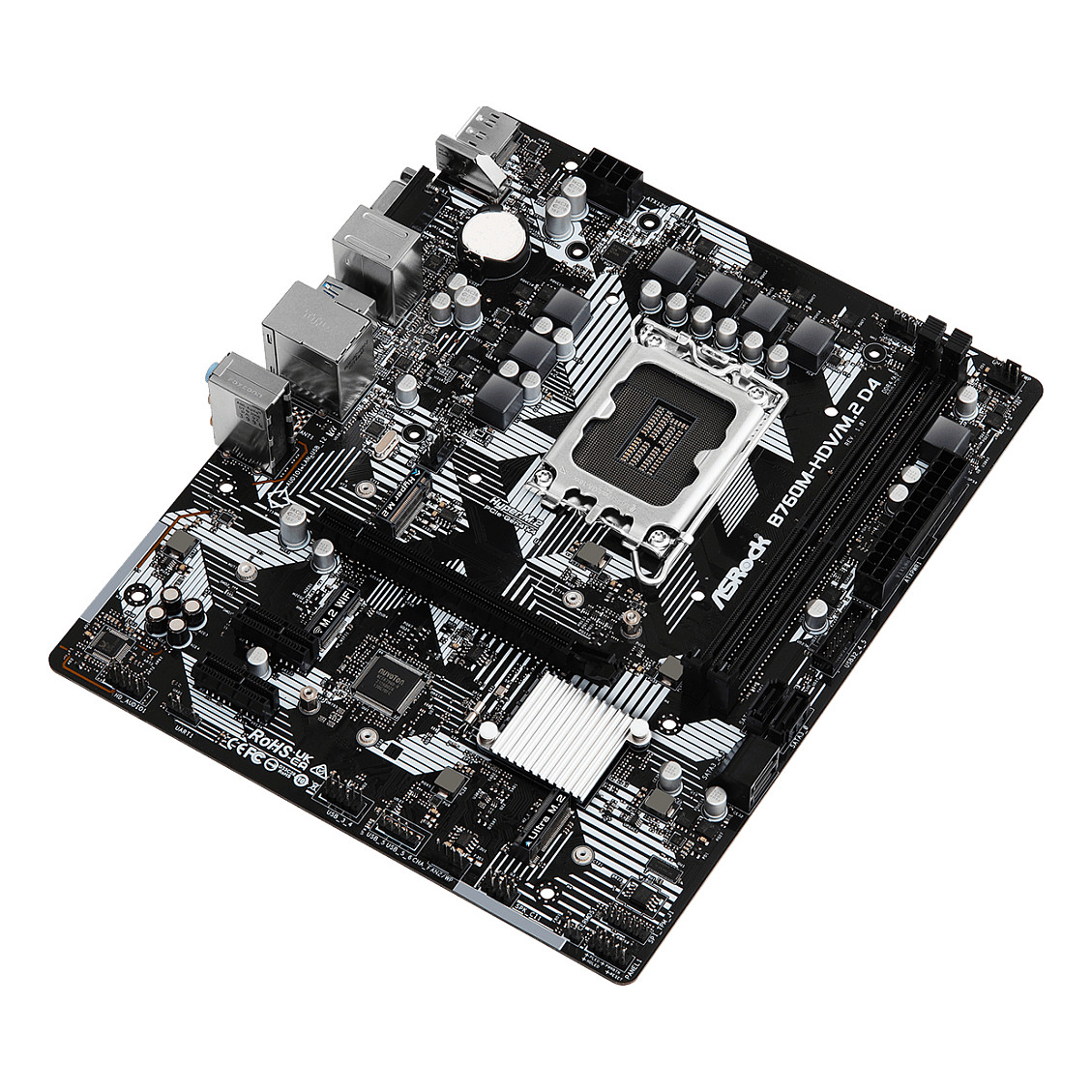

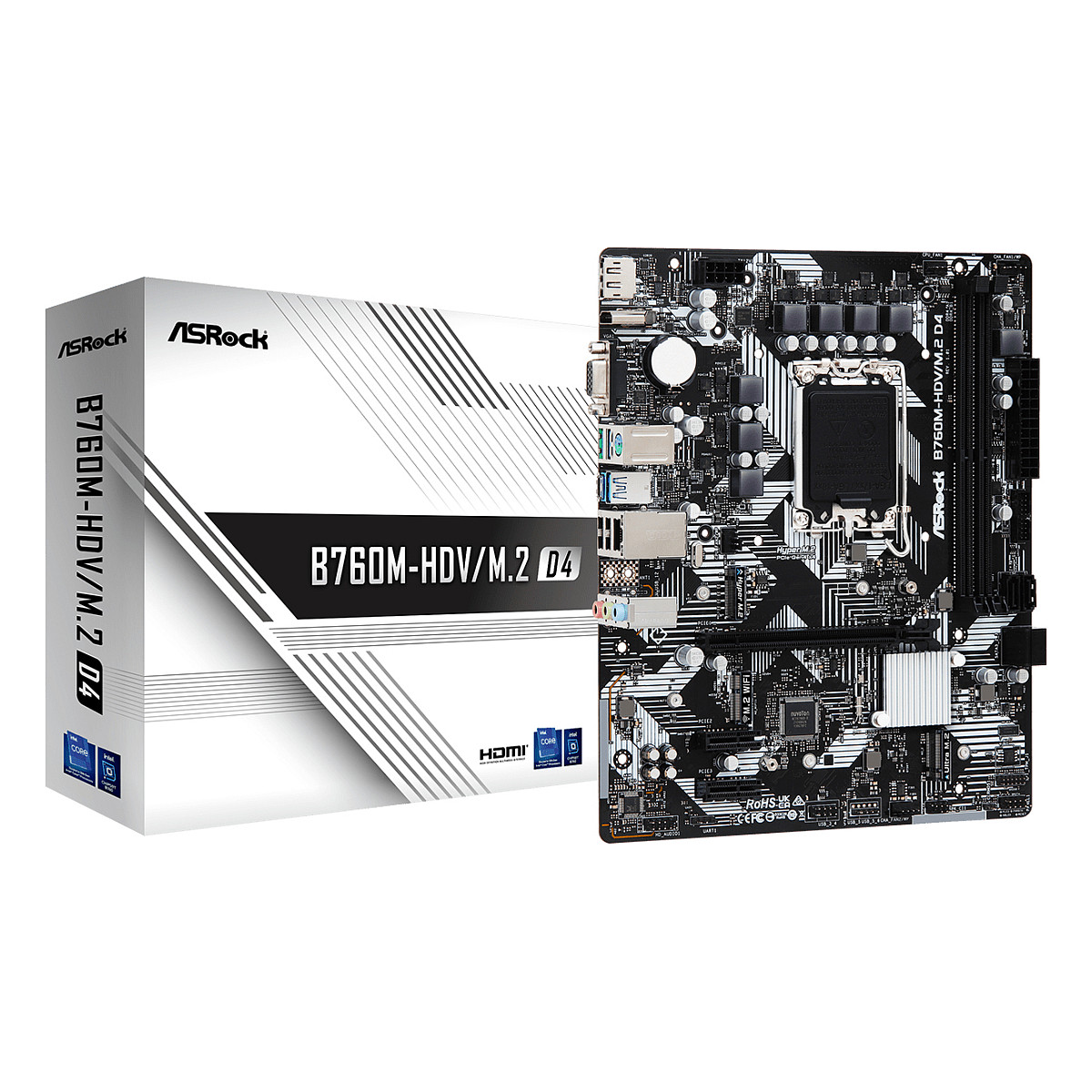

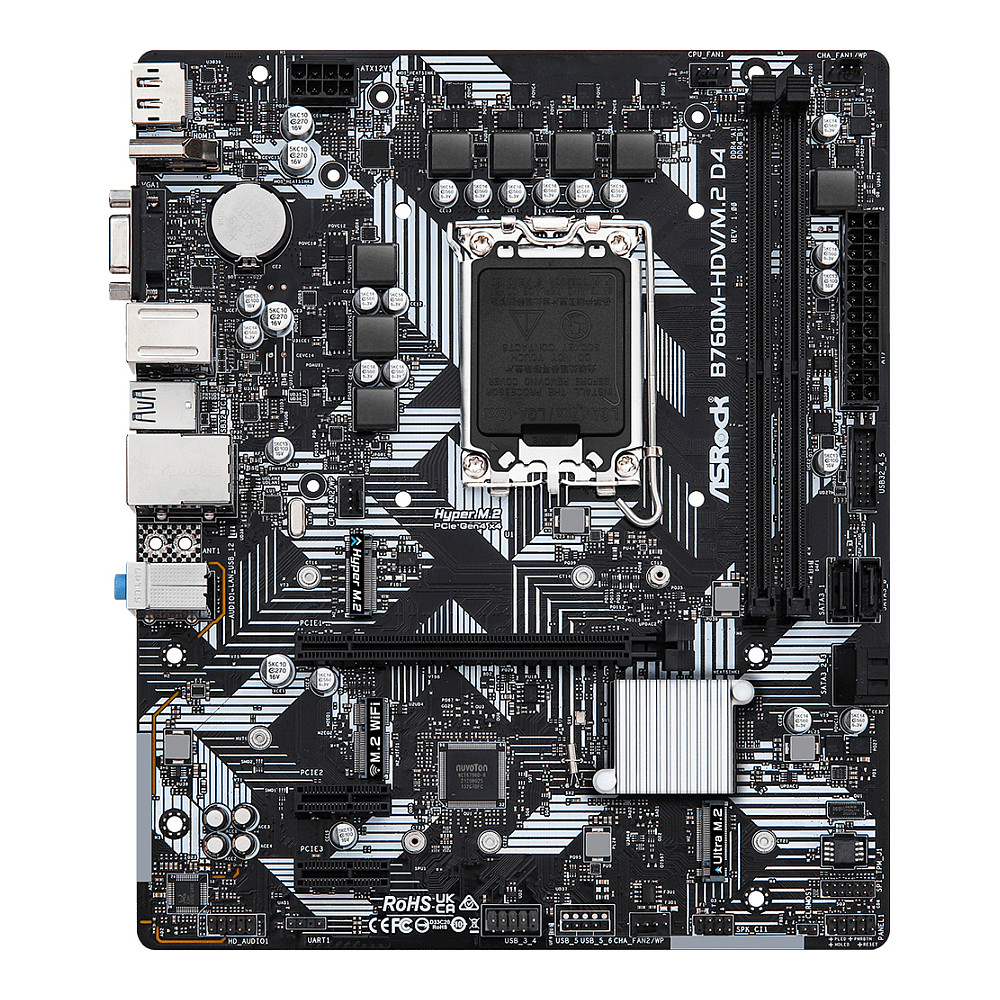

ASRock
B760M-HDV/M.2 D4
Pre-Order
€94.99
VAT (19%) included
Description

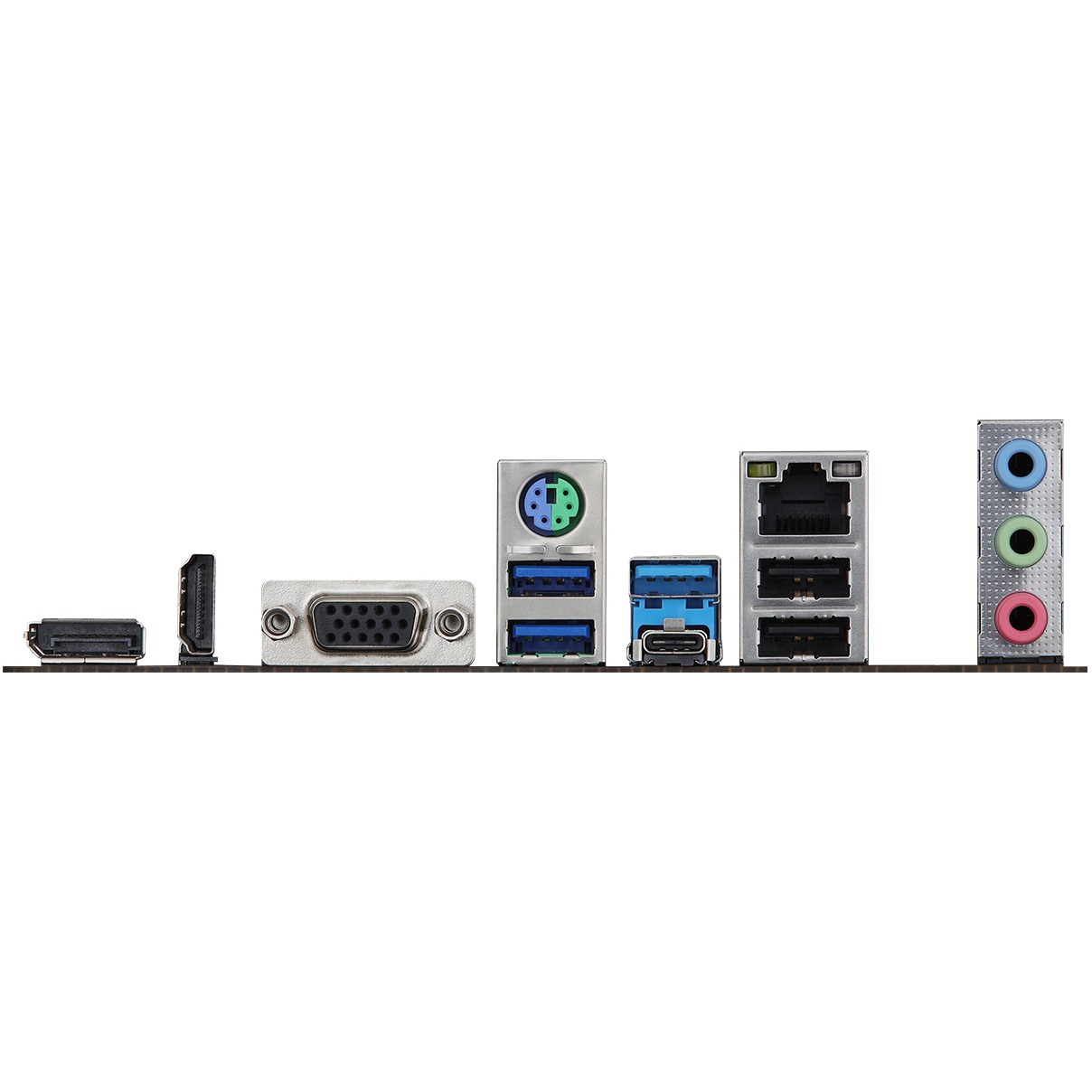

‧Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700) 5+1+1 Power Phase Supports DDR4 5333MHz (OC) 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi Graphics Output Options: HDMI, DisplayPort, D-Sub Realtek ALC887/897 7.1 CH HD Audio Codec 4 SATA3, 1 Hyper M.2 (PCIe Gen4x4) 1 Ultra M.2 (PCIe Gen3x4 & SATA) 1 USB 3.2 Gen1 Type-C (Rear) 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front) 5 USB 2.0 (2 Rear, 3 Front) Realtek 1G LAN Supports ASRock Auto Driver Installer
Technical Specifications
SKU
KB760M-HDV/M.2 D4
Processor Manufacturer
Intel
Processor Socket
LGA 1700
Compatible Processor Series
Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Maximum Number Of Smp Processors
1
Supported Memory Types
DDR4-SDRAM
Number Of Memory Slots
2
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
Non-ECC
Supported Memory Clock Speeds
3200, 4400, 5333 MHz
Maximum Internal Memory
64 GB
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Storage Drives Supported
6
Raid Levels
0, 1, 5, 10
Parallel Processing Technology Support
Not supported
Usb 2.0 Connectors
3
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
2
Number Of Sata Iii Connectors
4
Usb 2.0 Ports Quantity
2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
3
Usb 3.2 Gen 1 (3.1 Gen 1) Type-C Ports Quantity
1
Ethernet Lan (Rj-45) Ports
1
Ps/2 Ports Quantity
1
Vga (D-Sub) Ports Quantity
1
Hdmi Ports Quantity
1
Displayports Quantity
1
Displayport Version
1.4
Ethernet Interface Type
Gigabit Ethernet
Lan Controller
Realtek RTL8111H
Motherboard Chipset
Intel B760
Audio Chip
Realtek ALC897
Audio Output Channels
7.1 channels
Component For
PC
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
Intel
Windows Operating Systems Supported
Windows 10 Education x64, Windows 11 x64
Certification
- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
Pci Express X1 (Gen 3.X) Slots
2
Pci Express X16 (Gen 4.X) Slots
1
Number Of M.2 (M) Slots
2
Bios Type
UEFI AMI
Bios Memory Size
128 Mbit
Width
244 mm
Depth
201 mm
Cables Included
SATA
