ASRock

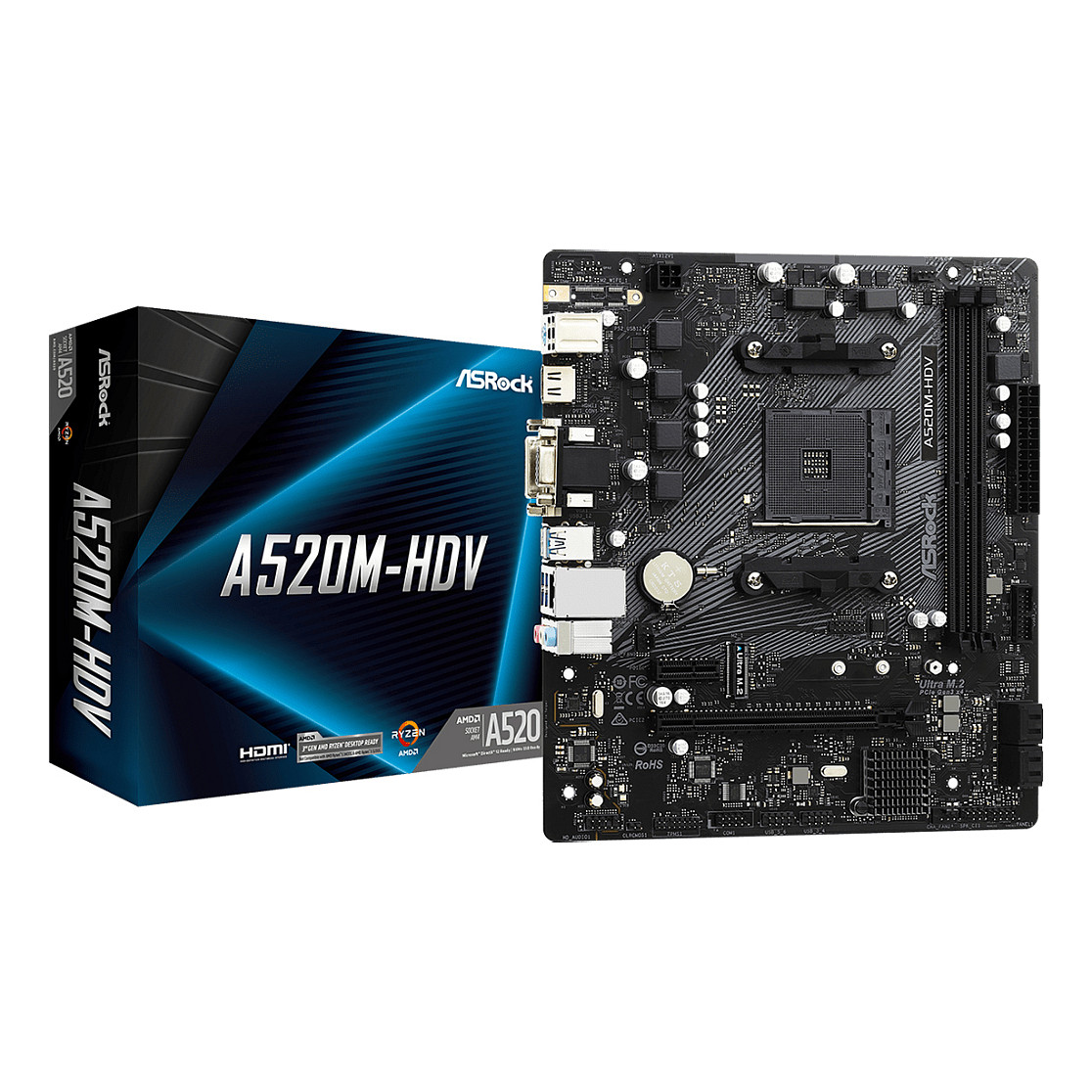

AM4 ASRock A520M-HDV mATX
Pre-Order
€59.99
VAT (19%) included
Radeon Vega
Description
AMD Socket AM4 AMD Ryzen 3000 Series PC micro ATX AMD A520 7.1 channels DDR4-SDRAM 2 DIMM Maximum internal memory: 64 GB M.2, SATA III RAID support Number of storage drives supported: 5 AMD Radeon Vega BIOS type: UEFI AMI Gigabit Ethernet
Technical Specifications
Graphics Card
Radeon Vega
SKU
K90-MXBE50-A0UAYZ
Processor Manufacturer
AMD
Processor Socket
Socket AM4
Compatible Processor Series
AMD Ryzen 3000 Series
Supported Memory Types
DDR4-SDRAM
Number Of Memory Slots
2
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
Non-ECC
Supported Memory Clock Speeds
2133, 2400, 2666, 2933, 3200, 3466, 3600, 3733, 3800, 3866, 4000, 4133, 4200, 4266, 4333, 4400, 4466, 4500, 4533 MHz
Maximum Internal Memory
64 GB
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Hdds Supported
5
Number Of Storage Drives Supported
5
Graphics Card Family
AMD
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Number Of Chassis Fan Connectors
2
Number Of Com Connectors
1
Usb 2.0 Ports Quantity
2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
4
Ethernet Lan (Rj-45) Ports
1
Ps/2 Ports Quantity
1
Vga (D-Sub) Ports Quantity
1
Hdmi Ports Quantity
1
Ethernet Interface Type
Gigabit Ethernet
Lan Controller
Realtek RTL8111H
Top Wi-Fi Standard
Not available
Motherboard Chipset
AMD A520
Audio Output Channels
7.1 channels
Component For
PC
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
AMD
Pci Express X1 (Gen 3.X) Slots
1
Pci Express X16 (Gen 3.X) Slots
1
Number Of M.2 (M) Slots
1
Bios Type
UEFI AMI
Harmonized System (Hs) Code
84733020
Width
230 mm
Depth
201 mm
