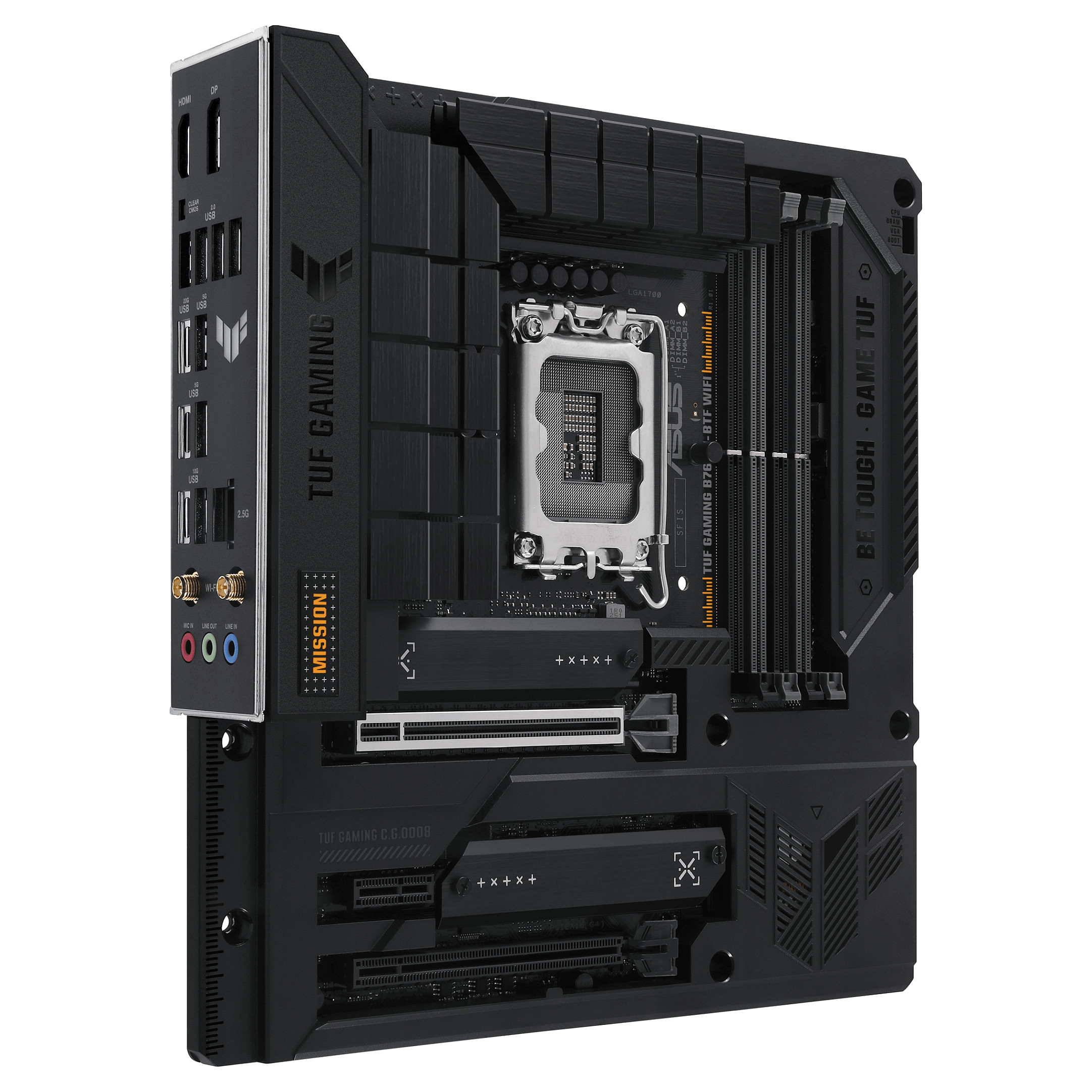

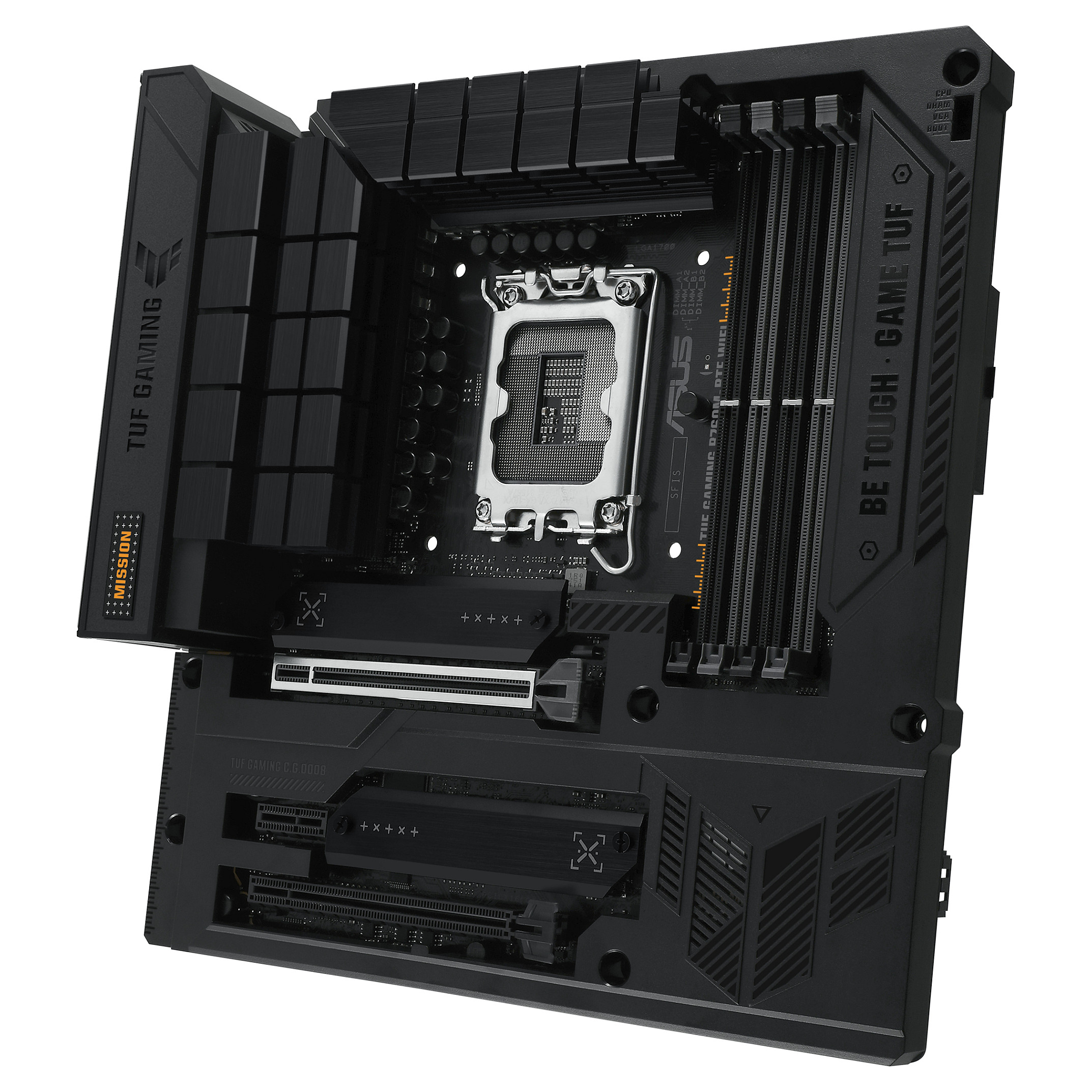

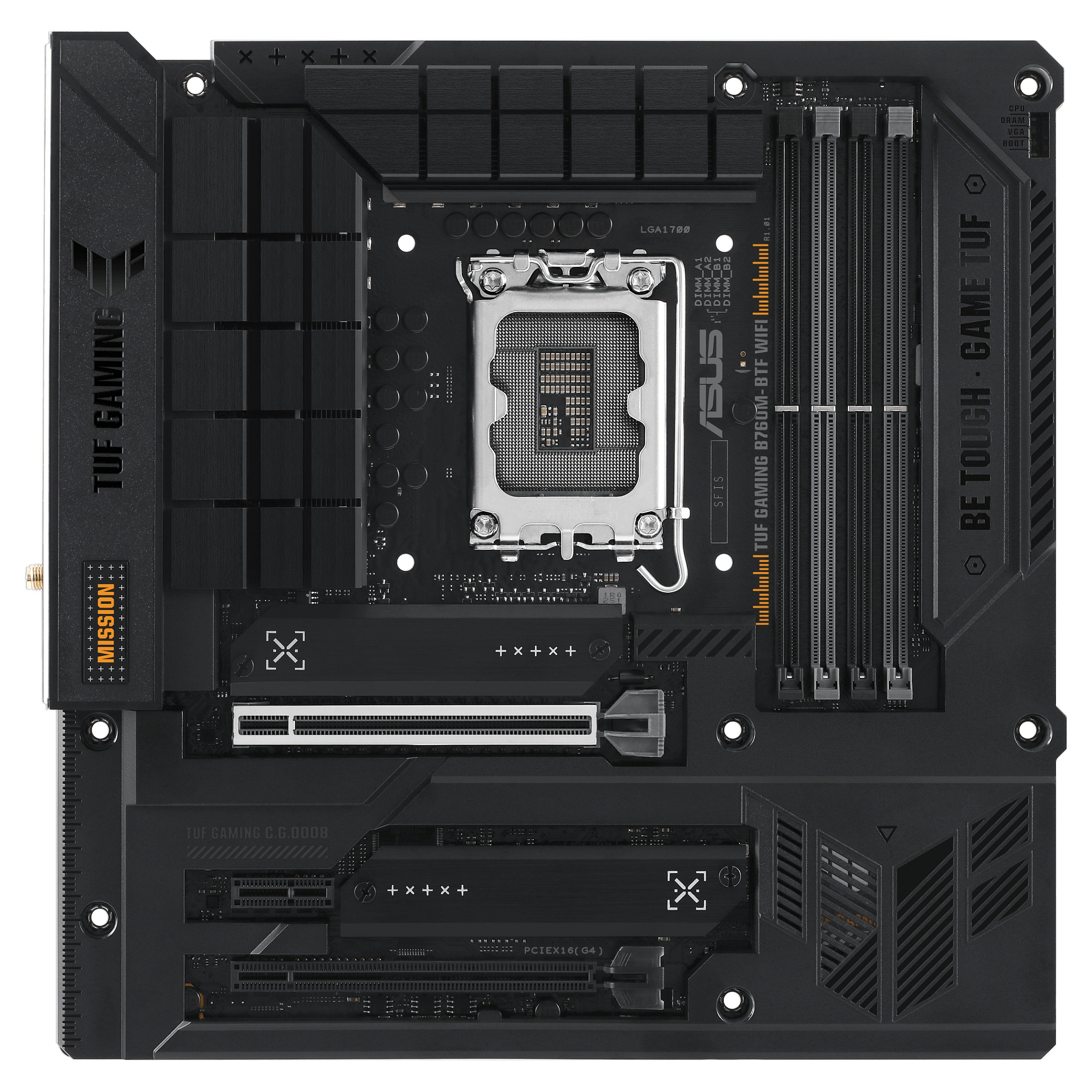

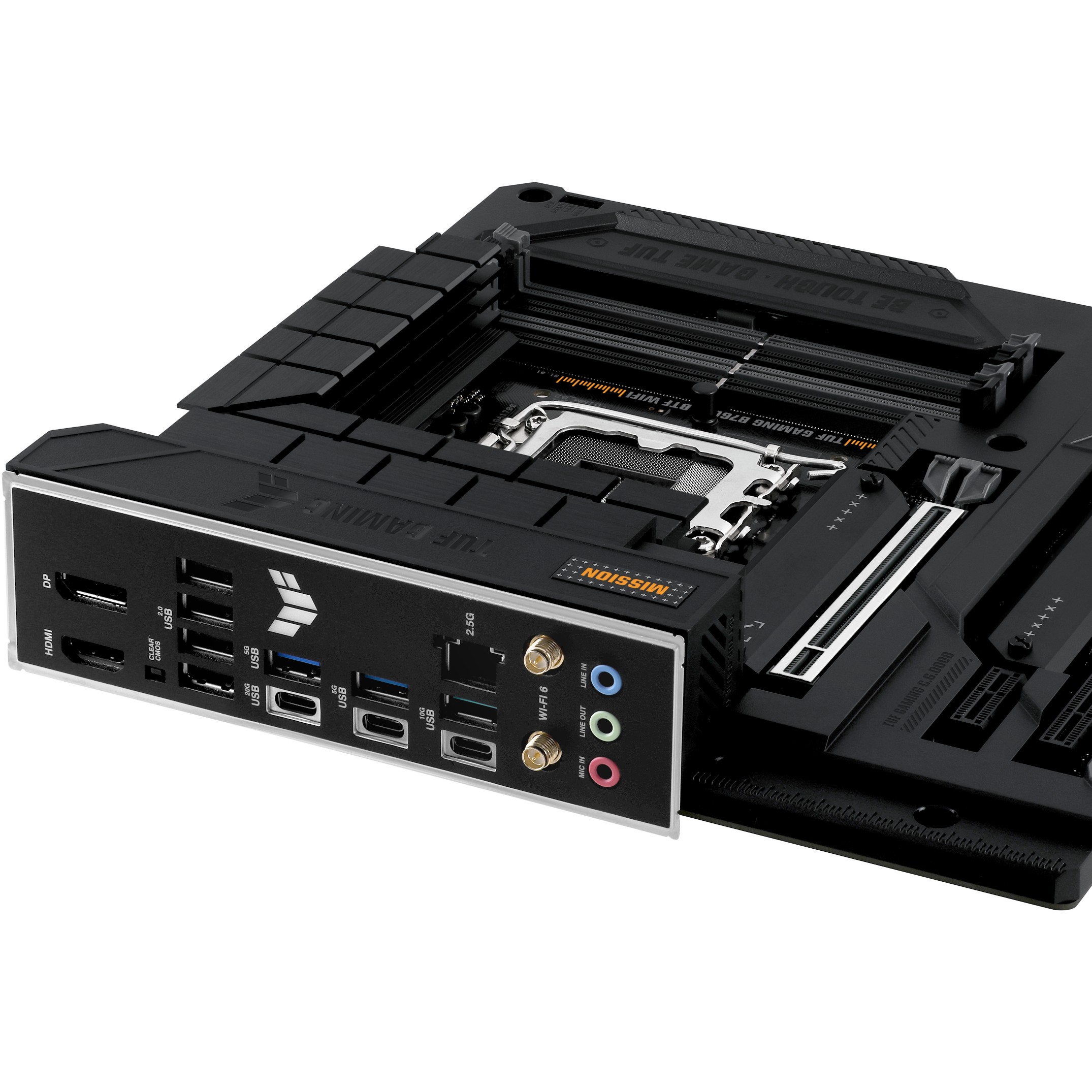

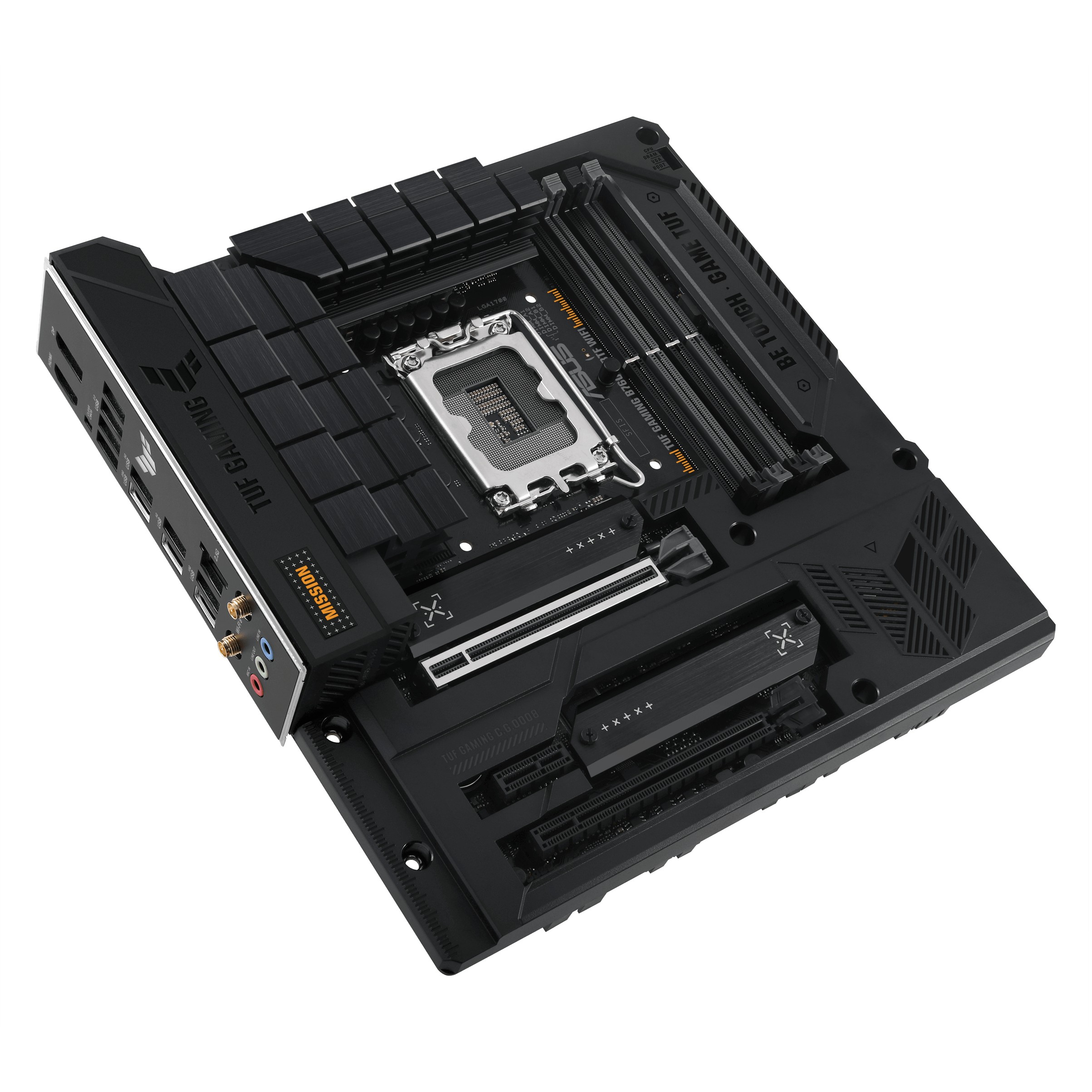

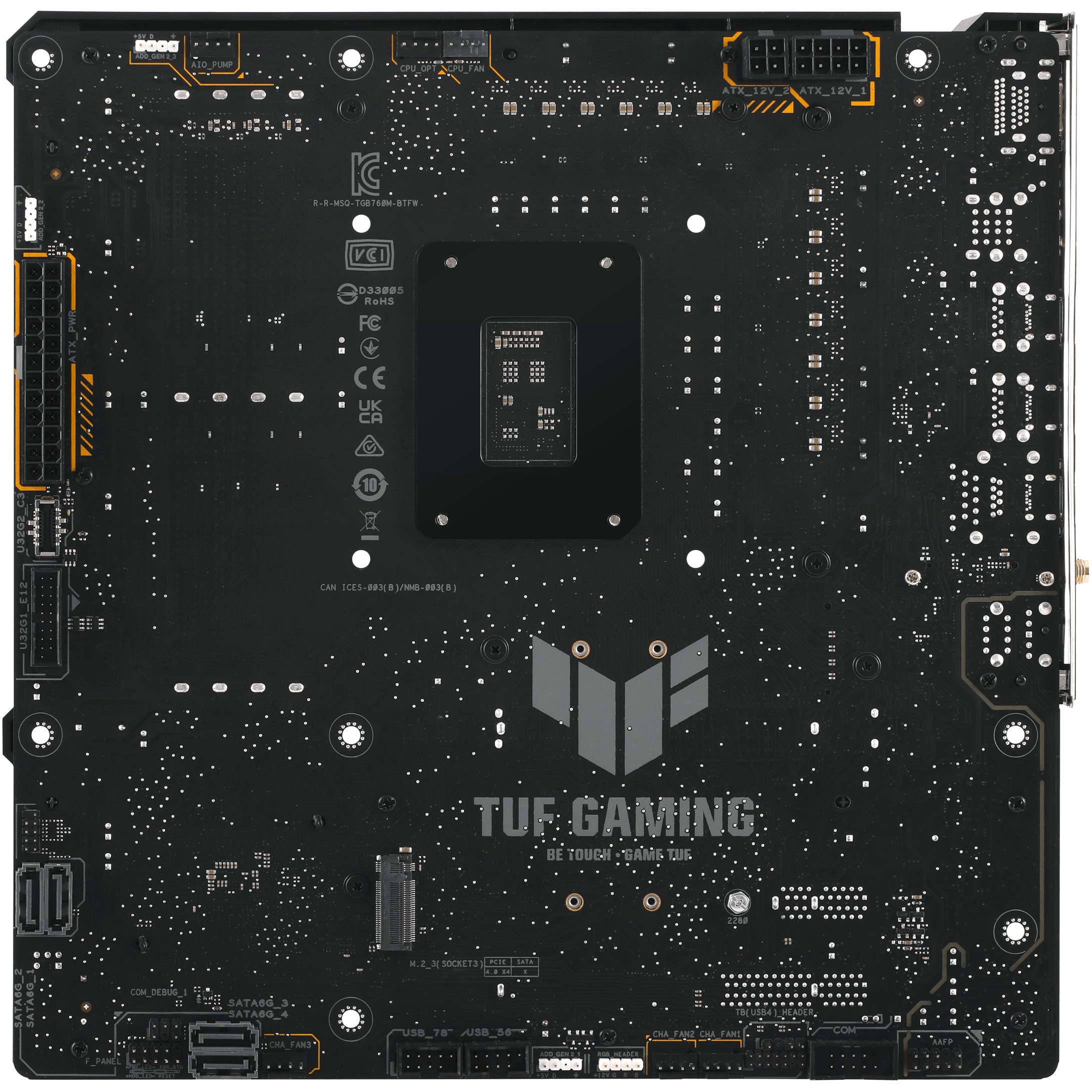

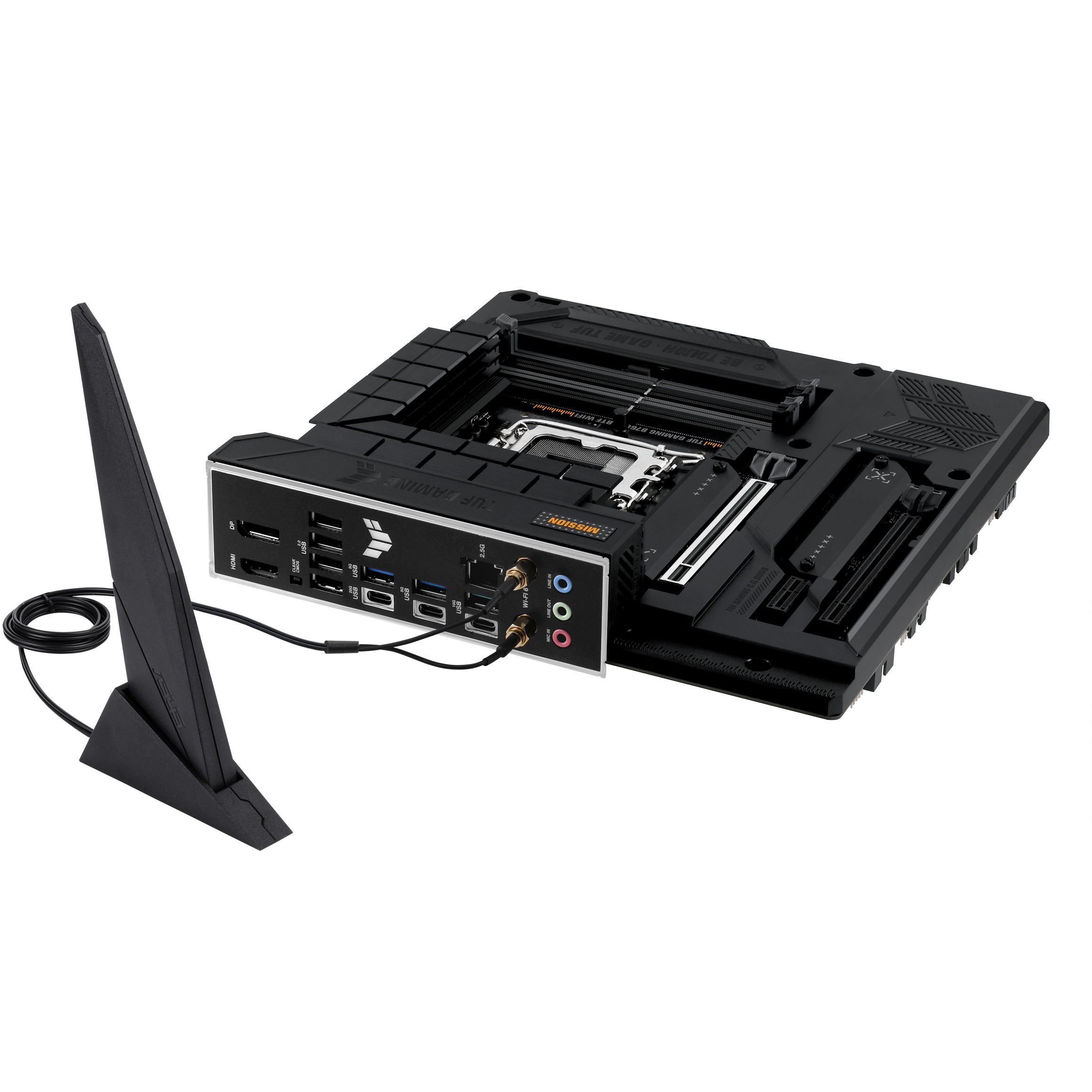

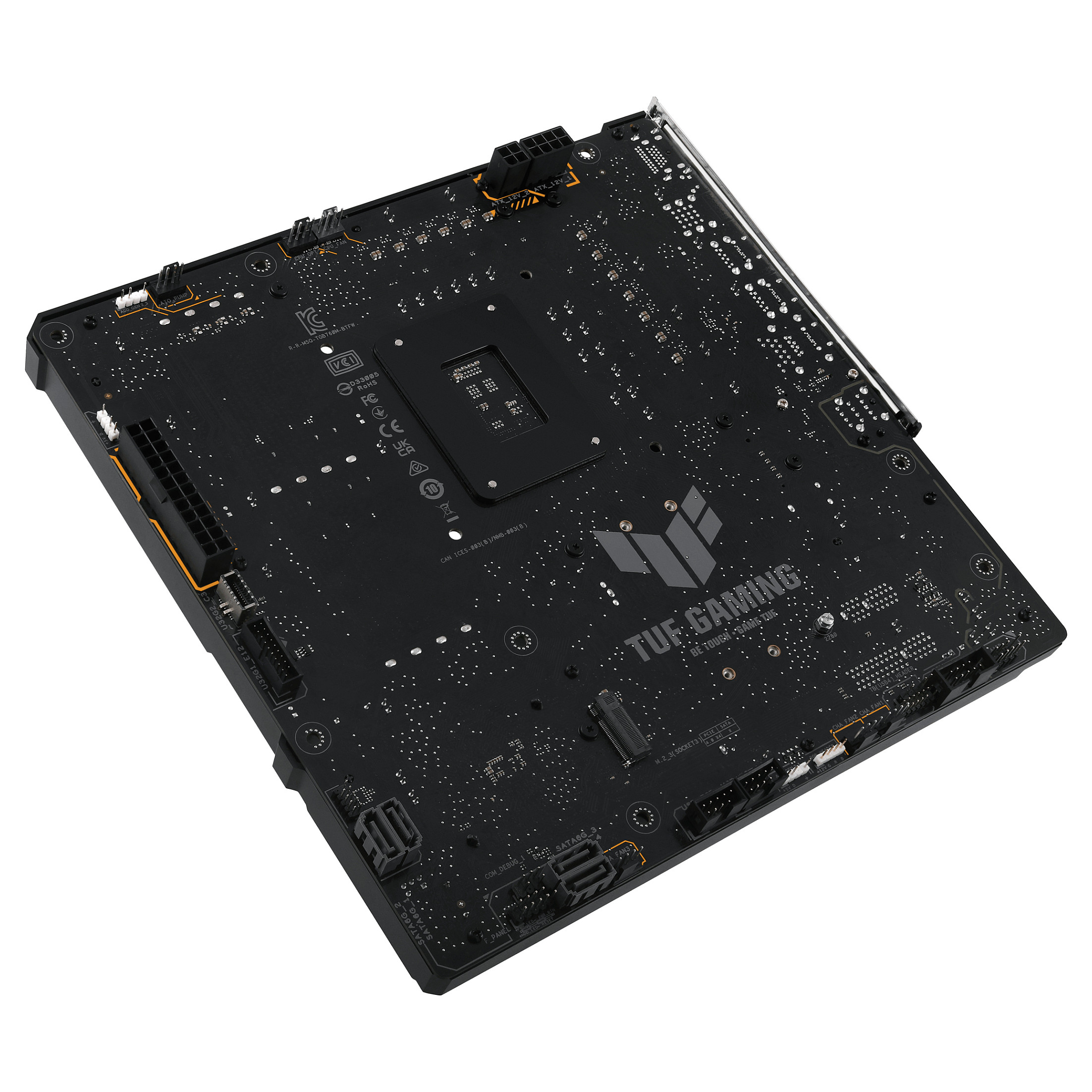

ASUS TUF GAMING B760M-BTF WIFI (Intel.1700.DDR5.mATX)
Pre-Order
€247.99
VAT (19%) included
Description
Intel LGA 1700 Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold PC micro ATX Intel B760 7.1 channels DDR5-SDRAM 4 DIMM Maximum internal memory: 192 GB HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7 BIOS type: UEFI AMI 128 Mbit Clear CMOS button 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6 (802.11ax) Bluetooth 5.2
Technical Specifications
SKU
K90MB1G50-M0EAY0
Processor Manufacturer
Intel
Processor Socket
LGA 1700
Compatible Processor Series
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Supported Processor Sockets
LGA 1700
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
Non-ECC
Supported Memory Clock Speeds
4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MHz
Supported Memory Clock Speed (Max)
7200 MHz
Maximum Internal Memory
192 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Hdds Supported
4
Number Of Storage Drives Supported
7
Raid Levels
0, 1, 5, 10
Parallel Processing Technology Support
Not supported
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors
1
Number Of Sata Iii Connectors
4
Number Of Chassis Fan Connectors
3
Peripheral (Molex) Power Connectors (4-Pin)
1
Number Of Com Connectors
1
Thunderbolt Headers
1

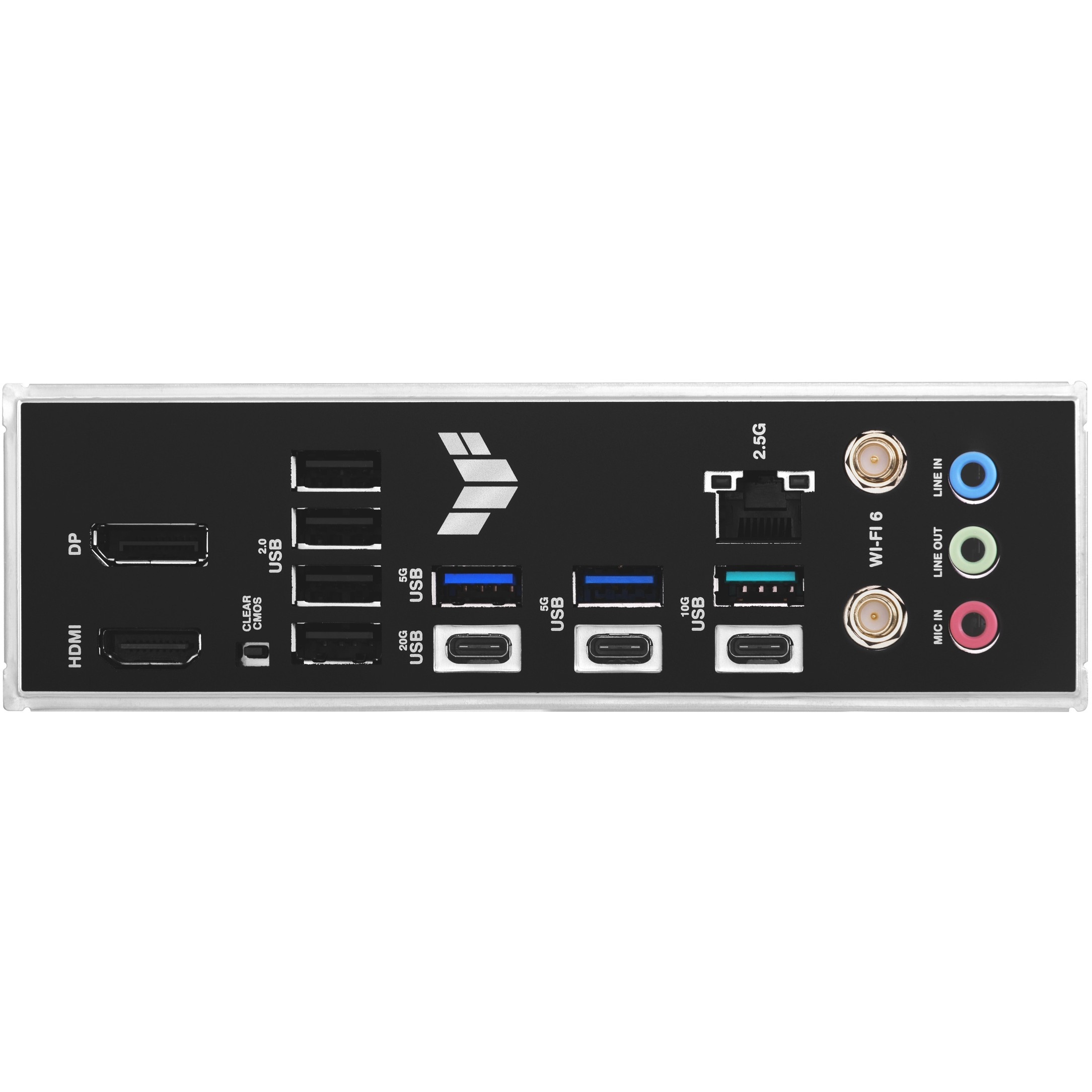

Usb 2.0 Ports Quantity
4
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-C Ports Quantity
1
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
1
Usb 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity
1
Usb 3.2 Gen 2X2 Type-C Ports Quantity
1
Ethernet Lan (Rj-45) Ports
1
Hdmi Ports Quantity
1
Hdmi Version
2.1
Displayports Quantity
1
Displayport Version
1.4
Headphone Outputs
1
Wifi-Ap Antenna Jack
1
Ethernet Interface Type
2.5 Gigabit Ethernet
Top Wi-Fi Standard
Wi-Fi 6 (802.11ax)
Wi-Fi Standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth Version
5.2
Motherboard Chipset
Intel B760
Audio Output Channels
7.1 channels
Component For
PC
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
Intel
Cooling Type
Passive
Power Source Type
ATX
Windows Operating Systems Supported
Windows 11, Windows 10
Pci Express X1 (Gen 4.X) Slots
1
Pci Express X16 (Gen 4.X) Slots
1
Pci Express X16 (Gen 5.X) Slots
1
Number Of M.2 (M) Slots
3
Bios Type
UEFI AMI
Bios Memory Size
128 Mbit
Width
244 mm
Depth
244 mm
Cables Included
SATA
Audio Output
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Special Features
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel ® Core™ Processors (14 th & 13 th & 12 th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel ® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280 only (supports PCIe 4.0 x4 mode)** 4 x SATA 6Gb/s ports * Intel ® Rapid Storage Technology supports SATA RAID 0/1/5/10. ** M.2_3 slot shares bandwidth with PCIEX16(G4) slot. When M.2_3 slot has be installed a device, PCIEX16(G4) slot will be disabled.
Other Features
4 x DIMM, Max. 192GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/ * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics Output
1 x DisplayPort** 1 x HDMI TM port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1.
