ASUS

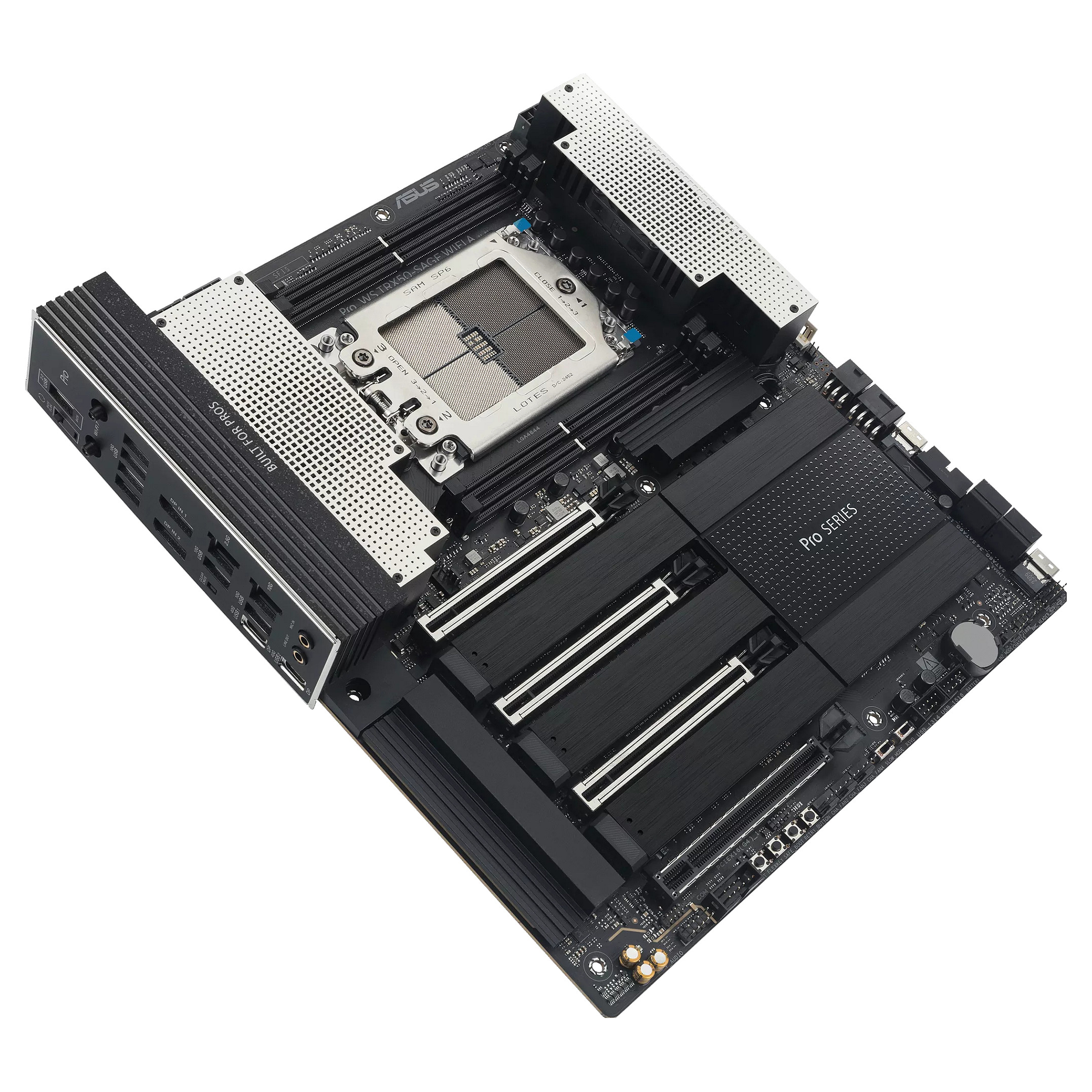

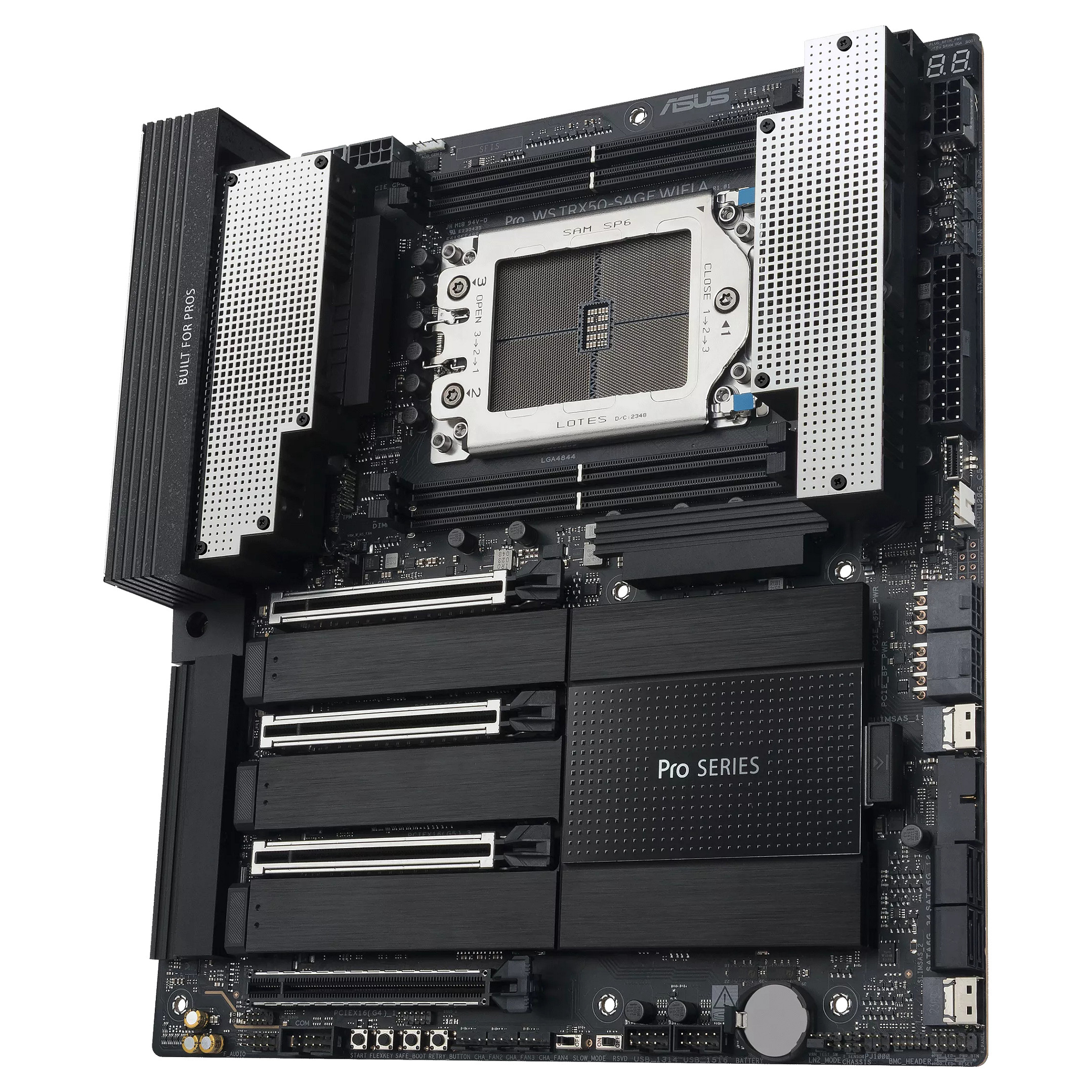

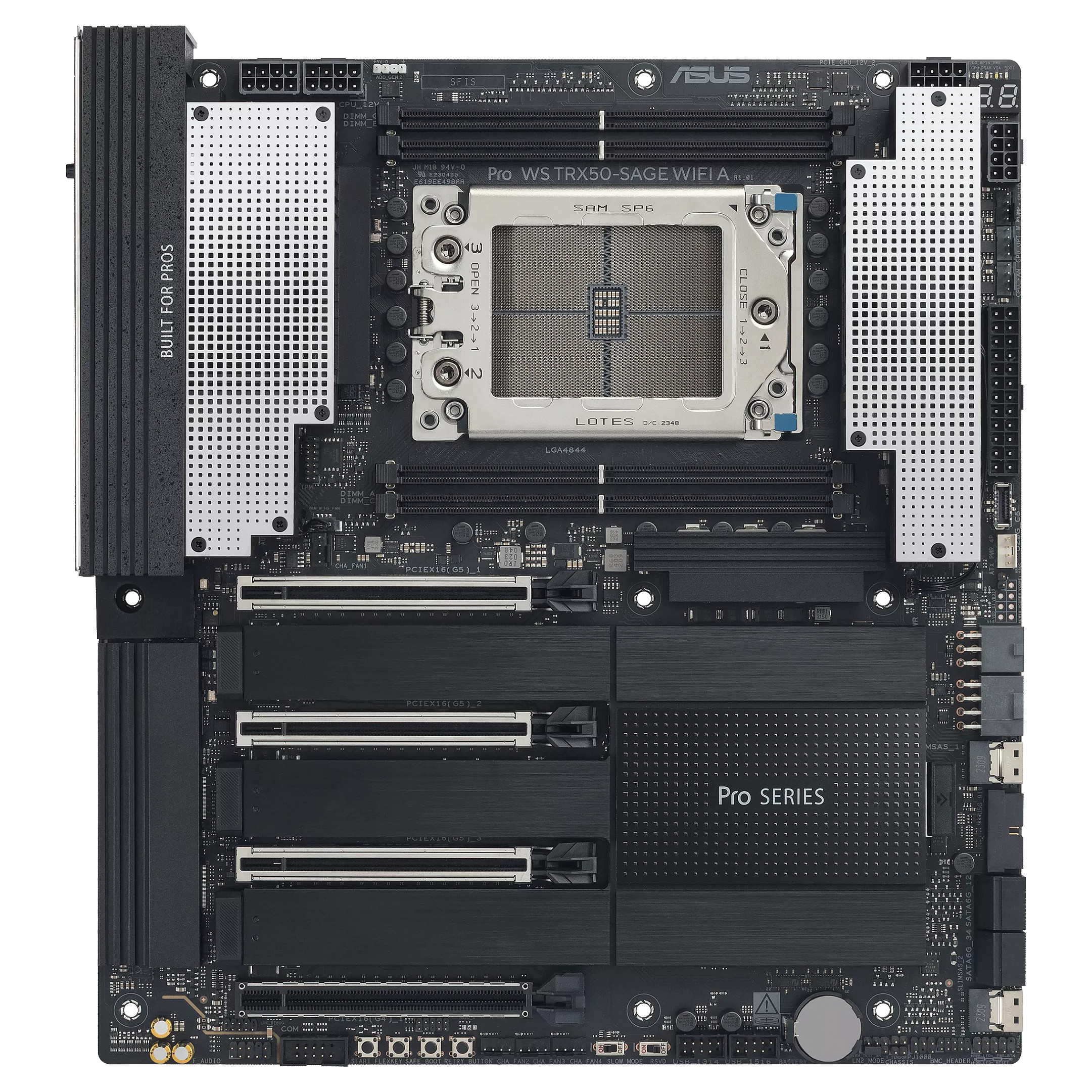

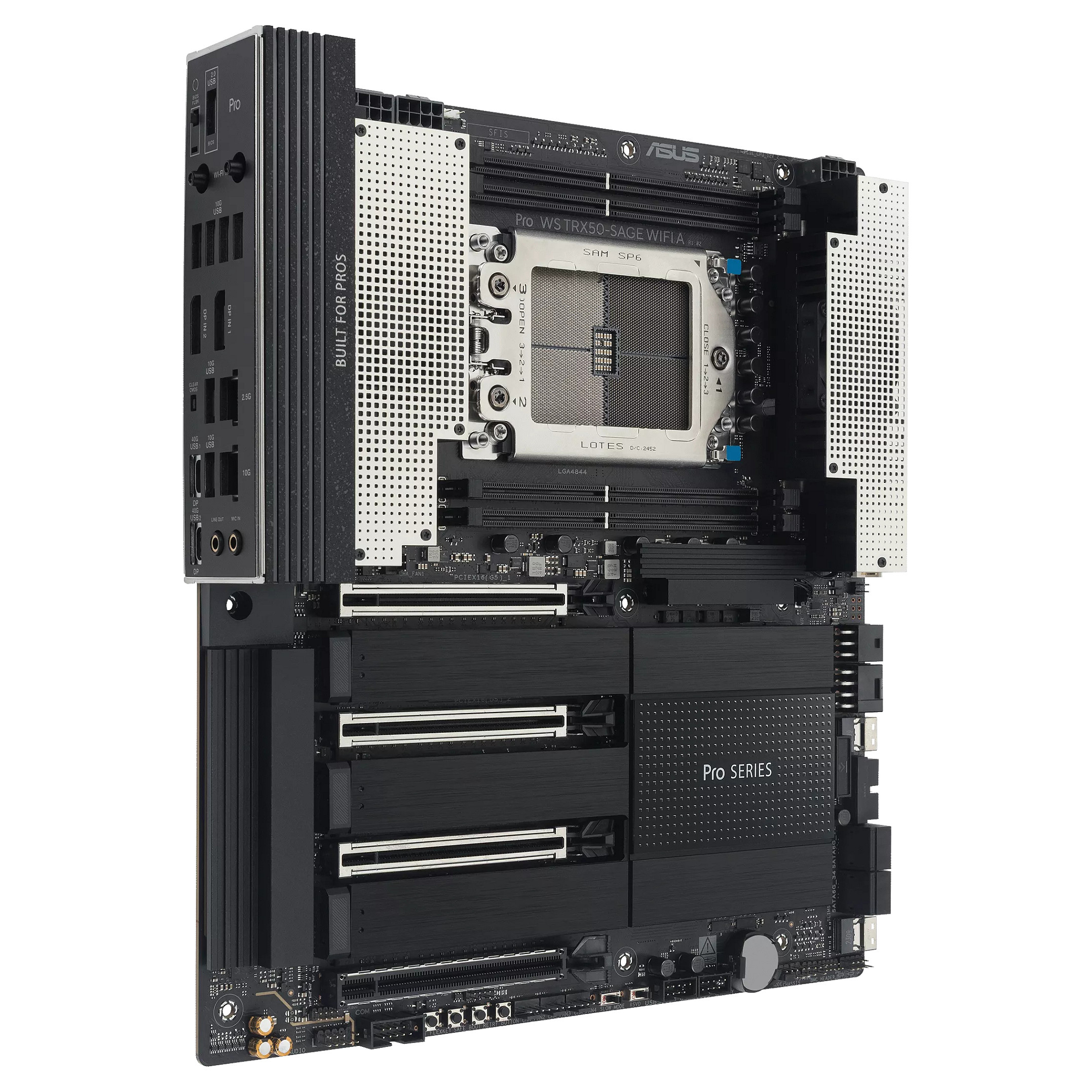

MB ASUS PRO WS TRX50-SAGE WIFI A
Pre-Order
€865.99
VAT (19%) included
Description
Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications AMD sTR5 Socket Supports up to 96-Core CPUs: Ready for AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series and Ryzen™ Threadripper™ 9000 & 7000 Series Processors CPU and Memory Overclocking: Support for up to 1TB ECC R-DIMM DDR5 memory modules (1DPC) Robust Power & Thermal Design: 20 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks, and M.2 thermal pad Ultrafast Connectivity: Three PCIe® 5.0 x16 slots, one PCIe® 4.0 x16 slot, two USB4 (40Gbps) ports, 10 Gb & 2.5 Gb LAN ports, four M.2 slots, front USB 20Gbps Type-C® ports, and SlimSAS NVMe support Server-Grade IPMI Remote Management: hardware and software support for ASUS IPMI expansion cards, plus ASUS Control Center Express software for real-time monitoring and management Trusted Stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation
Technical Specifications
SKU
K90MB1LE0-M0EAY0
Processor Manufacturer
AMD
Processor Socket
Socket sTR5
Compatible Processor Series
AMD Ryzen Threadripper 7000 Series, AMD Ryzen Threadripper PRO 7000 WX-Series
Supported Processor Sockets
Socket sTR5
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
ECC
Maximum Internal Memory
1 TB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, SATA III, SlimSAS
Number Of Hdds Supported
4
Number Of Storage Drives Supported
10
Raid Levels
0, 1, 5, 10
Parallel Processing Technology Support
Not supported
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Usb 3.2 Gen 2X2 Connectors
1
Number Of Sata Iii Connectors
4
Number Of Chassis Fan Connectors
4
Number Of Com Connectors
1
Number Of Temperature Sensor Headers
1

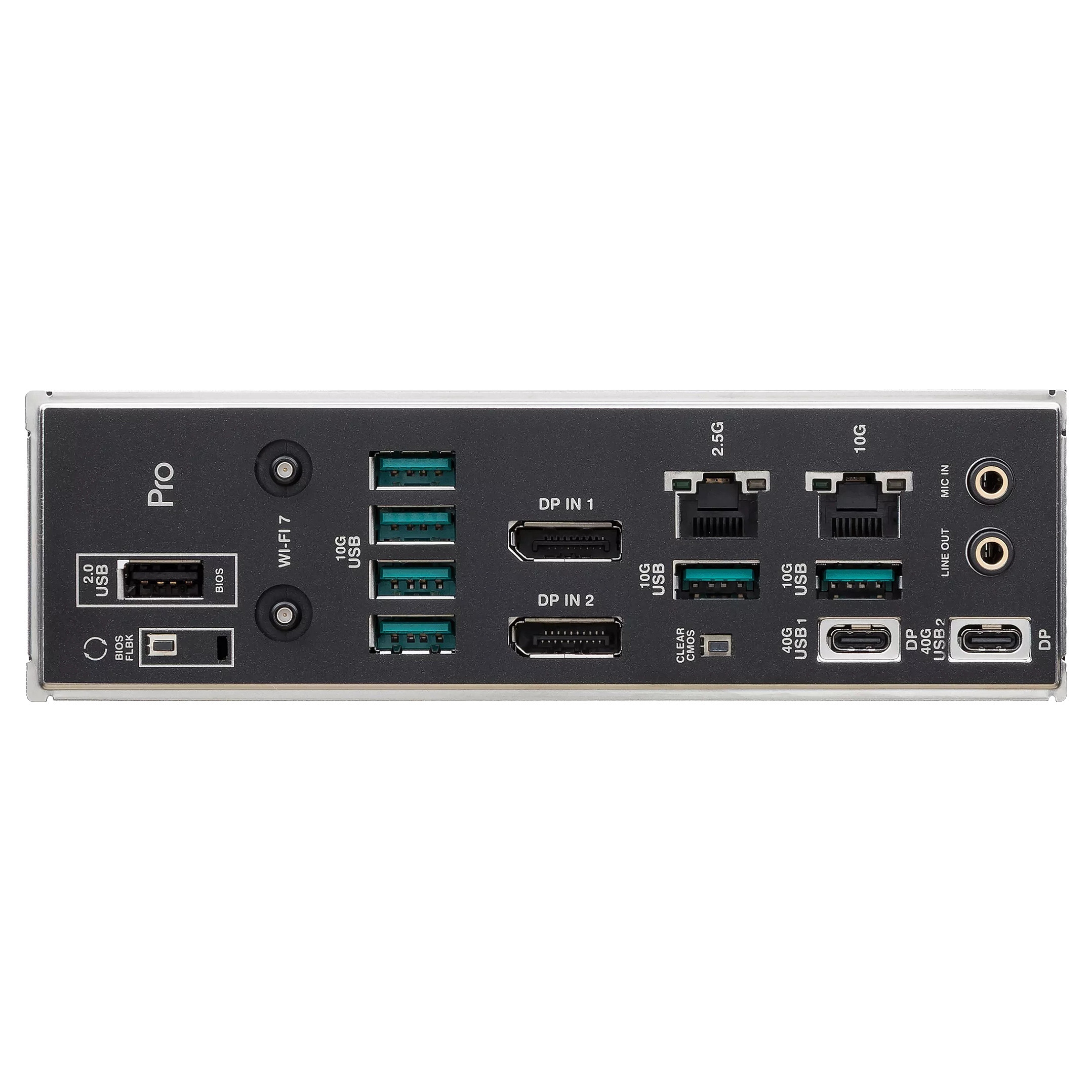

Usb 2.0 Ports Quantity
1
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
6
Usb4 Gen 3X2 Ports Quantity
2
Ethernet Lan (Rj-45) Ports
2
Displayports Quantity
2
Wifi-Ap Antenna Jack
1
Ethernet Interface Type
2.5 Gigabit Ethernet, 10 Gigabit Ethernet
Lan Controller
Intel I226-LM
Top Wi-Fi Standard
Wi-Fi 7 (802.11be)
Wi-Fi Standards
Wi-Fi 7 (802.11be)
Bluetooth Version
5.4
Motherboard Chipset
AMD TRX50
Audio Chip
Realtek ALC1220P
Audio Output Channels
5.1 channels
Product Colour
Aluminium, Black
Component For
Workstation
Motherboard Form Factor
CEB
Motherboard Chipset Family
AMD
Windows Operating Systems Supported
Windows 11
Pci Express X16 (Gen 4.X) Slots
1
Pci Express X16 (Gen 5.X) Slots
3
Number Of M.2 (M) Slots
4
1St M.2 Largest Key Size
2280
1St M.2 Highest Pci Express Generation
5.0
2Nd M.2 Largest Key Size
2580
2Nd M.2 Highest Pci Express Generation
5.0
3Rd M.2 Largest Key Size
2280
3Rd M.2 Highest Pci Express Generation
4.0
4Th M.2 Largest Key Size
2280
4Th M.2 Highest Pci Express Generation
5.0
Bios Type
UEFI AMI
Bios Memory Size
256 Mbit
Package Width
320 mm
Package Depth
380 mm
Package Height
100 mm
Package Weight
4.85 kg
Width
305 mm
Depth
280 mm
Cables Included
DisplayPort, SATA
