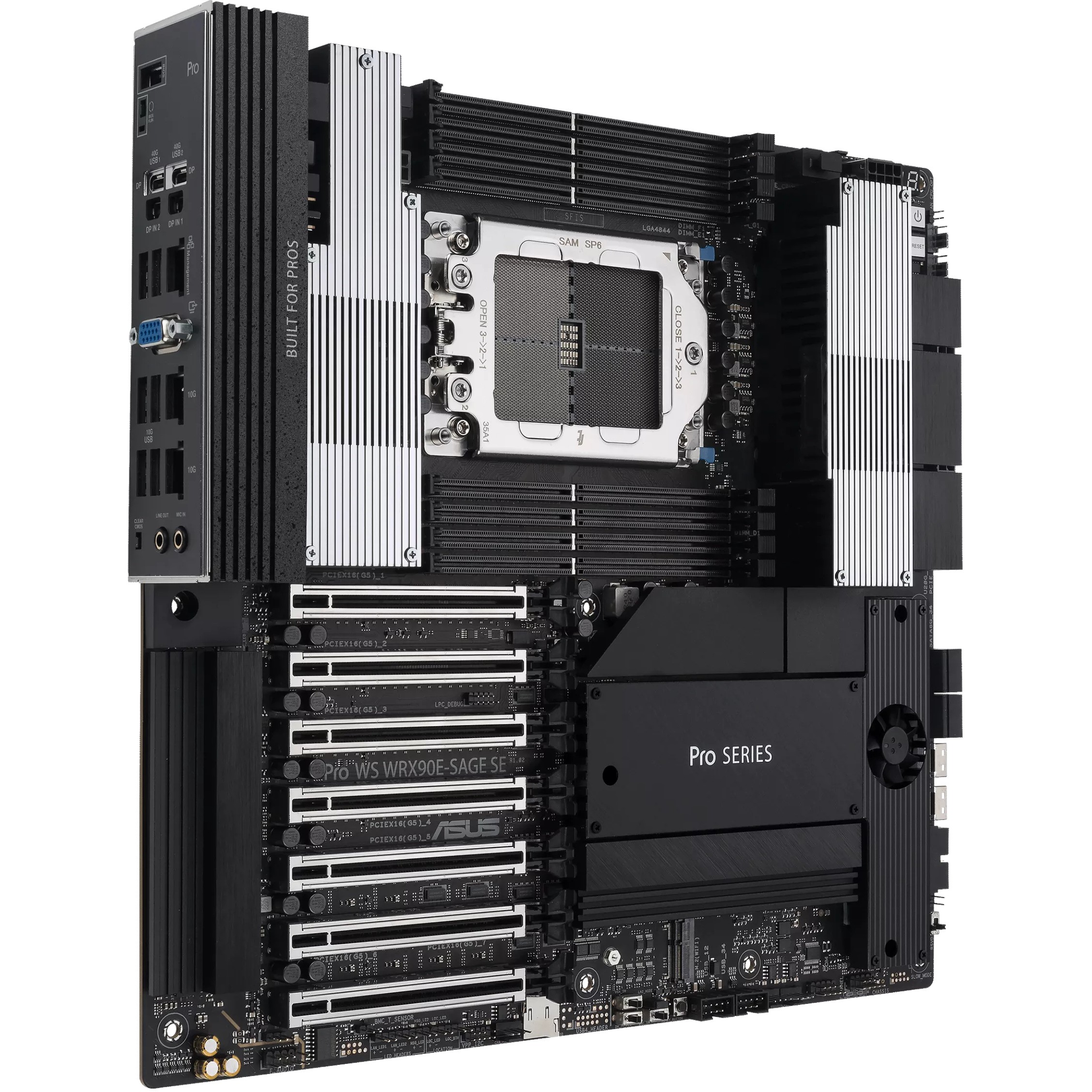

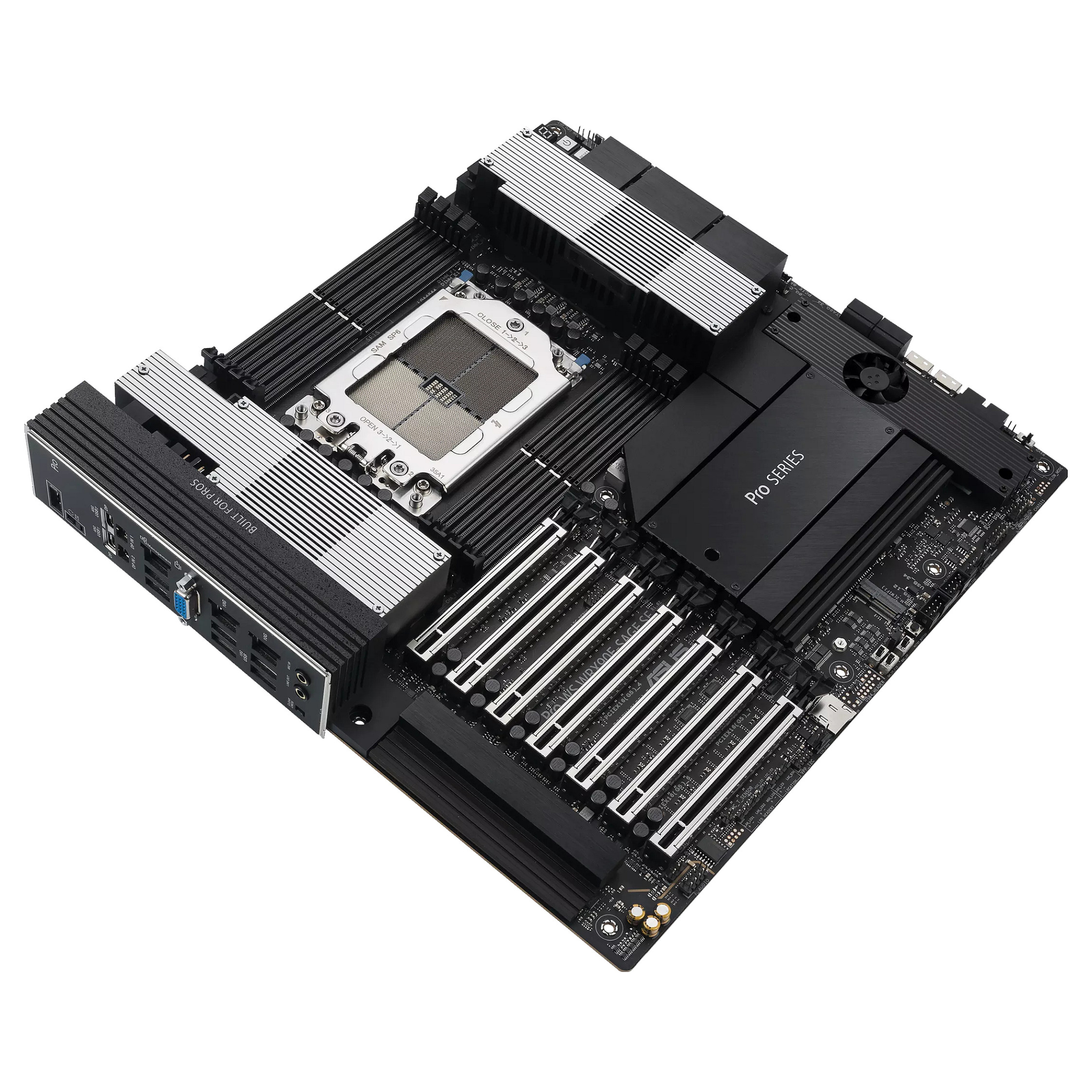

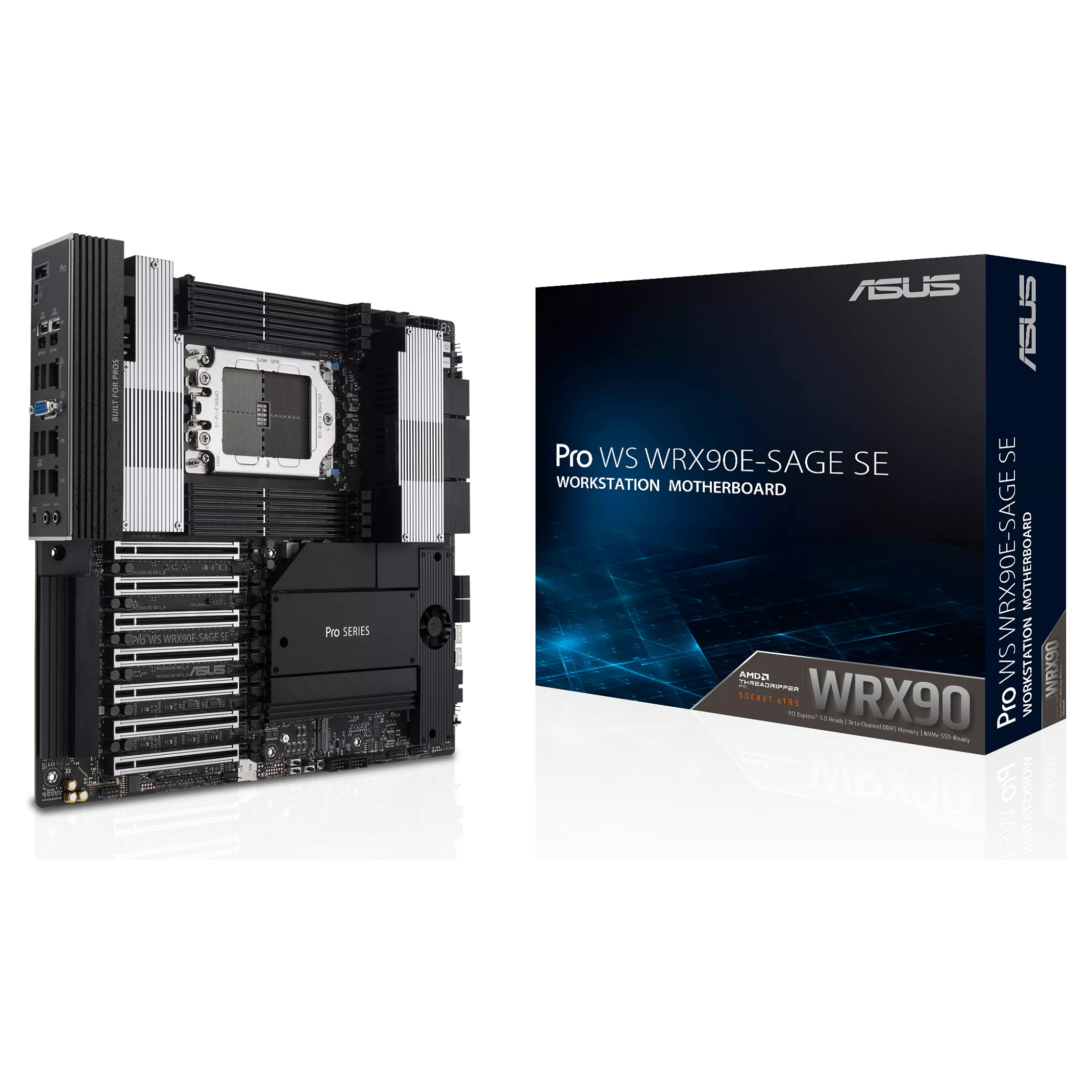

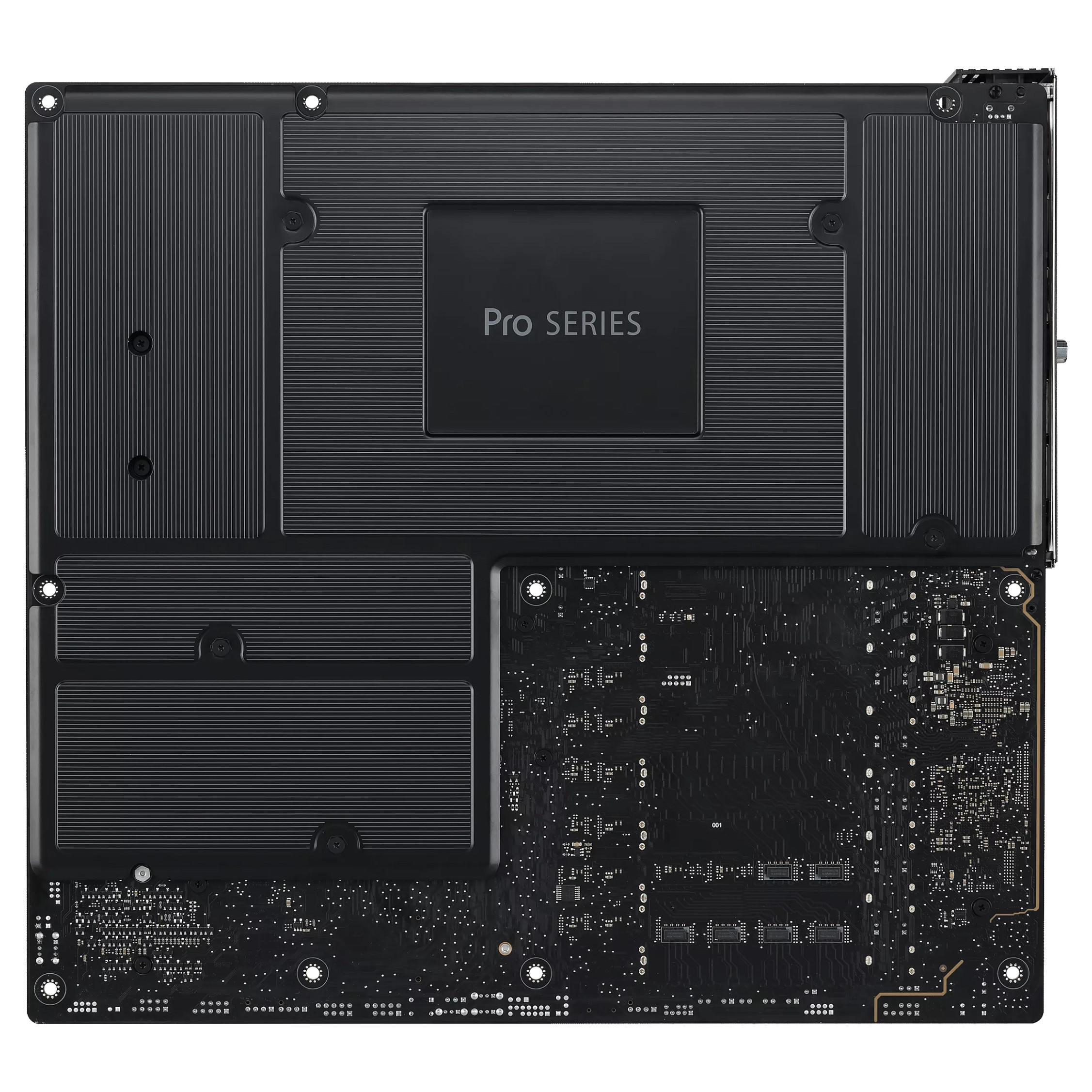

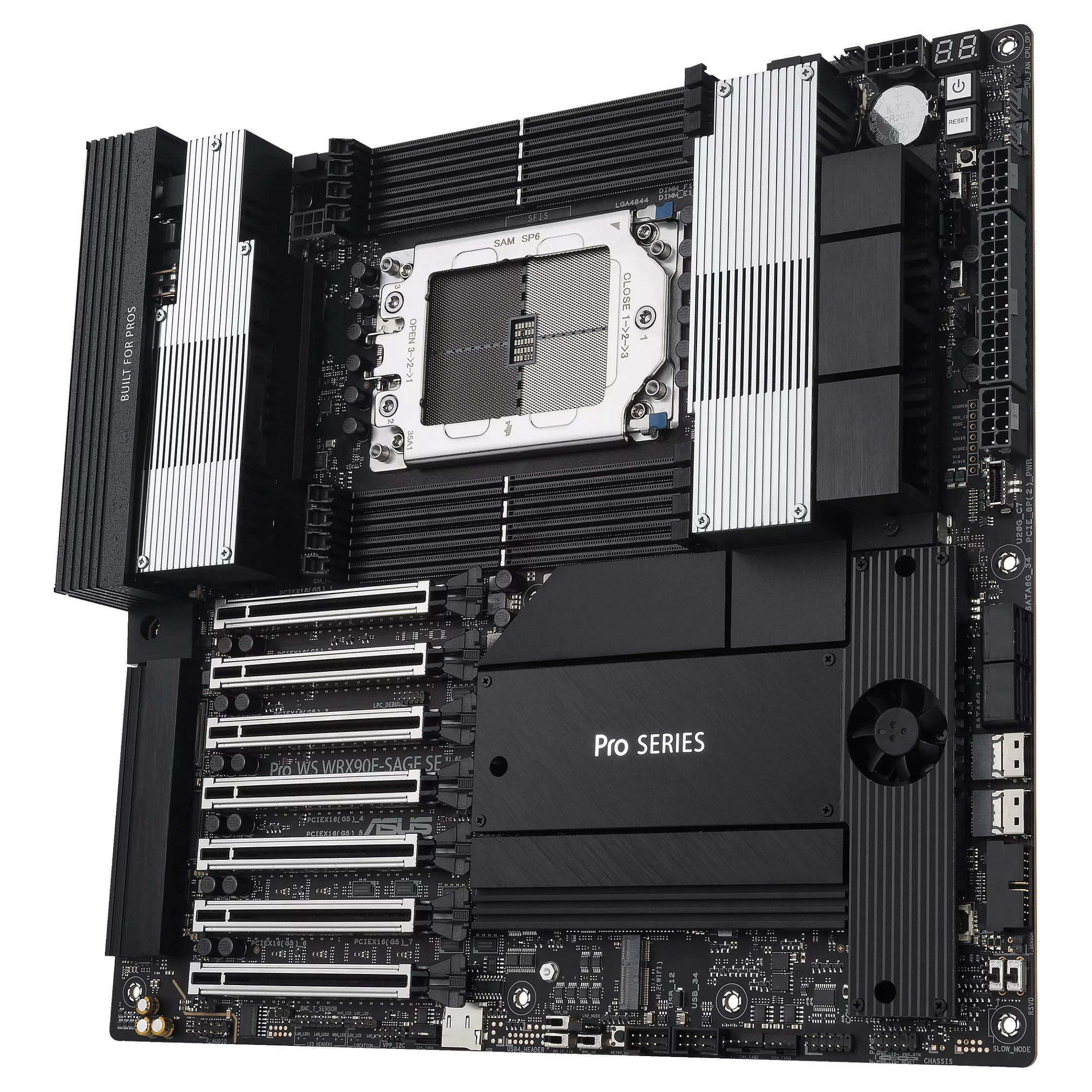

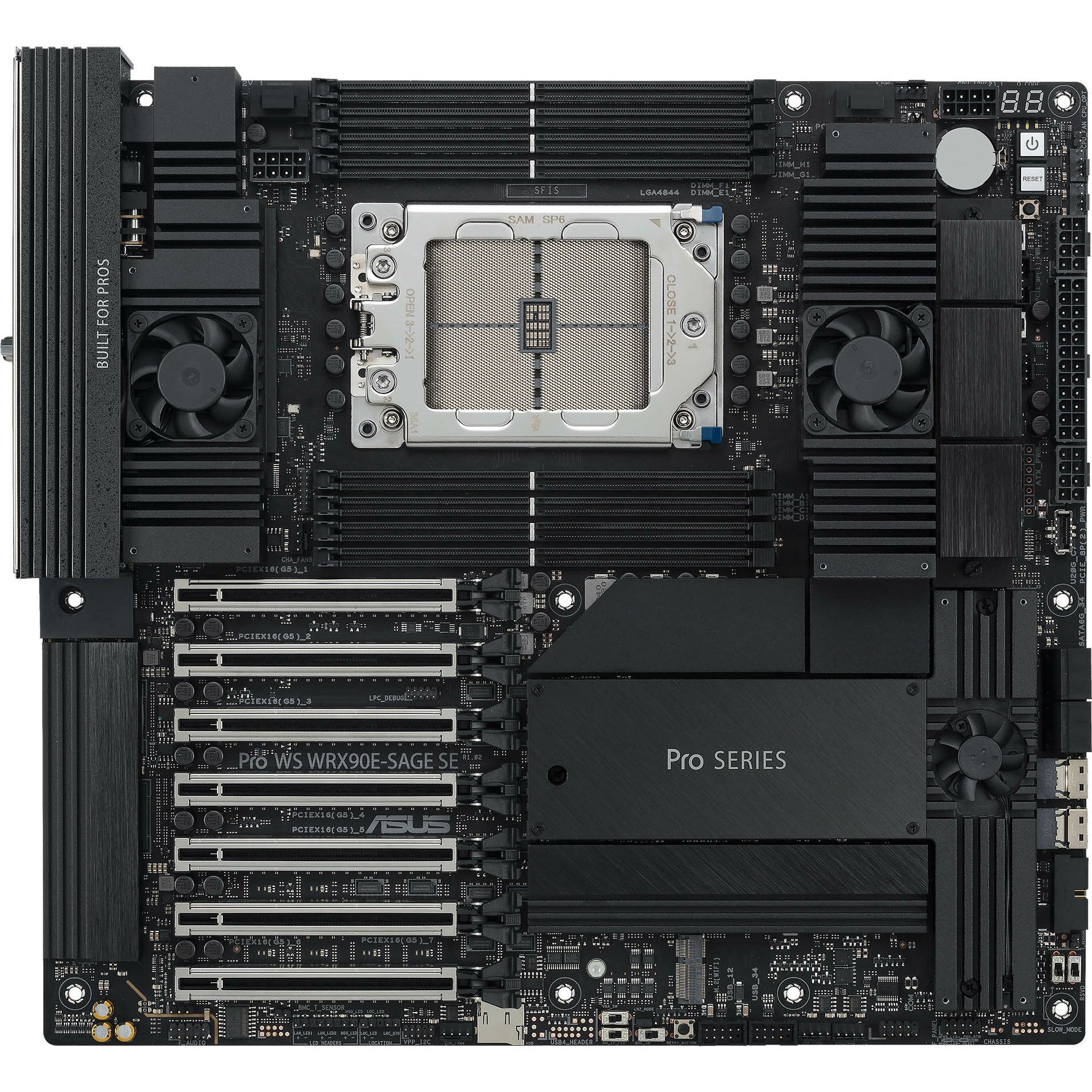

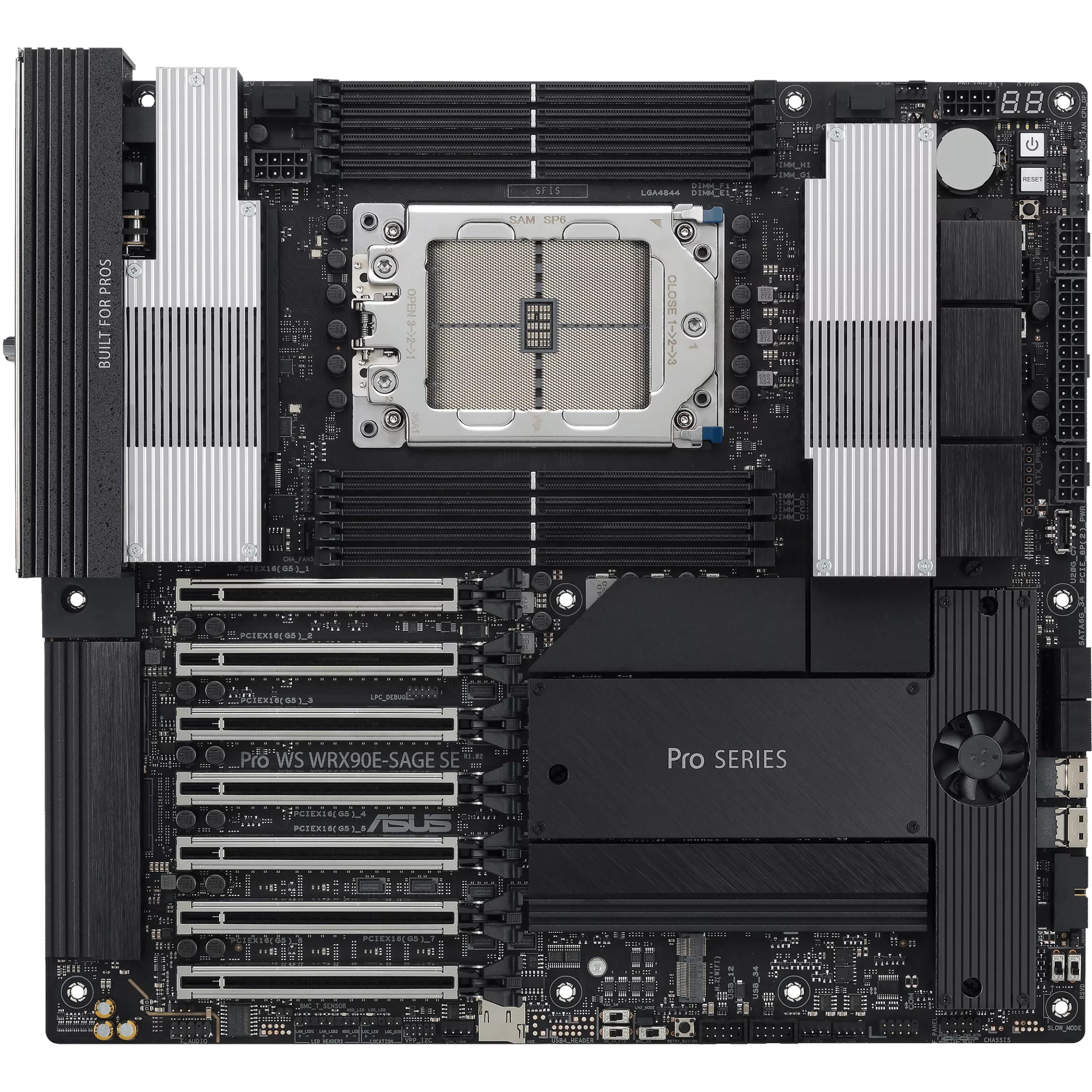

MB ASUS PRO WS WRX90E-SAGE SE (AMD.sTR5.DDR5.EEB)
Pre-Order
€1384.99
VAT (19%) included
Description
AMD sTR5 socket supports up to 96-core CPUs: Ready for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors Ultrafast connectivity: Seven PCIe® 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4® 40Gbps Type-C® and SlimSAS NVMe support CPU and memory overclocking: Support for up to 2 TB ECC R-DIMM DDR5 memory modules (1DPC) Robust power and thermal design: 32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad PCIe Q-release Slim: Remove the graphics card by directly pulling it up, instead of pressing a PCIe latch Server-grade IPMI remote management and onboard BMC: Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation
Technical Specifications
SKU
K90MB1FW0-M0EAY0
Processor Manufacturer
AMD
Processor Socket
Socket sTR5
Compatible Processor Series
AMD Ryzen Threadripper PRO 7000 WX-Series
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
8
Memory Slots Type
DIMM
Memory Channels
Octa-channel
Ecc Сompatibility
ECC
Maximum Internal Memory
2 TB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, SATA III, SlimSAS
Number Of Hdds Supported
4
Number Of Storage Drives Supported
10
Raid Levels
0, 1, 5, 10
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Usb 3.2 Gen 2X2 Connectors
1
Number Of Sata Iii Connectors
4
Number Of Chassis Fan Connectors
5
Number Of Com Connectors
1
Usb 2.0 Ports Quantity
1
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
6
Usb4 Gen 3X2 Ports Quantity
2
Ethernet Lan (Rj-45) Ports
2
Vga (D-Sub) Ports Quantity
1
Usb Connector Type
USB Type-A, USB Type-C
Ethernet Interface Type
10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Top Wi-Fi Standard
Not available
Motherboard Chipset
AMD WRX90
Audio Chip
Realtek ALC1220P
Product Colour
Aluminium, Black
Component For
Workstation
Motherboard Form Factor
EEB
Motherboard Chipset Family
AMD
Windows Operating Systems Supported
Windows 10 x64, Windows 11
Pci Express X16 (Gen 5.X) Slots
7
Number Of M.2 (M) Slots
4
Bios Type
UEFI AMI
Bios Memory Size
256 Mbit
Package Width
377 mm
Package Depth
362 mm
Package Height
79 mm
Package Weight
3.62 kg
Width
305 mm
Depth
330 mm
Height
50 mm
Mini Displayports Quantity
2
Weight
3.33 kg
