ASRock

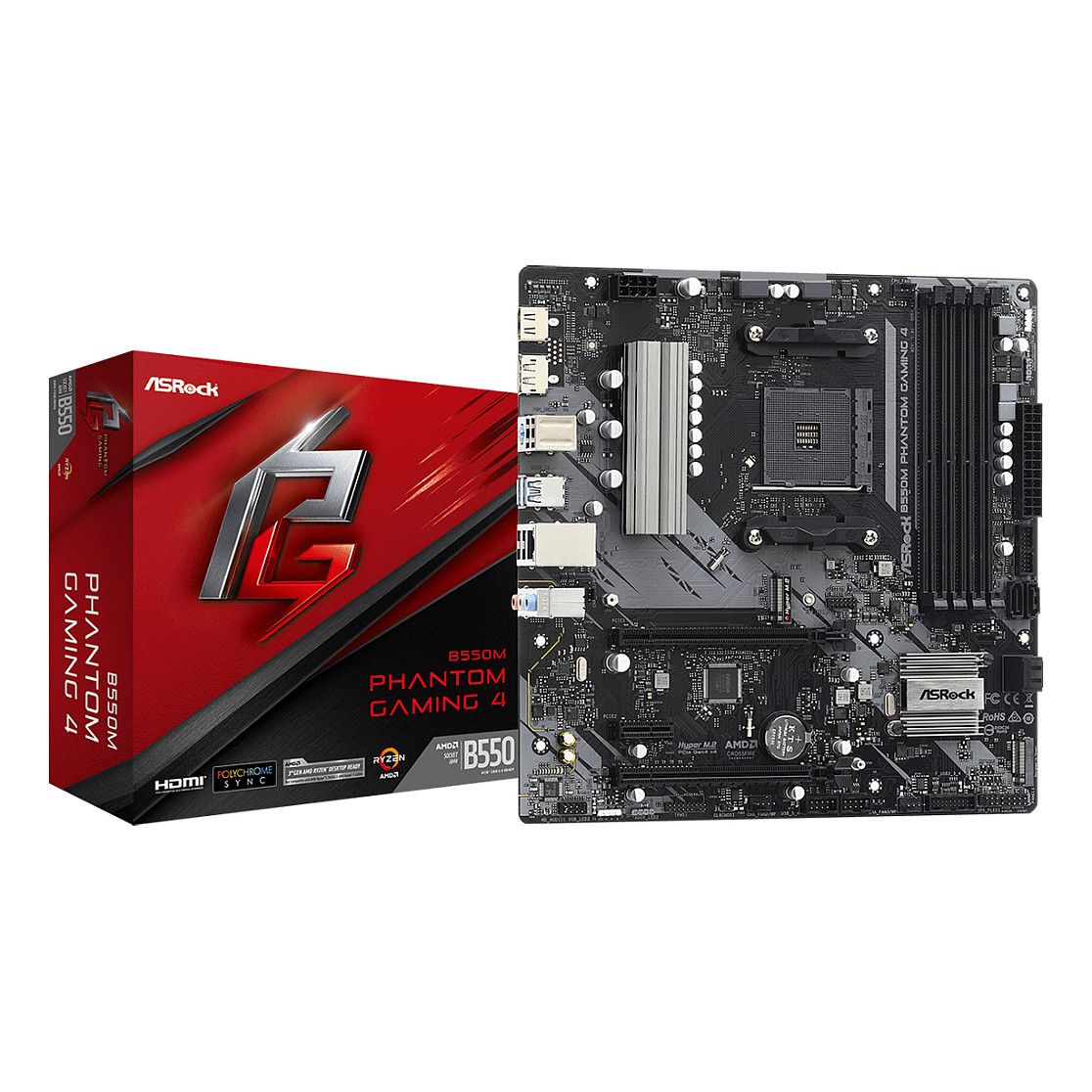

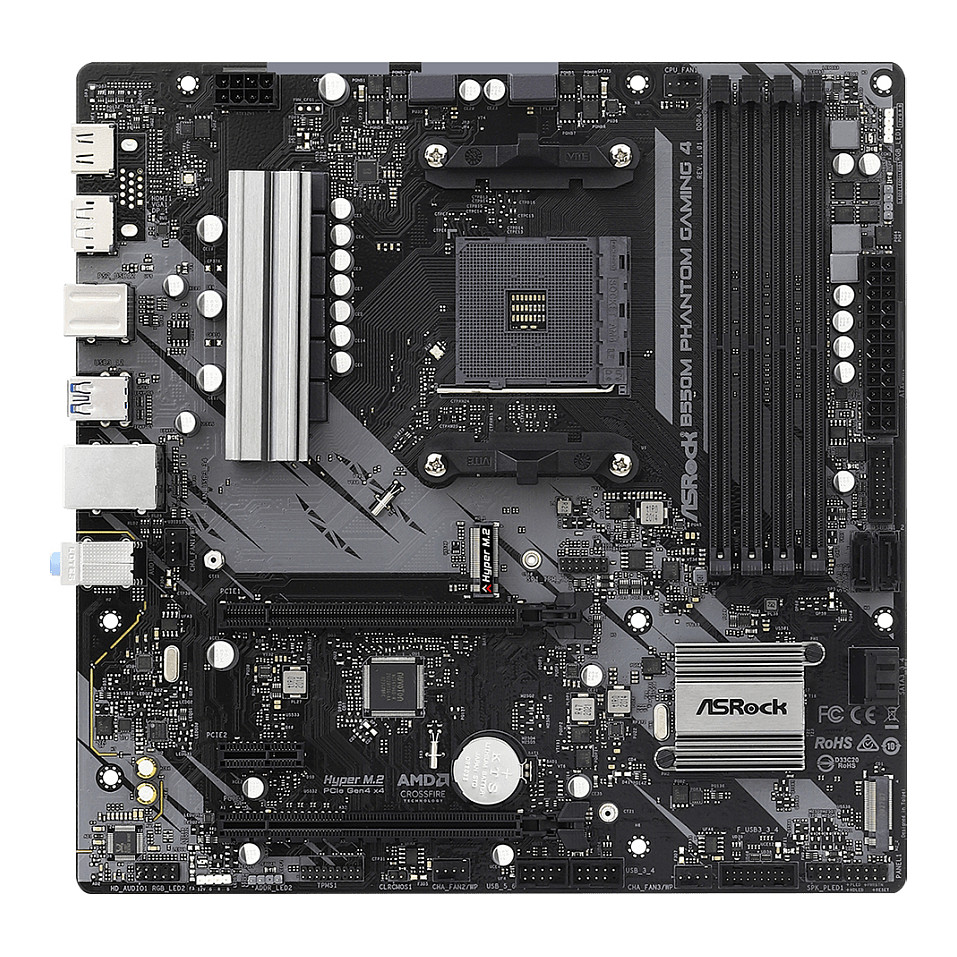

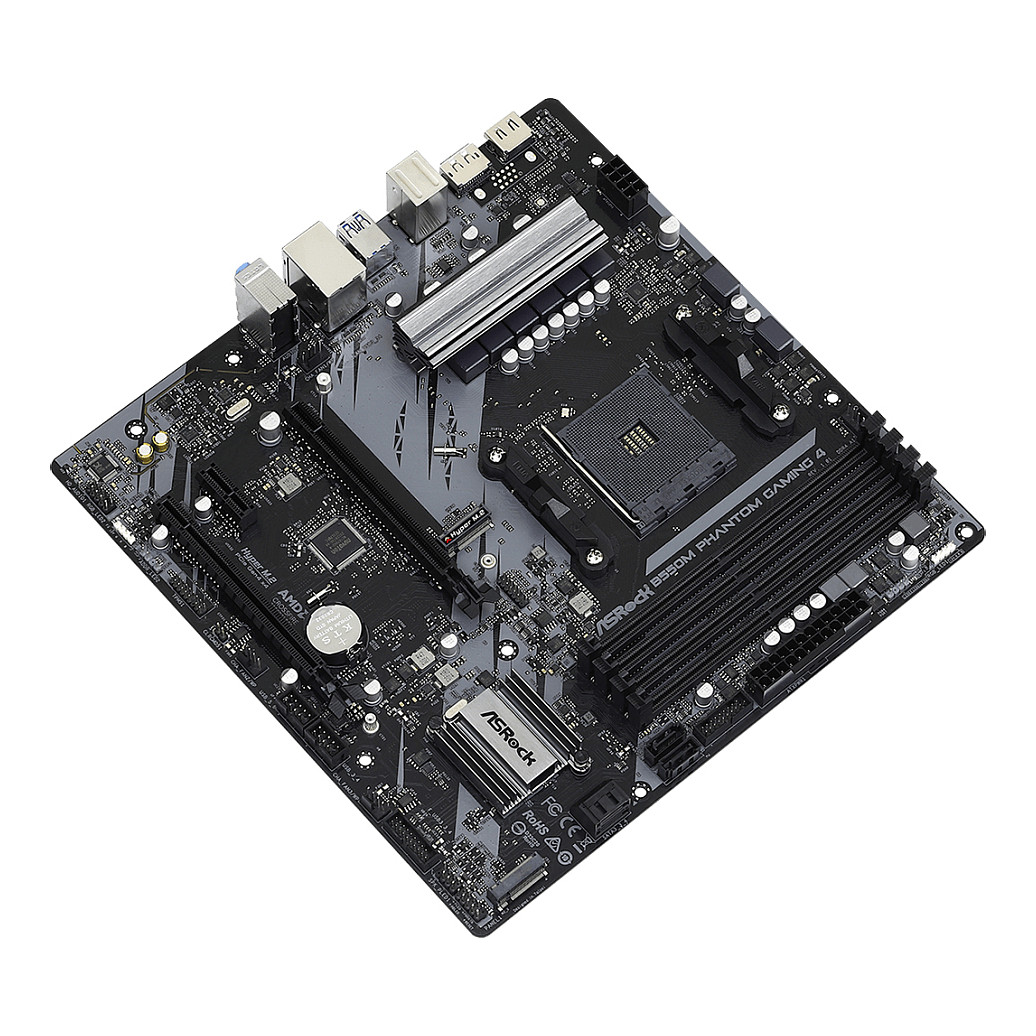

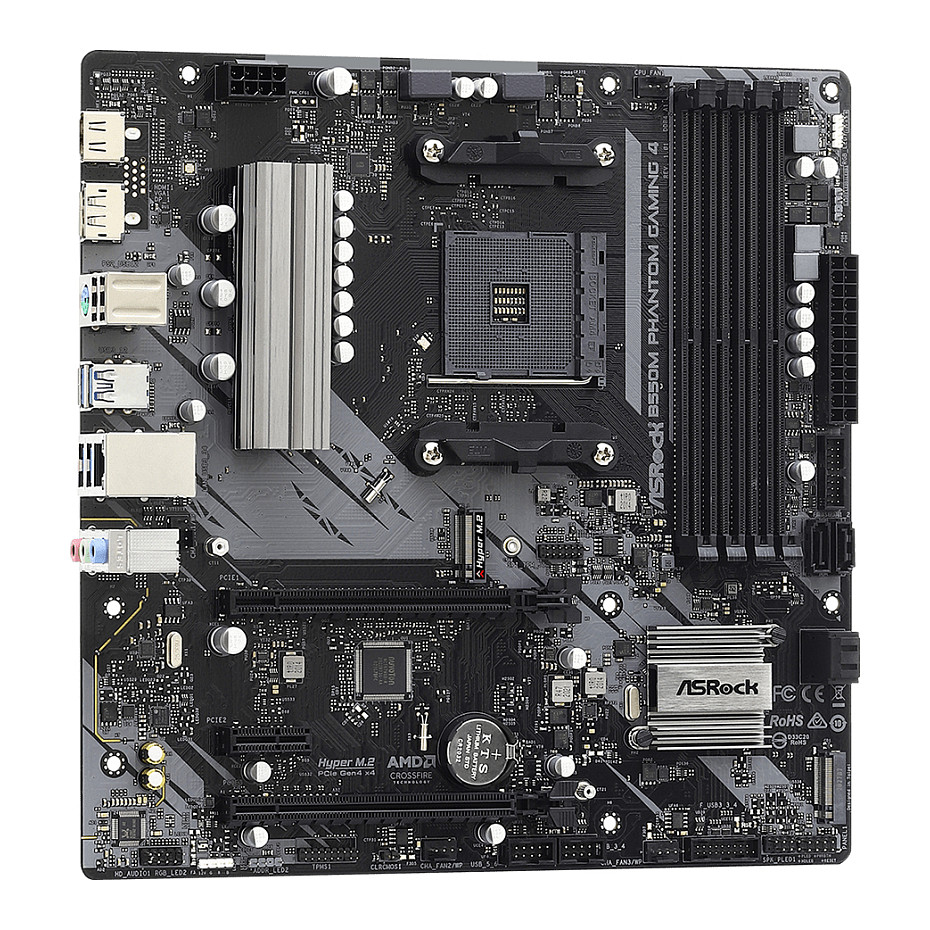

AM4 ASRock B550M Phantom Gaming 4
Pre-Order
€94.99
VAT (19%) included
Description
Premium 50A Power Choke Sapphire Black PCB High Density Glass Fabric PCB 2oz Copper PCB ASRock Hyper M.2 (PCIe Gen4x4) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
Technical Specifications
SKU
K90-MXBE90-A0UAYZ
Processor Manufacturer
AMD
Processor Socket
Socket AM4
Compatible Processor Series
AMD Ryzen 3000 Series
Maximum Number Of Smp Processors
1
Supported Memory Types
DDR4-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
ECC & Non-ECC
Supported Memory Clock Speeds
2133, 2400, 2667, 2933, 3200, 3466, 3600, 3733, 3800, 3866, 4000, 4133, 4200, 4266, 4333, 4400, 4466, 4533 MHz
Maximum Internal Memory
128 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
SATA III
Number Of Storage Drives Supported
6
Maximum Resolution
5120 x 2880 pixels
Directx Version
12.0
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
2
Number Of Sata Iii Connectors
4
Number Of Chassis Fan Connectors
3

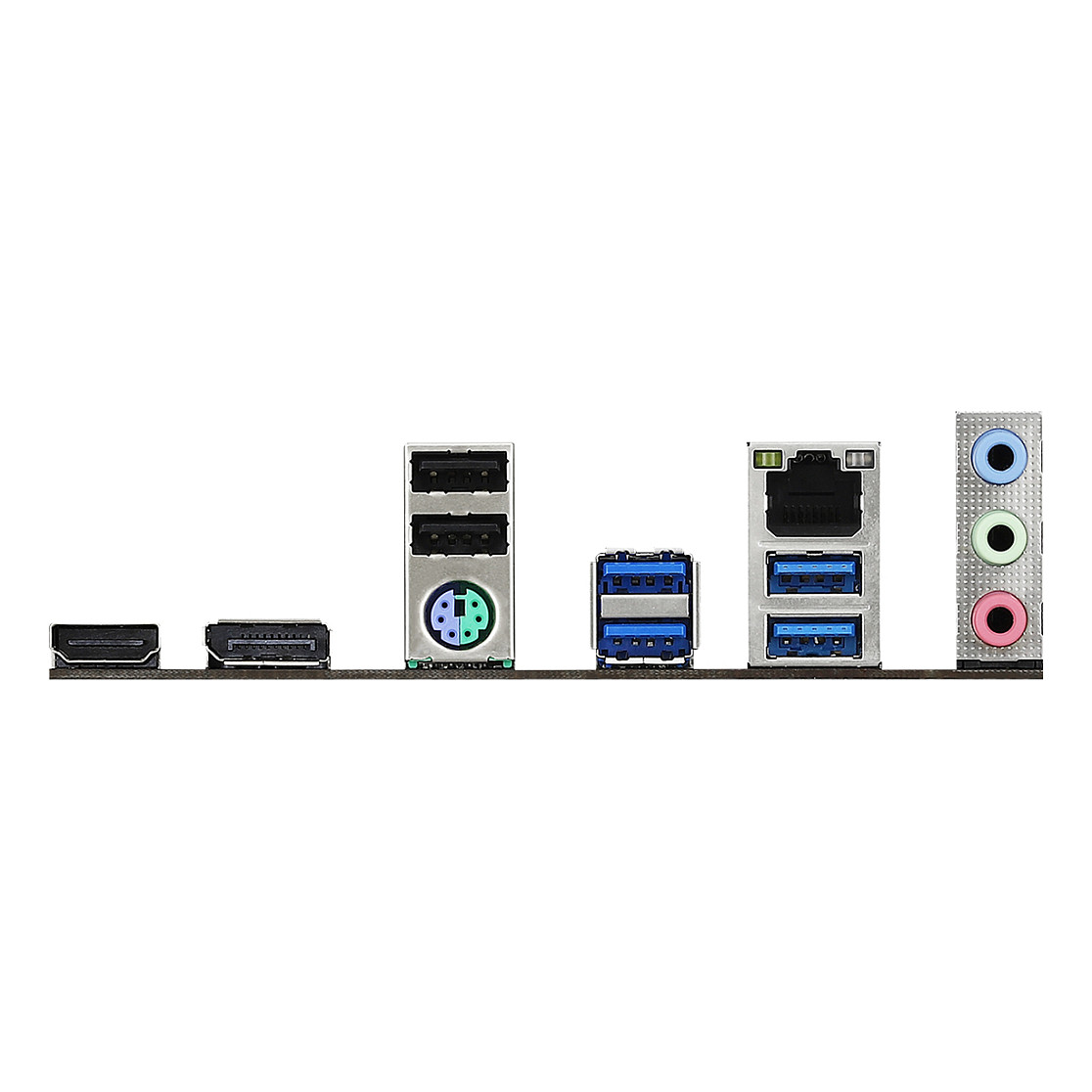

Usb 2.0 Ports Quantity
2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
4
Ethernet Lan (Rj-45) Ports
1
Ps/2 Ports Quantity
1
Hdmi Ports Quantity
1
Hdmi Version
2.1
Displayports Quantity
1
Displayport Version
1.4
Ethernet Interface Type
Gigabit Ethernet
Lan Controller
Realtek RTL8111H
Top Wi-Fi Standard
Not available
Motherboard Chipset
AMD B550
Audio Chip
Realtek ALC887 / Realtek ALC897
Audio Output Channels
7.1 channels
Pc Health Monitoring
Fan, Temperature, Voltage
Component For
PC
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
AMD
Windows Operating Systems Supported
Windows 10 x64
Overclocking Features
FCC, CE ErP/EuP
Pci Express X1 (Gen 3.X) Slots
1
Pci Express X16 (Gen 3.X) Slots
3
Pci Express X16 (Gen 4.X) Slots
1
Number Of M.2 (M) Slots
2
Bios Type
UEFI AMI
Bios Memory Size
256 Mbit
Acpi Version
5.1
System Management Bios (Smbios) Version
2.3
Harmonized System (Hs) Code
84733020
Width
244 mm
Depth
244 mm
Height
70 mm
Cables Included
SATA
Weight
465 g
