ASRock

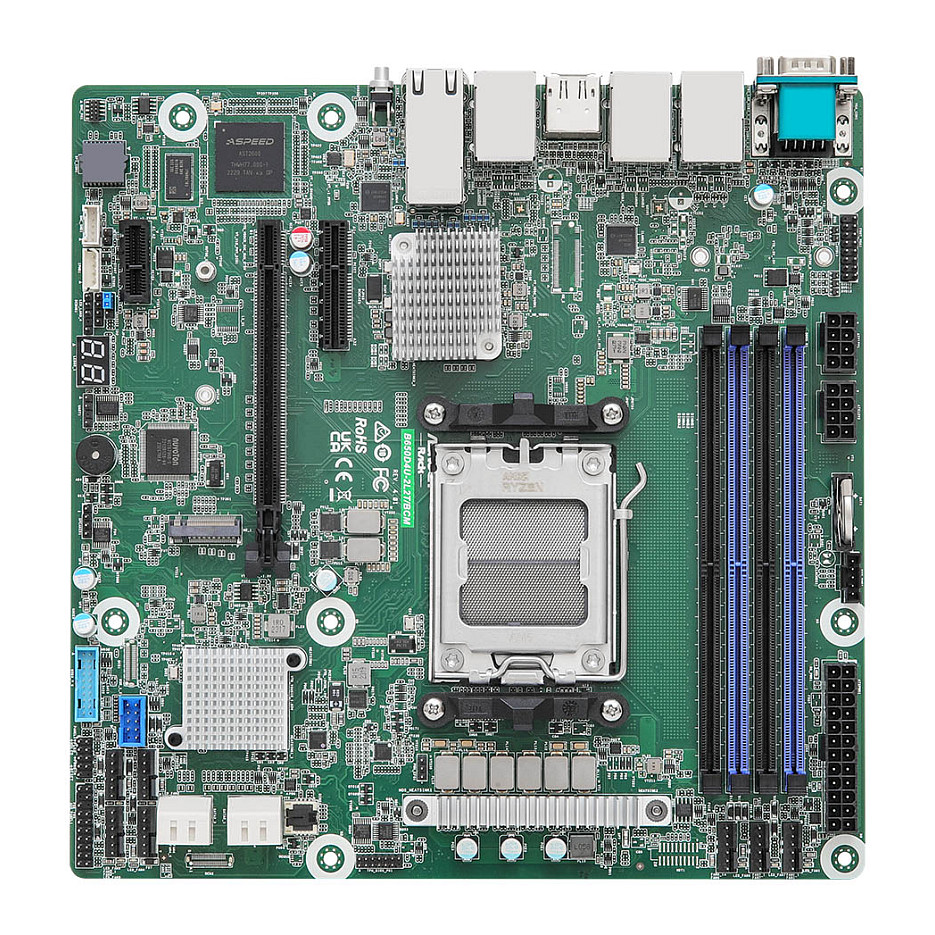

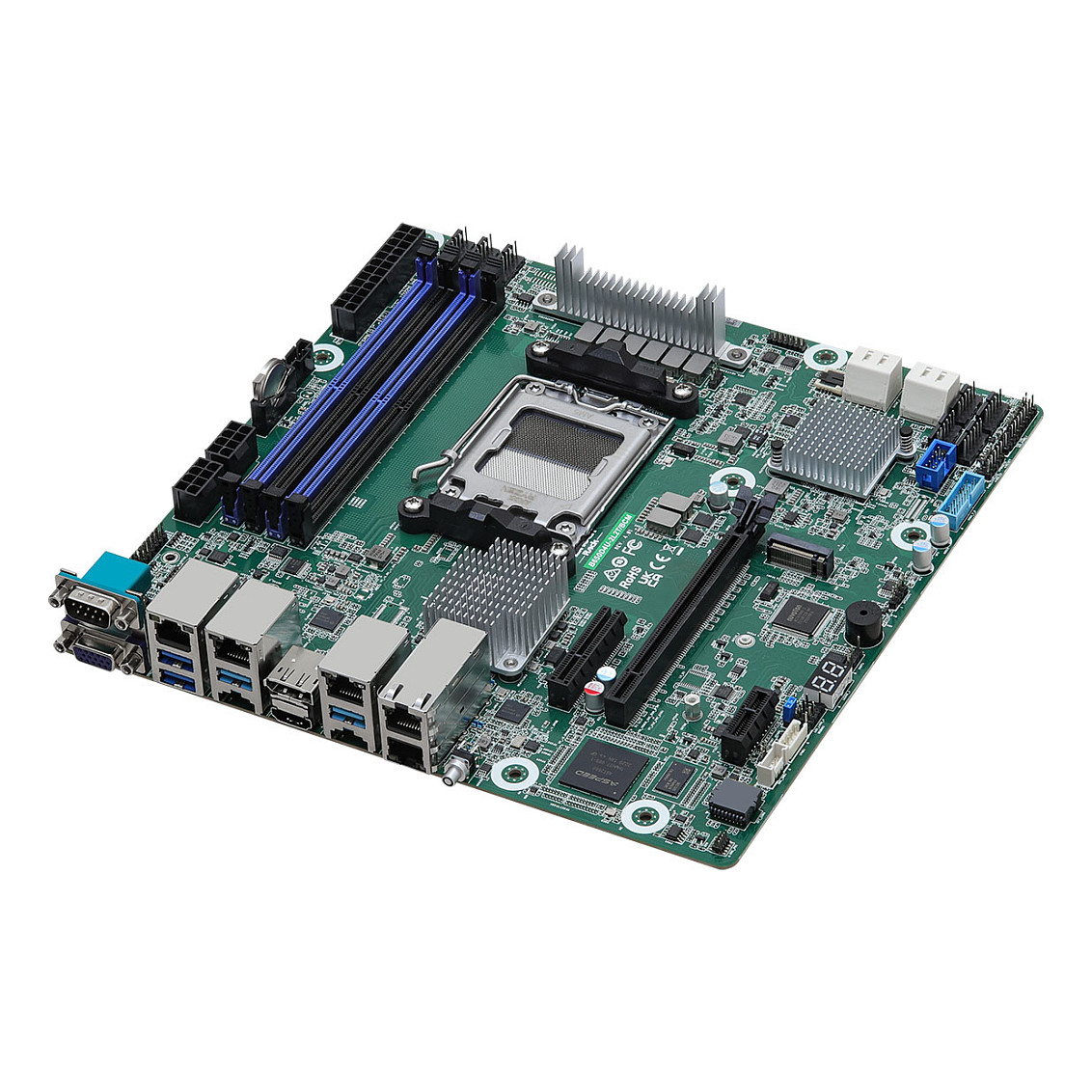

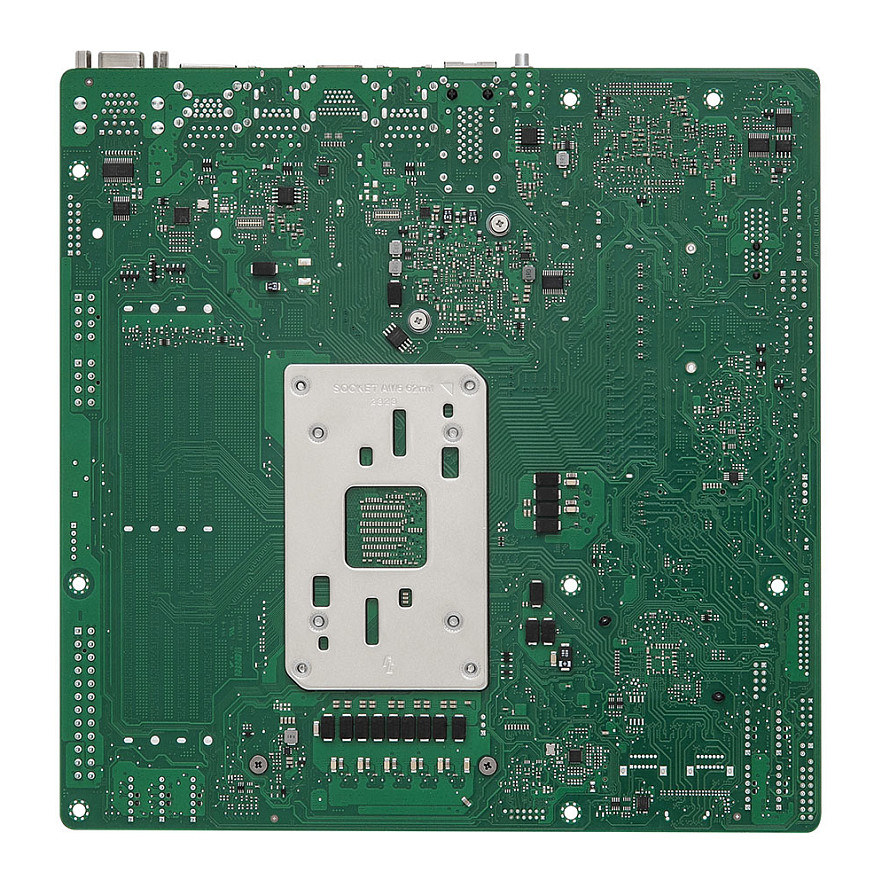

MB ASRock AM5 - B650D4U-2L2T/BCM
Pre-Order
€541.99
VAT (19%) included
Description

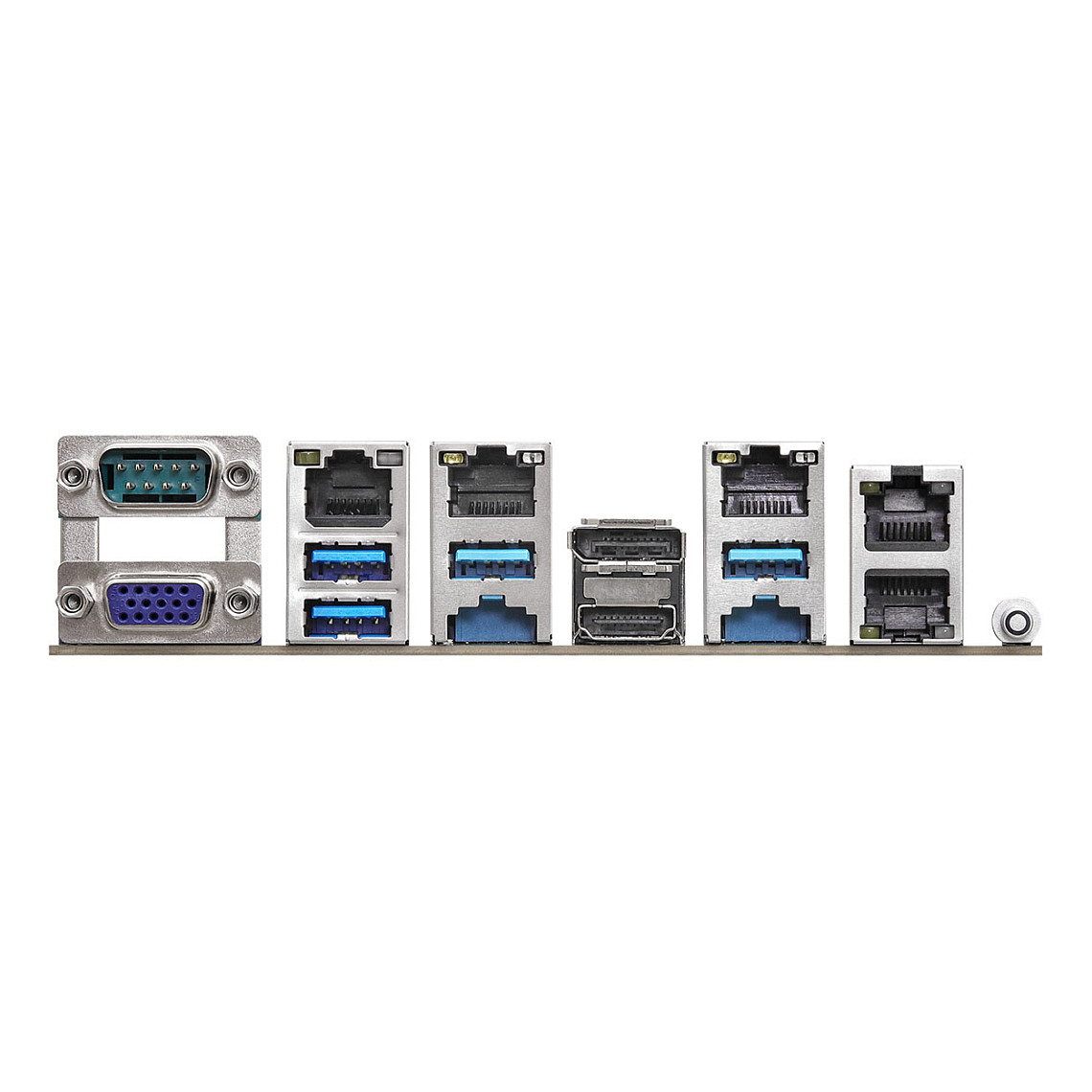

Micro-ATX (9.6"x 9.6") Support AMD Ryzen 7000 series Processors 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM 1 PCIe5.0 x16, 1 PCIe5.0 x4, 1 PCIe4.0 x1 Supports 1 M.2 (PCIe5.0 x4) 2 RJ45 (10GbE) by Broadcom BCM57416 2 RJ45 (1GbE) by Intel® i210 4 SATA 6Gb/s 1 HDMI, 1 DisplayPort Remote management (IPMI)
Technical Specifications
SKU
KB650D4U-2L2T/BCM
Processor Manufacturer
AMD
Processor Socket
Socket AM5
Compatible Processor Series
AMD Ryzen™ 3, AMD Ryzen™ 5
Maximum Number Of Smp Processors
1
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Voltage
1.1 V
Ecc Сompatibility
ECC & Non-ECC
Supported Memory Clock Speeds
3600, 5200 MHz
Supported Memory Clock Speed (Max)
5200 MHz
Maximum Internal Memory
32 GB
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Storage Drives Supported
5
Raid Levels
0, 1, 10
On-Board Graphics Card Model
Aspeed AST2600
Number Of Sata Iii Connectors
4
Number Of Com Connectors
1
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
4
Ethernet Lan (Rj-45) Ports
4
Vga (D-Sub) Ports Quantity
1
Hdmi Ports Quantity
1
Displayports Quantity
1
Serial Ports Quantity
1
Ethernet Interface Type
10 Gigabit Ethernet, Gigabit Ethernet
Top Wi-Fi Standard
Not available
Motherboard Chipset
AMD B650 Express
Pc Health Monitoring
CPU, Fan, Voltage
Component For
Server
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
AMD
Pci Express X4 (Gen 4.X) Slots
1
Pci Express X16 (Gen 5.X) Slots
1
Number Of M.2 (M) Slots
1
Bios Type
UEFI AMI
Bios Memory Size
256 Mbit
Acpi Version
6.4
System Management Bios (Smbios) Version
3.5
Storage Temperature (T-T)
-40 - 70 °C
Operating Temperature (T-T)
10 - 35 °C
Operating Relative Humidity (H-H)
20 - 90%
Width
243.8 mm
Depth
243.8 mm
