ASUS

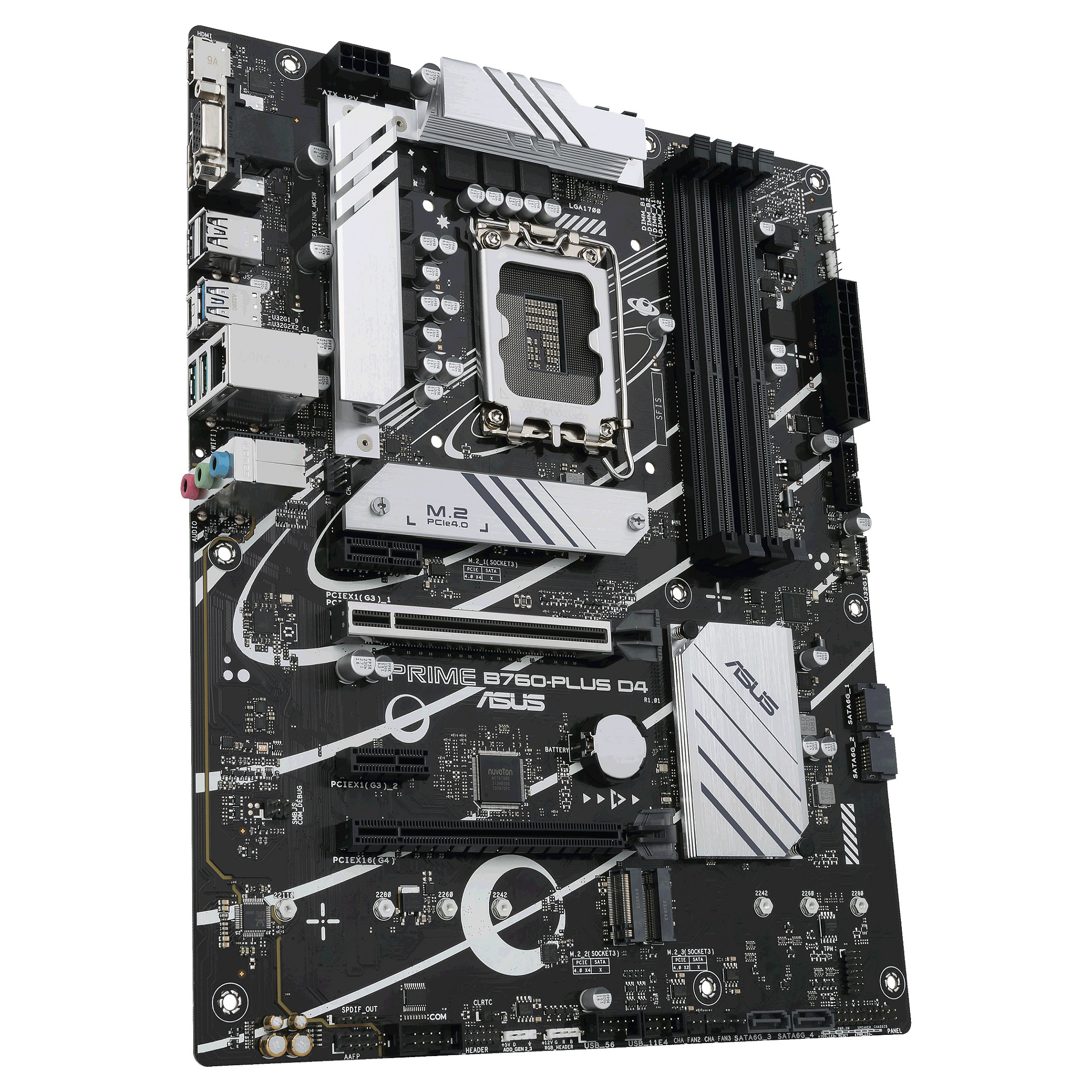

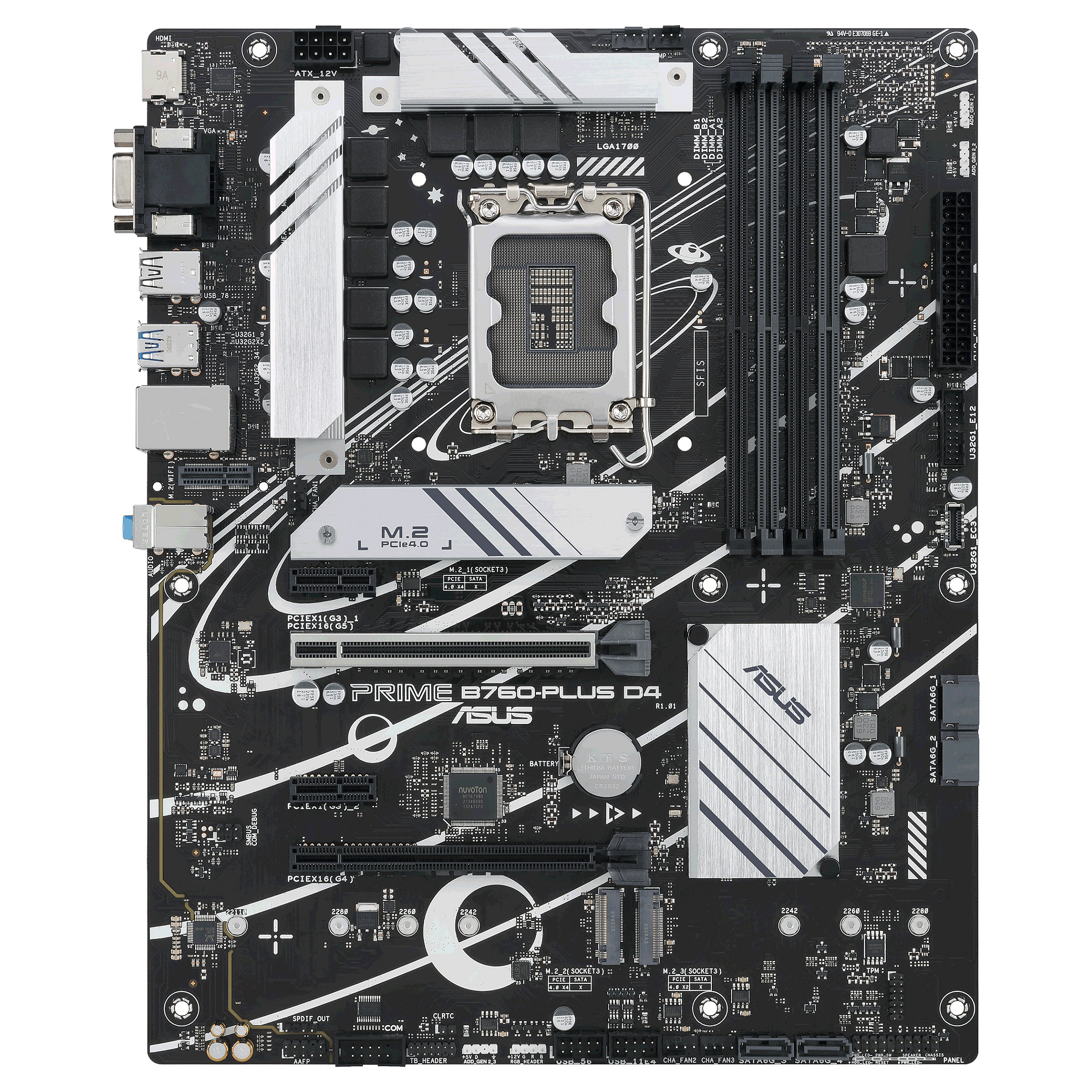

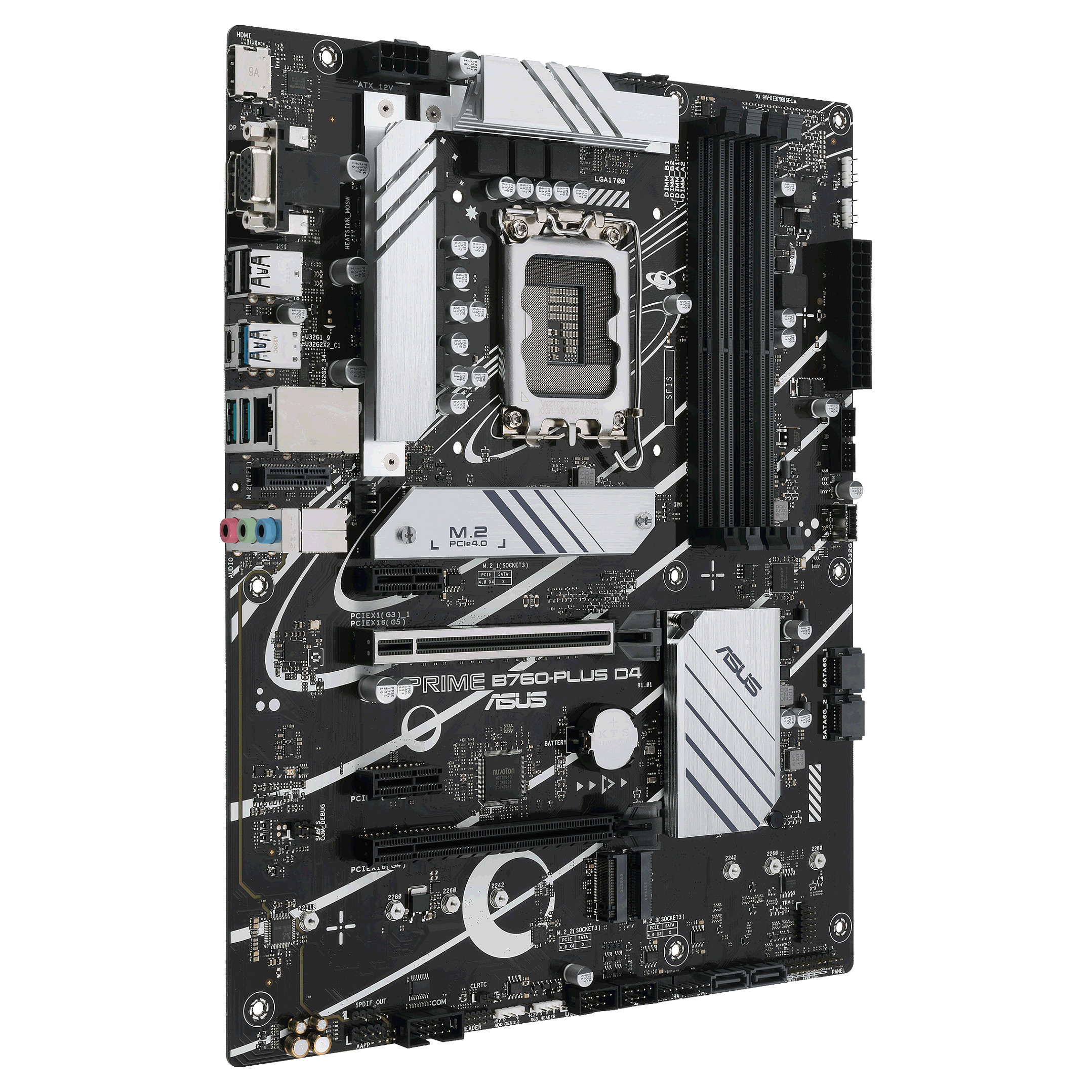

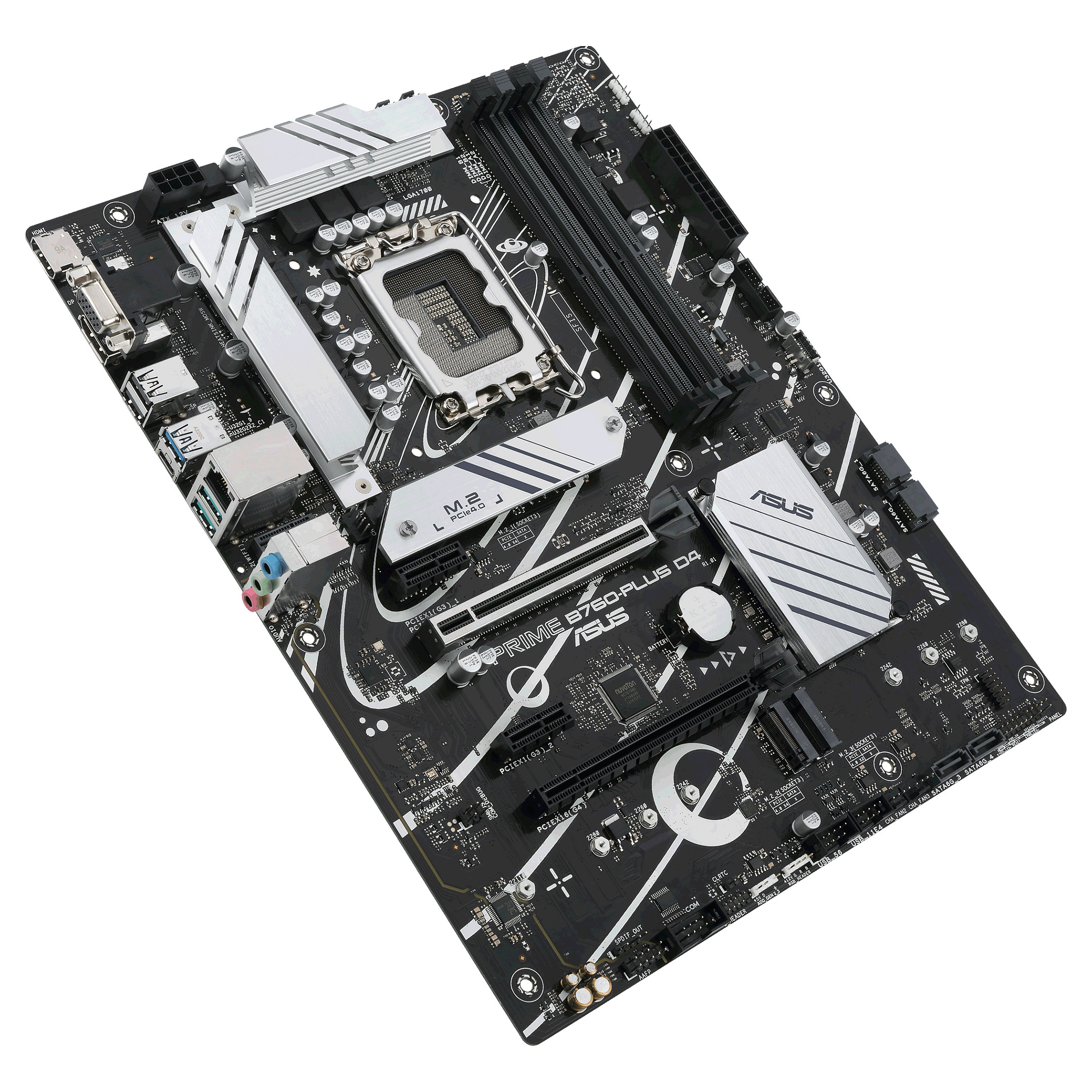

1700 ASUS PRIME B760-PLUS D4
Pre-Order
€162.99
VAT (19%) included
Description
Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C® and Thunderbolt™ (USB4®) header support Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+ ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
Technical Specifications
SKU
K90MB1CW0-M1EAY0
Processor Manufacturer
Intel
Processor Socket
LGA 1700
Compatible Processor Series
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Maximum Number Of Smp Processors
1
Supported Processor Sockets
LGA 1700
Supported Memory Types
DDR4-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
Non-ECC
Supported Memory Clock Speeds
5066, 5000, 4800, 4600, 4400, 4266, 4000, 3733, 3600, 3466, 3400, 3333, 3200, 3000, 2933, 2800, 2666, 2400, 2133 MHz
Supported Memory Clock Speed (Max)
5066 MHz
Maximum Internal Memory
128 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Hdds Supported
4
Number Of Storage Drives Supported
7
Raid Levels
0, 1, 5, 10
Parallel Processing Technology Support
Not supported
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
2
Number Of Sata Iii Connectors
4
Number Of Chassis Fan Connectors
3
Peripheral (Molex) Power Connectors (4-Pin)
1
Number Of Com Connectors
1
Thunderbolt Headers
1
Usb 2.0 Ports Quantity
2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
1
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
2
Usb 3.2 Gen 2X2 Type-C Ports Quantity
1
Ethernet Lan (Rj-45) Ports
1
Vga (D-Sub) Ports Quantity
1
Hdmi Ports Quantity
1
Hdmi Version
2.1
Displayports Quantity
1
Displayport Version
1.4
Headphone Outputs
1
Ethernet Interface Type
2.5 Gigabit Ethernet
Motherboard Chipset
Intel B760
Audio Output Channels
7.1 channels
Component For
PC
Motherboard Form Factor
ATX
Motherboard Chipset Family
Intel
Cooling Type
Passive
Power Source Type
ATX
Windows Operating Systems Supported
Windows 10, Windows 11
Pci Express X1 (Gen 3.X) Slots
2
Pci Express X16 (Gen 4.X) Slots
1
Pci Express X16 (Gen 5.X) Slots
1
Number Of M.2 (M) Slots
3
Bios Type
UEFI AMI
Bios Memory Size
128 Mbit
Package Width
328 mm
Package Depth
266 mm
Package Height
53 mm
Package Weight
1.16 kg
Width
305 mm
Depth
244 mm
Cables Included
SATA
Number Of M.2 (E) Slots
1
