ASUS

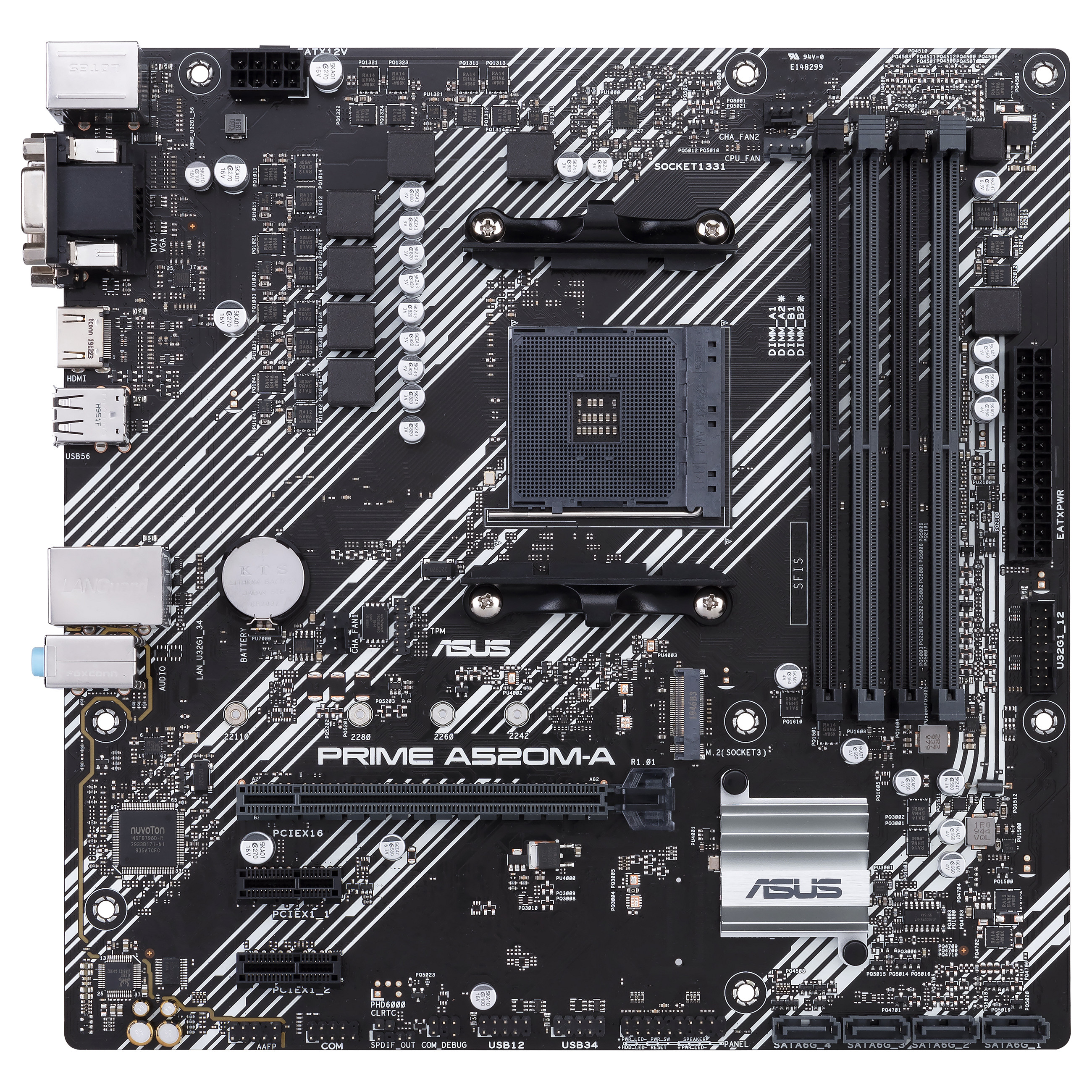

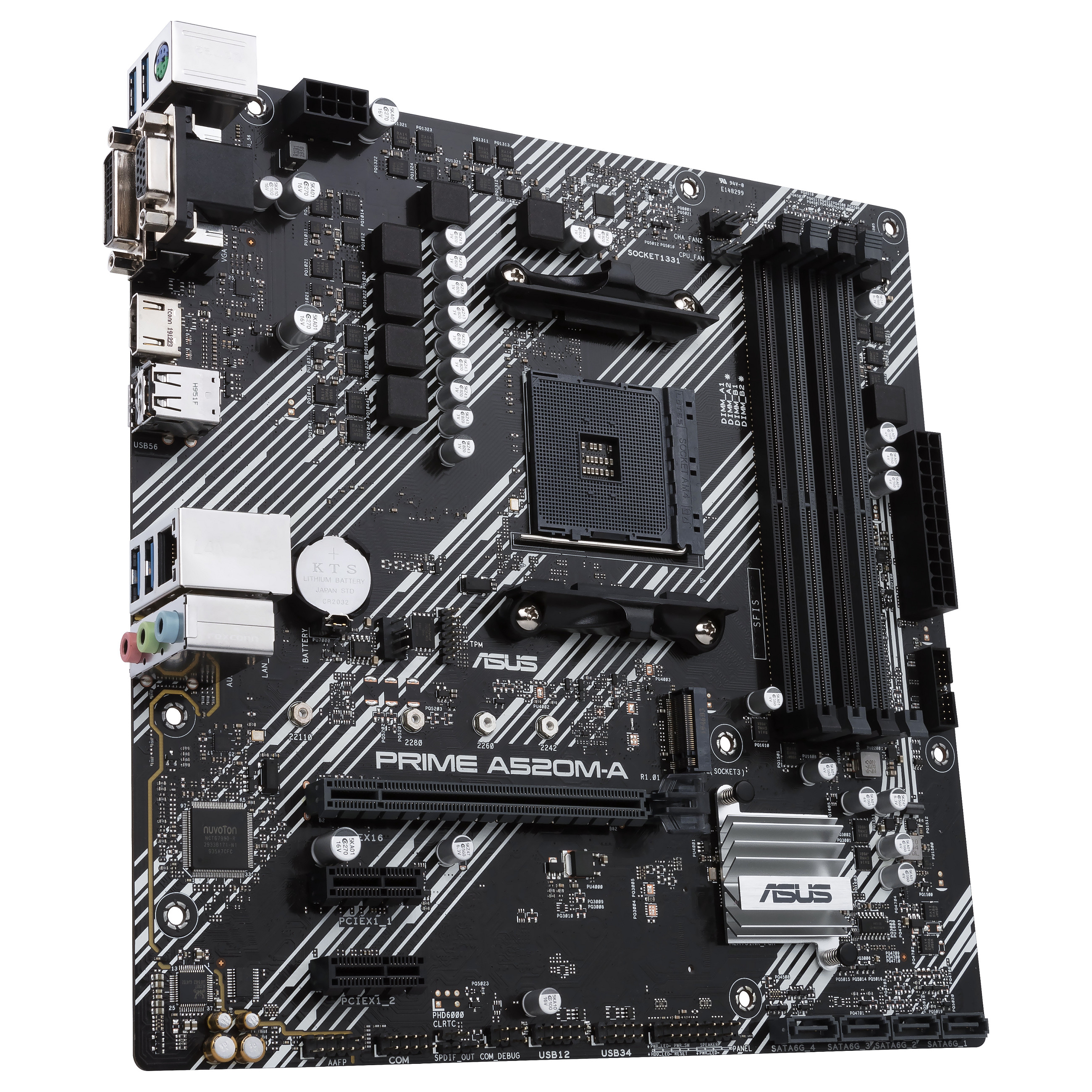

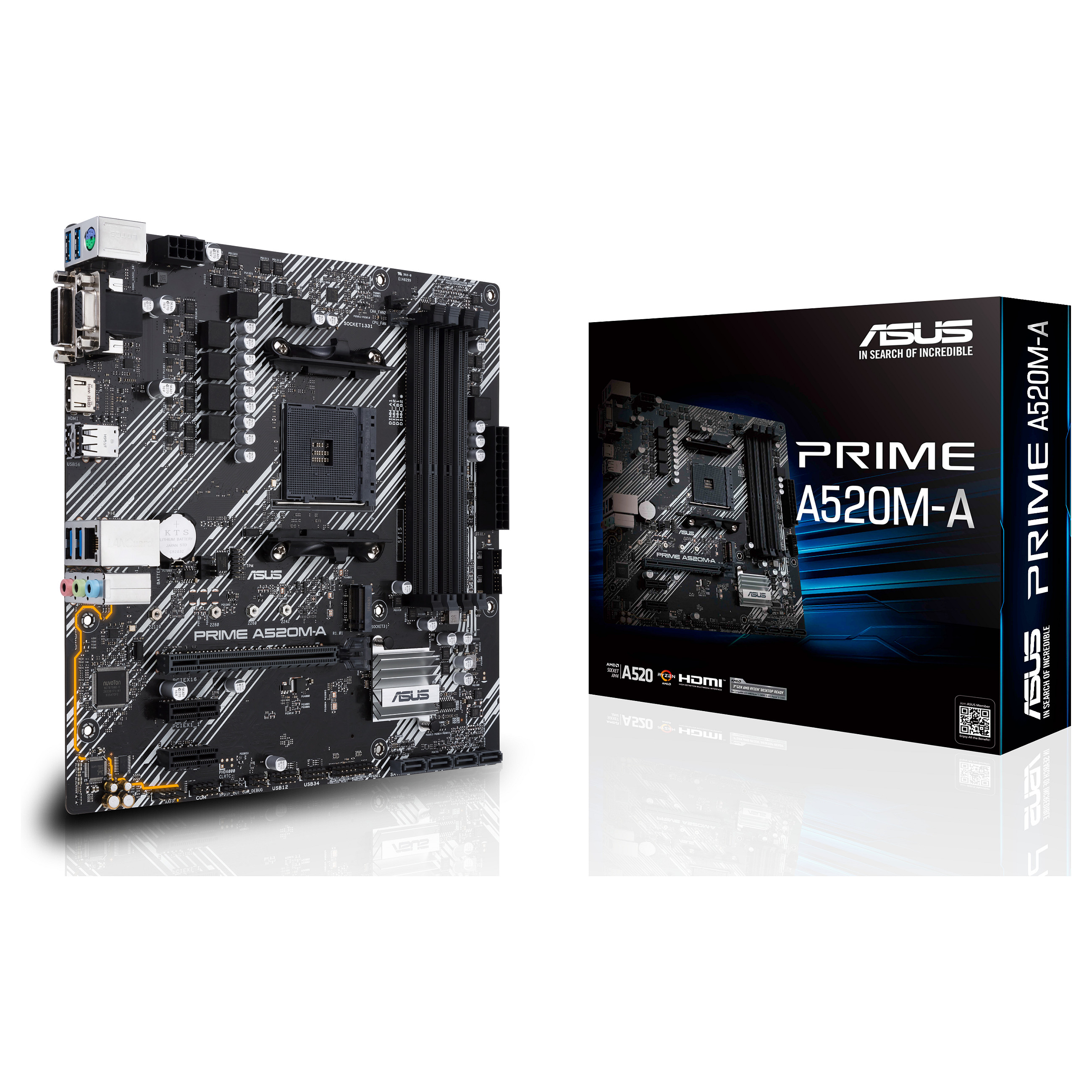

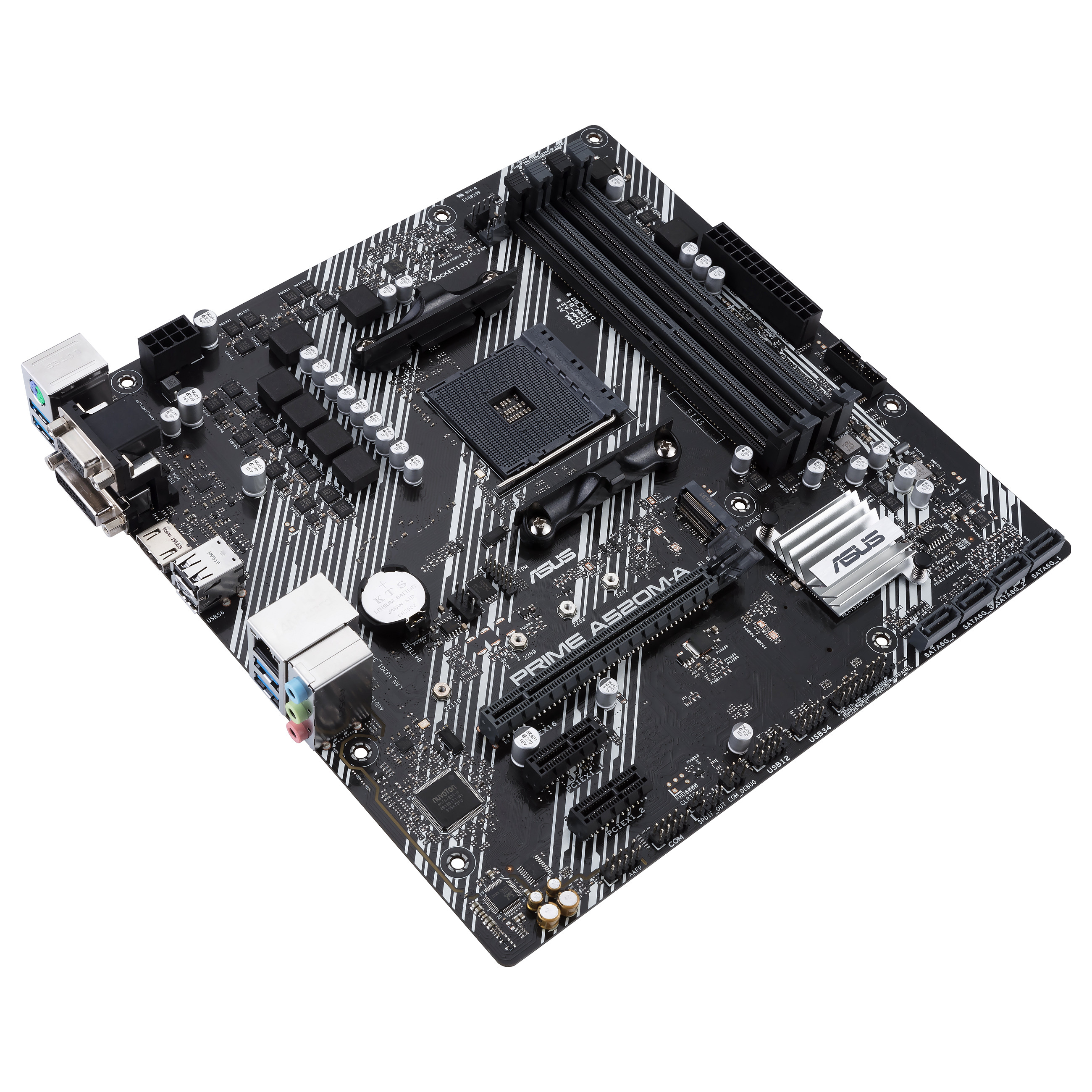

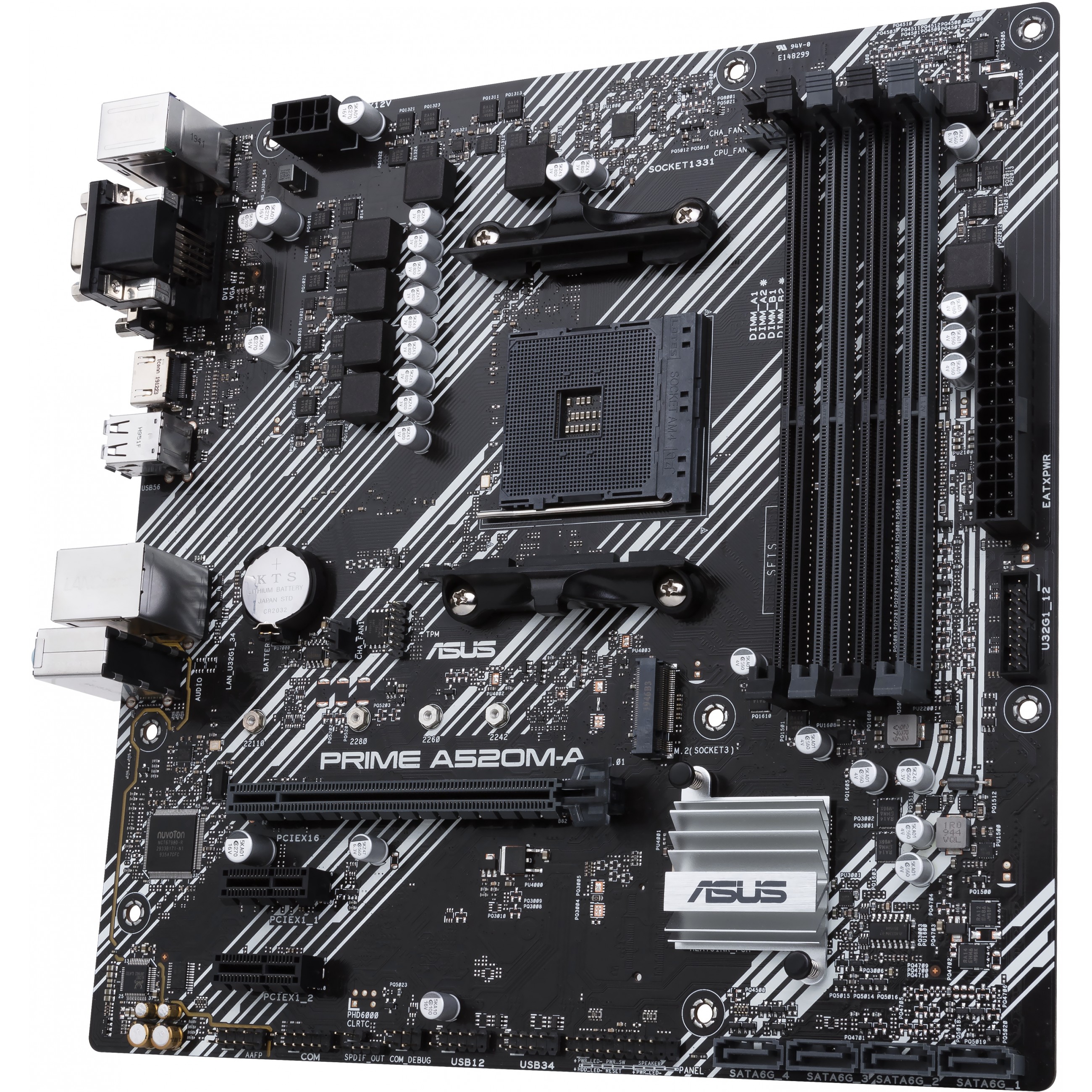

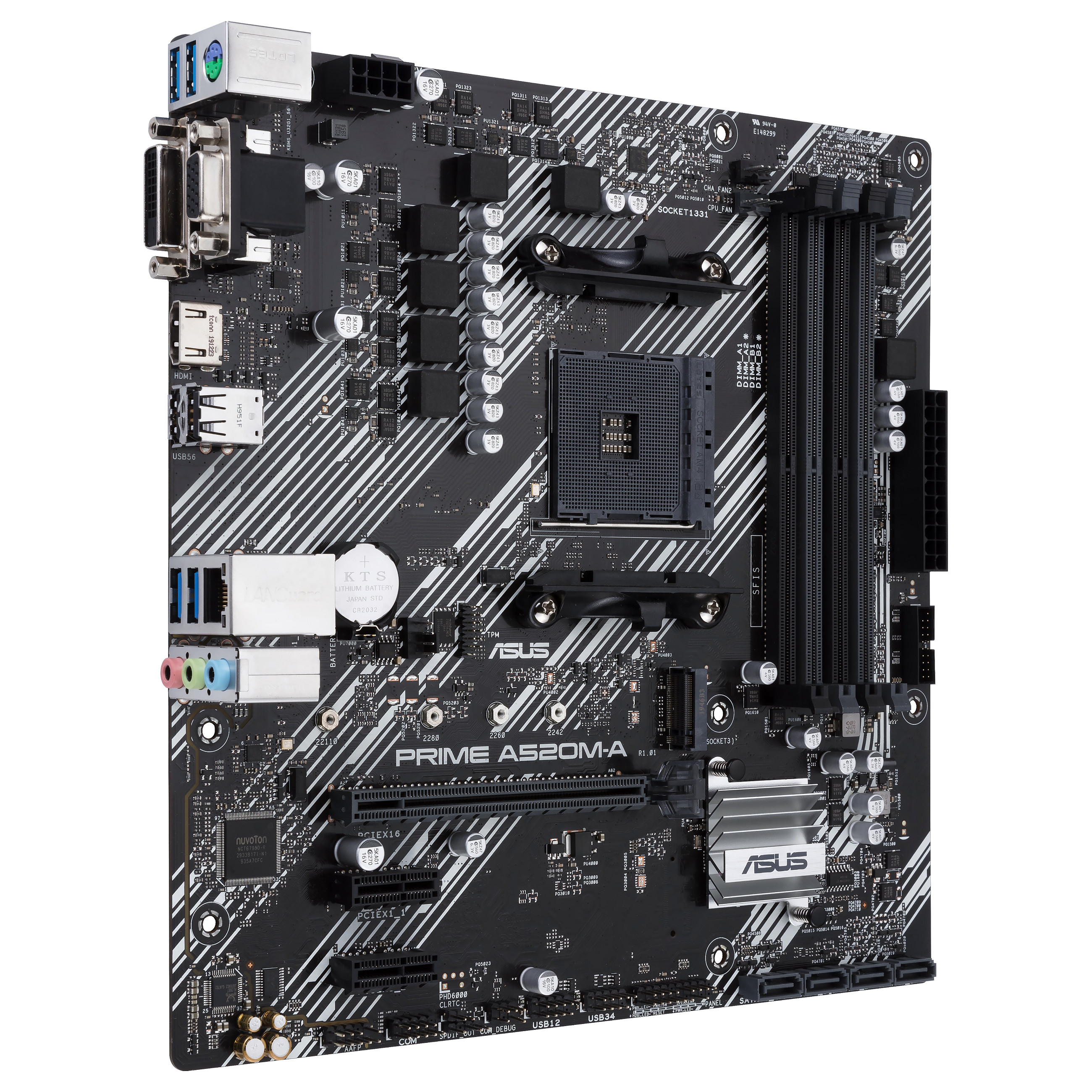

ASUS PRIME A520M-A II/CSM AM4 A520/HDMI-DVI-VGA/M.2/µATX
Pre-Order
€81.99
VAT (19%) included
Description
AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors Comprehensive cooling: VRM heatsink, PCH heatsink, and Fan Xpert 2+ Ultrafast connectivity: M.2 support,1 Gb Ethernet, USB 3.2 Gen 1 Type-A Aura Sync RGB: Onboard RGB headers and addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware ASUS Control Center Express (ACCE) for easier IT endpoint management
Technical Specifications
SKU
K90MB17H0-M0EAYC
Processor Manufacturer
AMD
Processor Socket
Socket AM4
Compatible Processor Series
AMD Ryzen™ 3, AMD Ryzen™ 5
Supported Memory Types
DDR4-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Supported Memory Clock Speeds
2133, 2400, 2666, 2800, 3000, 3200, 3333, 3466, 3600, 3733, 3866, 4100, 4133, 4400, 4466, 4600, 4800 MHz
Maximum Internal Memory
128 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Hdds Supported
4
Number Of Storage Drives Supported
5
Raid Levels
0, 1, 10
Parallel Processing Technology Support
Not supported
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Number Of Sata Iii Connectors
4
Number Of Chassis Fan Connectors
2
Number Of Com Connectors
1
Usb 2.0 Ports Quantity
2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
4
Ethernet Lan (Rj-45) Ports
1
Ps/2 Ports Quantity
1
Vga (D-Sub) Ports Quantity
1
Hdmi Ports Quantity
1
Displayports Quantity
1
Usb Connector Type
USB Type-A
Ethernet Interface Type
Gigabit Ethernet
Top Wi-Fi Standard
Not available
Motherboard Chipset
AMD A520
Audio Chip
Realtek ALC887 / Realtek ALC897
Audio Output Channels
7.1 channels
Component For
PC
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
AMD
Windows Operating Systems Supported
Windows 10 x64
Pci Express X1 (Gen 3.X) Slots
2
Pci Express X16 (Gen 3.X) Slots
1
Number Of M.2 (M) Slots
1
Bios Type
UEFI AMI
Bios Memory Size
128 Mbit
Width
244 mm
Depth
244 mm
