ASRock

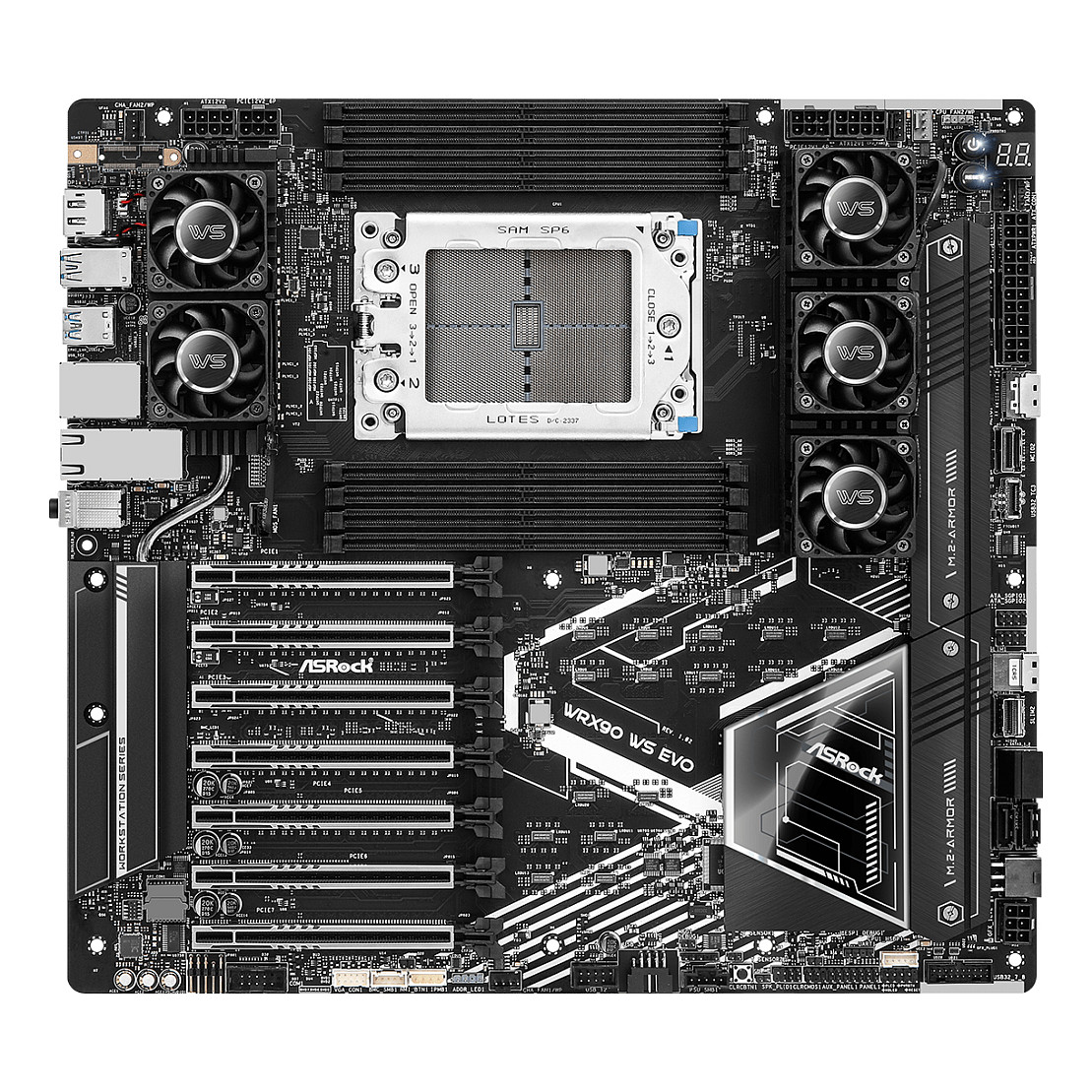

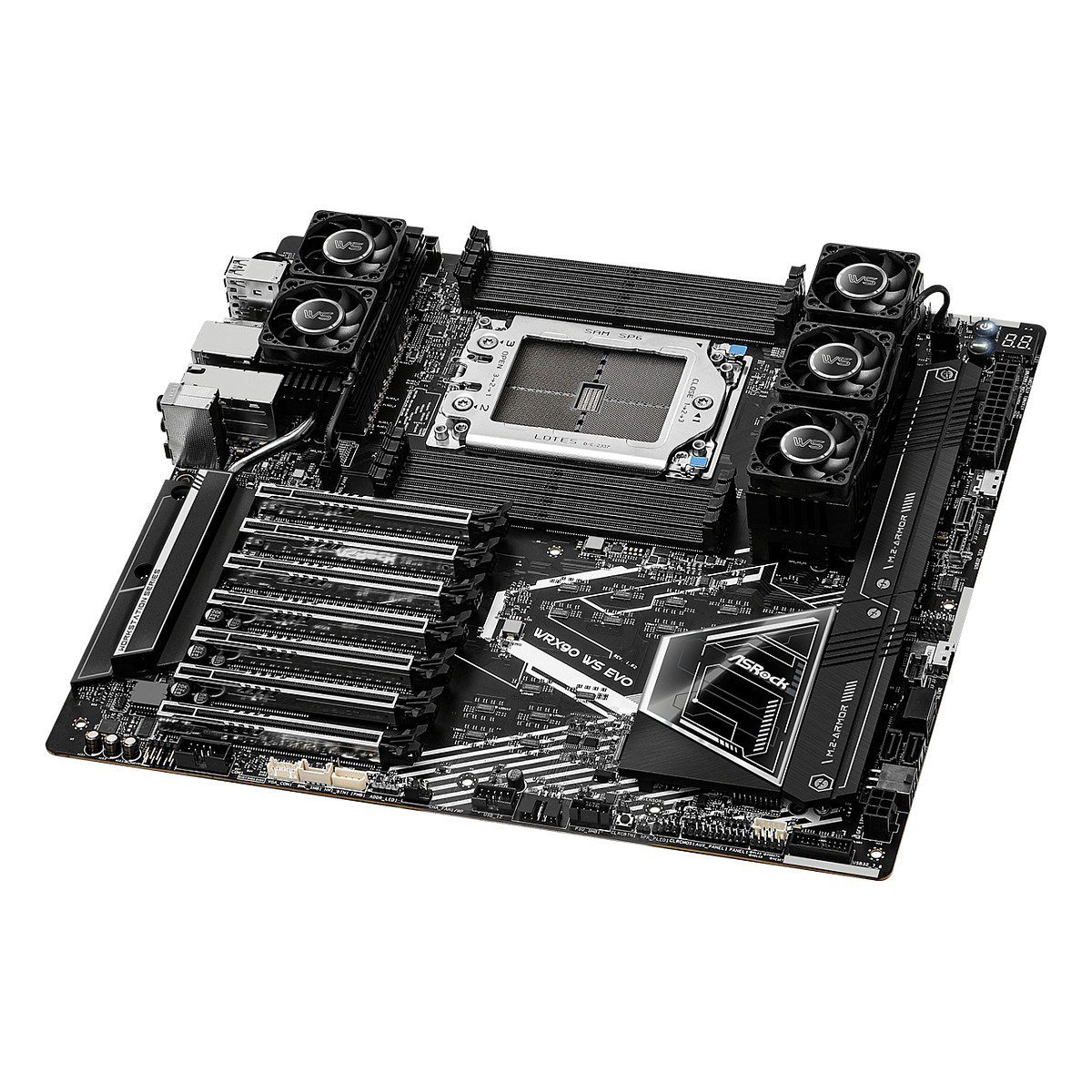

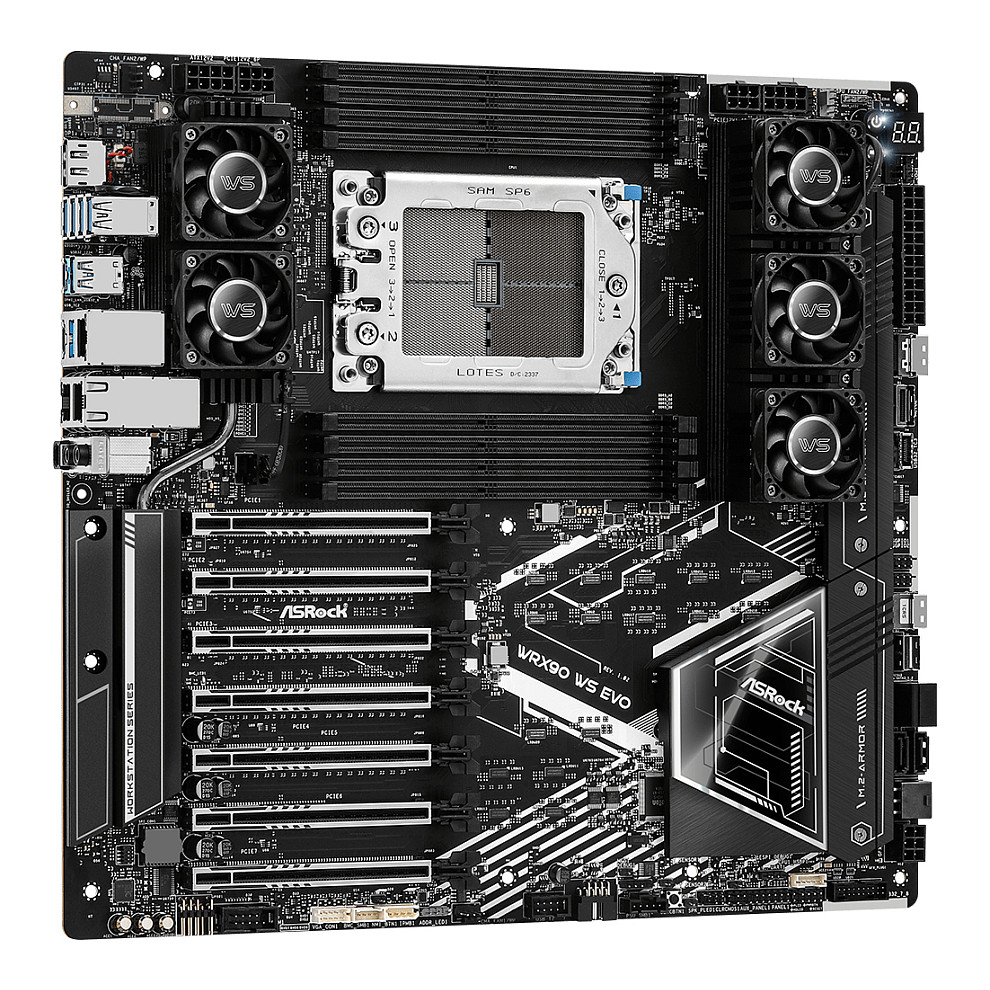

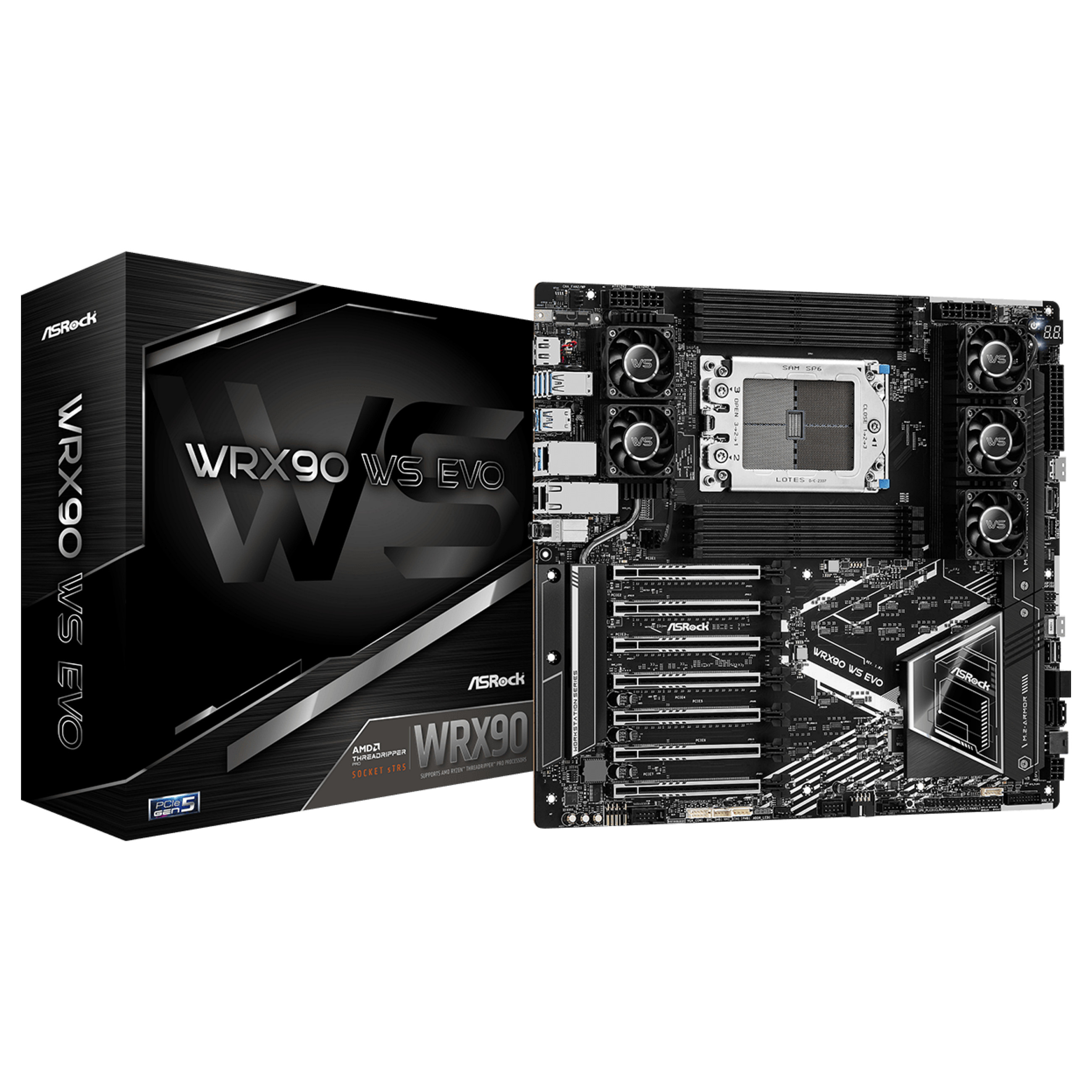

ASROCK WRX90 WS EVO (WRX90) (D)
Pre-Order
€940.99
VAT (19%) included
Description
Supports AMD Ryzen™ Threadripper™ PRO Processors 18+3+3 Power Phase Design, 110A SPS Design for VCore 8 x DDR5 DIMMs Supports Eight Channel ECC Registered memory, up to 7600+ (OC) 7 PCIe 5.0 x16 Realtek ALC1220 7.1 CH HD Audio, Nahimic Audio 4 SATA3 1 Blazing M.2 (PCIe Gen5 x4) 1 Hyper M.2 (PCIe Gen4 x4) 2 MCIO Connector (PCIe Gen5 x4/ 4 SATA3) 1 SlimSAS SFF-8654 Connector (PCIe Gen4 x4) 1 SlimSAS SFF-8654 Connector (PCIe Gen4 x4/ 4 SATA3) 2 USB4 Type-C (Rear) 1 USB 3.2 Gen2x2 Type-C (Front) 4 USB 3.2 Gen2 Type-A(Rear) 4 USB 3.2 Gen1 (2 Rear, 2 Front) 4 USB 2.0 (4 Front) Intel® X710 dual 10G LAN, 1 Dedicated IPMI LAN
Technical Specifications
SKU
K90-MXBMH0-A0UAYZ
Processor Manufacturer
AMD
Processor Socket
Socket sTR5
Compatible Processor Series
AMD Ryzen Threadripper 1000 Series
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
8
Memory Slots Type
DIMM
Ecc Сompatibility
ECC
Supported Memory Clock Speeds
7600 MHz
Maximum Internal Memory
2 TB
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Storage Drives Supported
6
Raid Levels
0, 1, 10
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Usb 3.2 Gen 2X2 Connectors
1
Number Of Sata Iii Connectors
4
Number Of Com Connectors
1
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
2
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
4
Usb4 Gen 2X2 Ports Quantity
2
Ethernet Lan (Rj-45) Ports
2
Displayports Quantity
1
Displayport Version
1.1a
Ethernet Interface Type
10 Gigabit Ethernet
Lan Controller
Intel X710-AT2
Top Wi-Fi Standard
Not available
Motherboard Chipset
AMD WRX90
Audio Chip
Realtek ALC1220
Audio Output Channels
7.1 channels
Component For
PC
Motherboard Form Factor
EEB
Motherboard Chipset Family
AMD
Pci Express X16 (Gen 5.X) Slots
7
Number Of M.2 (M) Slots
2
Bios Type
EFI AMI
Bios Memory Size
256 Mbit
Width
305 mm
Depth
330 mm
