ASUS

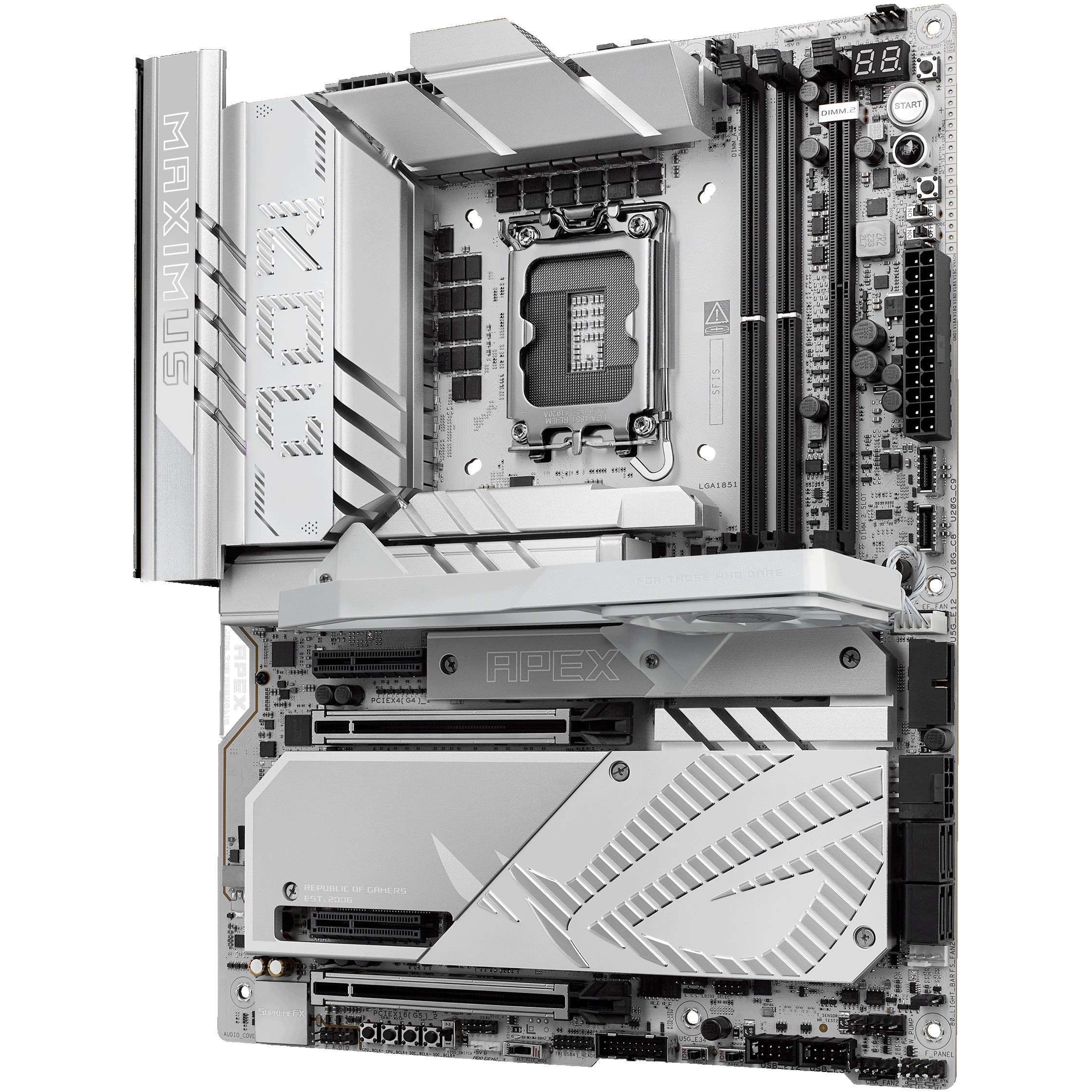

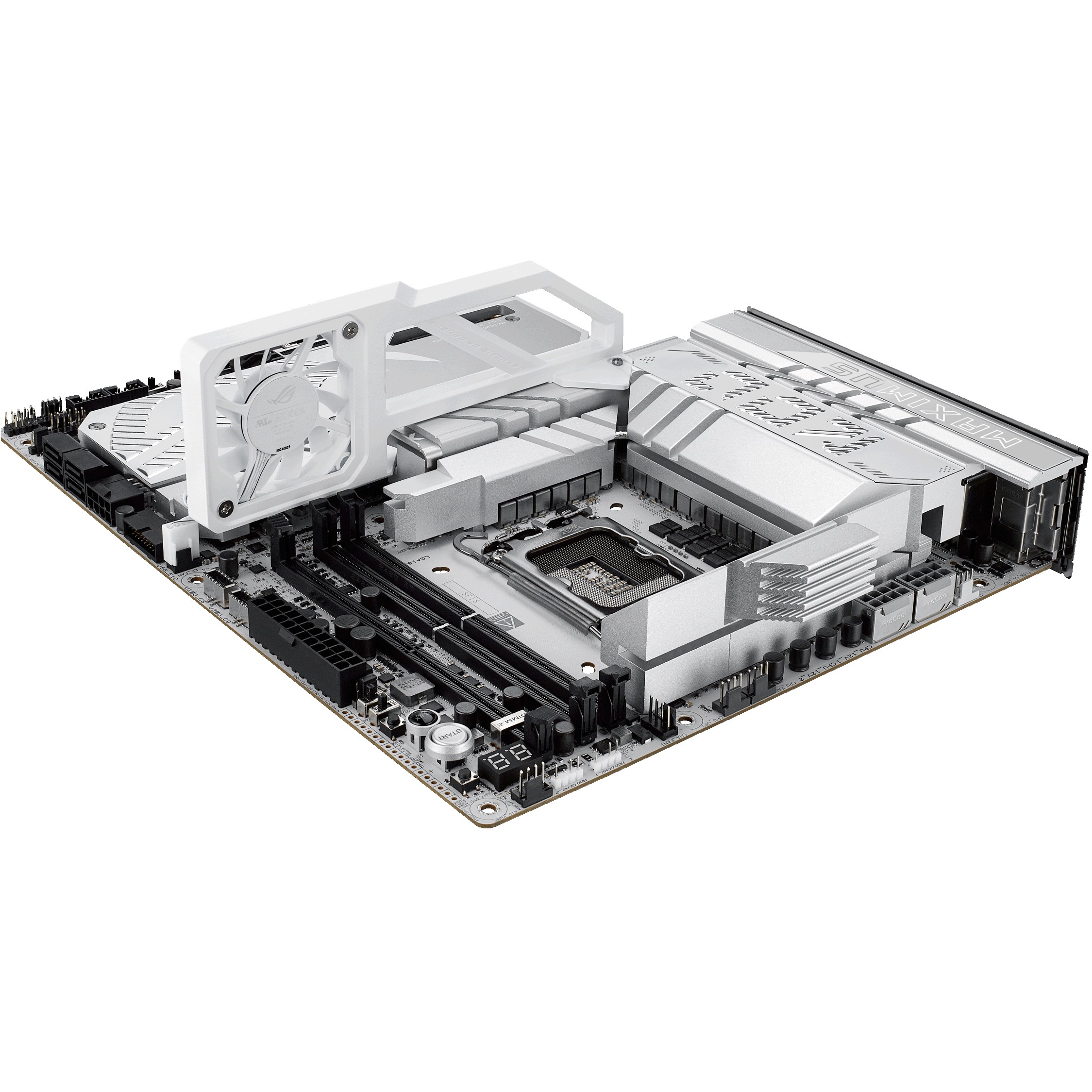

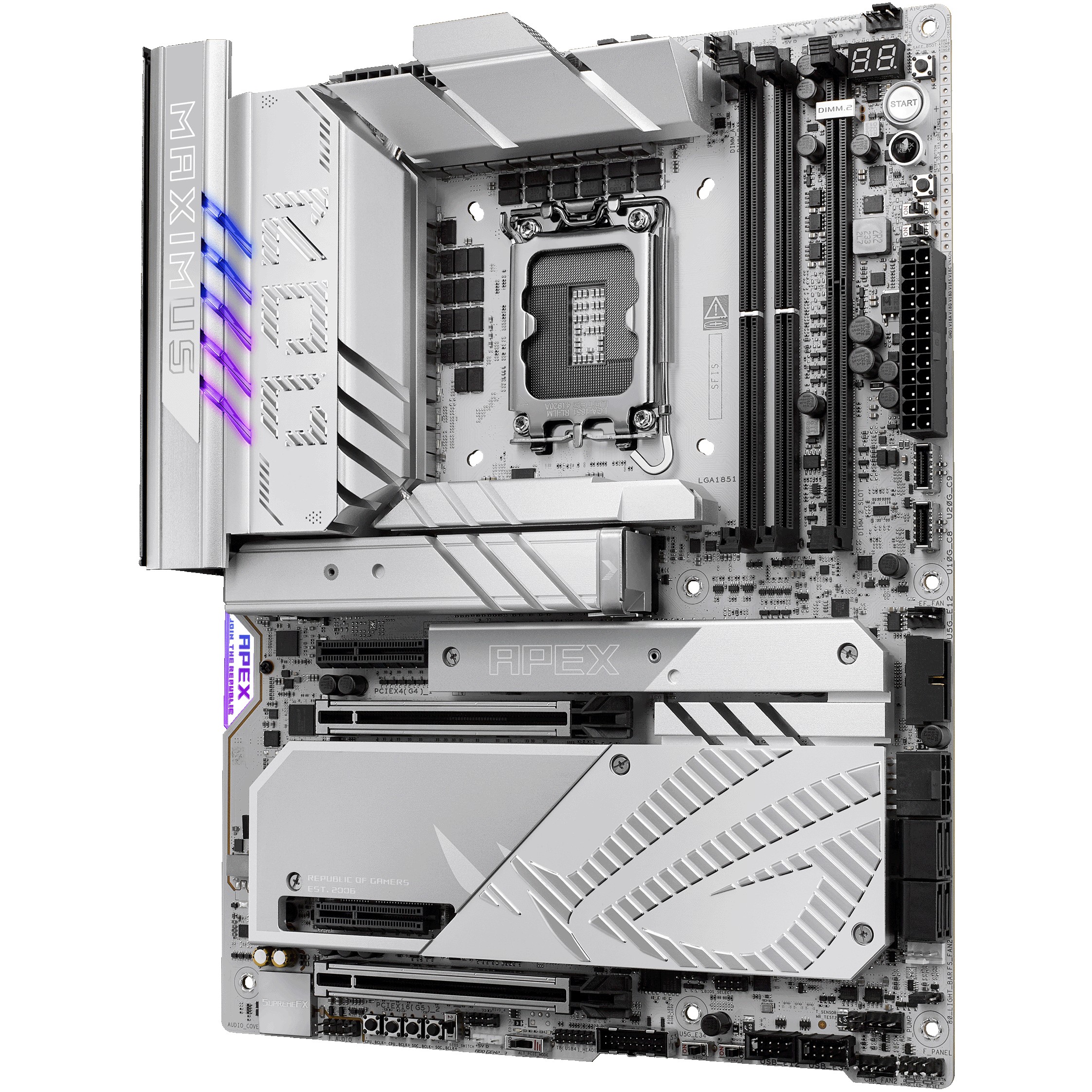

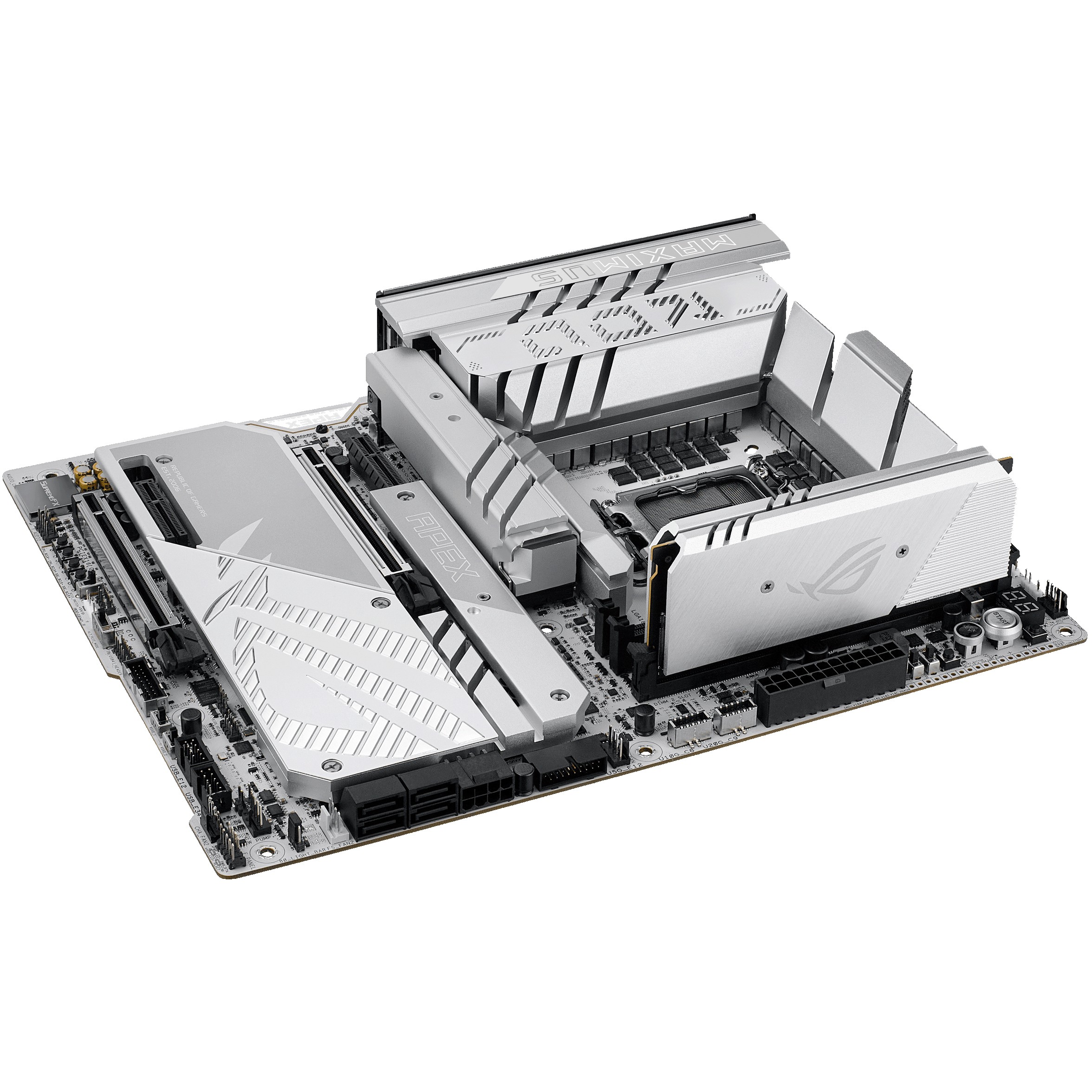

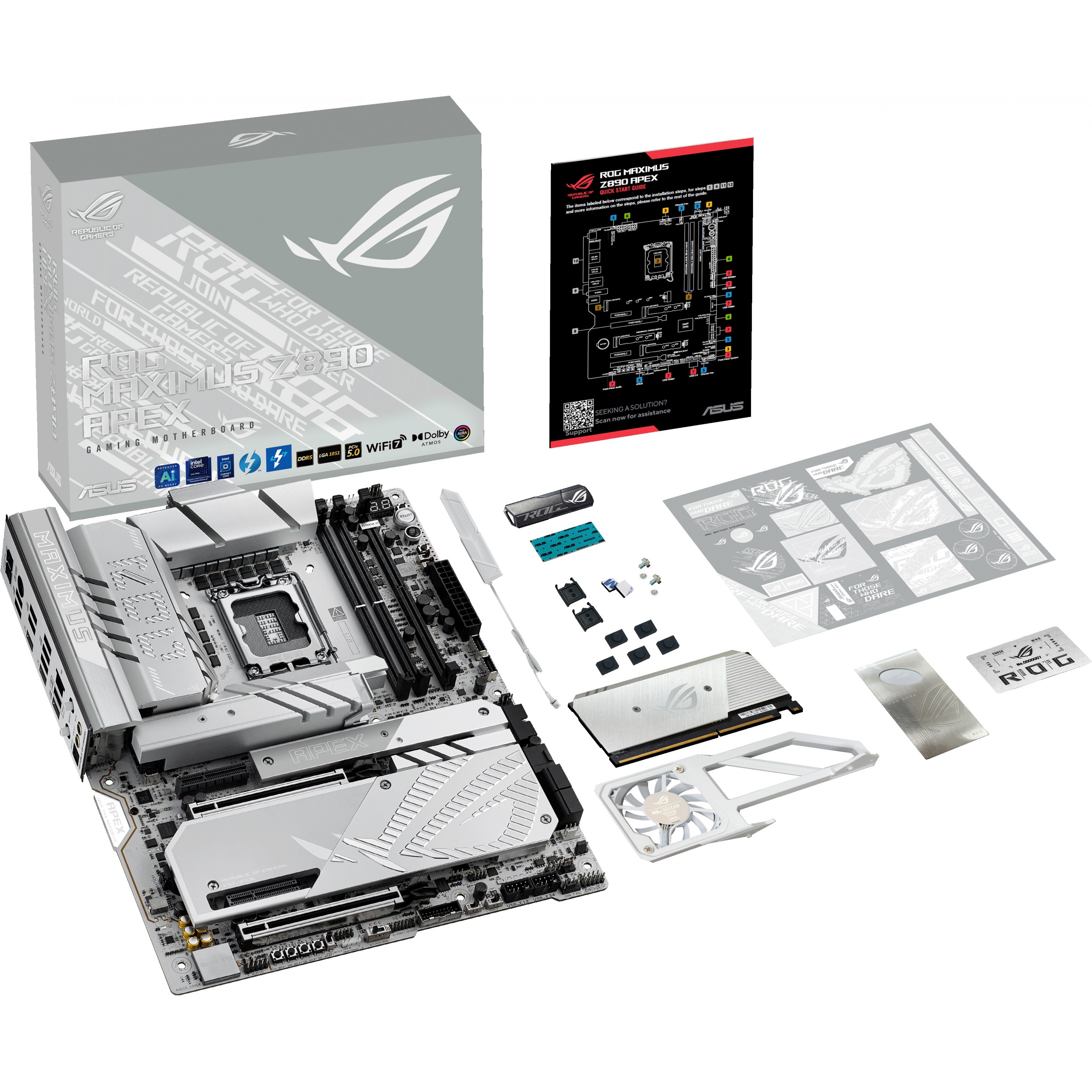

ASUS ROG MAXIMUS Z890 APEX (Intel.1851.DDR5.ATX)
Pre-Order
€494.99
VAT (19%) included
Description
Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2) PC ATX Intel Z890 Realtek ALC4080 7.1 channels DDR5-SDRAM 2 DIMM Maximum internal memory: 96 GB HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 10 BIOS type: UEFI AMI 512 Mbit Clear CMOS button 5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
Technical Specifications
SKU
K90MB1IP0-M0EAY0
Processor Manufacturer
Intel
Processor Socket
LGA 1851 (Socket V1)
Compatible Processor Series
Intel Core Ultra (Series 2)
Supported Processor Sockets
LGA 1851
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
2
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
Non-ECC
Maximum Internal Memory
96 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Hdds Supported
4
Number Of Storage Drives Supported
10
Raid Levels
0, 1, 5, 10
Parallel Processing Technology Support
Not supported
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
2
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors
1
Usb 3.2 Gen 2X2 Connectors
1
Number Of Sata Iii Connectors
4
Number Of Chassis Fan Connectors
2
Thunderbolt Headers
1
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
4
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
4
Usb 3.2 Gen 2X2 Type-C Ports Quantity
1
Ethernet Lan (Rj-45) Ports
1
Ps/2 Ports Quantity
1
Thunderbolt Ports Quantity
2
Wifi-Ap Antenna Jack
1
Ethernet Interface Type
5 Gigabit Ethernet
Top Wi-Fi Standard
Wi-Fi 7 (802.11be)
Wi-Fi Standards
Wi-Fi 7 (802.11be)
Bluetooth Version
5.4
Motherboard Chipset
Intel Z890
Audio Chip
Realtek ALC4080
Audio Output Channels
7.1 channels
Product Colour
Aluminium
Component For
PC
Motherboard Form Factor
ATX
Motherboard Chipset Family
Intel
Windows Operating Systems Supported
Windows 11
Pci Express X4 (Gen 4.X) Slots
2
Pci Express X16 (Gen 5.X) Slots
2
Number Of M.2 (M) Slots
6
Bios Type
UEFI AMI
Bios Memory Size
512 Mbit
Package Width
370 mm
Package Depth
312 mm
Package Height
108 mm
Package Weight
3.7 kg
Width
305 mm
Depth
244 mm
