ASUS

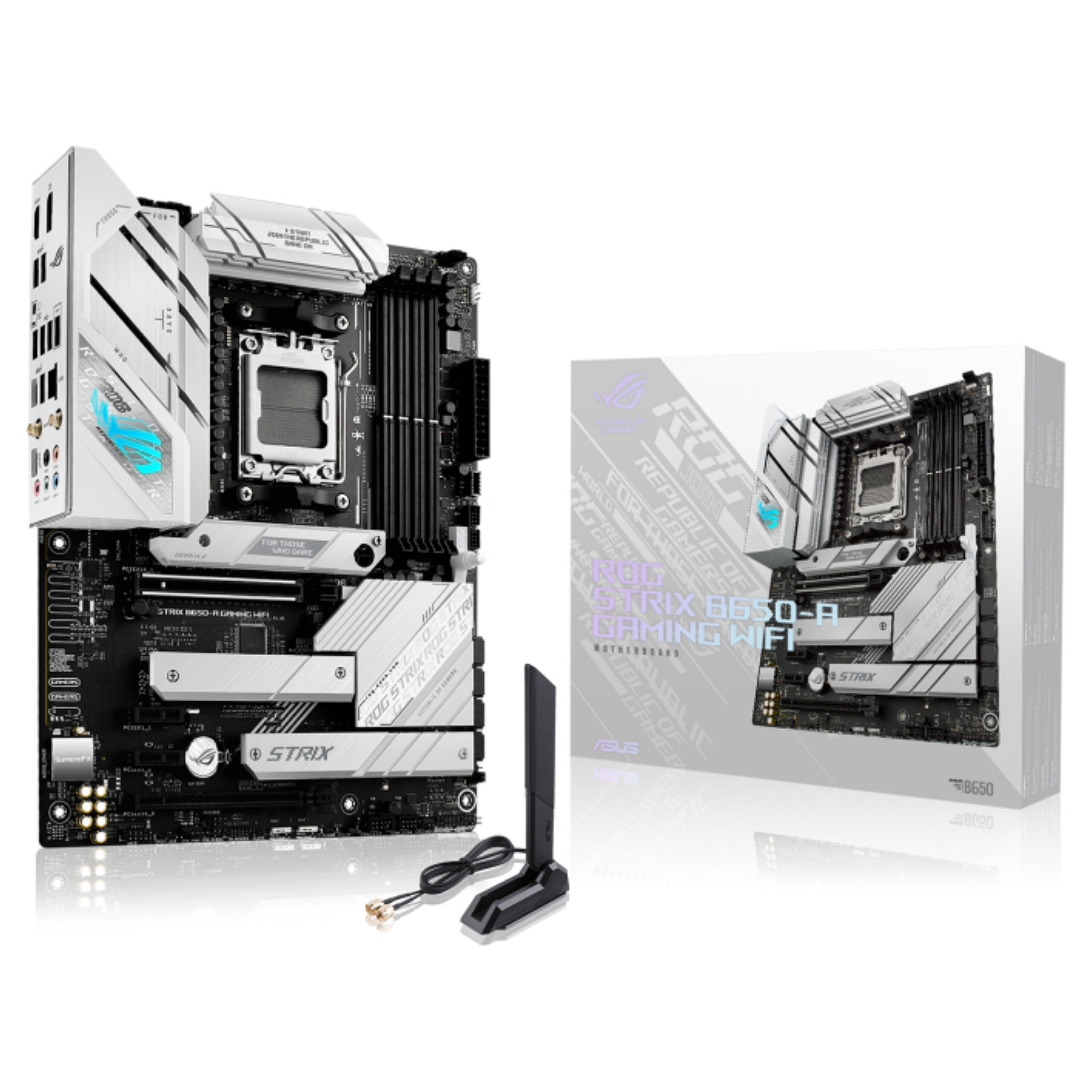

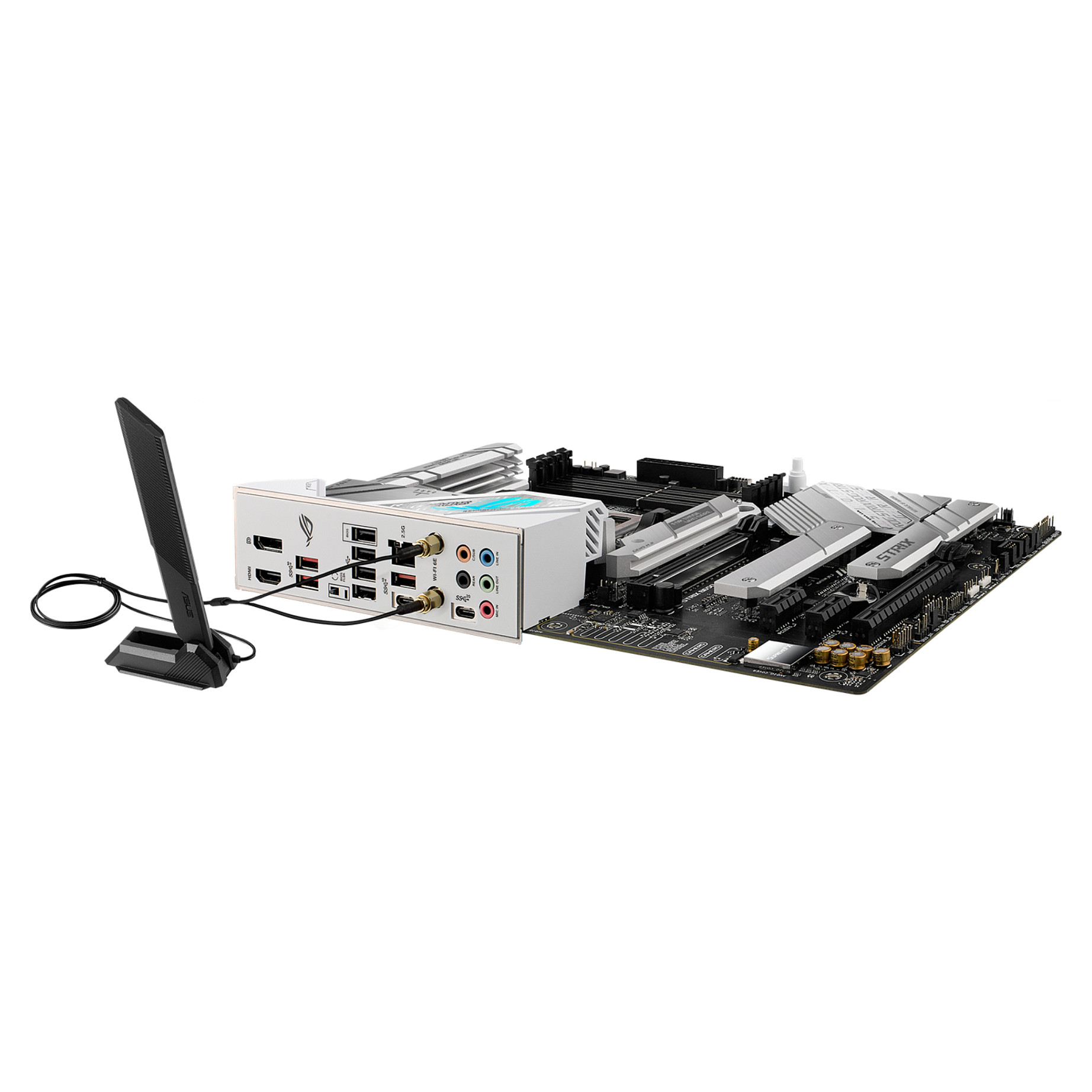

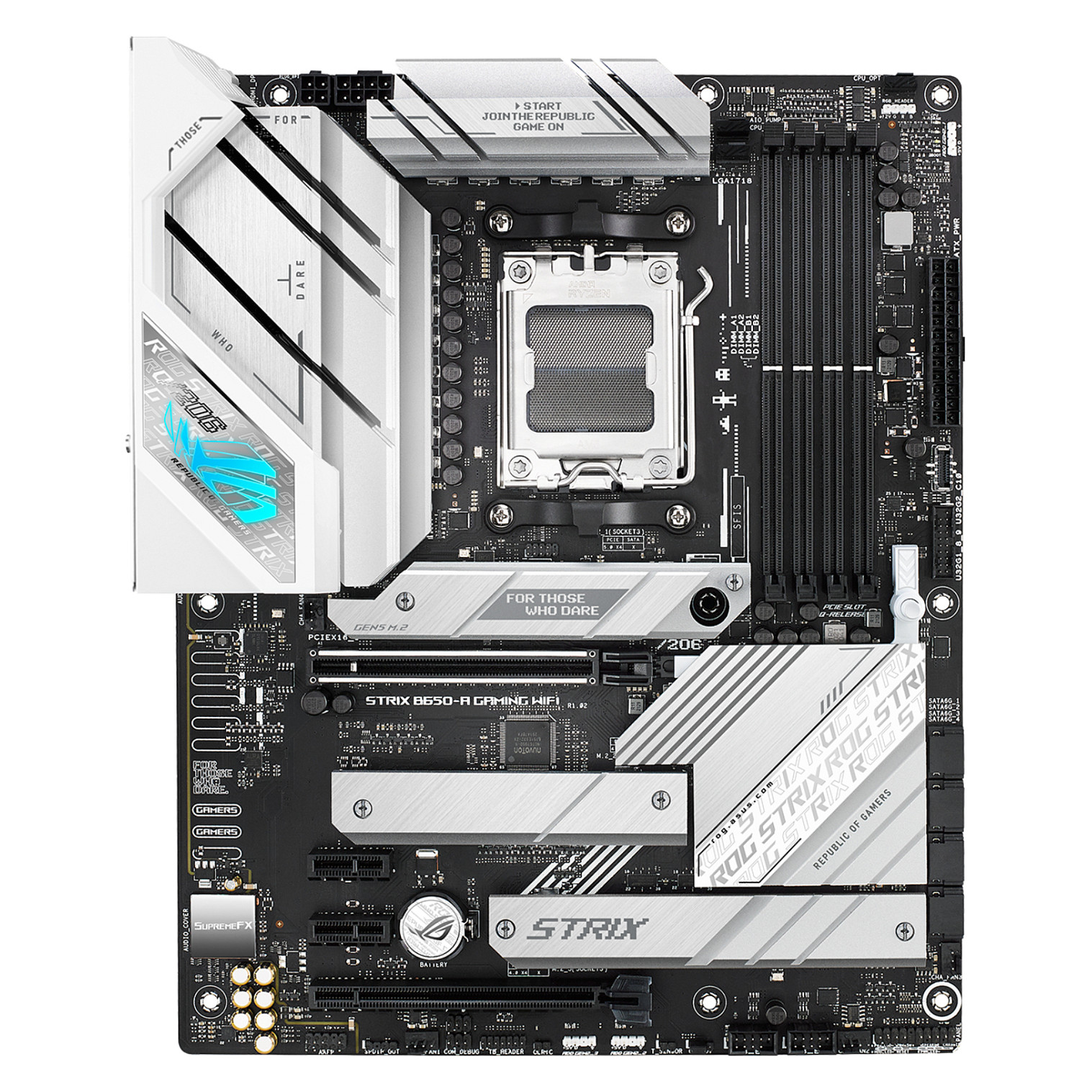

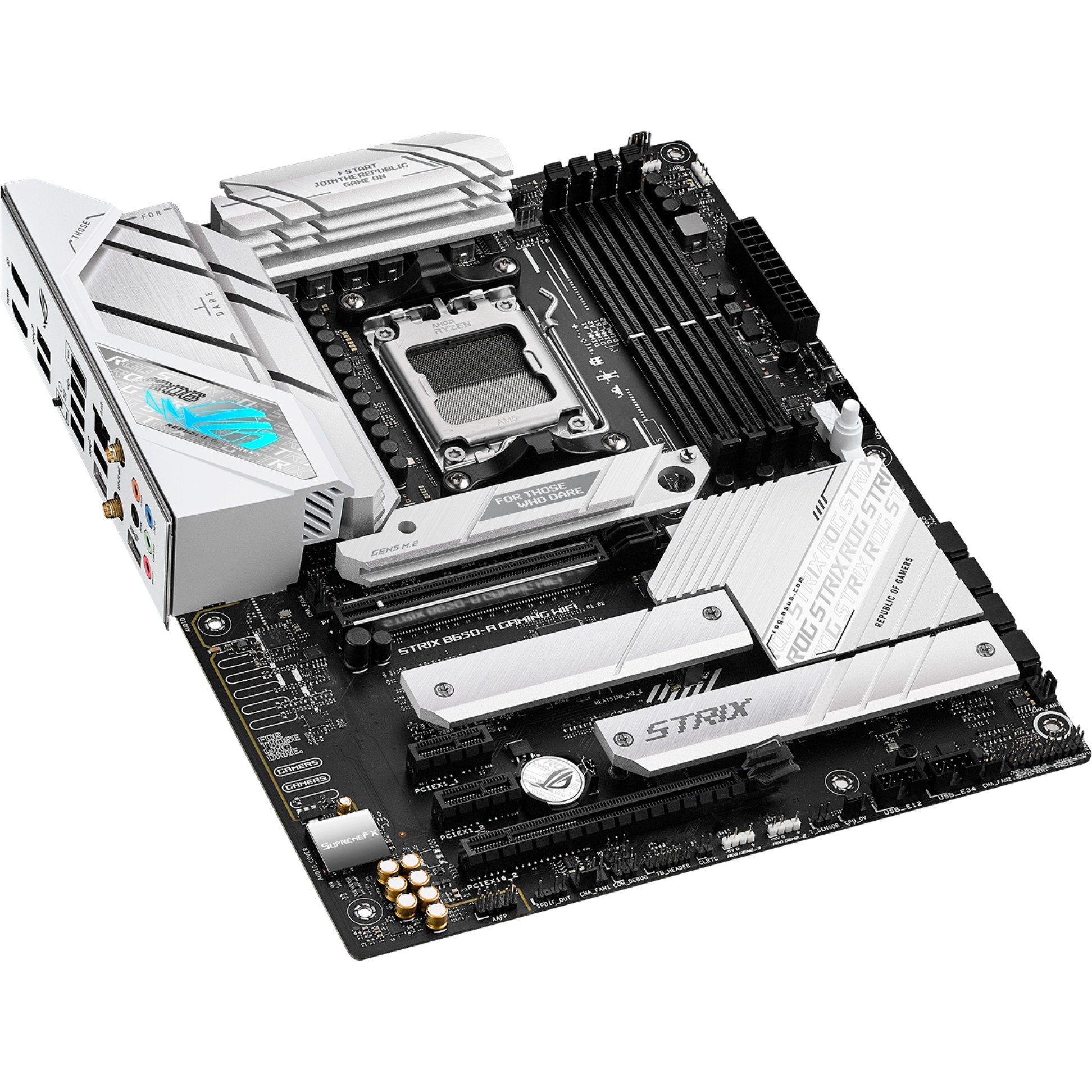

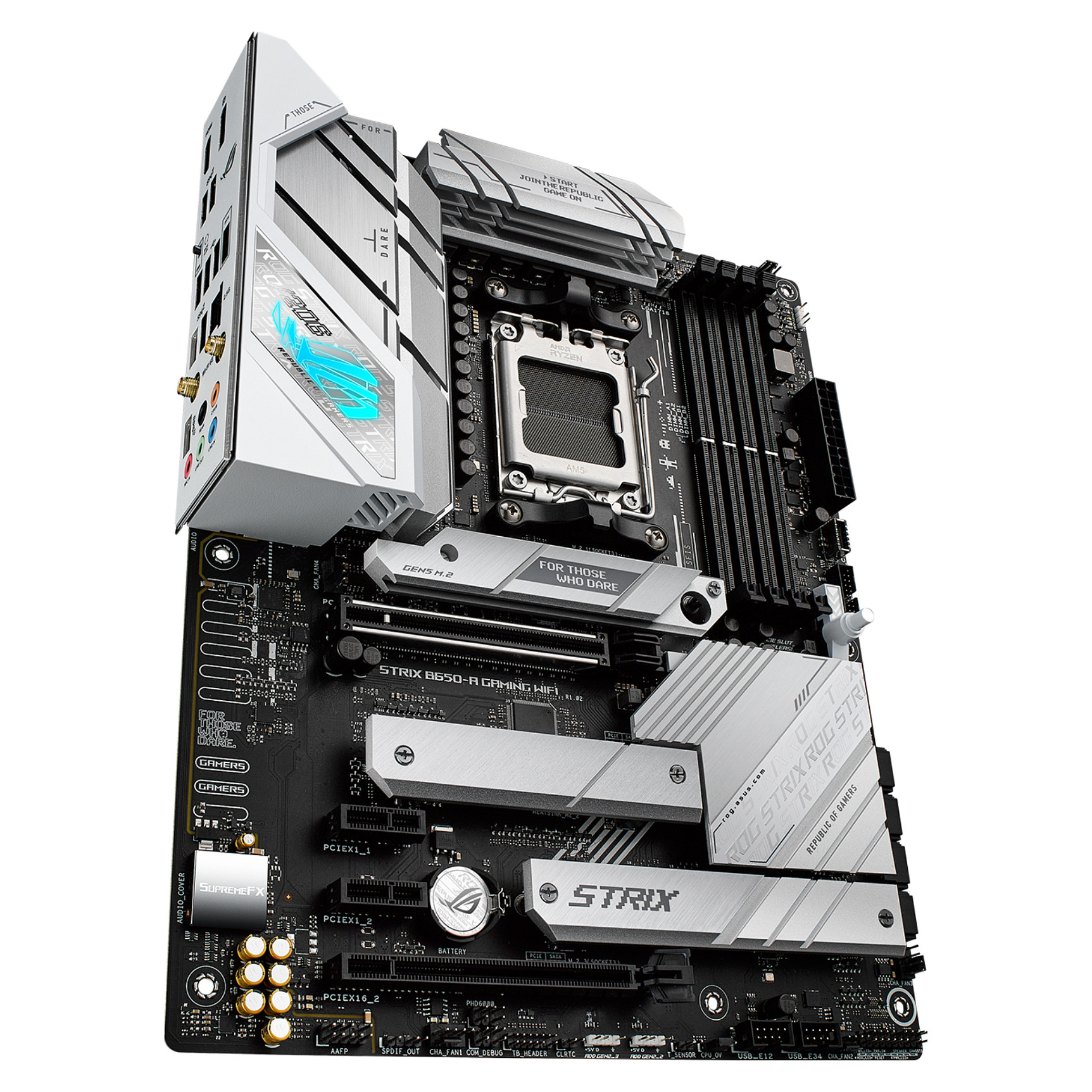

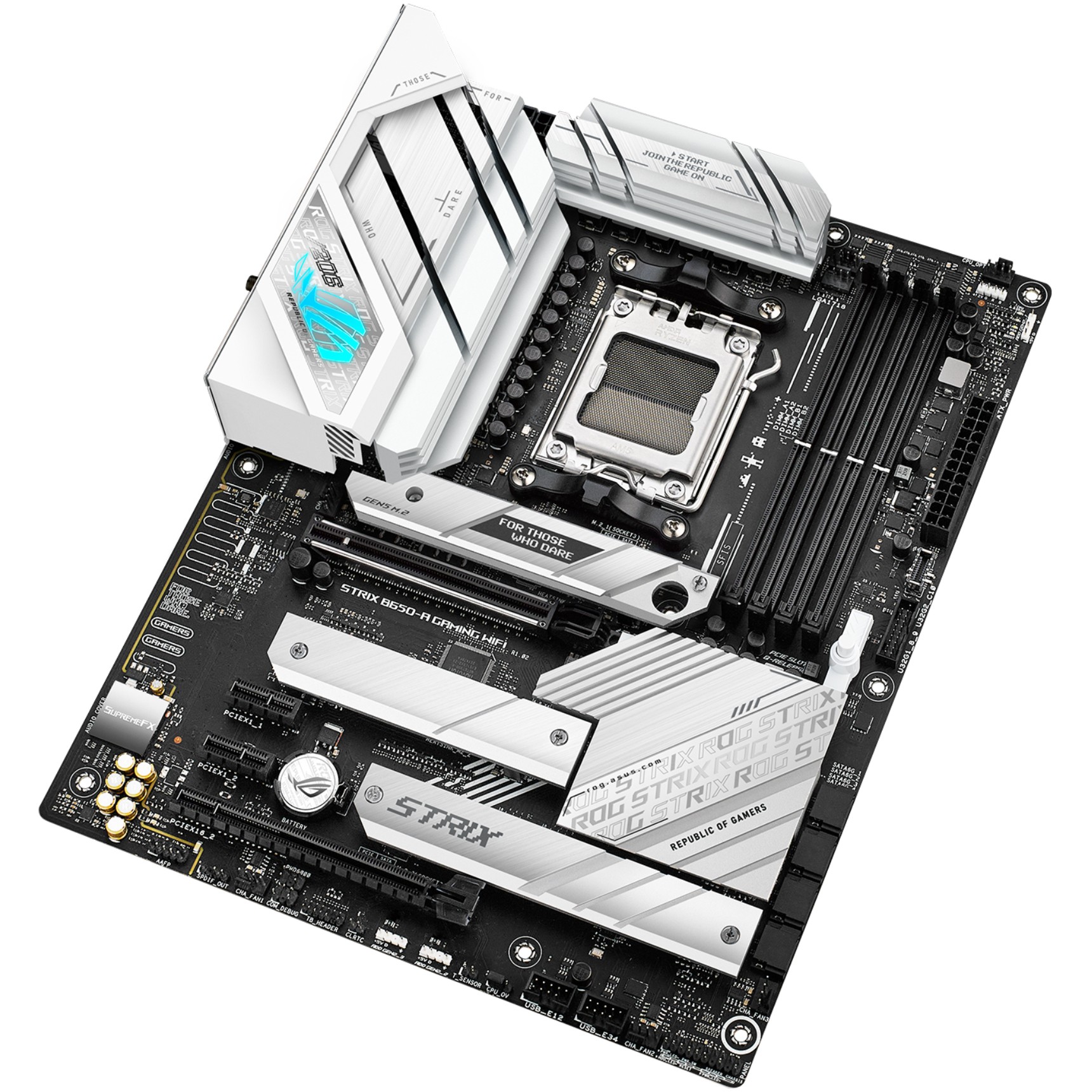

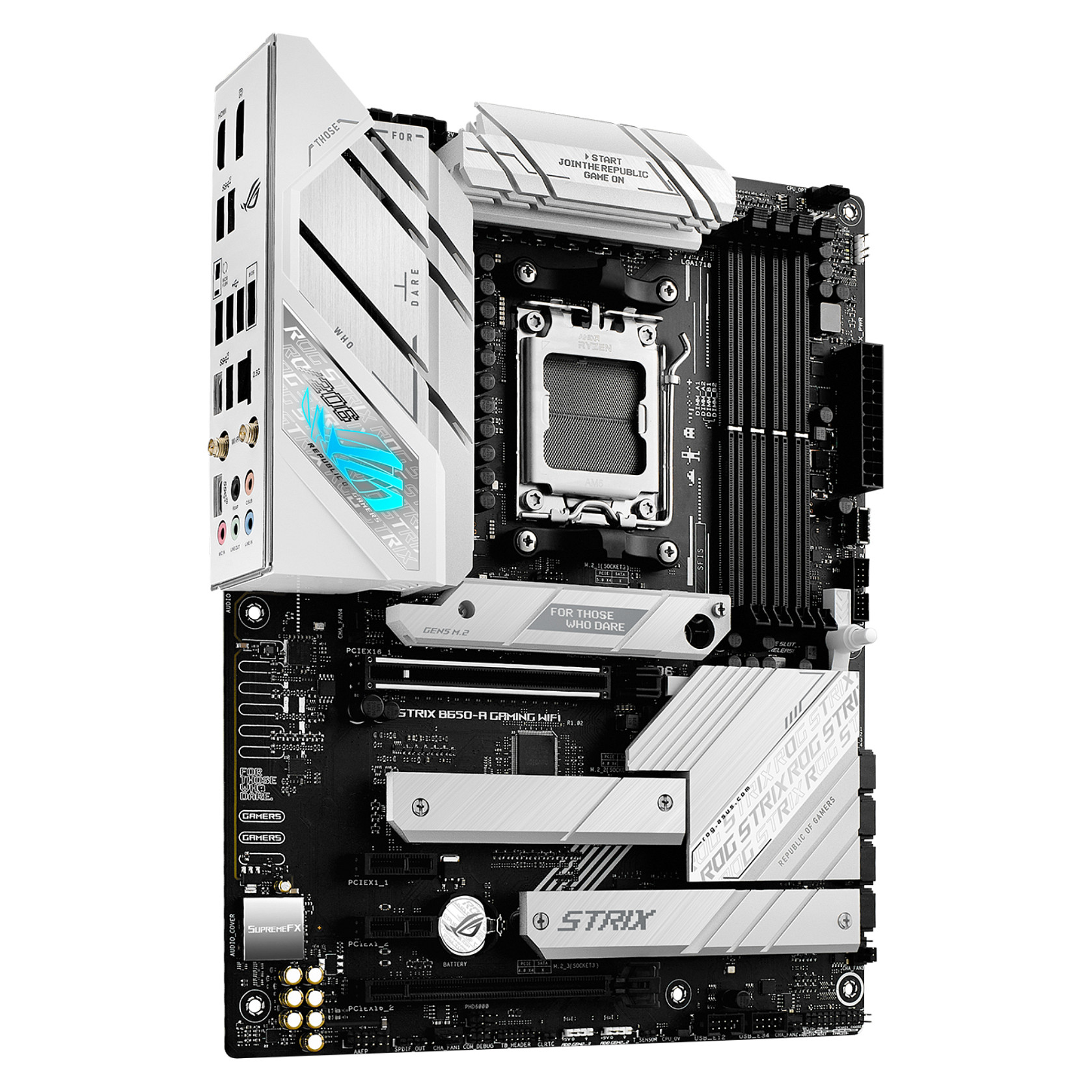

AM5 ASUS ROG STRIX B650-A GAMING
Pre-Order
€241.99
VAT (19%) included
Description
AMD Socket AM5 AMD Ryzen™ 7 PC ATX AMD B650 Realtek ALC4080 7.1 channels DDR5-SDRAM 4 DIMM Maximum internal memory: 128 GB HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7 BIOS type: UEFI AMI 256 Mbit Clear CMOS button 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.2
Technical Specifications
SKU
K90MB1BP0-M0EAY0
Processor Manufacturer
AMD
Processor Socket
Socket AM5
Compatible Processor Series
AMD Ryzen™ 7
Supported Processor Sockets
Socket AM5
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
ECC & Non-ECC
Supported Memory Clock Speeds
4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400 MHz
Maximum Internal Memory
128 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Storage Drives Supported
7
Raid Levels
0, 1, 10
Parallel Processing Technology Support
Not supported
Usb 2.0 Connectors
4
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
2
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors
1
Number Of Sata Iii Connectors
4
Number Of Chassis Fan Connectors
4
Peripheral (Molex) Power Connectors (4-Pin)
1
Number Of Com Connectors
1
Thunderbolt Headers
1

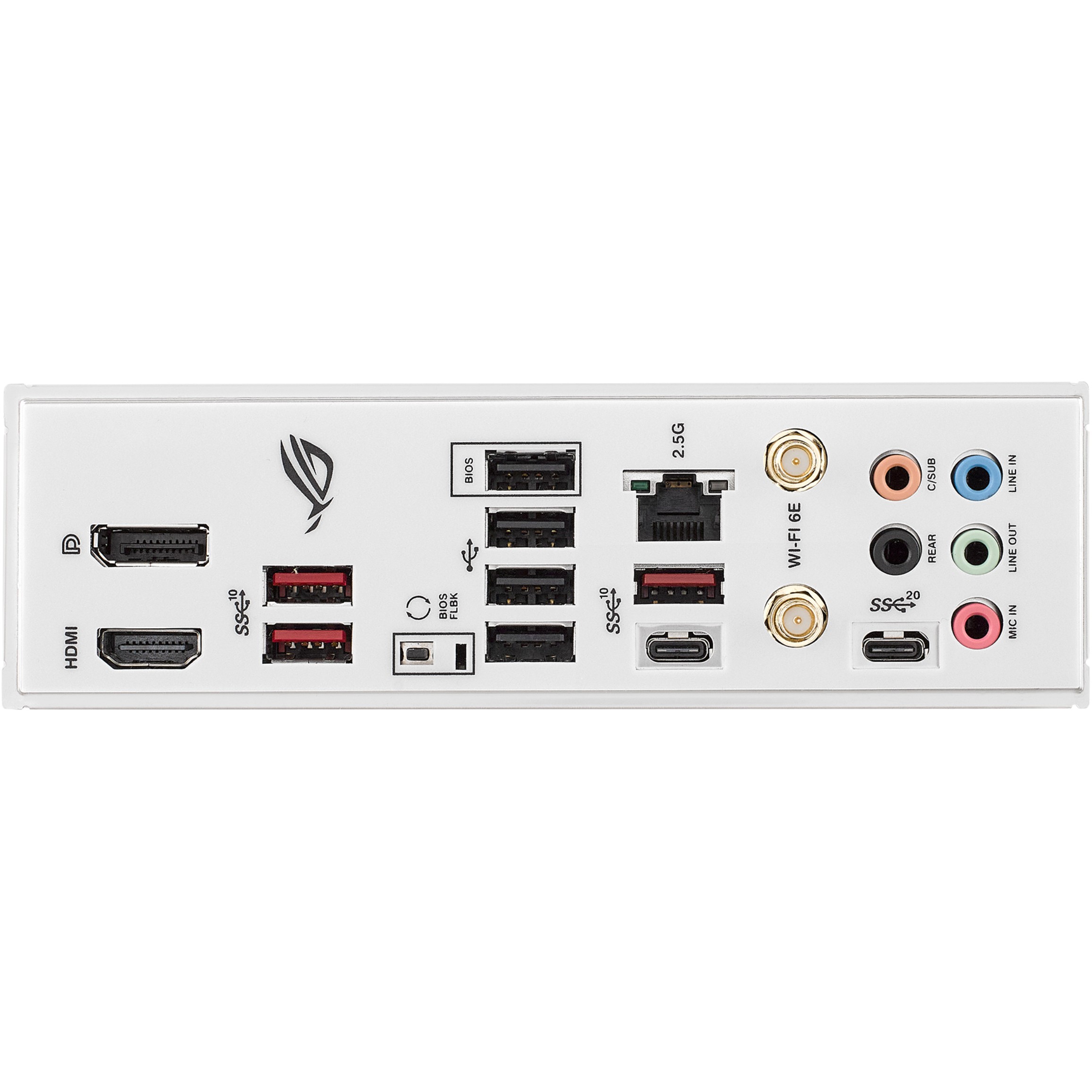

Usb 2.0 Ports Quantity
4
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
3
Usb 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity
1
Ethernet Lan (Rj-45) Ports
1
Hdmi Ports Quantity
1
Displayports Quantity
1
Headphone Outputs
3
Ethernet Interface Type
2.5 Gigabit Ethernet
Lan Controller
Intel I225-V
Top Wi-Fi Standard
Wi-Fi 6E (802.11ax)
Wi-Fi Standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth Version
5.2
Motherboard Chipset
AMD B650
Audio Chip
Realtek ALC4080
Audio Output Channels
7.1 channels
Product Colour
Black, Silver
Component For
PC
Motherboard Form Factor
ATX
Motherboard Chipset Family
AMD
Windows Operating Systems Supported
Windows 11 x64
Pci Express X1 (Gen 4.X) Slots
2
Pci Express X16 (Gen 4.X) Slots
1
Pci Express X16 (Gen 5.X) Slots
1
Number Of M.2 (M) Slots
3
Bios Type
UEFI AMI
Bios Memory Size
256 Mbit
Package Width
280 mm
Package Depth
265 mm
Package Height
71 mm
Package Weight
9 kg
Width
305 mm
Depth
244 mm
Cables Included
SATA
