ASUS

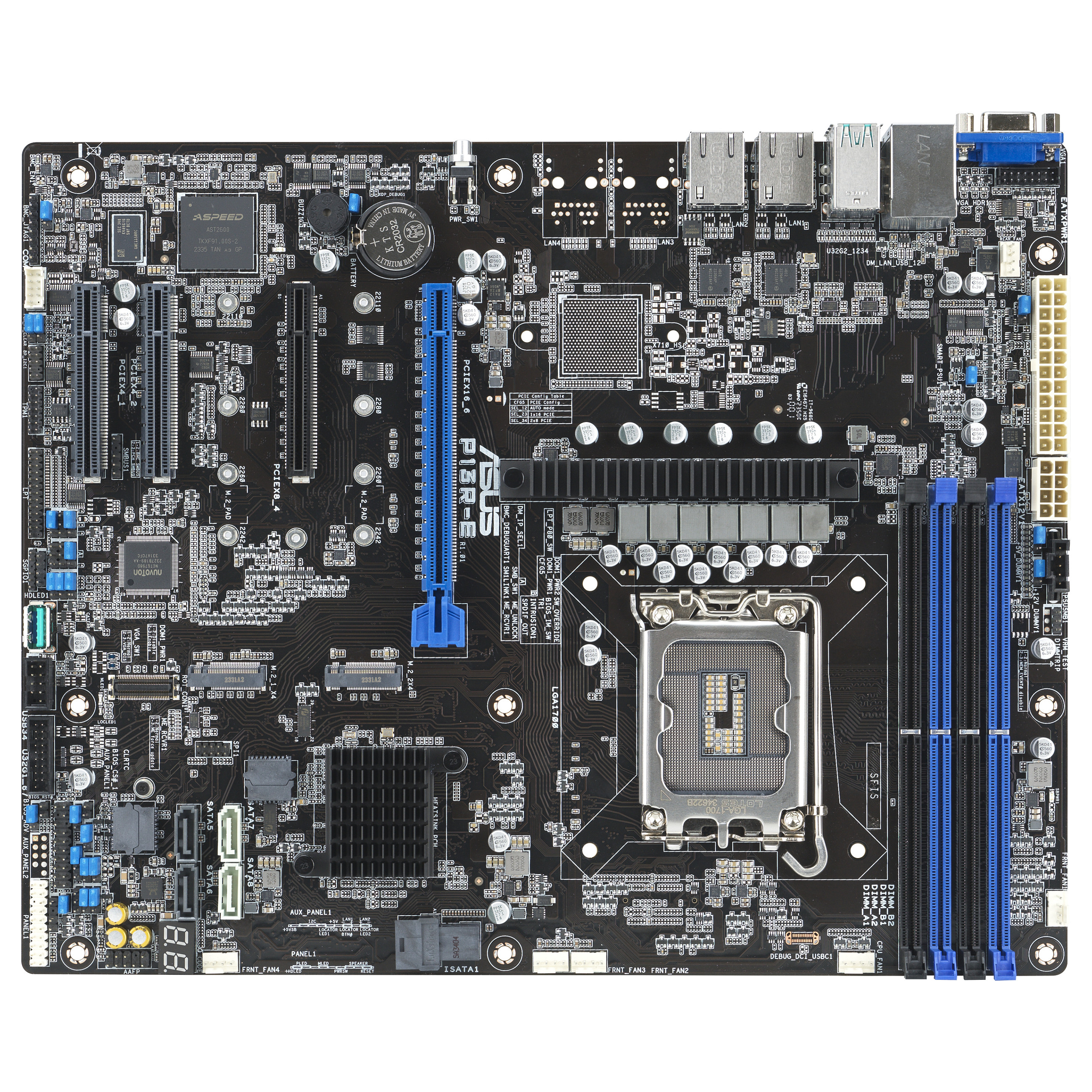

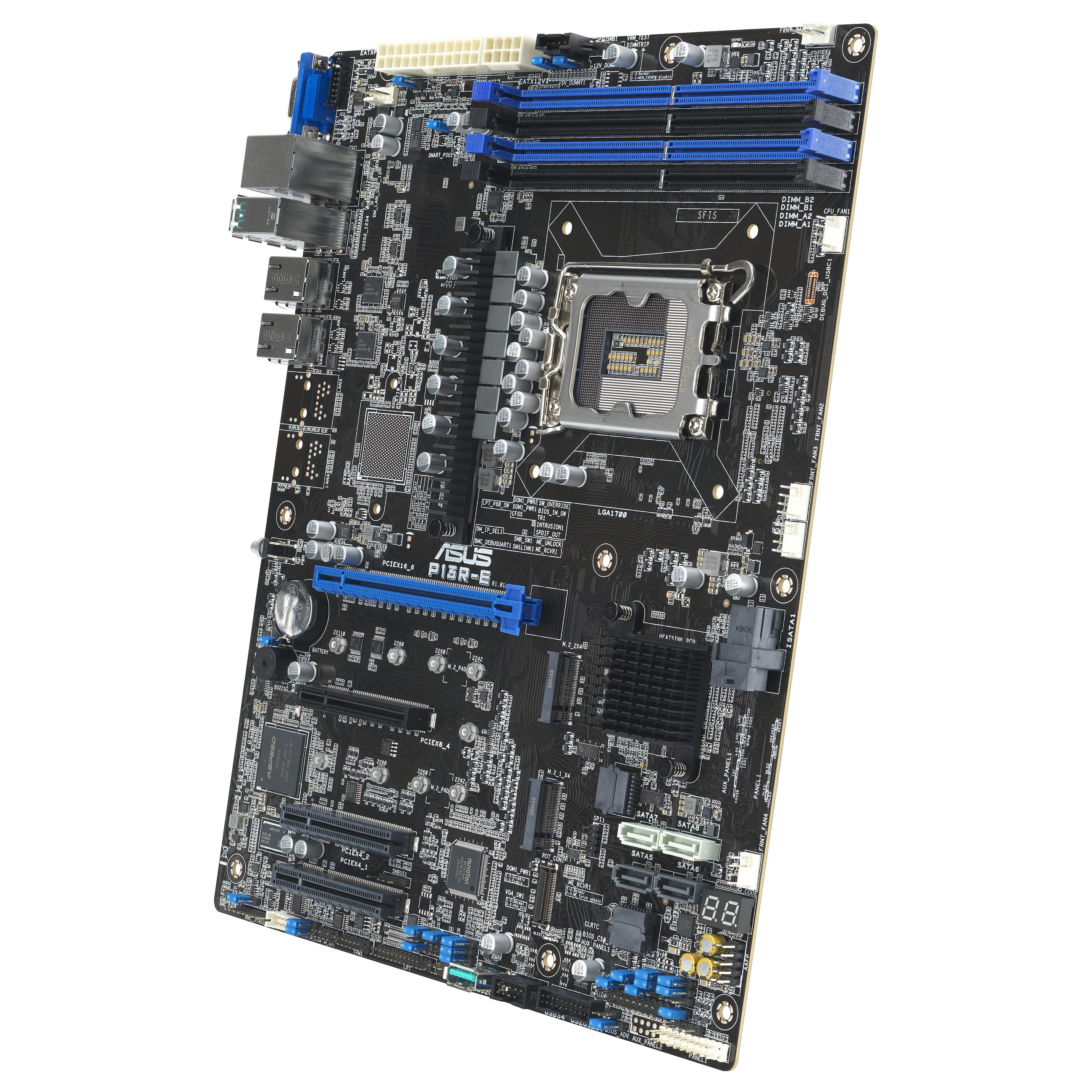

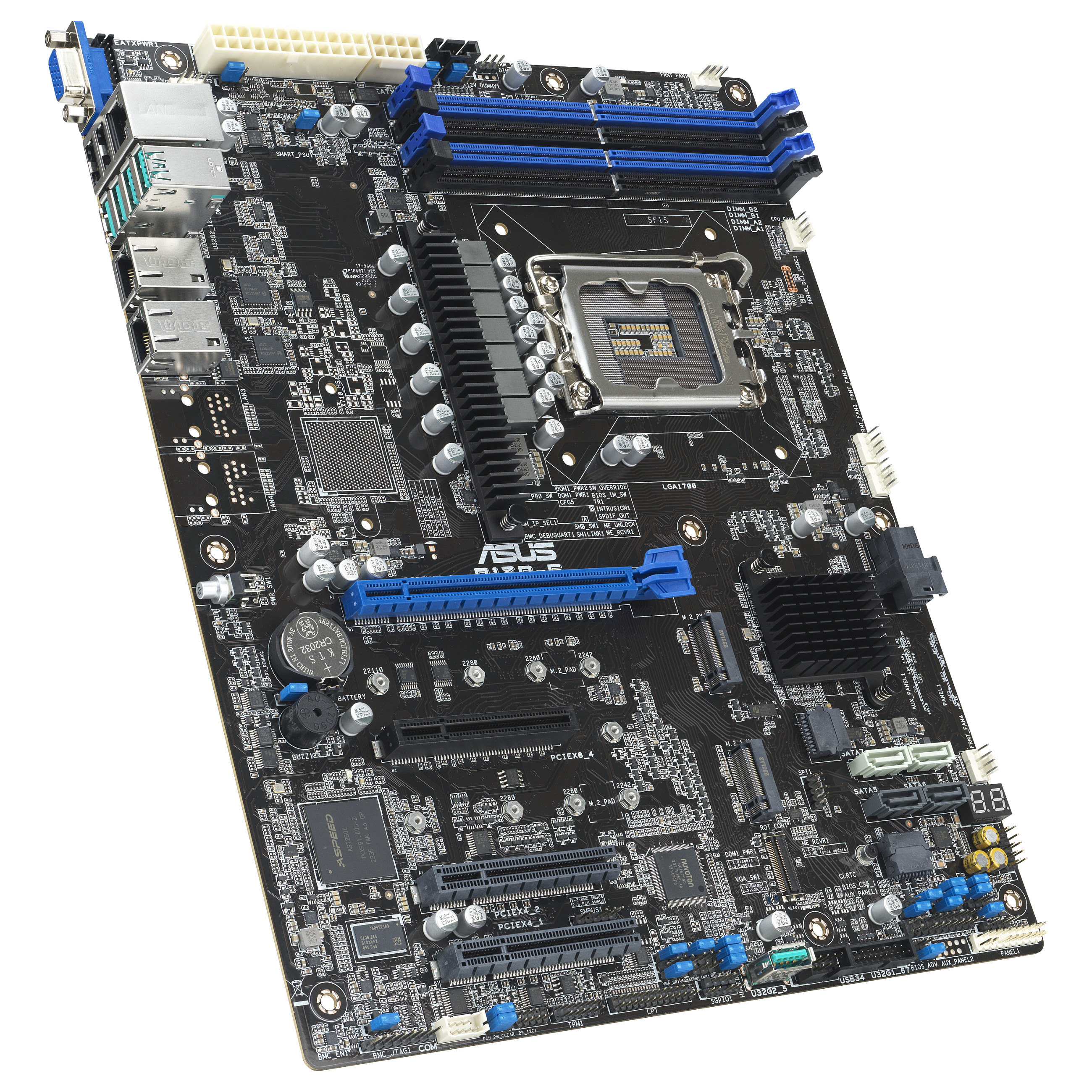

ASUS P13R-E (1700) (D) V2
Pre-Order
€475.99
VAT (19%) included
Description
Powered by an 8-core Intel Xeon E-2400 series and Intel Xeon 6300 series processor with support for up to 95 watt TDP Flexible expandability with eight SATA ports, two PCIe 5.0 slots and two PCIe 4.0 slots Dual Intel I210-AT2 gigabit Ethernet ports with teaming support Four DDR5 ECC UDIMM slots for up to 128 Gbps and two M.2 22110 slots for faster OS booting Onboard ASUS ASMB11-iKVM with ASPEED AST2600 controller for out-of-band management ATX motherboard featuring high computing capability -- an ideal platform for SMB general purpose, compute and storage servers
Technical Specifications
SKU
K90SB0CS0-M0UAY1
Processor Manufacturer
Intel
Processor Socket
LGA 1700
Compatible Processor Series
Intel® Pentium®, Intel Xeon 6300, Intel Xeon E
Supported Processor Sockets
LGA 1700
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
ECC
Supported Memory Clock Speeds
3600, 4000, 4400 MHz
Supported Memory Clock Speed (Max)
4400 MHz
Maximum Internal Memory
128 GB
Maximum Internal Memory Per Slot
32 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
PCI Express 4.0, SATA III
Number Of Hdds Supported
8
Number Of Storage Drives Supported
10
Parallel Processing Technology Support
Not supported
Usb 2.0 Connectors
1
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors
1
Number Of Sata Iii Connectors
8
Number Of Chassis Fan Connectors
6
Number Of Eps Power Connectors (8-Pin)
1
Number Of Com Connectors
1
Usb 2.0 Ports Quantity
2
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
4
Ethernet Lan (Rj-45) Ports
2
Vga (D-Sub) Ports Quantity
1
Ethernet Interface Type
Gigabit Ethernet
Top Wi-Fi Standard
Not available
Motherboard Chipset
Intel C266
Product Colour
Black
Pc Health Monitoring
CPU, Fan, Temperature
Component For
Server
Motherboard Form Factor
ATX
Motherboard Chipset Family
Intel
Cooling Type
Passive
Power Source Type
ATX
Pci Express X4 (Gen 4.X) Slots
2
Pci Express X8 (Gen 5.X) Slots
1
Pci Express X16 (Gen 5.X) Slots
1
Number Of M.2 (M) Slots
2
1St M.2 Largest Key Size
22110
1St M.2 Highest Pci Express Generation
4.0
2Nd M.2 Largest Key Size
22110
2Nd M.2 Highest Pci Express Generation
4.0
Storage Temperature (T-T)
-40 - 70 °C
Operating Temperature (T-T)
10 - 50 °C
Storage Relative Humidity (H-H)
20 - 90%
Package Width
341 mm
Package Depth
281 mm
Package Height
78 mm
Package Weight
1.5 kg
Width
305 mm
Depth
244 mm
Height
68 mm
Weight
800 g
