Gigabyte

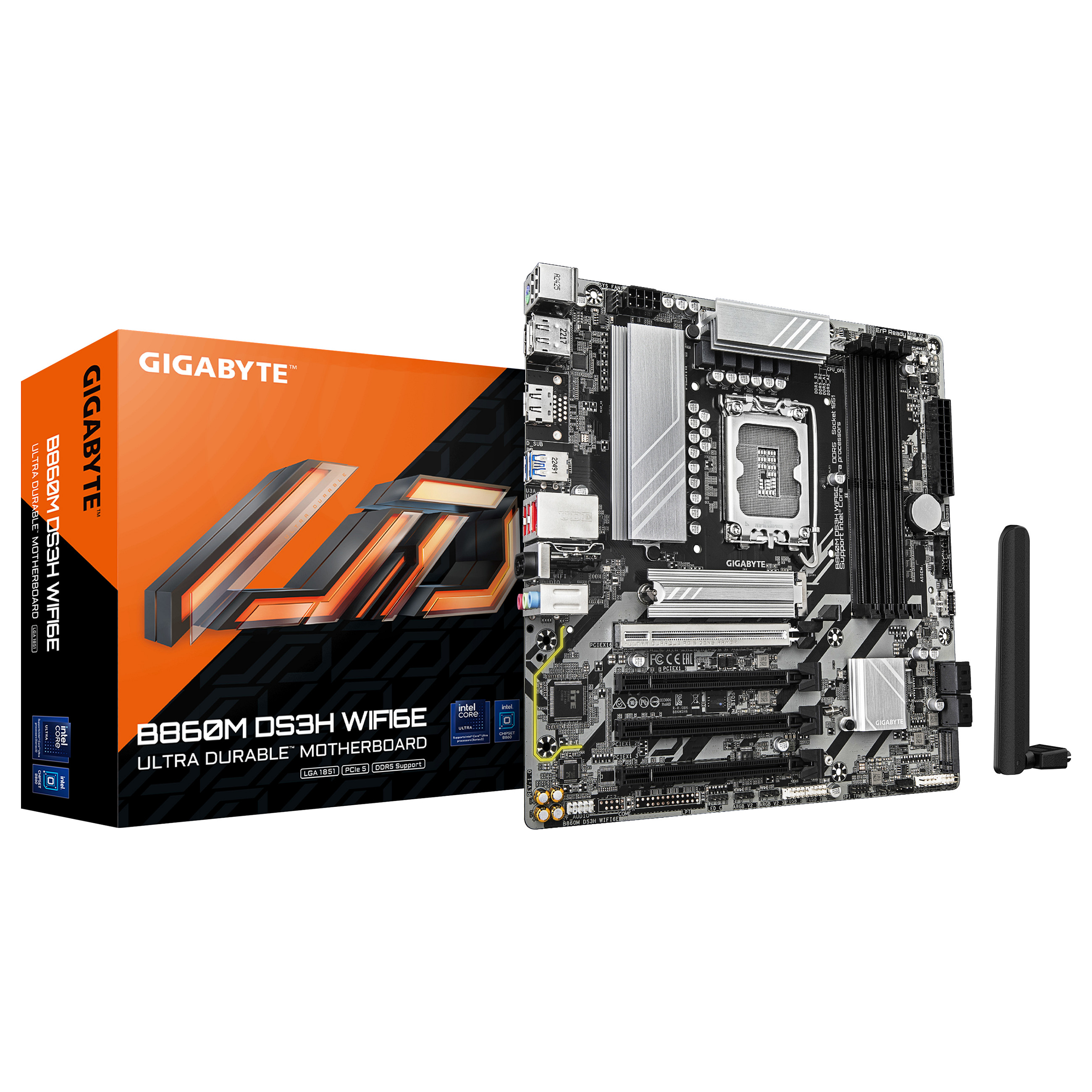

LGA1851 Gigabyte B860M DS3H WIFI6E
Pre-Order
€179.99
VAT (19%) included
Description
Hybrid 5+1+2+1 Phases 50A PPAK VRM Dual Channel DDR5：4*DIMMs PCIe 5.0 x16 with PCIE UD Slot & EZ-Latch M.2 Thermal Guard with EZ-Latch Click MOSFET Heatsinks & PCH Heatsink Wi-Fi 6E with WIFI EZ-Plug 2.5GbE LAN, USB 3.2 Gen2 Type-A, Q-Flash Plus
Technical Specifications
SKU
KB860M DS3H WIFI6E
Processor Manufacturer
Intel
Processor Socket
LGA 1851 (Socket V1)
Compatible Processor Series
Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
Supported Processor Sockets
LGA 1851
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
ECC & Non-ECC
Supported Memory Clock Speeds
5600, 6400, 9066 MHz
Supported Memory Clock Speed (Max)
9066 MHz
Maximum Internal Memory
256 GB
Maximum Internal Memory Per Slot
64 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Hdds Supported
4
Number Of Storage Drives Supported
6
Raid Levels
0, 1, 5, 10
Parallel Processing Technology Support
Not supported
Maximum Resolution
4096 x 2160 pixels
Directx Version
12.0
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
2
Number Of Sata Iii Connectors
4
Number Of Cpu Fan Connectors
2
Number Of Chassis Fan Connectors
2
Number Of Eps Power Connectors (8-Pin)
1
Number Of Water Pump Connectors
2
Number Of Rgb Led Pin Headers
4
Usb 2.0 Ports Quantity
3
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
2
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
1
Ethernet Lan (Rj-45) Ports
1
Ps/2 Ports Quantity
1
Hdmi Ports Quantity
1
Hdmi Version
2.1
Displayports Quantity
2
Displayport Version
2.1
Headphone Outputs
1
Wifi-Ap Antenna Jack
2
Ethernet Interface Type
2.5 Gigabit Ethernet
Lan Controller
Realtek RTL8125
Top Wi-Fi Standard
Wi-Fi 6E (802.11ax)
Wi-Fi Standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Wlan Controller Model
Intel Wi-Fi 6E AX211
Bluetooth Version
5.3
Motherboard Chipset
Intel B860
Audio Chip
Realtek ALC897
Audio Output Channels
7.1 channels
Product Colour
Dark brown
Pc Health Monitoring
Fan, Temperature, Voltage, Water cooling
Component For
PC
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
Intel
Cooling Type
Passive
Power Source Type
ATX
Windows Operating Systems Supported
Windows 10 x64, Windows 11 x64
Pci Express X16 (Gen 4.X) Slots
5
Pci Express X16 (Gen 5.X) Slots
1
Number Of M.2 (M) Slots
2
1St M.2 Largest Key Size
2280
1St M.2 Highest Pci Express Generation
5.0
2Nd M.2 Largest Key Size
2280
2Nd M.2 Highest Pci Express Generation
4.0
Bios Type
UEFI AMI
Bios Memory Size
256 Mbit
Acpi Version
5.0
Desktop Management Interface (Dmi) Version
2.7
System Management Bios (Smbios) Version
2.7
Country Of Origin
China
Products Per Shipping (Inner) Case
1 pc(s)
Battery Weight
3 g
Lithium Weight Per Battery
0.07 g
Number Of Battery Cells
1
Battery Technology
Lithium-Manganese Dioxide (LiMnO2)
Battery Type
CR2032
Package Width
270 mm
Package Depth
268 mm
Package Height
68 mm
Package Weight
1.25 kg
Width
244 mm
Depth
244 mm
Height
35 mm
Bundled Software
Norton® Internet Security (OEM version) LAN bandwidth management software
Weight
1.1 kg
Warranty Period
3 year(s)
