Gigabyte

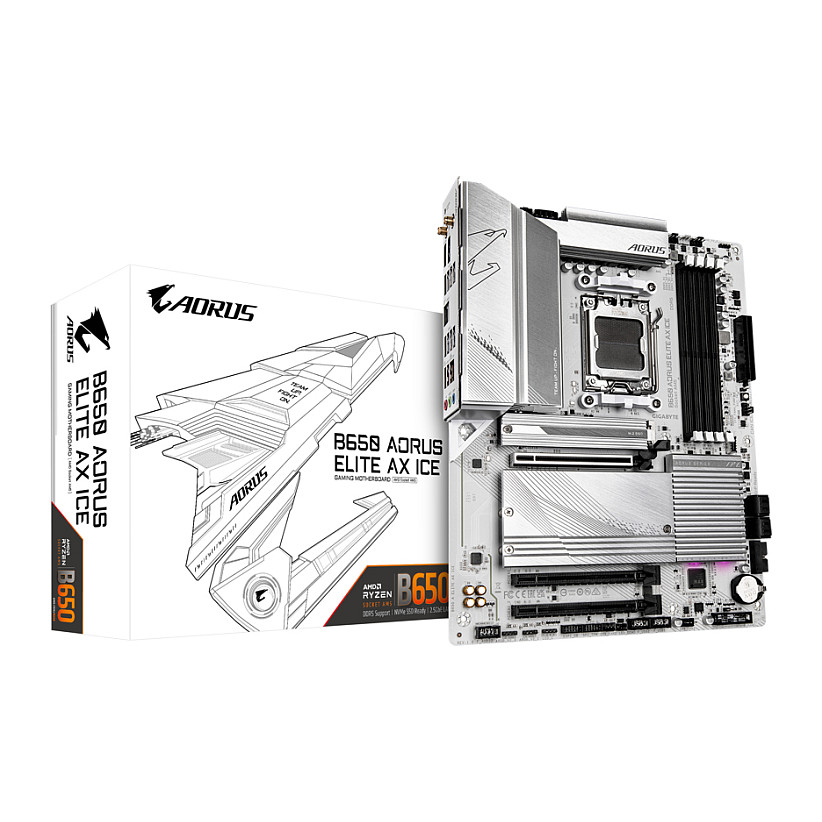

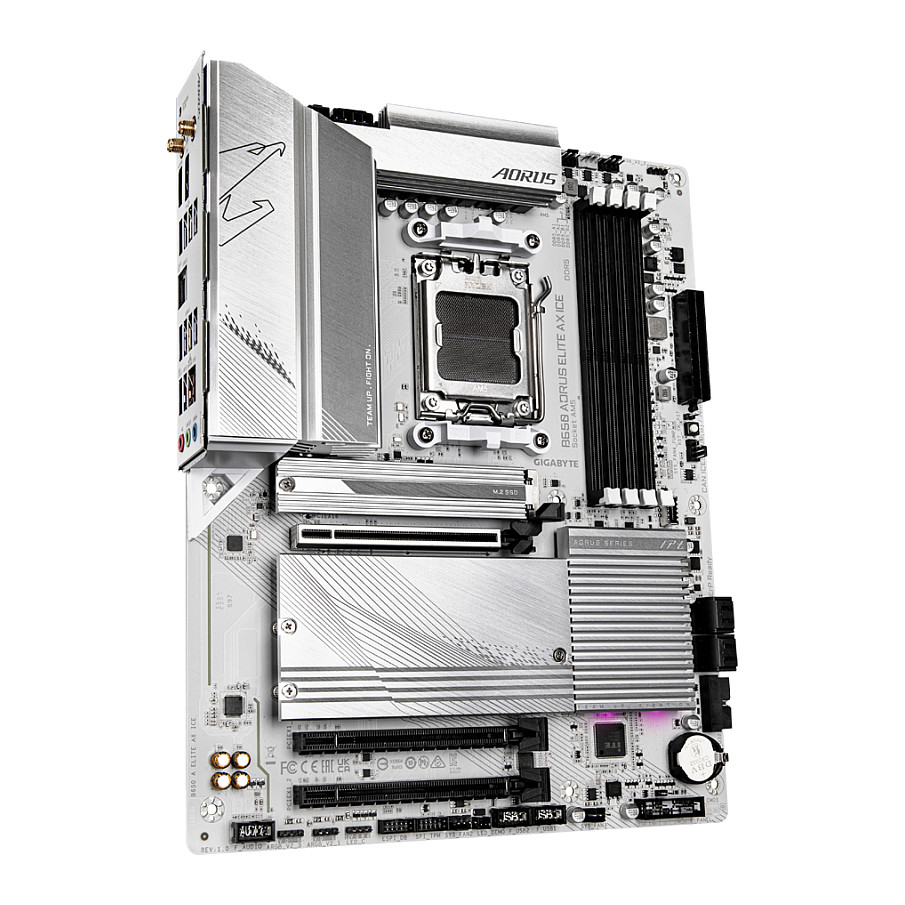

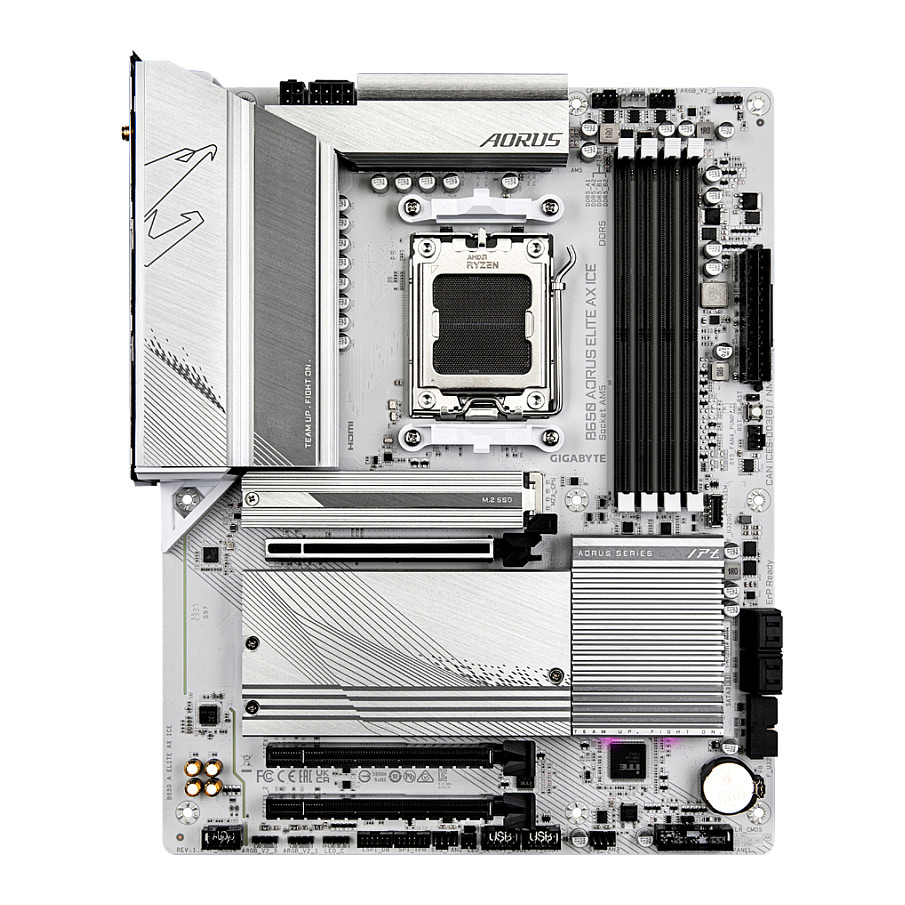

AM5 Gigabyte B650 AORUS ELITE AX ICE
Pre-Order
€200.99
VAT (19%) included
Description

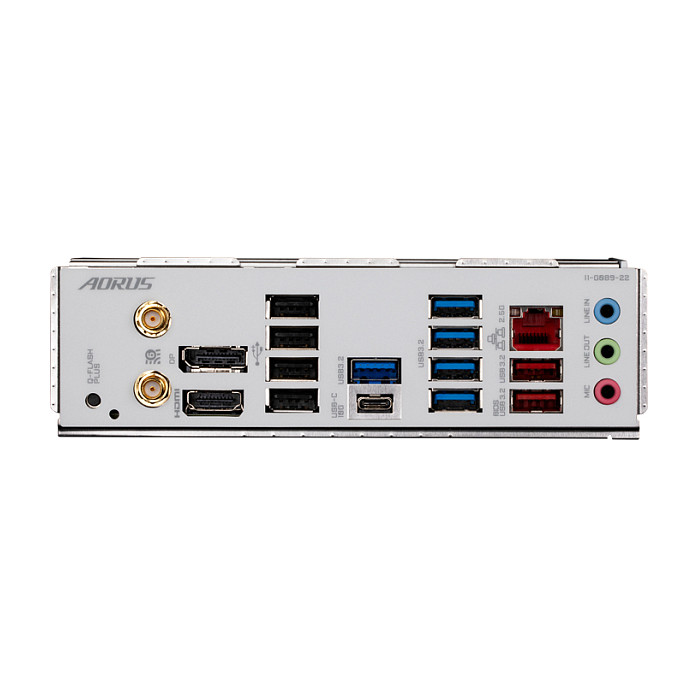

AMD Socket AM5：Supports AMD Ryzen 7000/ Ryzen 8000/ Ryzen 9000 Series Processors Unparalleled Performance：Twin 12+2+2 Phases Digital VRM Solution Dual Channel DDR5：4*DIMMs with AMD EXPO & Intel XMP Memory Module Support Superfast Storage：1*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & 25110 M.2 SSD Performance EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design Fast Networks：2.5GbE LAN & Wi-Fi 6E Extended Connectivity：HDMI, DP, Front USB-C 20Gb/s, Rear USB-C 10Gb/s Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Technical Specifications
SKU
KB650 AORUS ELITE AX ICE
Processor Manufacturer
AMD
Processor Socket
Socket AM5
Compatible Processor Series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Maximum Number Of Smp Processors
1
Supported Processor Sockets
Socket AM5
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
Non-ECC
Supported Memory Clock Speeds
8000, 7800, 7600, 7200, 7000, 6800, 6666, 6600, 6400, 6200, 6000, 5600, 5200, 4800, 4400 MHz
Supported Memory Clock Speed (Max)
8000 MHz
Maximum Internal Memory
256 GB
Maximum Internal Memory Per Slot
64 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Hdds Supported
4
Number Of Storage Drives Supported
7
Raid Levels
0, 1, 10
Parallel Processing Technology Support
Not supported
Maximum Resolution
4096 x 2160 pixels
Directx Version
12.0
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Usb 3.2 Gen 2X2 Connectors
1
Number Of Sata Iii Connectors
4
Number Of Cpu Fan Connectors
2
Number Of Chassis Fan Connectors
4
Peripheral (Molex) Power Connectors (4-Pin)
1
Number Of Eps Power Connectors (8-Pin)
1
Number Of Water Pump Connectors
2
Number Of Rgb Led Pin Headers
4
Usb 2.0 Ports Quantity
4
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
5
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
2
Usb 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity
1
Ethernet Lan (Rj-45) Ports
1
Hdmi Ports Quantity
1
Hdmi Version
2.1
Displayports Quantity
1
Displayport Version
1.4
Headphone Outputs
1
Wifi-Ap Antenna Jack
2
Ethernet Interface Type
2.5 Gigabit Ethernet
Lan Controller
Realtek RTL8125
Top Wi-Fi Standard
Wi-Fi 6E (802.11ax)
Wi-Fi Standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wlan Controller Model
Realtek RTL8852CE
Bluetooth Version
5.3
Motherboard Chipset
AMD B650
Audio Chip
Realtek ALC897
Audio Output Channels
7.1 channels
Product Colour
White
Pc Health Monitoring
Fan, Temperature, Voltage, Water cooling
Component For
PC
Motherboard Form Factor
ATX
Motherboard Chipset Family
AMD
Cooling Type
Passive
Power Source Type
ATX
Windows Operating Systems Supported
Windows 10 x64, Windows 11 x64
Pci Express X16 (Gen 3.X) Slots
2
Pci Express X16 (Gen 4.X) Slots
1
Number Of M.2 (M) Slots
3
1St M.2 Largest Key Size
25110
1St M.2 Highest Pci Express Generation
5.0
2Nd M.2 Largest Key Size
25110
2Nd M.2 Highest Pci Express Generation
4.0
3Rd M.2 Largest Key Size
25110
3Rd M.2 Highest Pci Express Generation
4.0
Bios Type
UEFI AMI
Bios Memory Size
256 Mbit
Acpi Version
5.0
Desktop Management Interface (Dmi) Version
2.7
System Management Bios (Smbios) Version
2.7
Country Of Origin
China
Products Per Shipping (Inner) Case
1 pc(s)
Battery Weight
3 g
Lithium Weight Per Battery
0.07 g
Number Of Battery Cells
1
Battery Technology
Lithium-Manganese Dioxide (LiMnO2)
Battery Type
CR2032
Package Width
335 mm
Package Depth
270 mm
Package Height
80 mm
Package Weight
2.33 kg
Width
305 mm
Depth
244 mm
Height
35 mm
Bundled Software
Norton® Internet Security (OEM version) LAN bandwidth management software
Warranty Period
3 year(s)
