ASRock

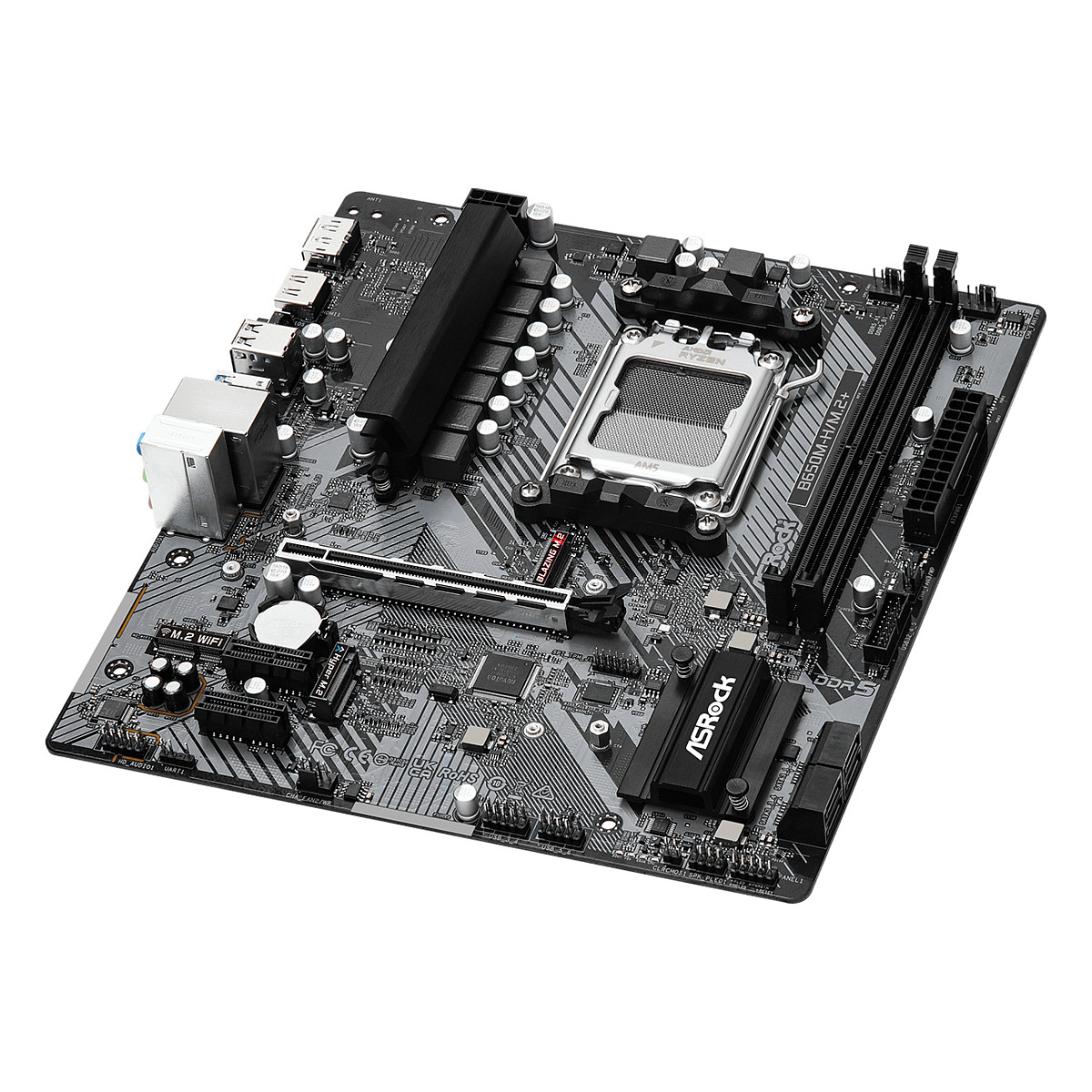

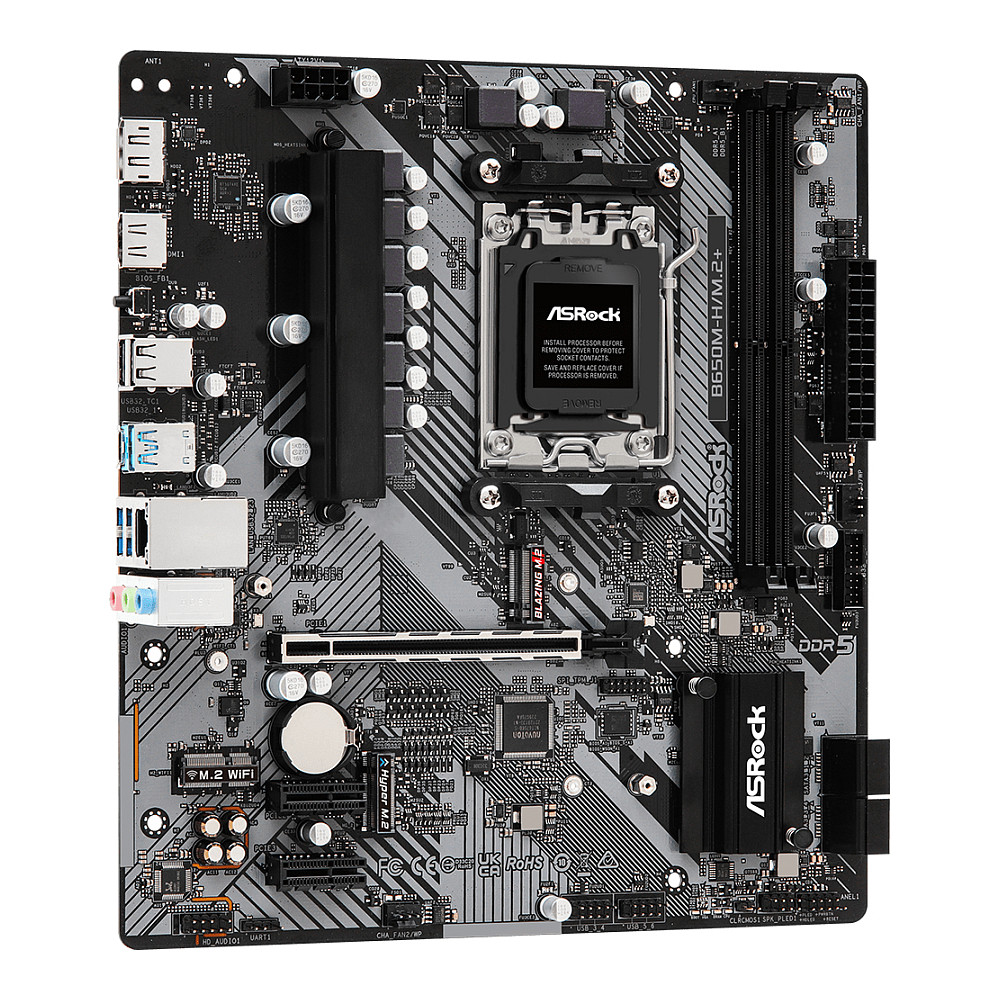

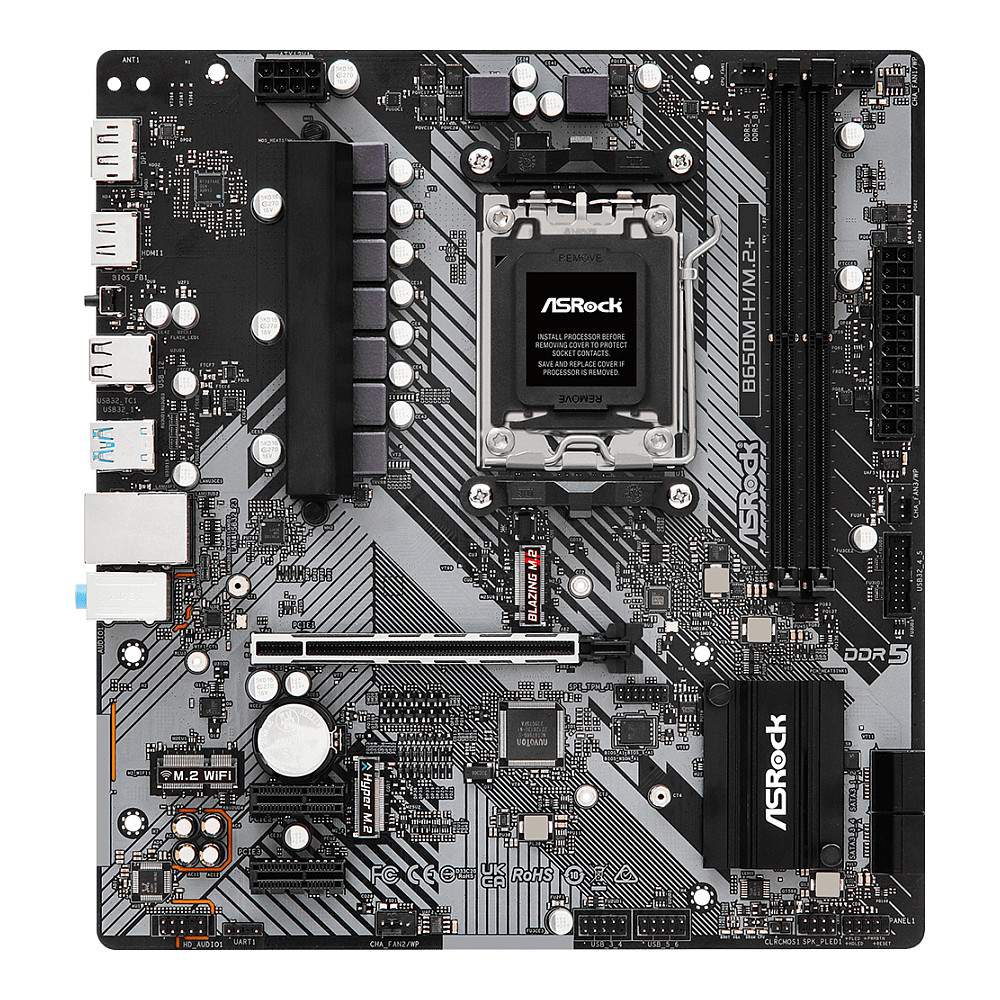

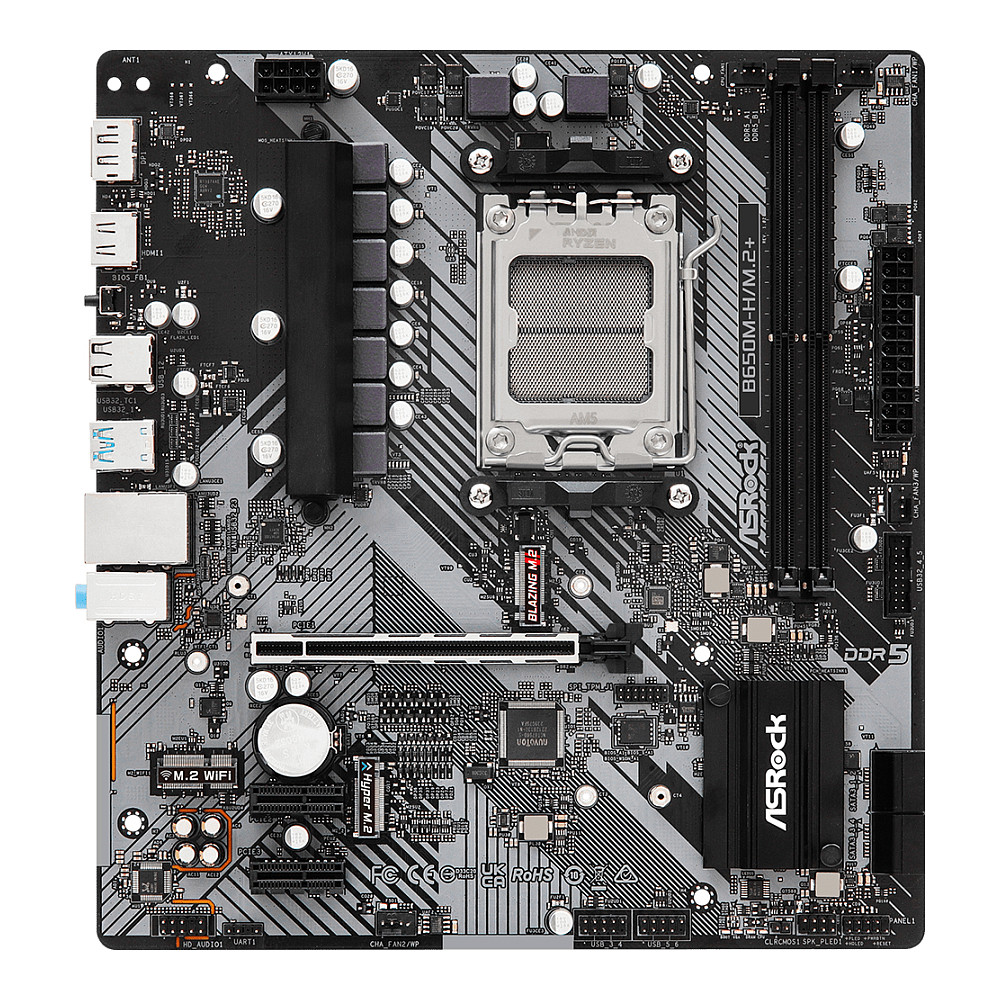

ASRock B650M-H/M.2+
Pre-Order
€90.99
VAT (19%) included
Description

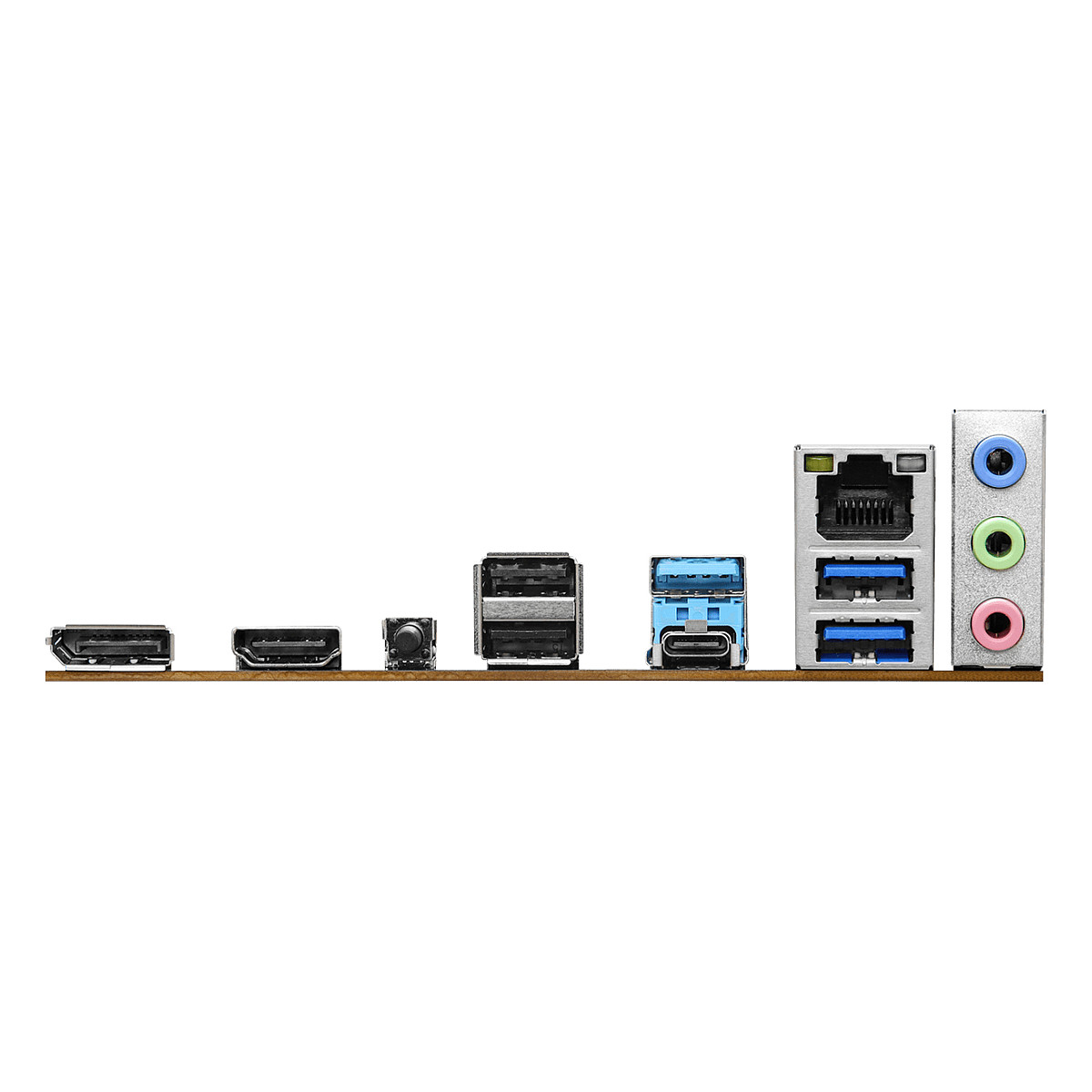

Supports AMD Socket AM5 Ryzen™ 8000 and 7000 Series Processors 6+1+1 Power Phase Dr.MOS, Supports up to 120W CPU 2 x DDR5 DIMMs, supports up to 6400+(OC) 1 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 Key E for WiFi Integrated AMD RDNA™ 2 Graphics * Graphics Output Options: HDMI, DisplayPort Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio 4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4), 1 Hyper M.2 (PCIe Gen4 x4) 6 USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front) Realtek Gigabit LAN
Technical Specifications
SKU
KB650M-H/M.2+
Processor Manufacturer
AMD
Processor Socket
Socket AM5
Maximum Number Of Smp Processors
1
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
2
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
ECC & Non-ECC
Maximum Internal Memory
96 GB
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Storage Drives Supported
6
Raid Levels
0, 1, 10
Graphics Card Family
AMD
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Number Of Sata Iii Connectors
4
Usb 2.0 Ports Quantity
2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
3
Usb 3.2 Gen 1 (3.1 Gen 1) Type-C Ports Quantity
1
Ethernet Lan (Rj-45) Ports
1
Hdmi Ports Quantity
1
Displayports Quantity
1
Displayport Version
1.4
Ethernet Interface Type
Gigabit Ethernet
Lan Controller
Realtek RTL8111H
Motherboard Chipset
AMD B650
Audio Output Channels
7.1 channels
Component For
PC
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
AMD
Windows Operating Systems Supported
Windows 10 x64, Windows 11 x64
Pci Express X1 (Gen 4.X) Slots
2
Pci Express X16 (Gen 4.X) Slots
1
Number Of M.2 (M) Slots
1
Bios Type
UEFI AMI
Width
244 mm
Depth
226 mm
