ASUS

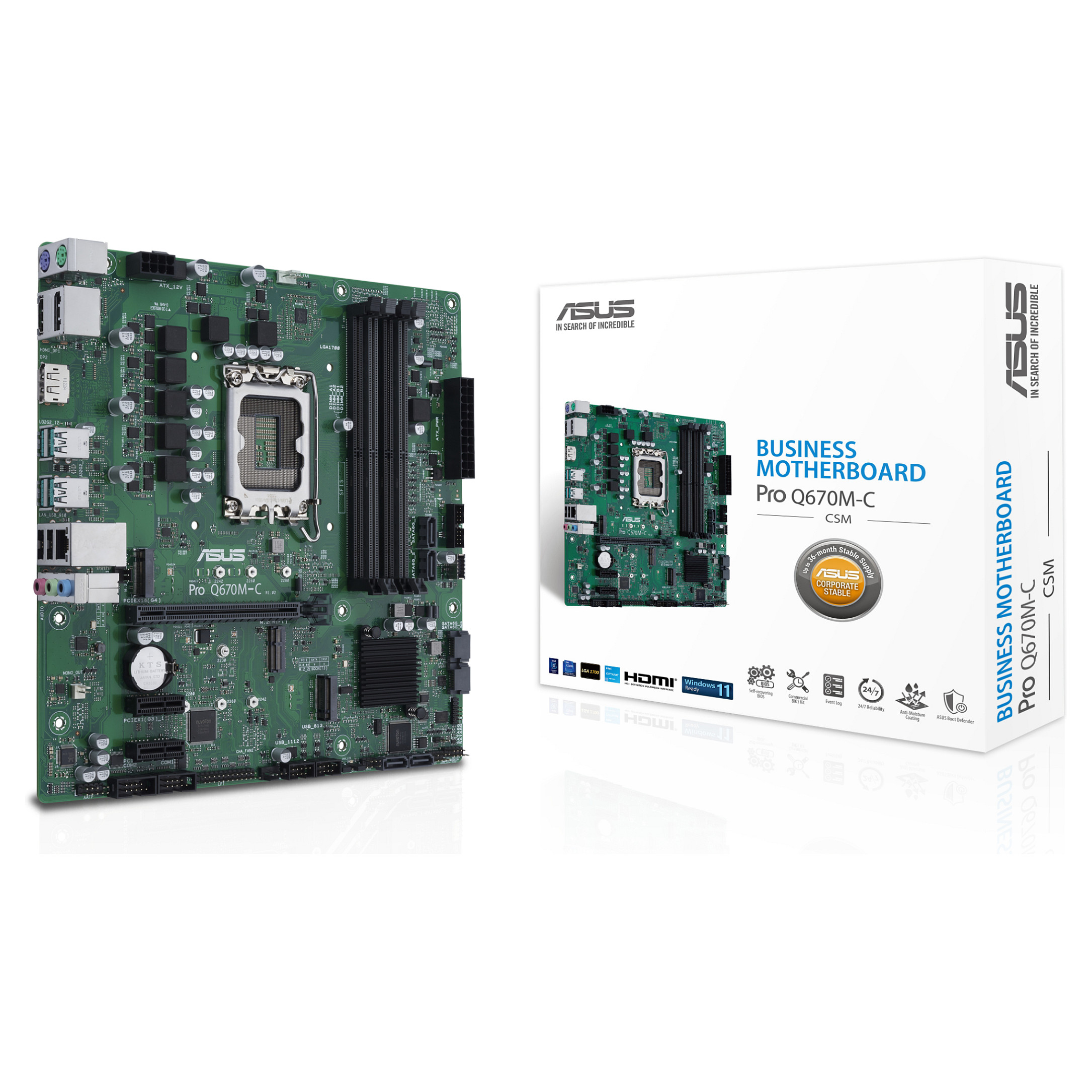

1700 ASUS PRO Q670M-C-CSM
Pre-Order
€228.99
VAT (19%) included
Description
Intel® LGA 1700 socket: Ready for 12th Gen Intel CoreTM processors ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration Enhanced system security: Boot defender with NIST SP 800-193 compliance, a self-recovering BIOS, and TPM to safeguard PCs Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes
Technical Specifications
SKU
K90MB19E0-M2EAYC
Processor Manufacturer
Intel
Processor Socket
LGA 1700
Compatible Processor Series
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G
Supported Processor Sockets
LGA 1700
Maximum Internal Memory Supported By Processor
128 GB
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
Non-ECC
Supported Memory Clock Speeds
4800 MHz
Maximum Internal Memory
128 GB
Supported Memory Module Capacities
4GB, 8GB, 16GB, 32GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Hdds Supported
6
Number Of Storage Drives Supported
8
Raid Levels
0, 1, 5, 10
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
2
Number Of Sata Iii Connectors
6
Number Of Chassis Fan Connectors
2
Number Of Com Connectors
2
Usb 2.0 Ports Quantity
2
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
4
Ethernet Lan (Rj-45) Ports
1
Ps/2 Ports Quantity
2
Hdmi Ports Quantity
1
Hdmi Version
2.1
Displayports Quantity
2
Displayport Version
1.4
Headphone Outputs
2
Ethernet Interface Type
Gigabit Ethernet
Motherboard Chipset
Intel Q670
Audio Output Channels
7.1 channels
Component For
PC
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
Intel
Cooling Type
Active
Power Source Type
ATX
Number Of Mounting Holes
8
Windows Operating Systems Supported
Windows 10, Windows 11
Compatible Operating Systems
Windows® 11 64-bit, Windows® 10 64-bit
Pci Express X1 (Gen 3.X) Slots
2
Pci Express X16 (Gen 4.X) Slots
1
Number Of M.2 (M) Slots
2
Bios Memory Size
256 Mbit
Harmonized System (Hs) Code
84733020
Width
244 mm
Depth
244 mm
Height
51 mm
Cables Included
SATA
Weight
634 g
