MSI

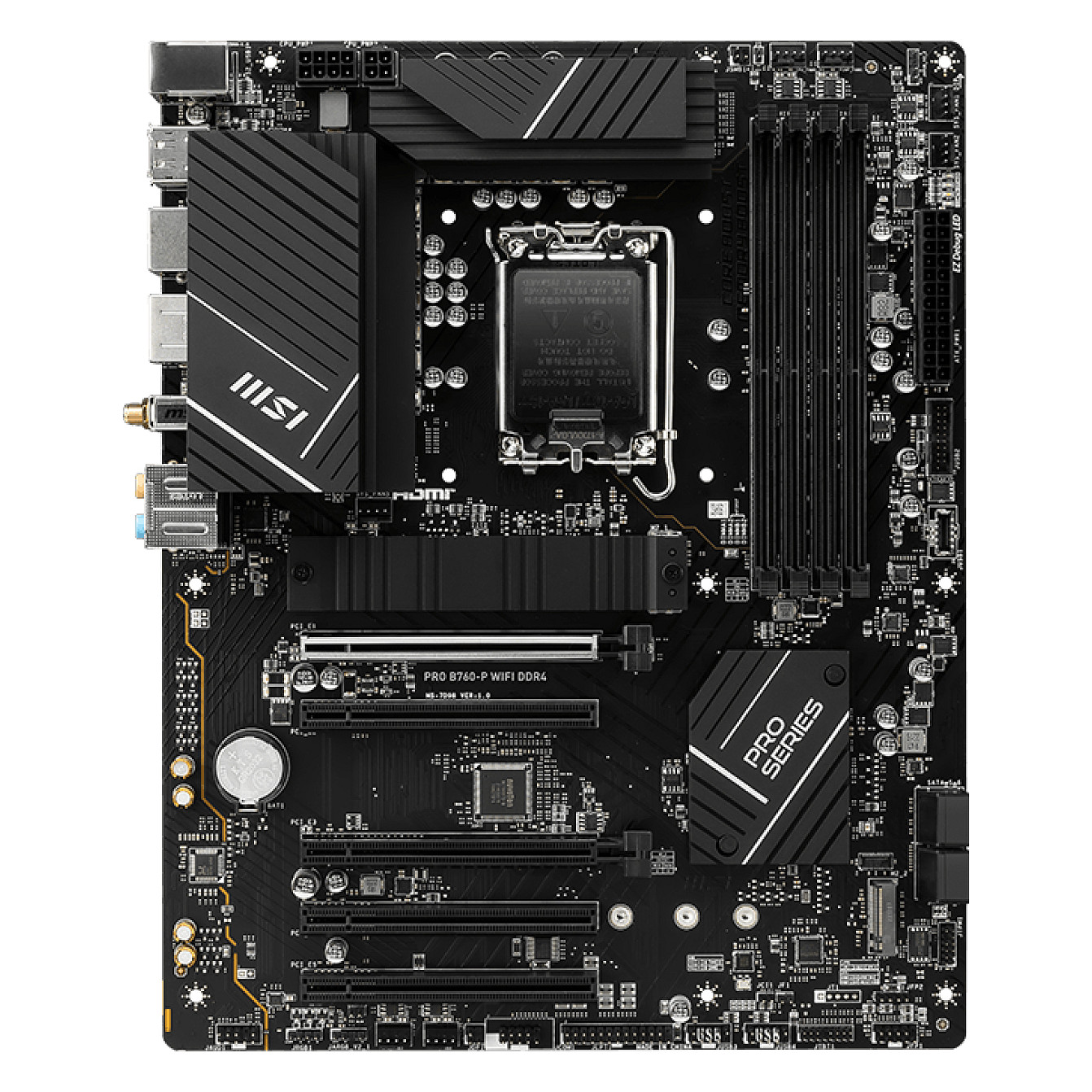

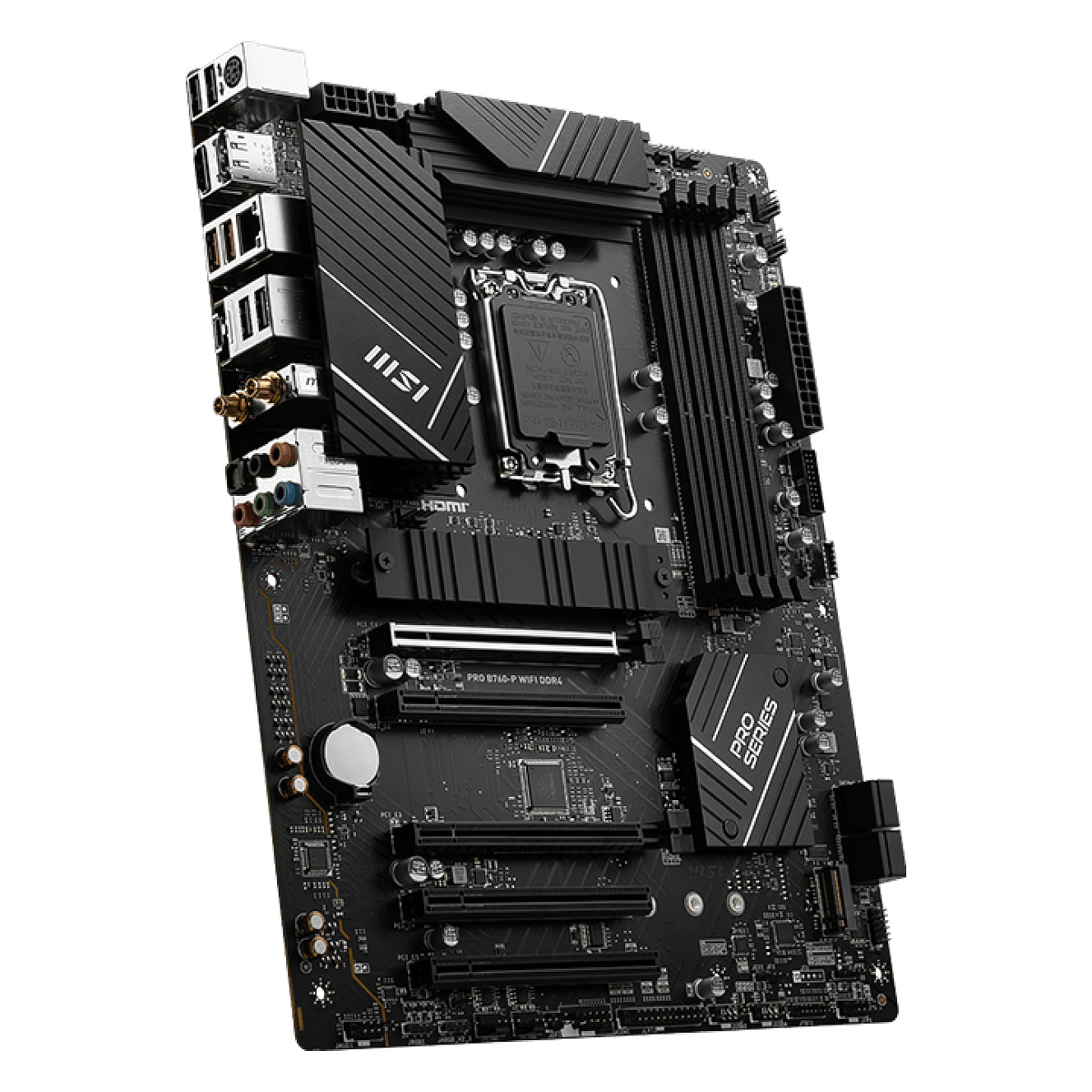

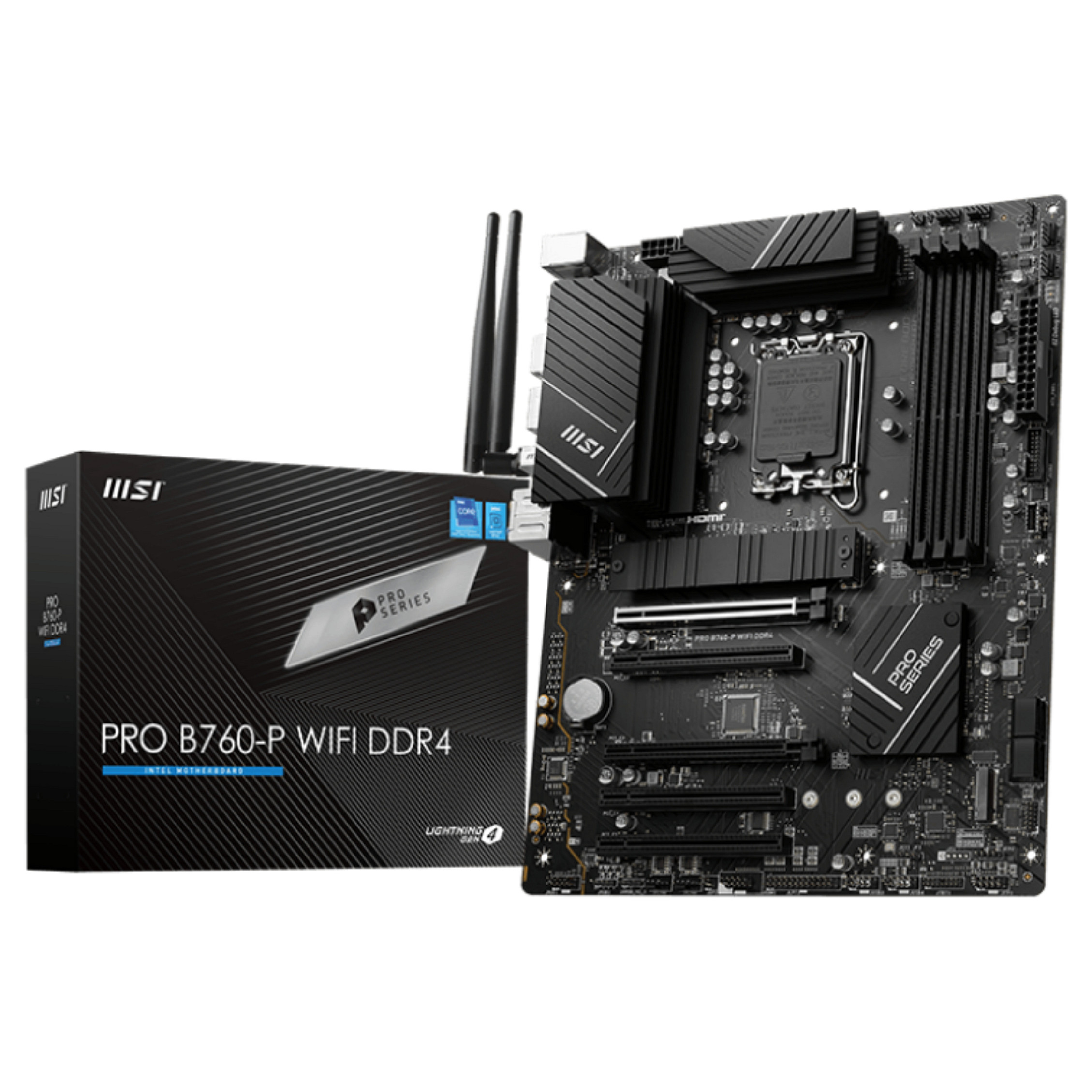

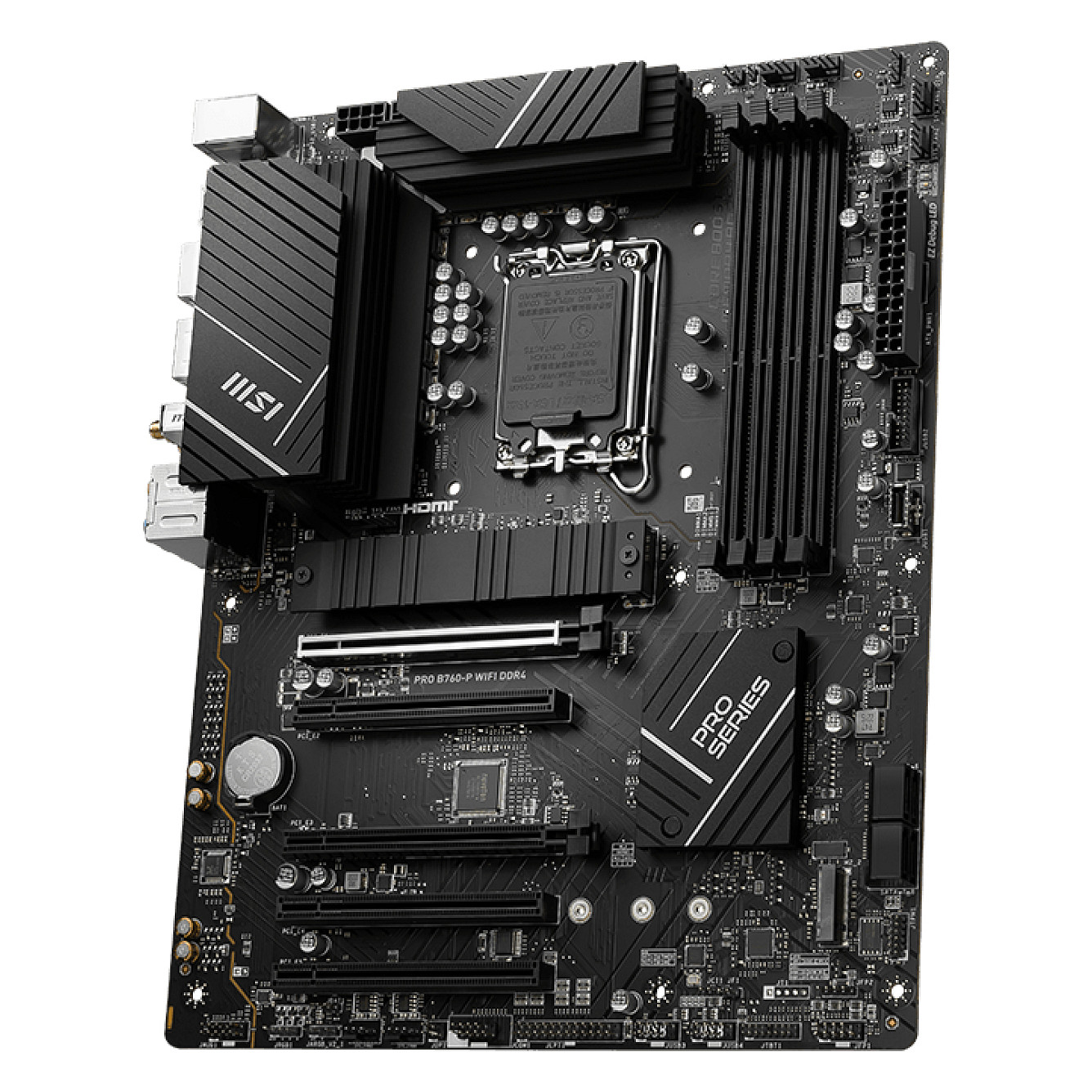

1700 MSI PRO B760-P WIFI DDR4
In Stock
€162.99
VAT (19%) included
Description
Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket Supports DDR4 Memory, Dual Channel DDR4 5333+MHz (OC) Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Technical Specifications
SKU
K7D98-001R
Processor Manufacturer
Intel
Processor Socket
LGA 1700
Compatible Processor Series
Intel® Celeron®, Intel® Pentium® Gold
Maximum Number Of Smp Processors
1
Supported Processor Sockets
LGA 1700
Supported Memory Types
DDR4-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
Non-ECC
Supported Memory Clock Speeds
2133, 2400, 2666, 2933, 3200, 3333, 3400, 3466, 3600, 3733, 3800, 4000, 4200, 4266, 4400, 4600, 4800, 5000, 5066, 5200, 5333 MHz
Supported Memory Clock Speed (Max)
5333 MHz
Maximum Internal Memory
128 GB
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Storage Drives Supported
6
Raid Levels
0, 1, 5, 10
Usb 2.0 Connectors
4
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
4
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors
1
Number Of Sata Iii Connectors
4
Usb 2.0 Ports Quantity
2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
2
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
2
Ethernet Lan (Rj-45) Ports
1
Hdmi Ports Quantity
1
Displayports Quantity
1
Ethernet Interface Type
2.5 Gigabit Ethernet
Top Wi-Fi Standard
Wi-Fi 6E (802.11ax)
Motherboard Chipset
Intel B760
Audio Chip
Realtek ALC897
Audio Output Channels
7.1 channels
Product Colour
Black
Component For
PC
Motherboard Form Factor
ATX
Motherboard Chipset Family
Intel
Power Source Type
ATX
Windows Operating Systems Supported
Windows 10, Windows 11
Pci Express X16 Slots
5
Pci Express X16 (Gen 4.X) Slots
2
Number Of M.2 (M) Slots
2
Bios Type
UEFI AMI
Bios Memory Size
256 Mbit
System Management Bios (Smbios) Version
3.5
Width
243.8 mm
Depth
304.8 mm
