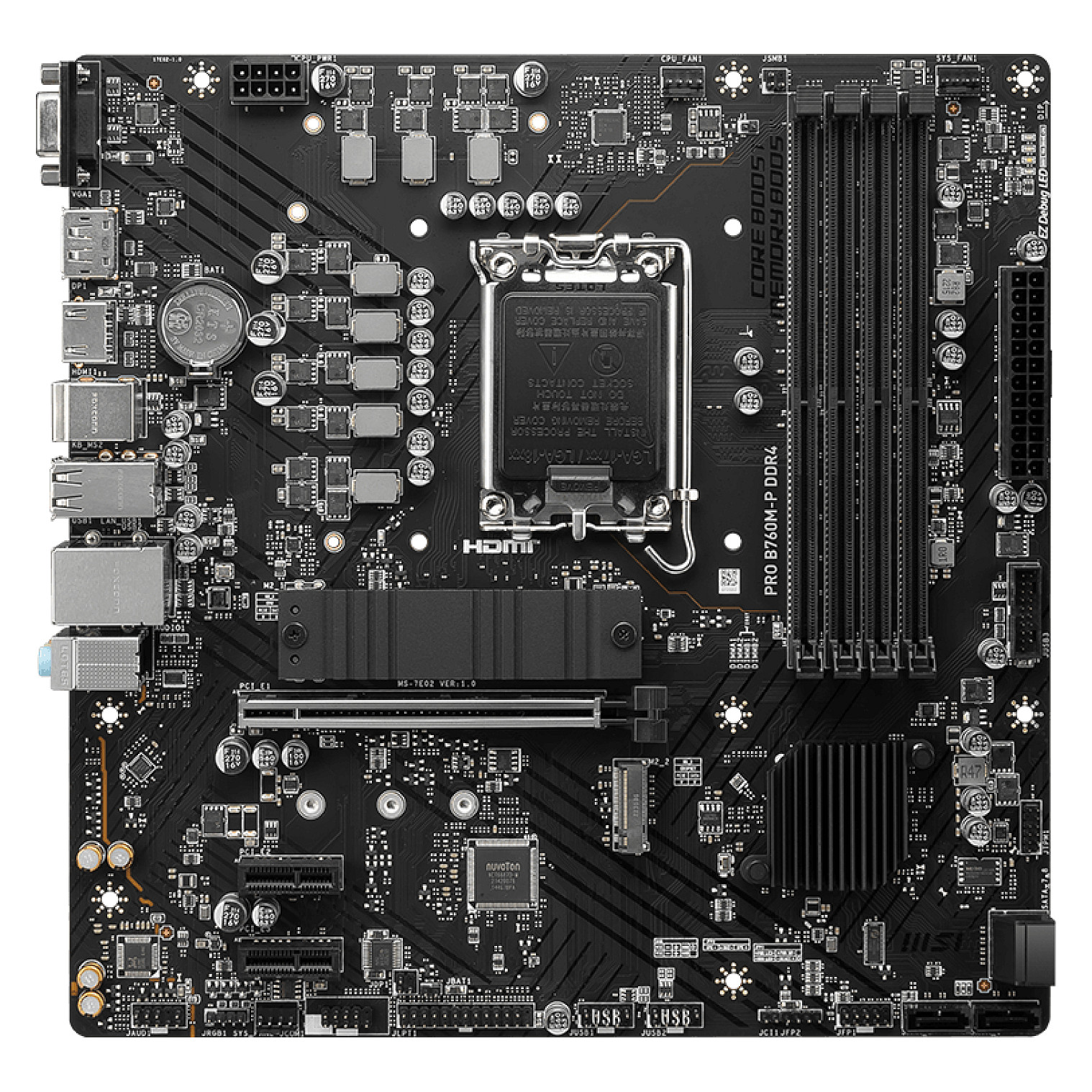

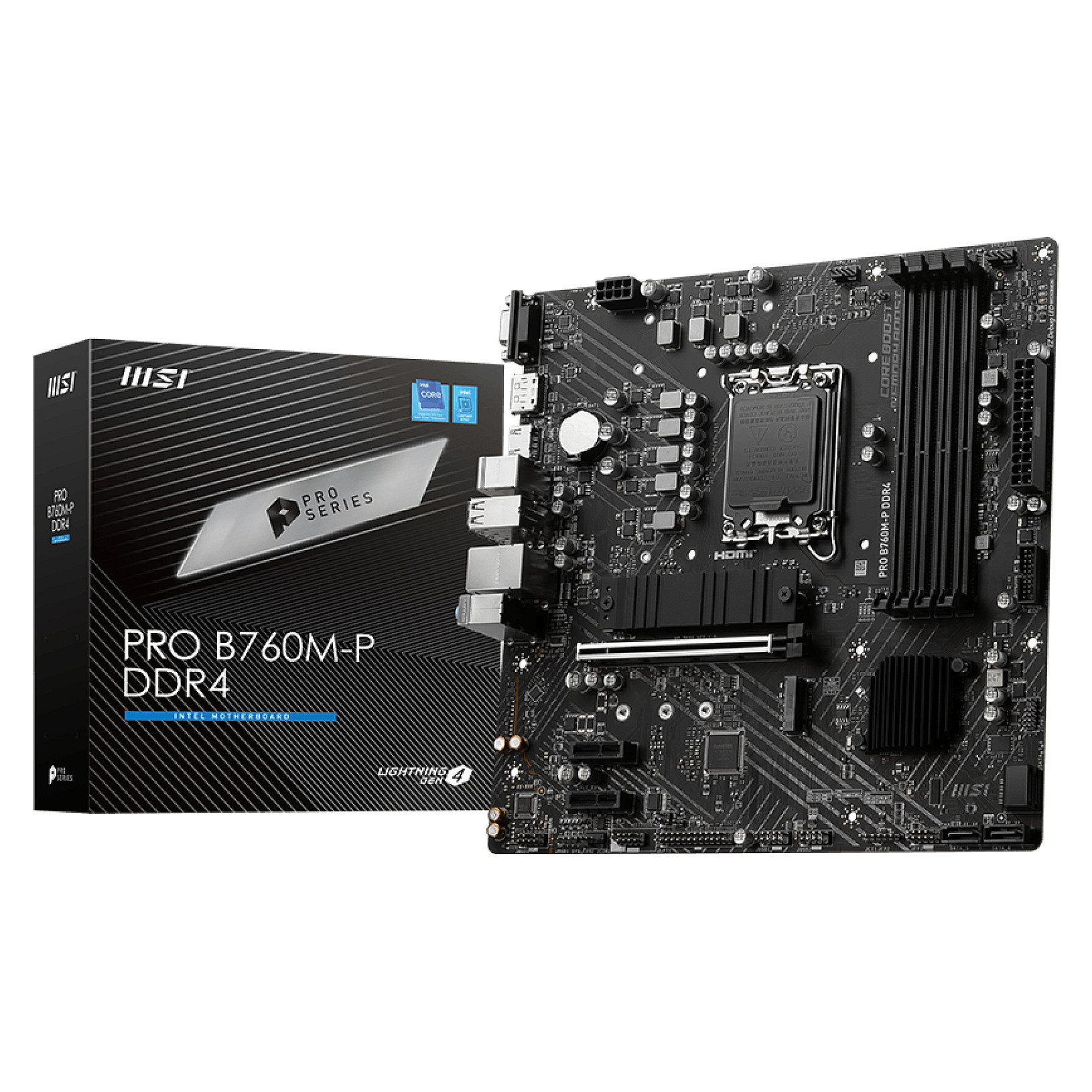

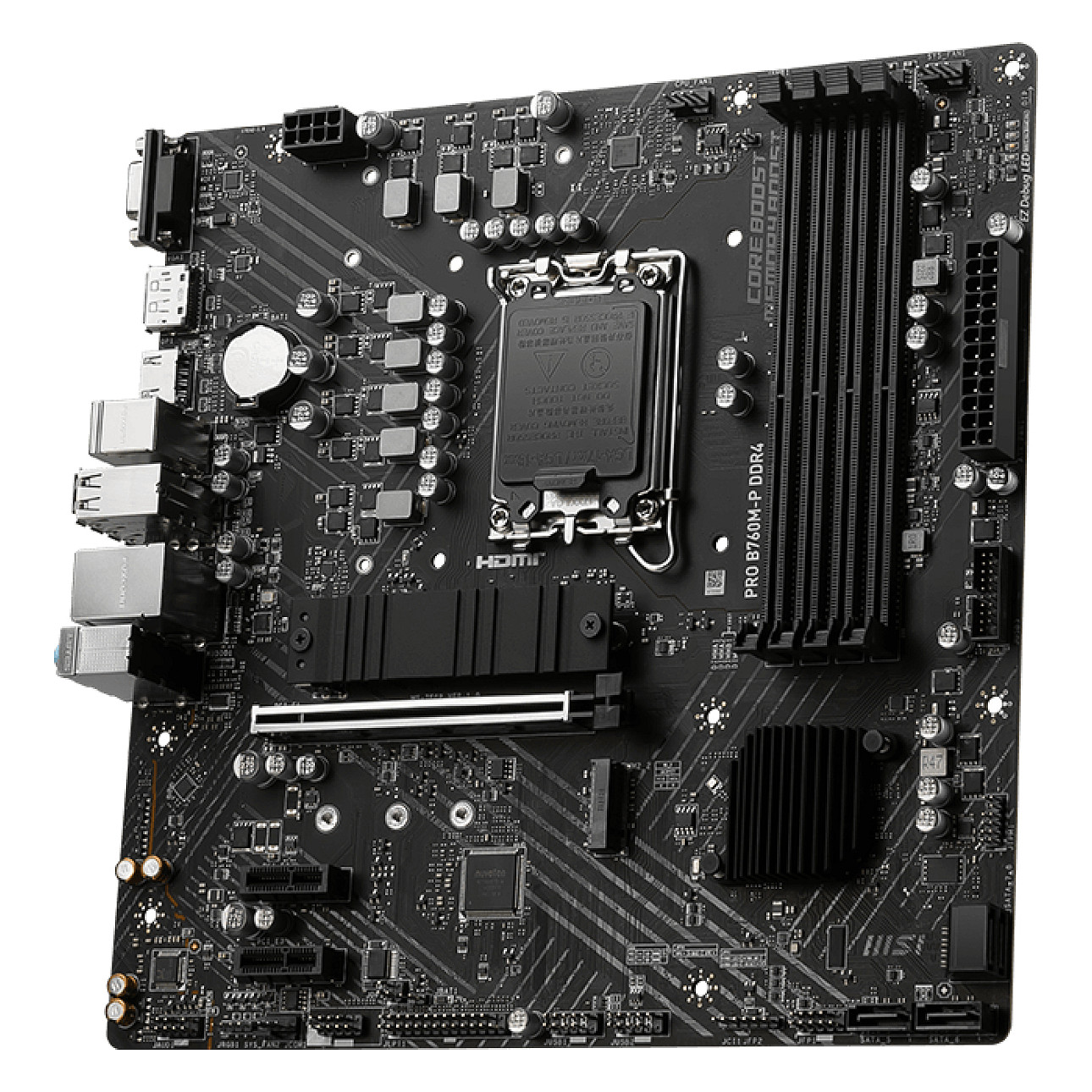

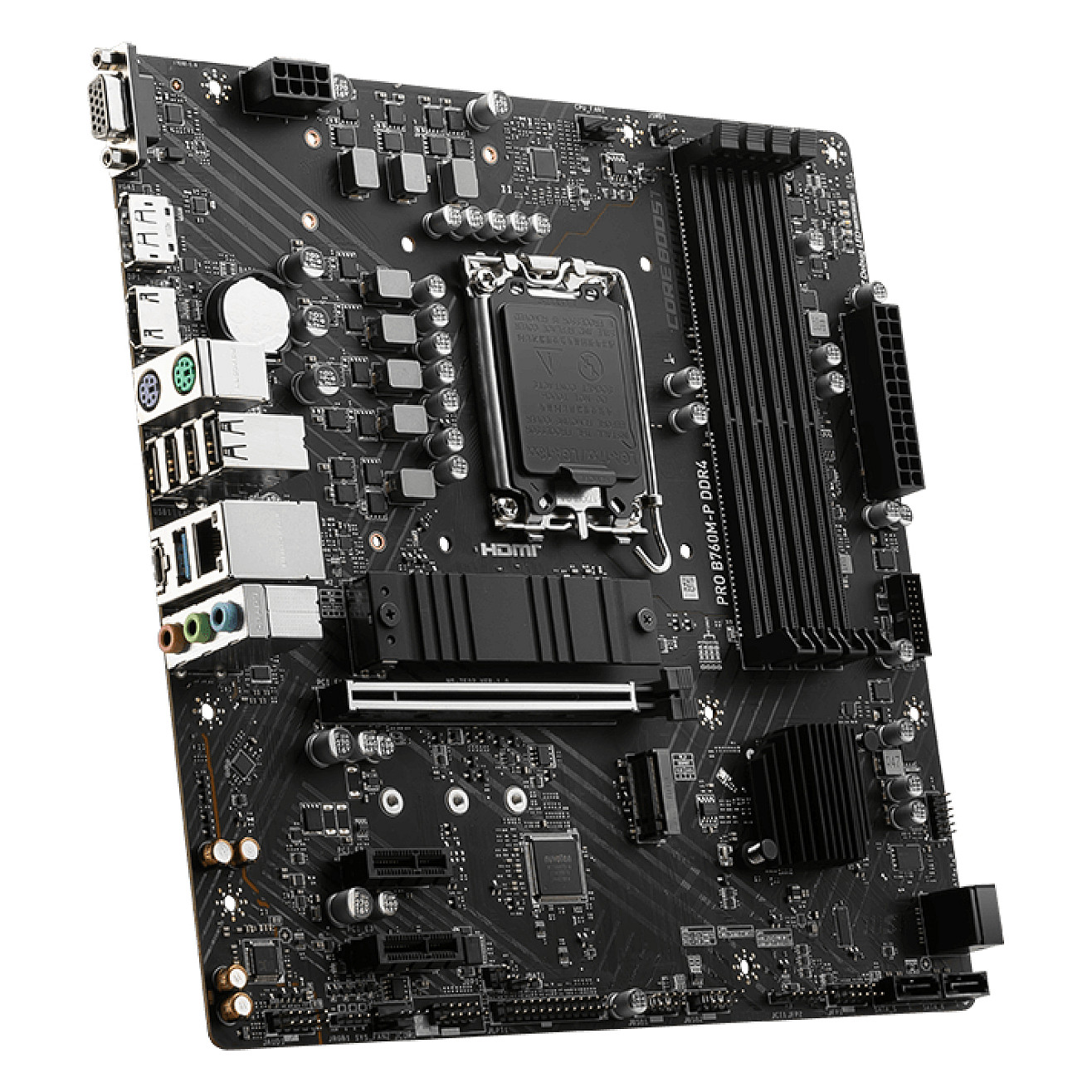

MSI
1700 MSI PRO B760M-P DDR4
In Stock
€97.99
VAT (19%) included
Description
Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC) Core Boost : With premium layout and digital power design to support more cores and provide better performance Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
Technical Specifications
SKU
K7E02-001R
Processor Manufacturer
Intel
Processor Socket
LGA 1700
Compatible Processor Series
Intel® Celeron®, Intel® Pentium® Gold
Maximum Number Of Smp Processors
1
Supported Processor Sockets
LGA 1700
Supported Memory Types
DDR4-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
Non-ECC
Supported Memory Clock Speeds
4800, 4600, 4400, 4266, 4200, 4000, 3800, 3733, 3600, 3466, 3400, 3333, 3200, 2933, 2666, 2400, 2133 MHz
Supported Memory Clock Speed (Max)
4800 MHz
Maximum Internal Memory
128 GB
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Storage Drives Supported
6
Raid Levels
0, 1, 5, 10
Usb 2.0 Connectors
4
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
2
Number Of Sata Iii Connectors
4
Usb 2.0 Ports Quantity
4
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
1
Usb 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity
1
Ethernet Lan (Rj-45) Ports
1
Hdmi Ports Quantity
1
Hdmi Version
1.4
Displayports Quantity
1
Displayport Version
1.4
Ethernet Interface Type
2.5 Gigabit Ethernet
Top Wi-Fi Standard
Not available
Motherboard Chipset
Intel B760
Audio Chip
Realtek ALC897
Audio Output Channels
7.1 channels
Product Colour
Black
Component For
PC
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
Intel
Power Source Type
ATX
Windows Operating Systems Supported
Windows 10, Windows 11
Pci Express X1 (Gen 3.X) Slots
2
Pci Express X16 Slots
2
Pci Express X16 (Gen 4.X) Slots
1
Number Of M.2 (M) Slots
2
Bios Type
UEFI AMI
Bios Memory Size
256 Mbit
System Management Bios (Smbios) Version
3.5
Width
243.8 mm
Depth
243.8 mm
