Gigabyte

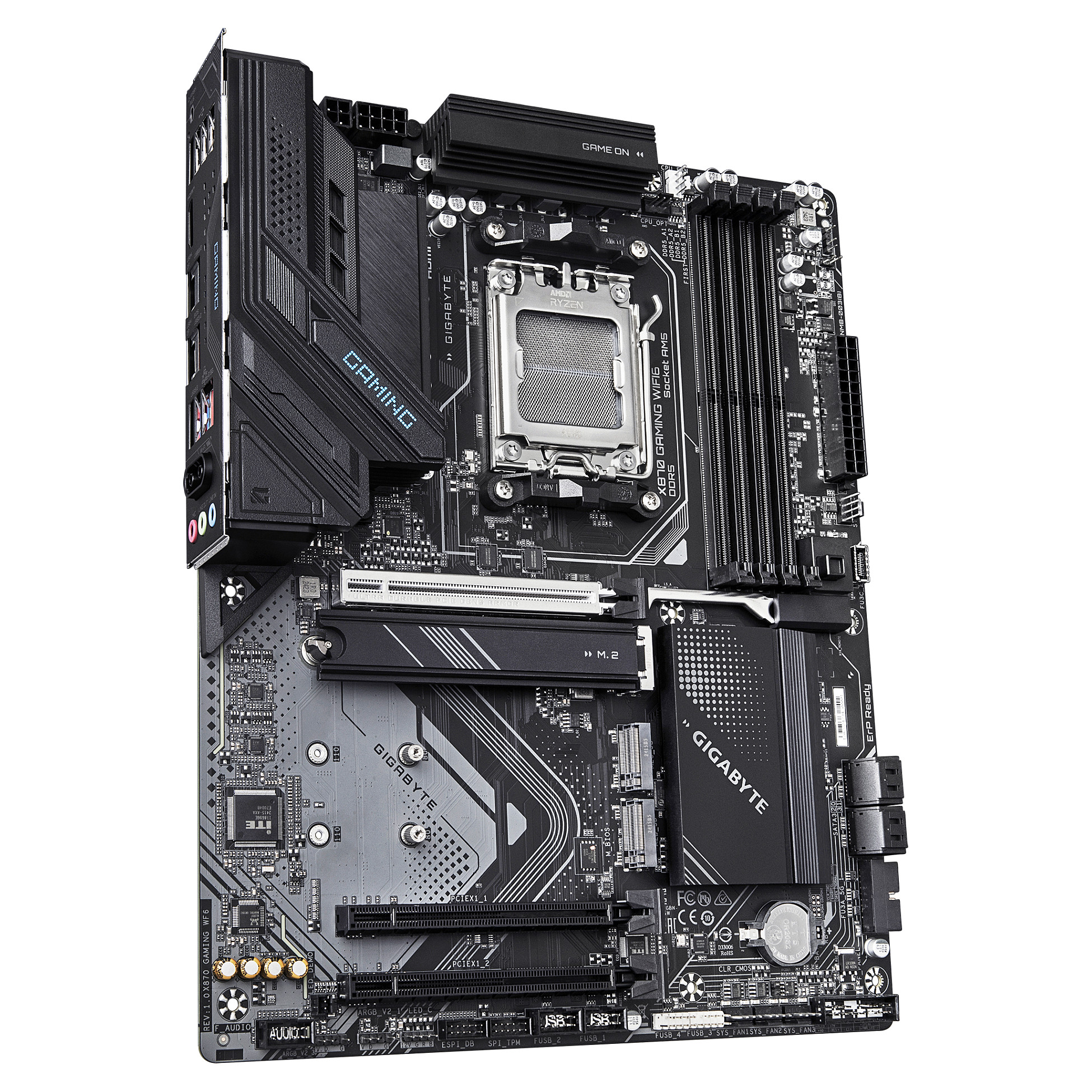

AM5 Gigabyte X870 GAMING WF6
In Stock
€215.99
VAT (19%) included
Description
Supports AMD Ryzen 9000 Series, 8000 Series, 7000 Series Processors Digital twin 8+2+2 phases VRM solution Dual Channel DDR5：4DIMMs with AMD EXPO Memory Module Support Ultra-Fast Storage: 3*M.2 slots, including 1* PCIe 5.0 x4 Efficient Overall Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI Fast Networking: 2.5GbE LAN & Wi-Fi 6 802.11ax
Technical Specifications
SKU
KX870 GAMING WF6
Processor Manufacturer
AMD
Processor Socket
Socket AM5
Compatible Processor Series
AMD Ryzen™ 7
Supported Processor Sockets
Socket AM5
Maximum Internal Memory Supported By Processor
256 GB
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Supported Memory Clock Speeds
4400, 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6666, 6800, 7000, 7200, 7600, 7800, 8000 MHz
Supported Memory Clock Speed (Max)
8000 MHz
Maximum Internal Memory
256 GB
Supported Memory Module Capacities
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Hdds Supported
7
Number Of Storage Drives Supported
4
Raid Levels
0, 1, 10
Directx Version
12.0
Usb 2.0 Connectors
4
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Usb 3.2 Gen 2X2 Connectors
1
Number Of Sata Iii Connectors
4
Total Number Of Sata Connectors
4
Usb 2.0 Ports Quantity
4
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
3
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
1
Usb4 Gen 2X2 Ports Quantity
2
Ethernet Lan (Rj-45) Ports
1
Hdmi Ports Quantity
1
Displayports Quantity
2
Ethernet Interface Type
2.5 Gigabit Ethernet
Top Wi-Fi Standard
Wi-Fi 6 (802.11ax)
Wi-Fi Standards
802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be)
Wlan Controller Model
Realtek RTL8851BE
Bluetooth Version
5.3
Motherboard Chipset
AMD X870
Audio Output Channels
7.1 channels
Product Colour
Black
Pc Health Monitoring
Fan, Temperature, Voltage
Component For
PC
Motherboard Form Factor
ATX
Motherboard Chipset Family
AMD
Windows Operating Systems Supported
Windows 10 x64, Windows 11 x64
Pci Express X4 Slots
2
Pci Express X16 (Gen 5.X) Slots
1
Number Of M.2 (M) Slots
3
Bios Type
UEFI AMI
Bios Memory Size
256 Mbit
Acpi Version
5.0
Desktop Management Interface (Dmi) Version
2.7
System Management Bios (Smbios) Version
2.7
Country Of Origin
China
Products Per Shipping (Inner) Case
1 pc(s)
Battery Weight
3 g
Lithium Weight Per Battery
0.07 g
Number Of Battery Cells
1
Battery Technology
Lithium-Manganese Dioxide (LiMnO2)
Battery Type
CR2032
Package Width
335 mm
Package Depth
270 mm
Package Height
80 mm
Package Weight
2.53 kg
Width
305 mm
Depth
244 mm
Height
35 mm
Bundled Software
Norton® Internet Security (OEM version) LAN bandwidth management software
Weight
2.23 kg
Warranty Period
3 year(s)
