Gigabyte

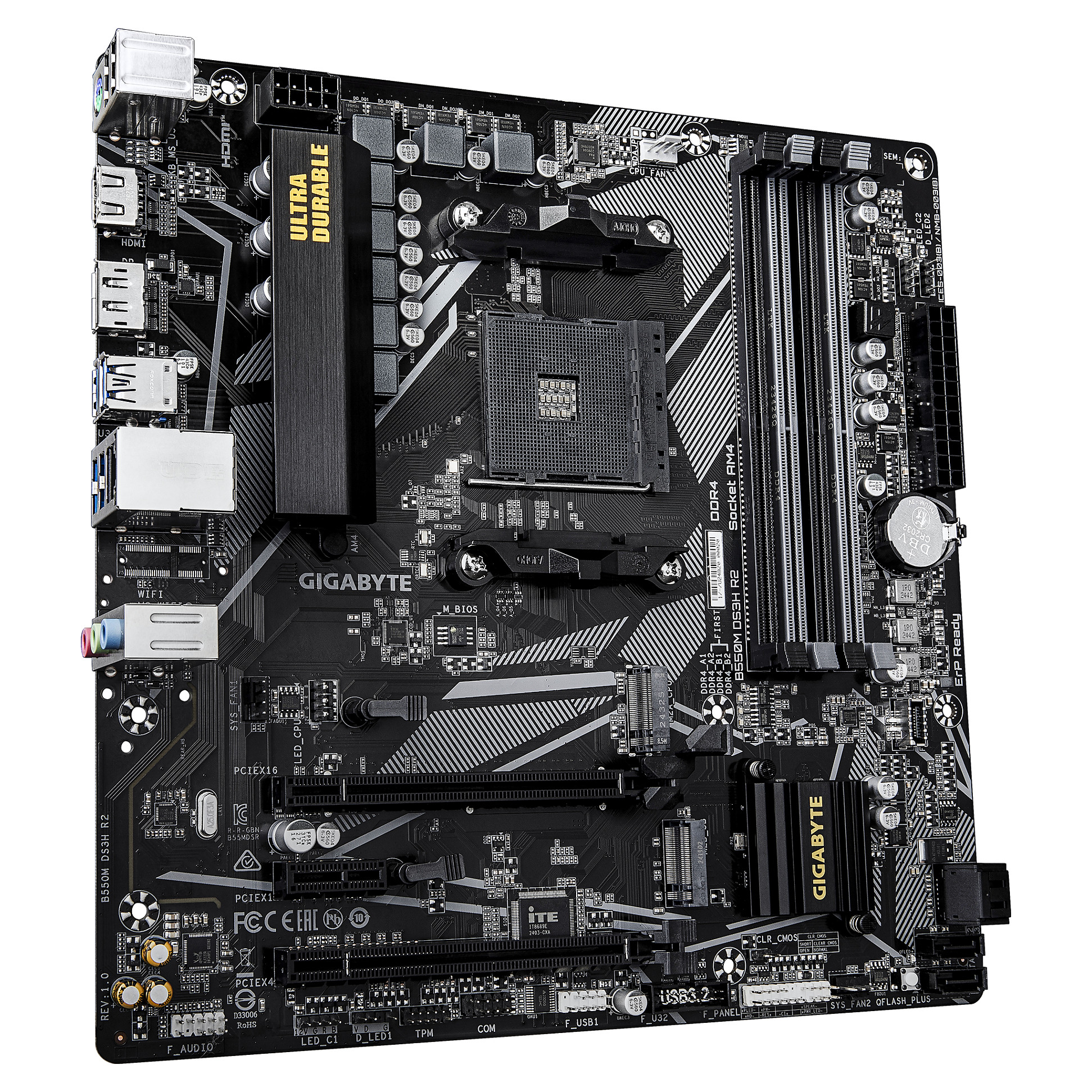

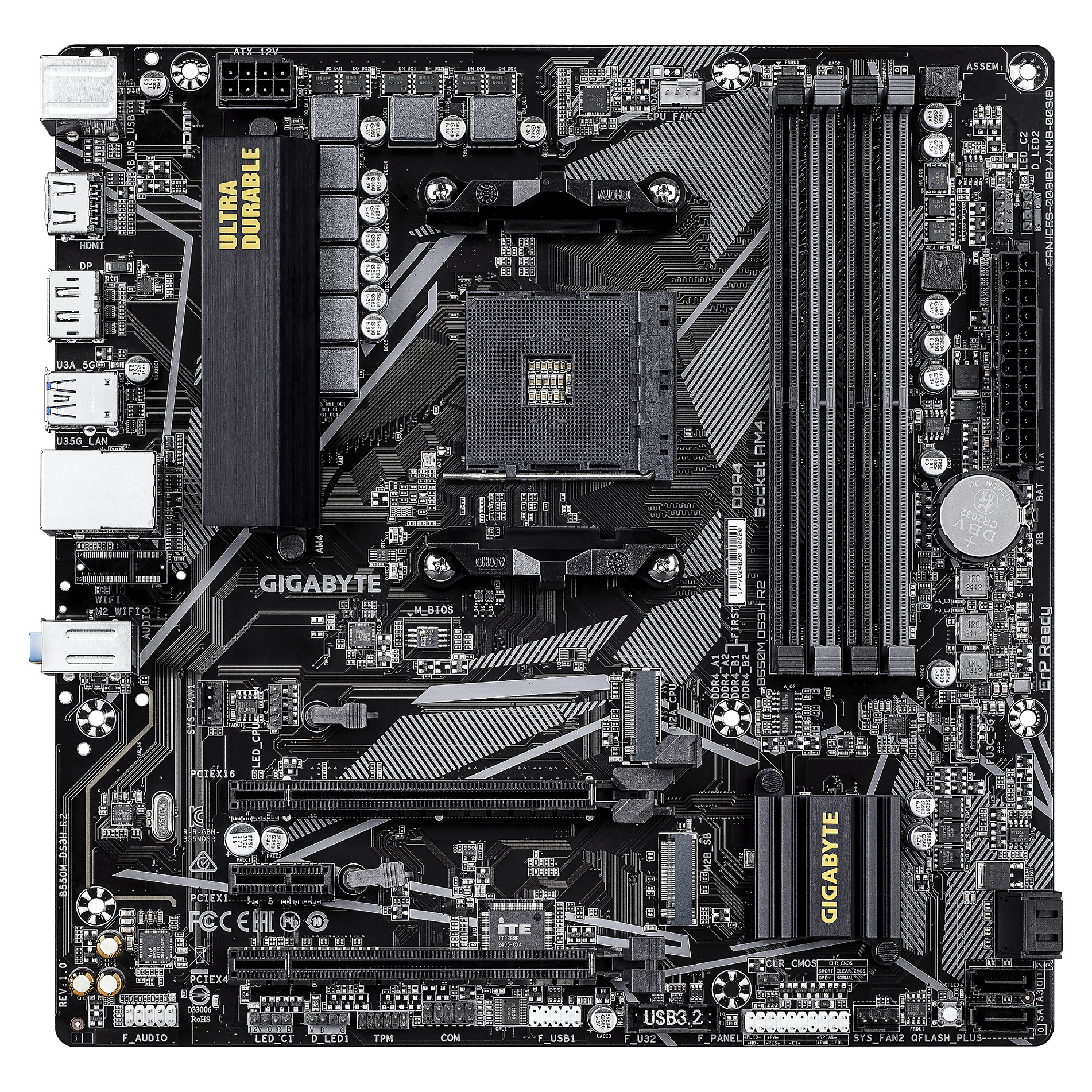

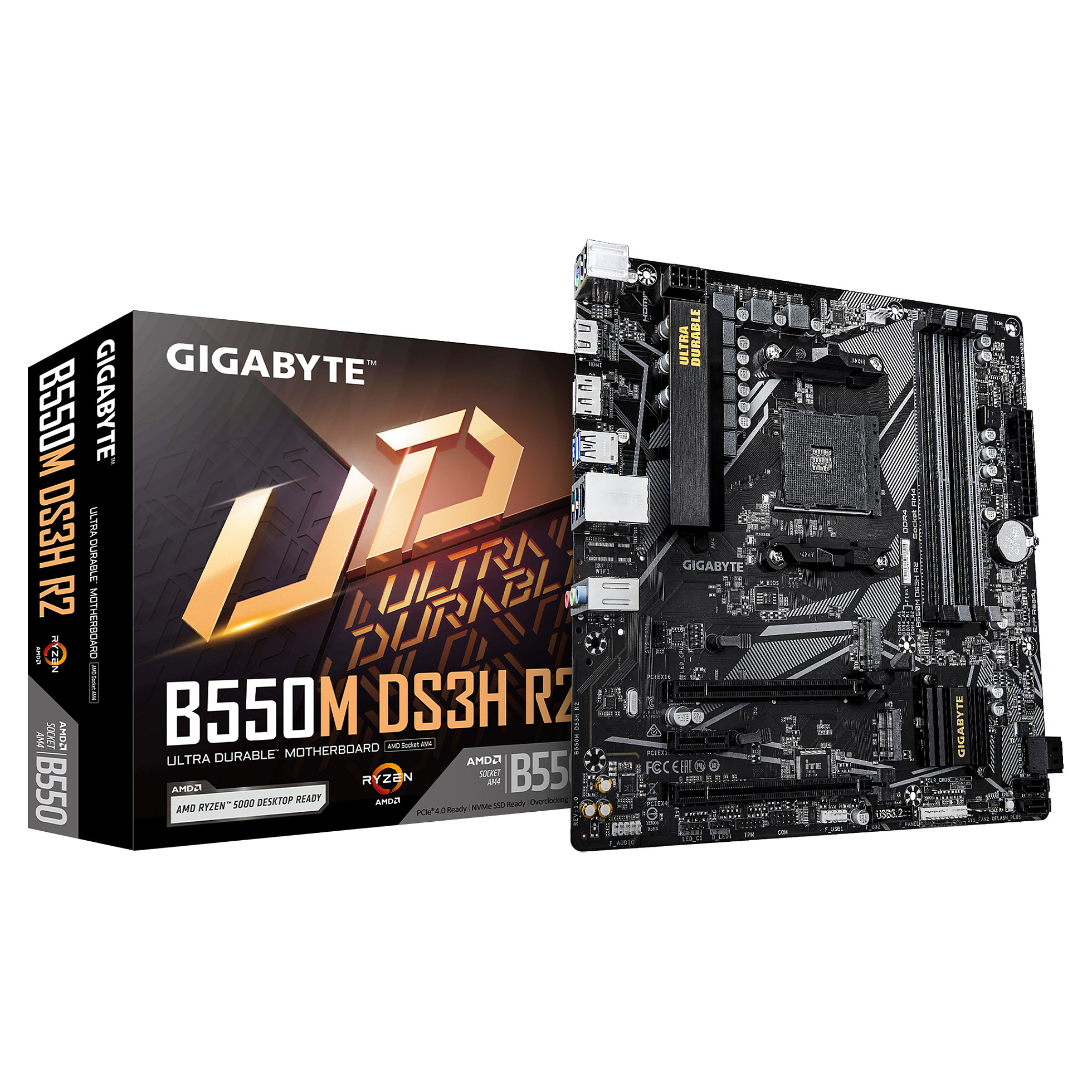

AM4 Gigabyte B550M DS3H R2 mATX
In Stock
€88.99
VAT (19%) included
Description
AMD Socket AM4：Supports AMD Ryzen 5000 / 4000 / 3000 Series Processors Digital 5+3 phases VRM solution Dual Channel DDR4: 4*DIMMs EZ-Latch：PCIe slots with Quick Release Design Ultra-Fast Storage: 2*M.2 slots, including PCIe 4.0 x1 Efficient Thermal: VRM Thermal Armor Advanced Fast Networking: GbE LAN Extended Connectivity: HDMI, Displayport PCIe UD Slot: PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
Technical Specifications
SKU
KB550M DS3H R2
Processor Manufacturer
AMD
Processor Socket
Socket AM4
Compatible Processor Series
AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
Supported Processor Sockets
Socket AM4
Supported Memory Types
DDR4-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
ECC & Non-ECC
Supported Memory Clock Speeds
4733, 4600, 4400, 4266, 4133, 4000, 3866, 3733, 3600, 3466, 3400, 3200, 2933, 2667, 2400, 2133 MHz
Supported Memory Clock Speed (Max)
4733 MHz
Maximum Internal Memory
128 GB
Maximum Internal Memory Per Slot
32 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, PCI Express 3.0, PCI Express 4.0, SATA III
Number Of Hdds Supported
4
Number Of Storage Drives Supported
6
Raid Levels
0, 1, 10
Parallel Processing Technology Support
Not supported
Maximum Resolution
5120 x 2880 pixels
Directx Version
12.0
Usb 2.0 Connectors
1
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
2
Number Of Sata Iii Connectors
4
Number Of Cpu Fan Connectors
1
Number Of Chassis Fan Connectors
2
Number Of Eps Power Connectors (8-Pin)
1
Serial Port Headers
1
Number Of Rgb Led Pin Headers
5
Usb 2.0 Ports Quantity
2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
4
Ethernet Lan (Rj-45) Ports
1
Ps/2 Ports Quantity
1
Hdmi Ports Quantity
1
Hdmi Version
2.1
Displayports Quantity
1
Displayport Version
1.4
Headphone Outputs
1
Ethernet Interface Type
Gigabit Ethernet
Lan Controller
Realtek RTL8111H
Motherboard Chipset
AMD B550
Audio Chip
Realtek ALC1220-VB
Audio Output Channels
7.1 channels
Product Colour
Dark brown
Pc Health Monitoring
Fan, Temperature, Voltage
Component For
PC
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
AMD
Cooling Type
Passive
Power Source Type
ATX
Windows Operating Systems Supported
Windows 10 x64, Windows 11 x64
Pci Express X1 (Gen 3.X) Slots
1
Pci Express X16 (Gen 3.X) Slots
1
Pci Express X16 (Gen 4.X) Slots
1
Number Of M.2 (M) Slots
2
1St M.2 Largest Key Size
2280
1St M.2 Highest Pci Express Generation
4.0
2Nd M.2 Largest Key Size
2280
2Nd M.2 Highest Pci Express Generation
3.0
Bios Type
UEFI AMI
Bios Memory Size
128 Mbit
Acpi Version
5.0
Desktop Management Interface (Dmi) Version
2.7
System Management Bios (Smbios) Version
2.7
Products Per Shipping (Inner) Case
1 pc(s)
Battery Weight
3 g
Lithium Weight Per Battery
0.07 g
Number Of Battery Cells
1
Battery Technology
Lithium-Manganese Dioxide (LiMnO2)
Battery Type
CR2032
Package Width
265 mm
Package Depth
265 mm
Package Height
54 mm
Package Weight
947 g
Width
244 mm
Depth
244 mm
Height
35 mm
Bundled Software
Norton® Internet Security (OEM version) LAN bandwidth management software
Weight
870 g
Warranty Period
3 year(s)
