ASRock

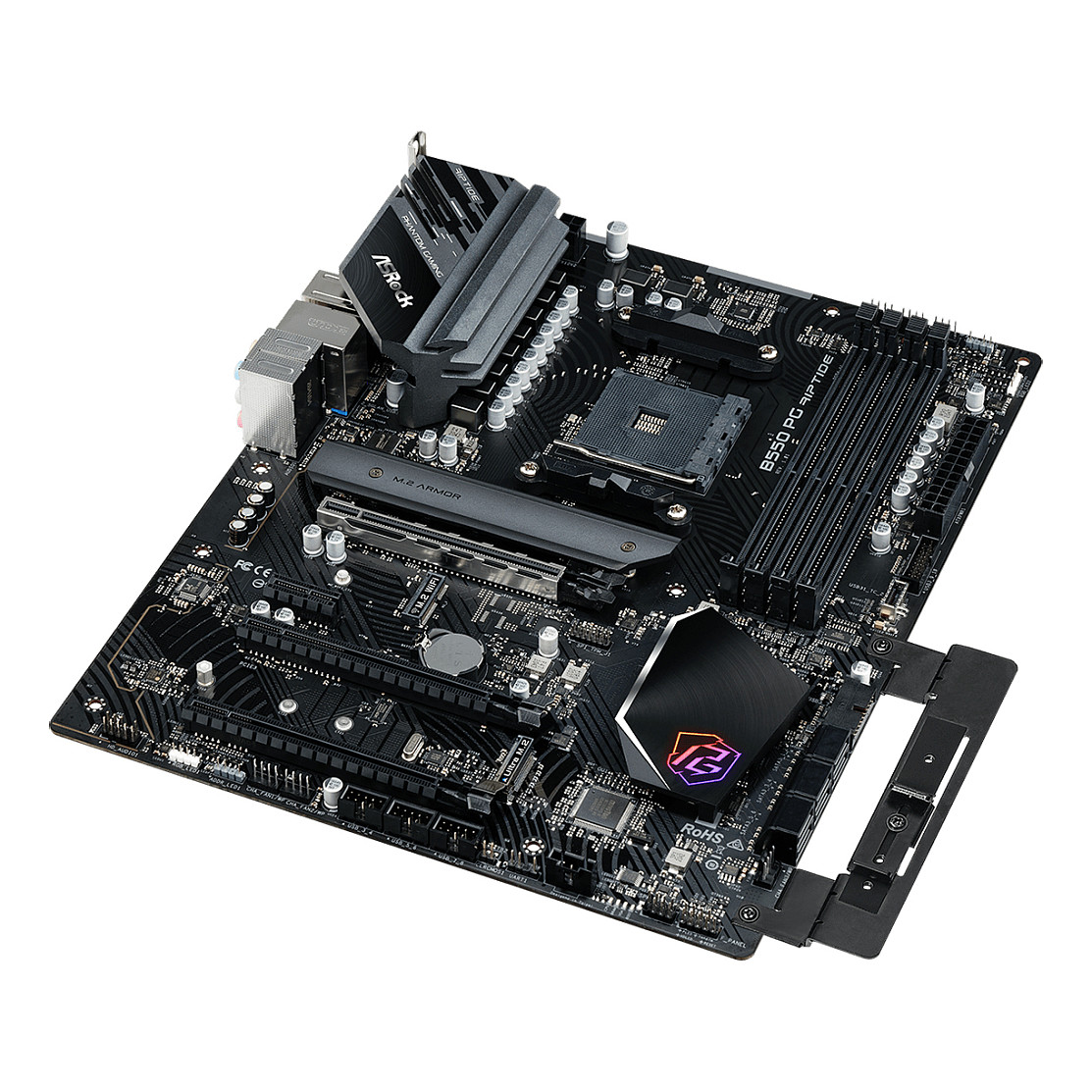

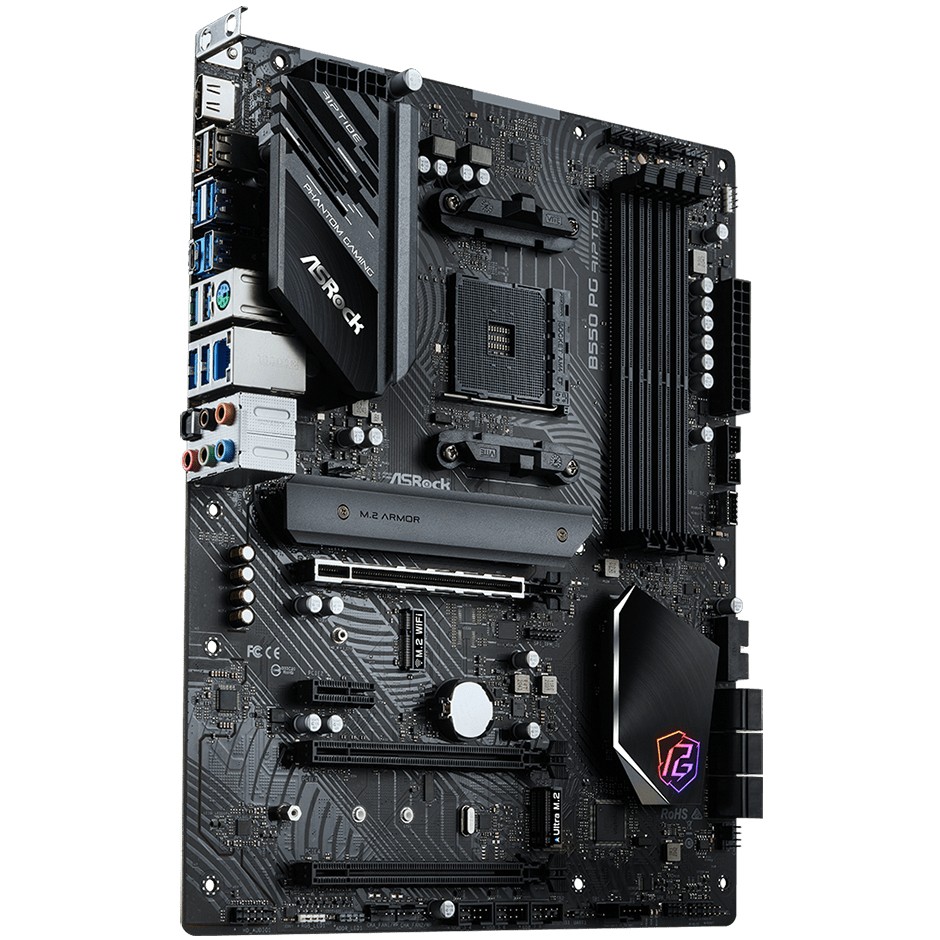

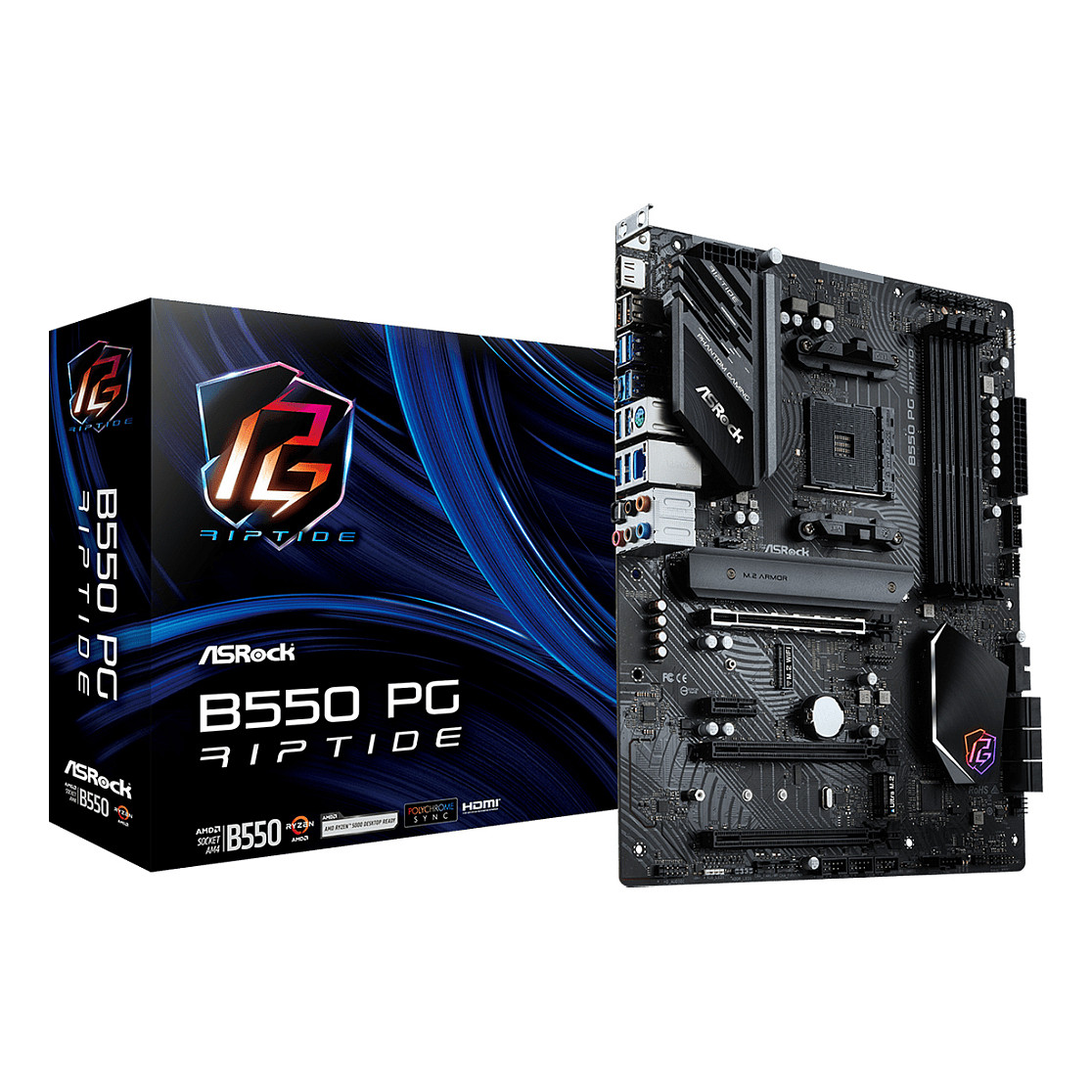

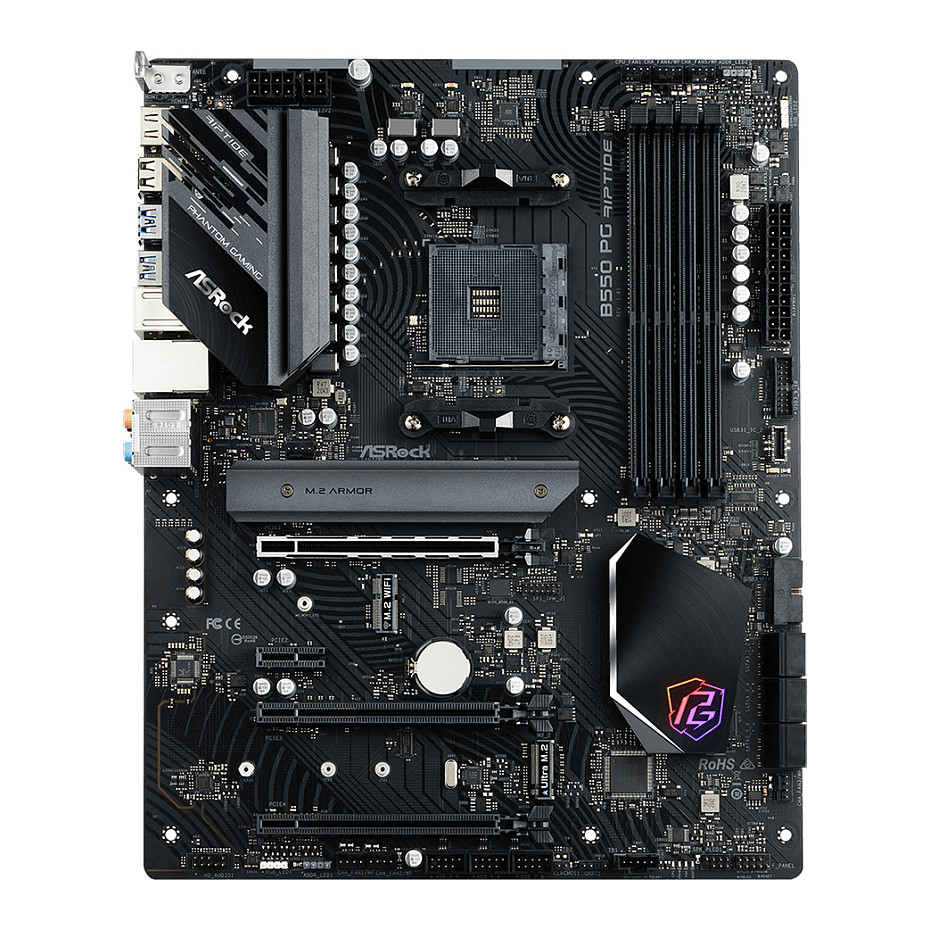

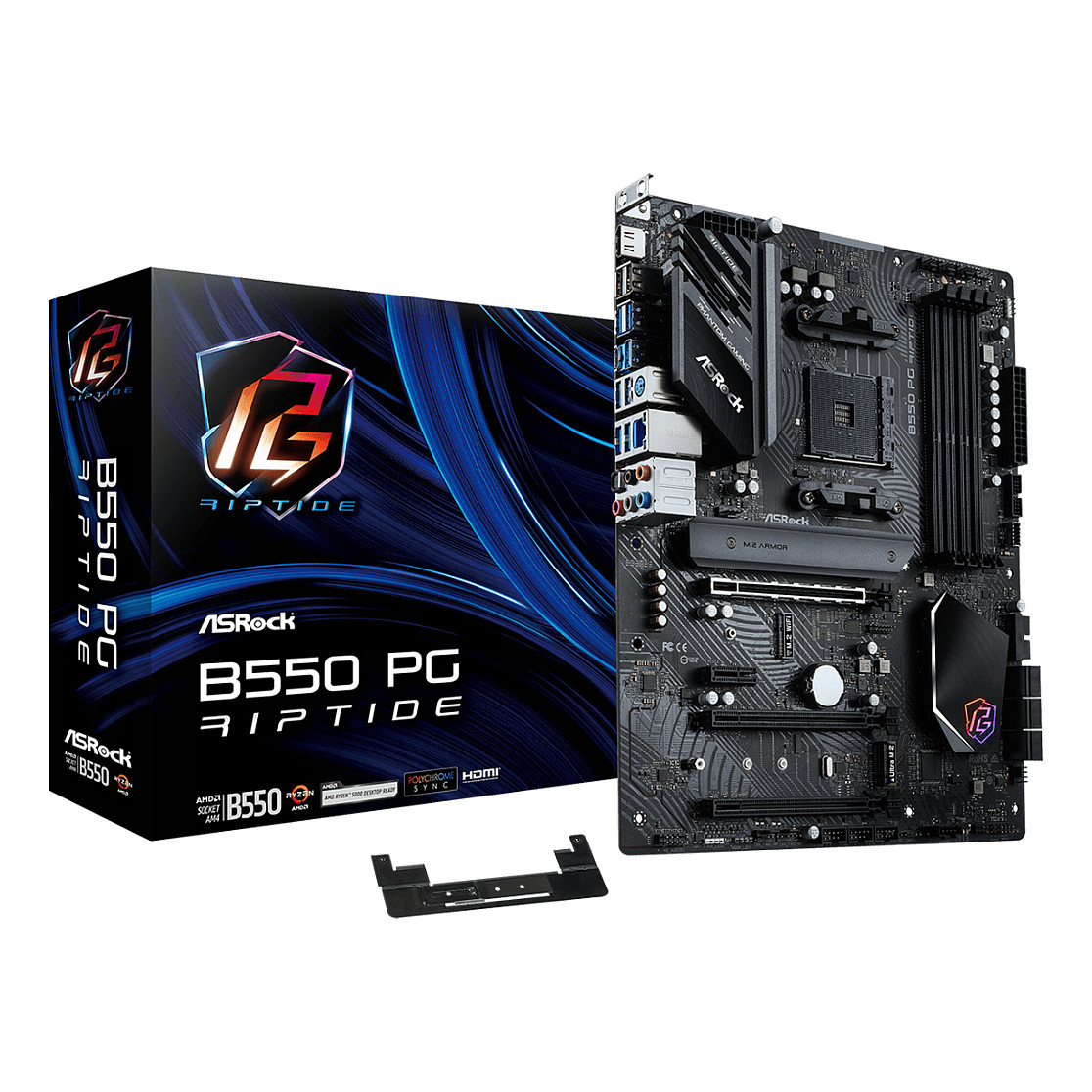

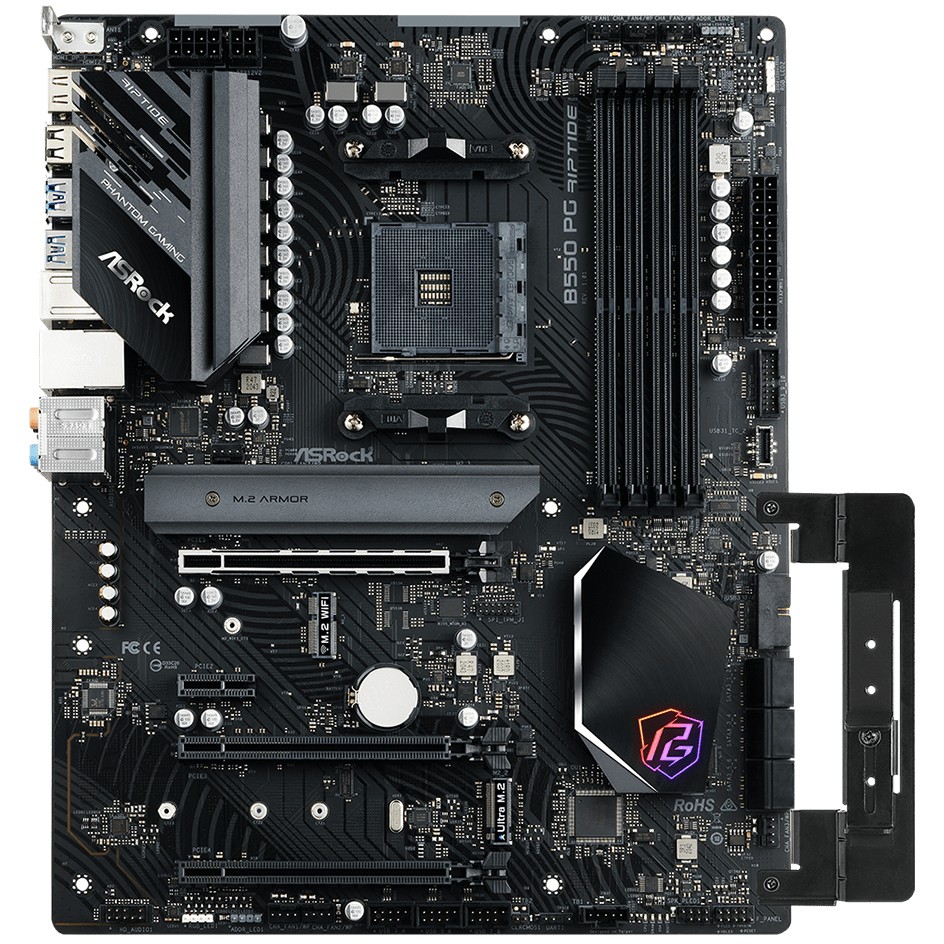

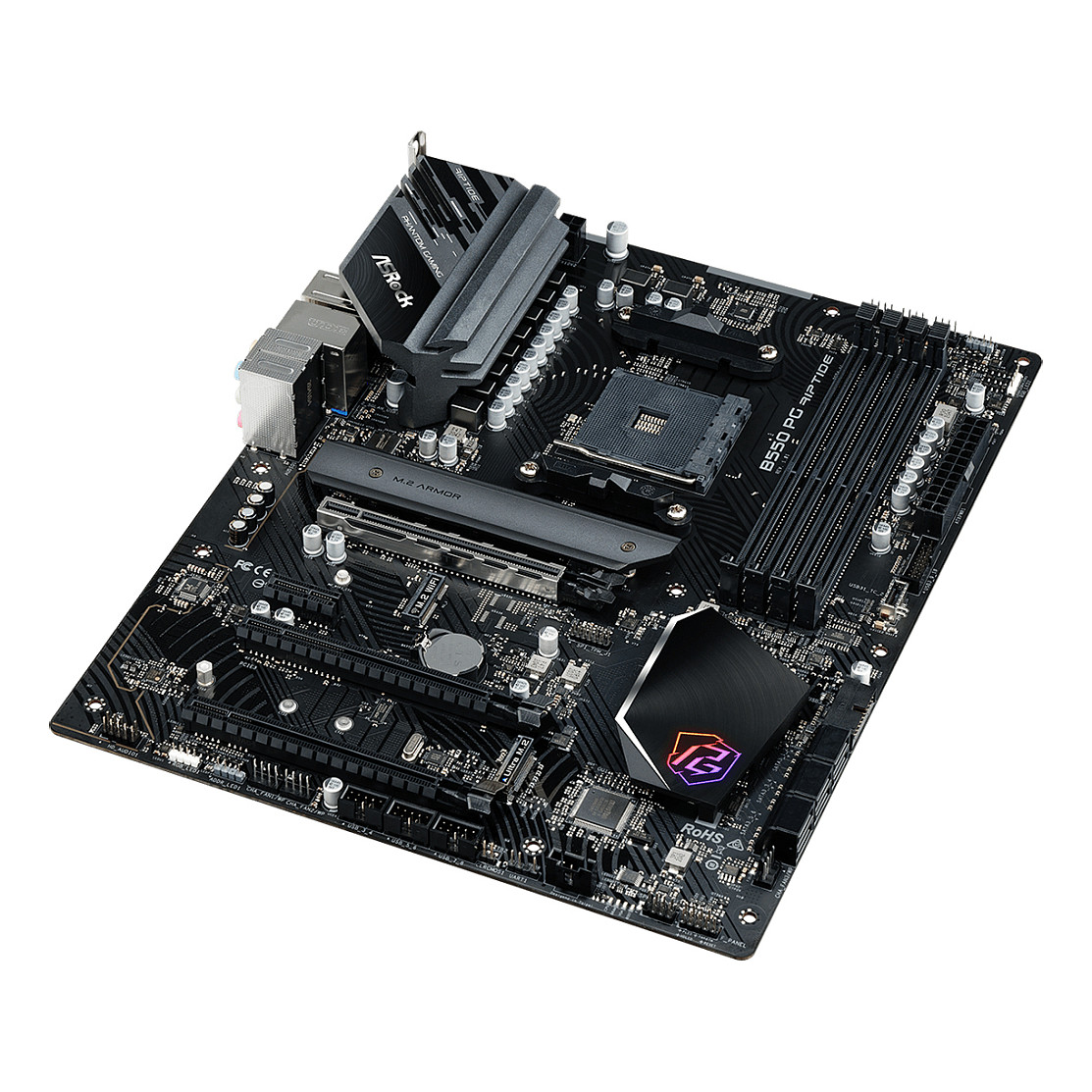

AM4 ASRock B550 PG Riptide
Pre-Order
€137.99
VAT (19%) included
Description
Supports AMD AM4 Socket Ryzen 3000, 4000 G-Series and 5000 Series Desktop Processors 10 Phase, Digi Power, Dr. MOS Supports DDR4 4933+ (OC) 1 PCIe 4.0 x16 Slot, 2 PCIe 3.0 x16 Slots, 1 PCIe 3.0 x1 Slot 1 M.2 Key-E for WiFi Graphics Outputs: HDMI 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4) 1 Ultra M.2 (PCIe Gen3 x4 & SATA3) 3 USB 3.2 Gen2 (Front Type-C, Rear Type-A+C) 10 USB 3.2 Gen1 (4 Front, 6 Rear), 8 USB 2.0 (6 Front, 2 Rear) Killer E3100G 2.5G LAN
Technical Specifications
SKU
K90-MXBGH0-A0UAYZ
Processor Manufacturer
AMD
Processor Socket
Socket AM4
Compatible Processor Series
AMD Ryzen 3000 Series, AMD Ryzen 5000 Series
Maximum Number Of Smp Processors
1
Supported Memory Types
DDR4-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
Non-ECC
Supported Memory Clock Speeds
2133, 2400, 2667, 2933, 3200, 3466, 3600, 3733, 3800, 3866, 4000, 4133, 4200, 4266, 4333, 4400, 4466, 4533, 4600, 4666, 4733, 4933 MHz
Maximum Internal Memory
128 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, SATA III
Raid Levels
0, 1, 10
Parallel Processing Technology Support
CrossFireX, Quad-GPU CrossFireX
Maximum Resolution
4096 x 2160 pixels
Directx Version
12.0
Usb 2.0 Connectors
3
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
2
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors
1
Number Of Sata Iii Connectors
6
Number Of Chassis Fan Connectors
5
Thunderbolt Headers
1
Usb 2.0 Ports Quantity
2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
6
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
1
Usb 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity
1
Ethernet Lan (Rj-45) Ports
1
Ps/2 Ports Quantity
1
Hdmi Version
2.1
Digital Audio Optical Out
1
Ethernet Interface Type
2.5 Gigabit Ethernet
Lan Controller
Killer E3100G
Motherboard Chipset
AMD B550
Audio Chip
Realtek ALC897
Audio Output Channels
7.1 channels
Pc Health Monitoring
CPU, Fan, Temperature, Voltage
Component For
PC
Motherboard Form Factor
ATX
Motherboard Chipset Family
AMD
Windows Operating Systems Supported
Windows 10 x64, Windows 11 x64
Pci Express X1 (Gen 3.X) Slots
1
Pci Express X16 Slots
3
Number Of M.2 (M) Slots
2
Bios Type
UEFI AMI
Bios Memory Size
256 Mbit
Acpi Version
5.1
System Management Bios (Smbios) Version
2.3
Harmonized System (Hs) Code
84733020
Width
305 mm
Depth
244 mm
Height
330 mm
Cables Included
SATA
Weight
465 g
