ASRock

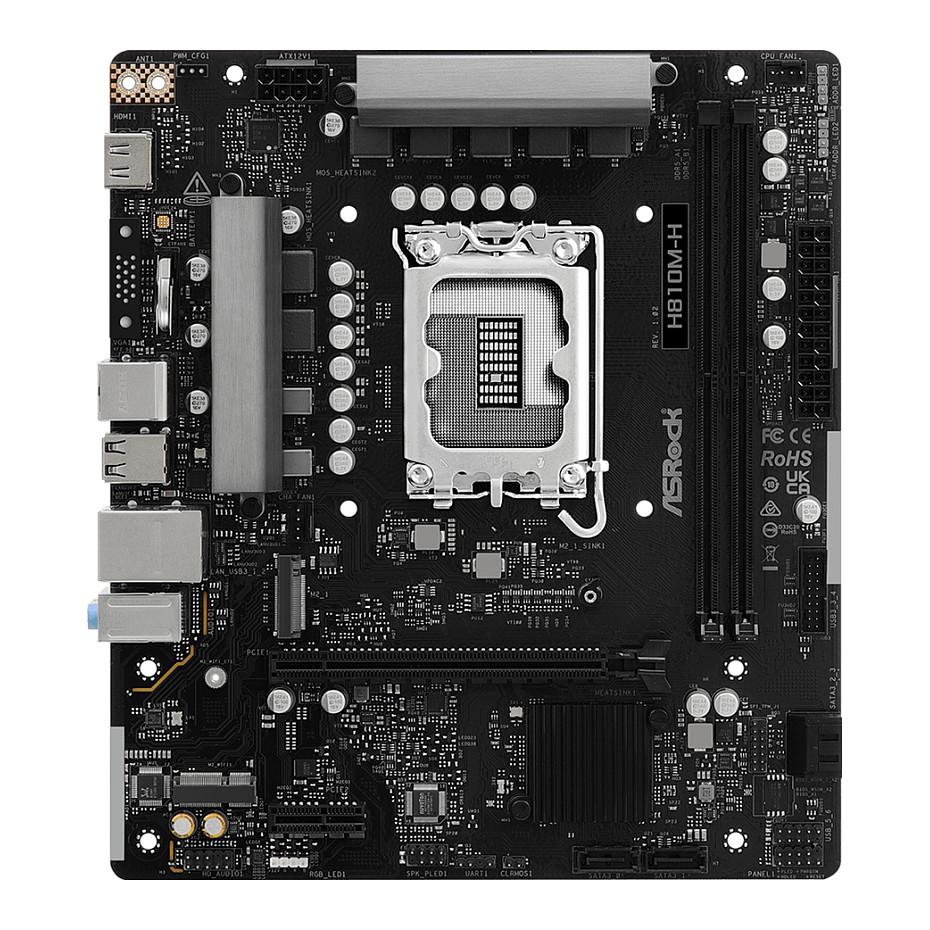

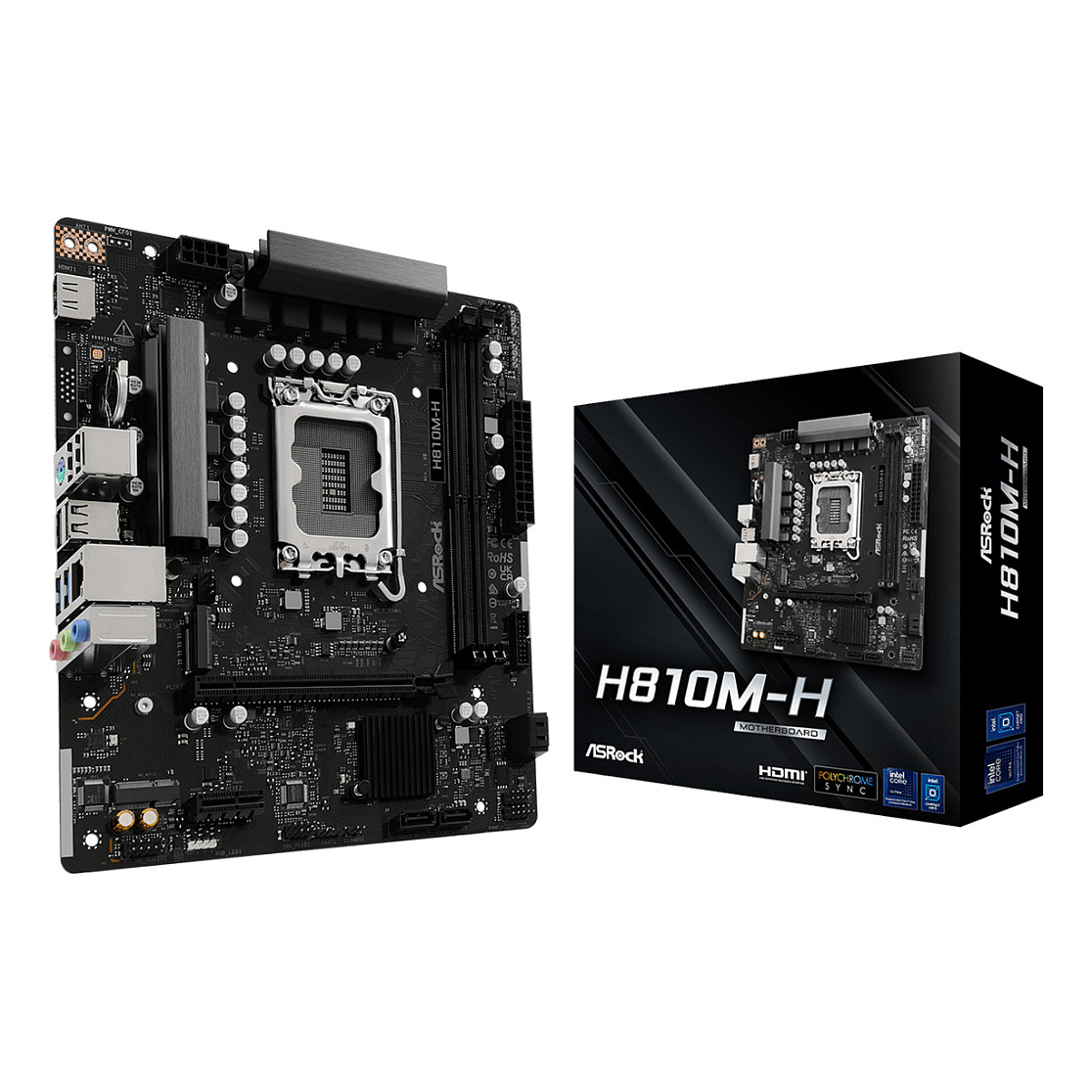

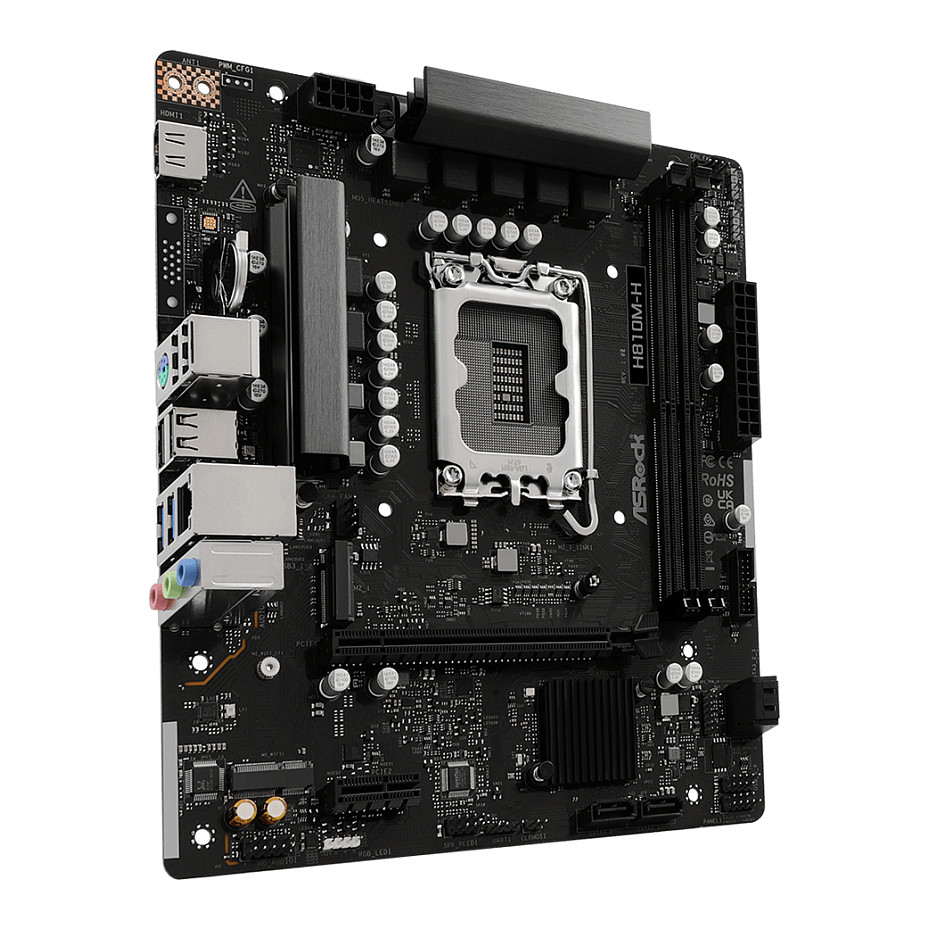

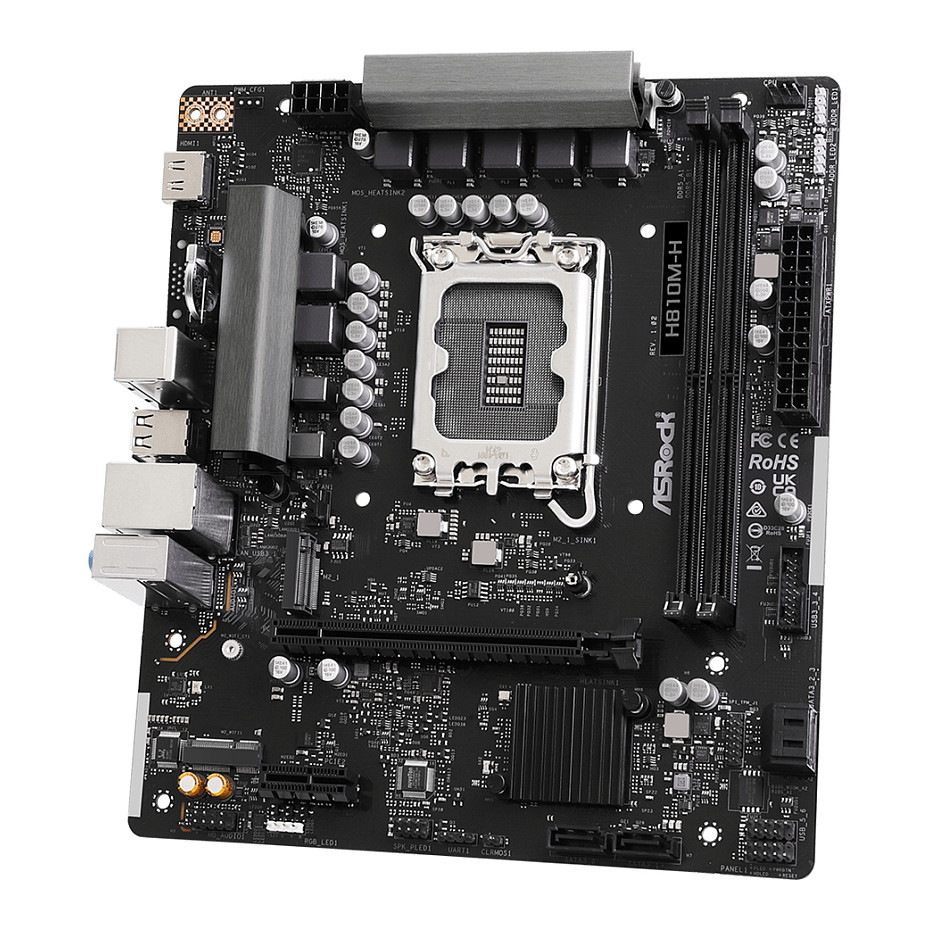

ASROCK H810M-H (1851) (D)
Pre-Order
€89.99
VAT (19%) included
Description
Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2) PC micro ATX Intel H810 Realtek ALC897 7.1 channels DDR5-SDRAM 2 DIMM Maximum internal memory: 128 GB HDD & SSD M.2, SATA III Number of storage drives supported: 5 BIOS type: UEFI AMI 256 Mbit Gigabit Ethernet
Technical Specifications
SKU
K90-MXBSZ0-A0UAYZ
Processor Manufacturer
Intel
Processor Socket
LGA 1851 (Socket V1)
Compatible Processor Series
Intel Core Ultra (Series 2)
Supported Processor Sockets
LGA 1851
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
2
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
ECC & Non-ECC
Supported Memory Clock Speed (Max)
6400 MHz
Maximum Internal Memory
128 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Storage Drives Supported
5
Maximum Resolution
3840 x 2160 pixels
Hdcp Version
2.3
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
2
Number Of Sata Iii Connectors
4
Number Of Cpu Fan Connectors
1
Number Of Chassis Fan Connectors
1
Number Of Rgb Led Pin Headers
1
Usb 2.0 Ports Quantity
4
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
4
Ethernet Lan (Rj-45) Ports
1
Ps/2 Ports Quantity
1
Hdmi Ports Quantity
1
Hdmi Version
2.1
Ethernet Interface Type
Gigabit Ethernet
Lan Controller
Realtek RTL8111H
Motherboard Chipset
Intel H810
Audio Chip
Realtek ALC897
Audio Output Channels
7.1 channels
Product Colour
Black
Component For
PC
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
Intel
Windows Operating Systems Supported
Windows 11 x64
Certification
FCC, CE, ErP/EuP ready
Pci Express X1 (Gen 4.X) Slots
1
Pci Express X16 (Gen 4.X) Slots
1
Number Of M.2 (M) Slots
1
1St M.2 Largest Key Size
2280
1St M.2 Highest Pci Express Generation
4.0
Bios Type
UEFI AMI
Bios Memory Size
256 Mbit
Width
220 mm
Depth
193 mm
Cables Included
SATA
