ASUS

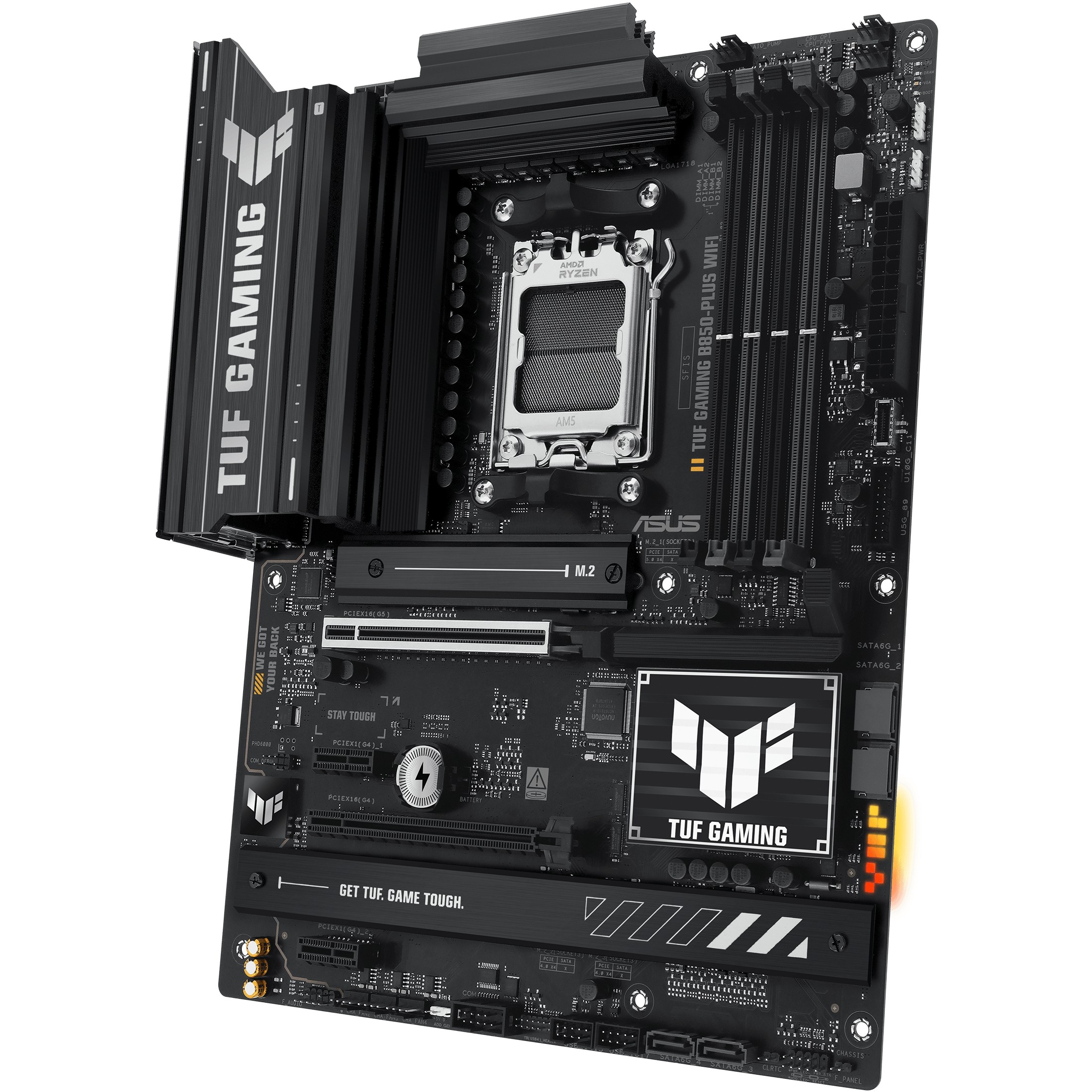

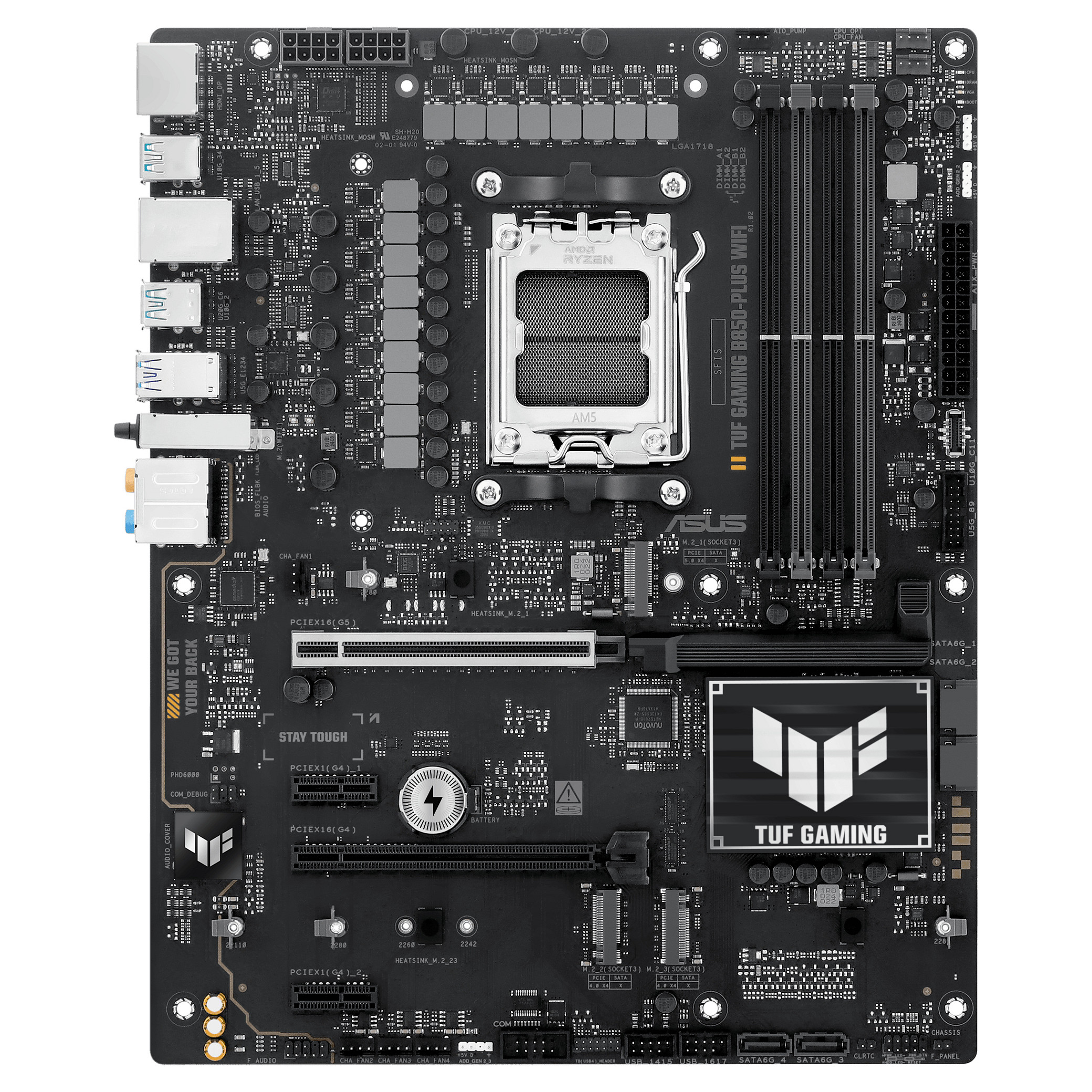

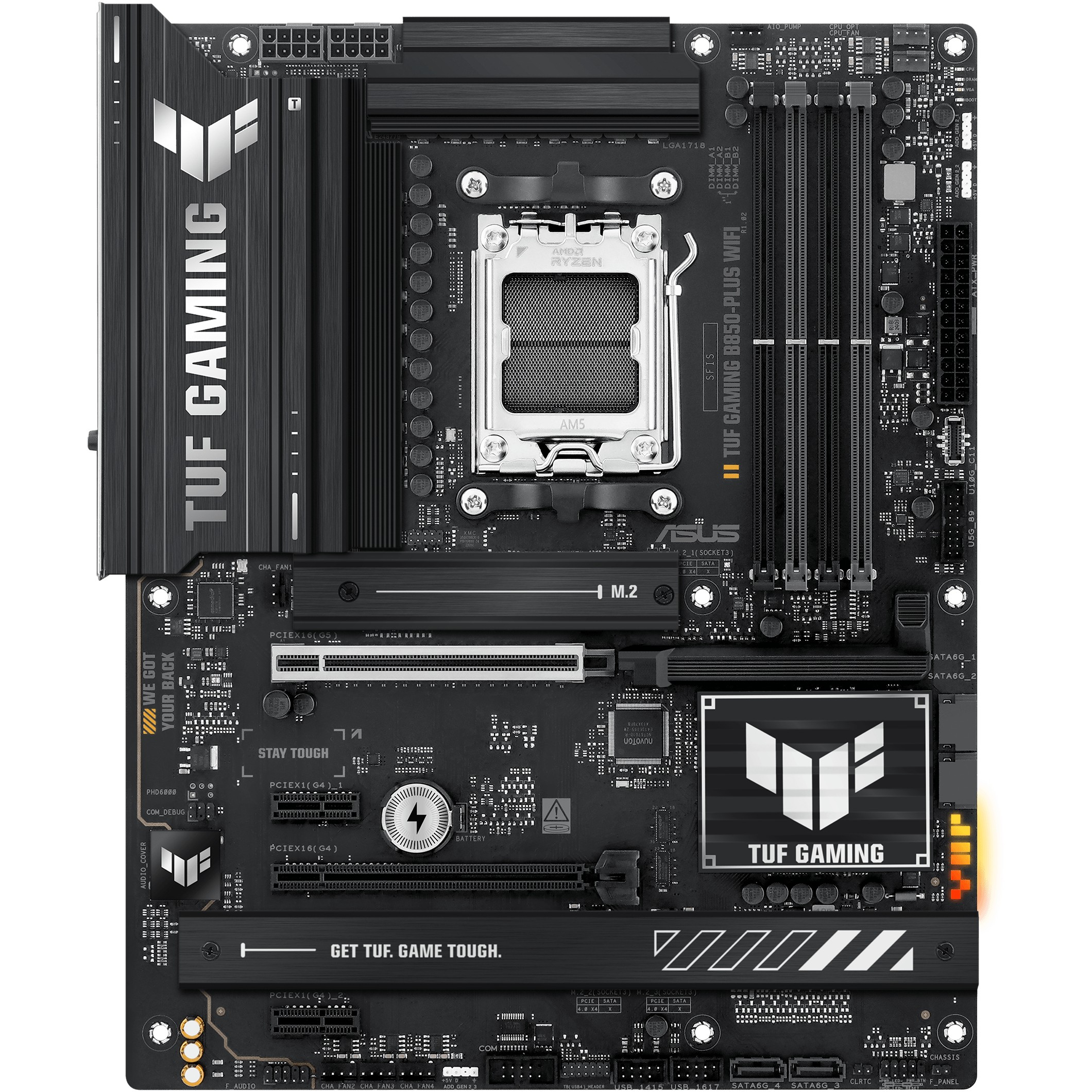

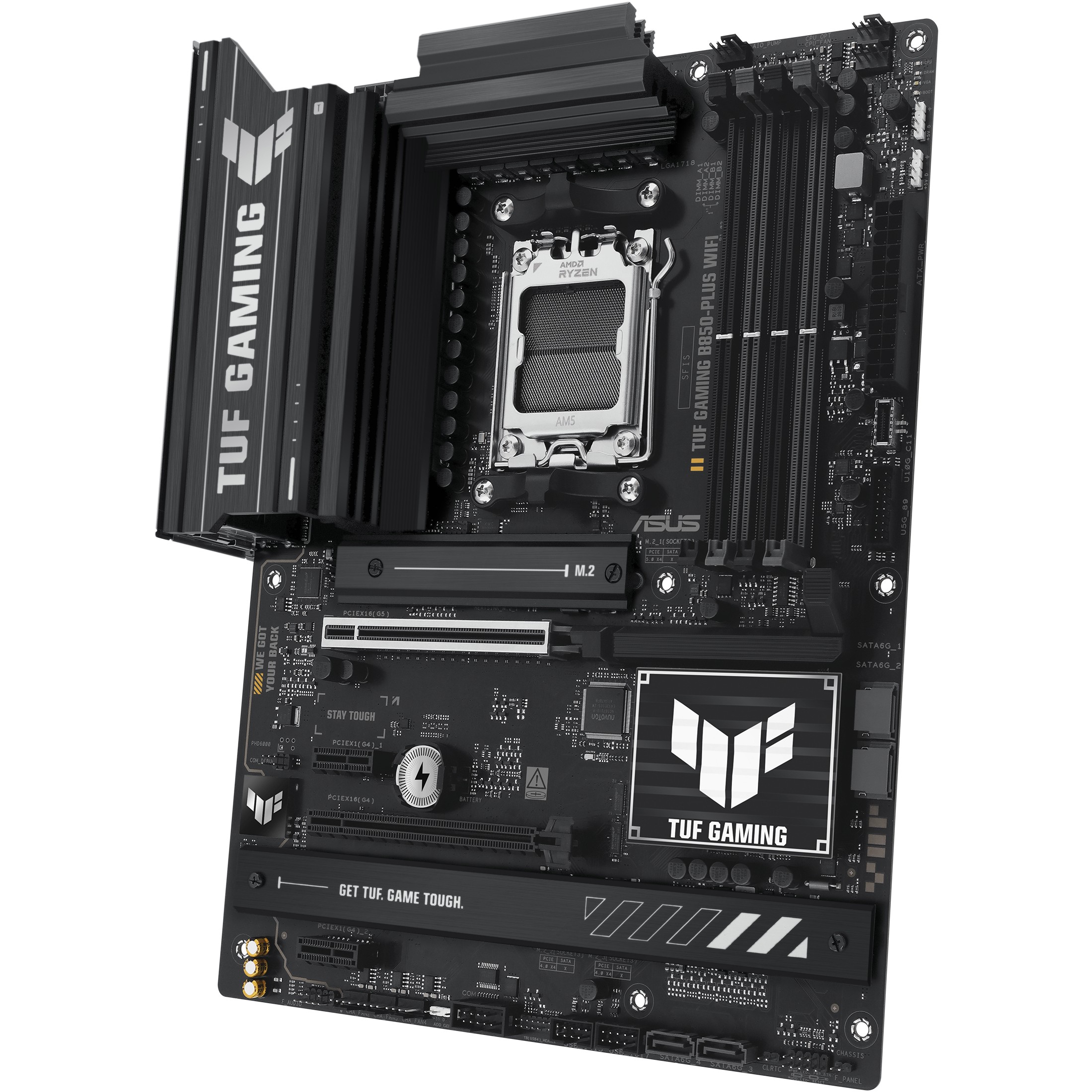

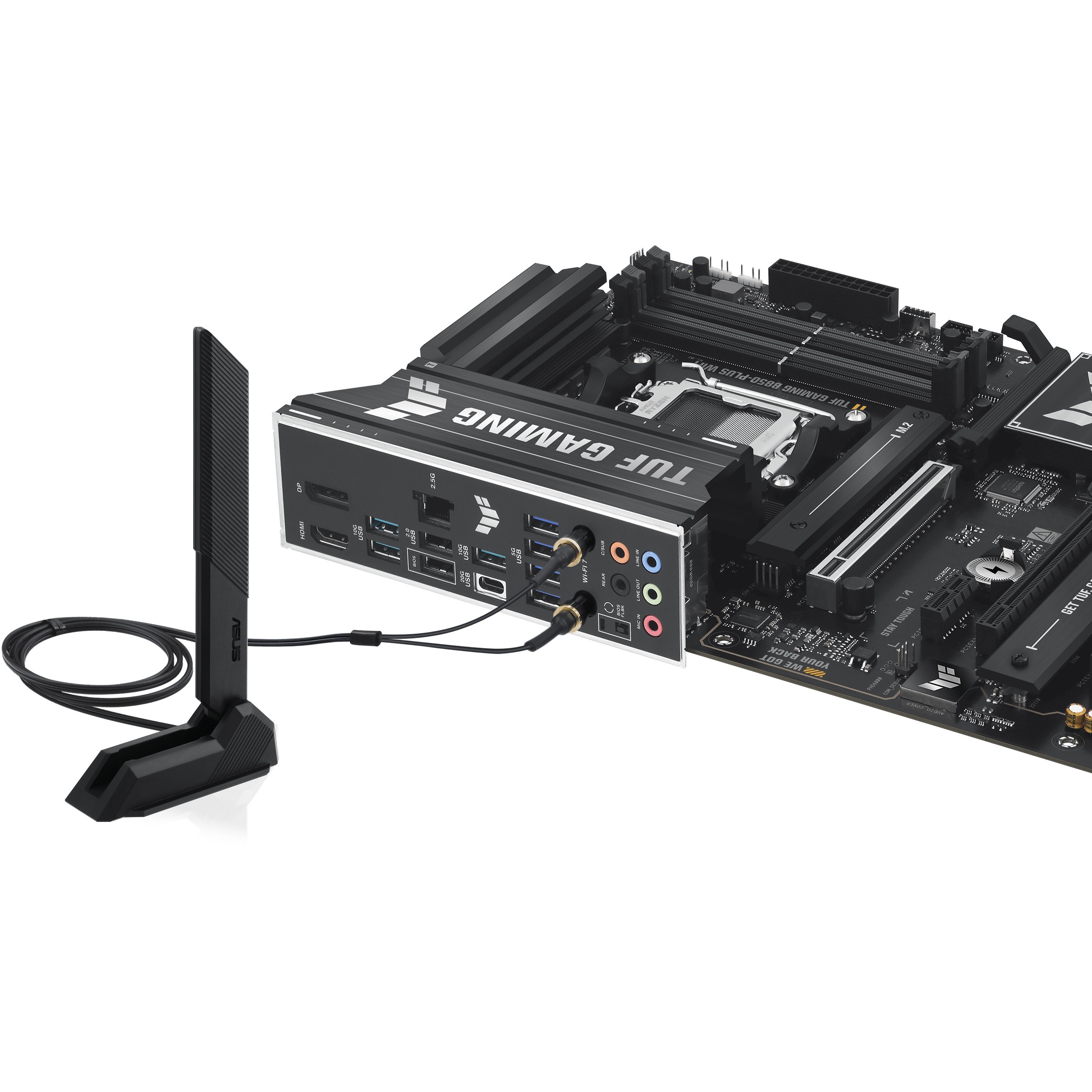

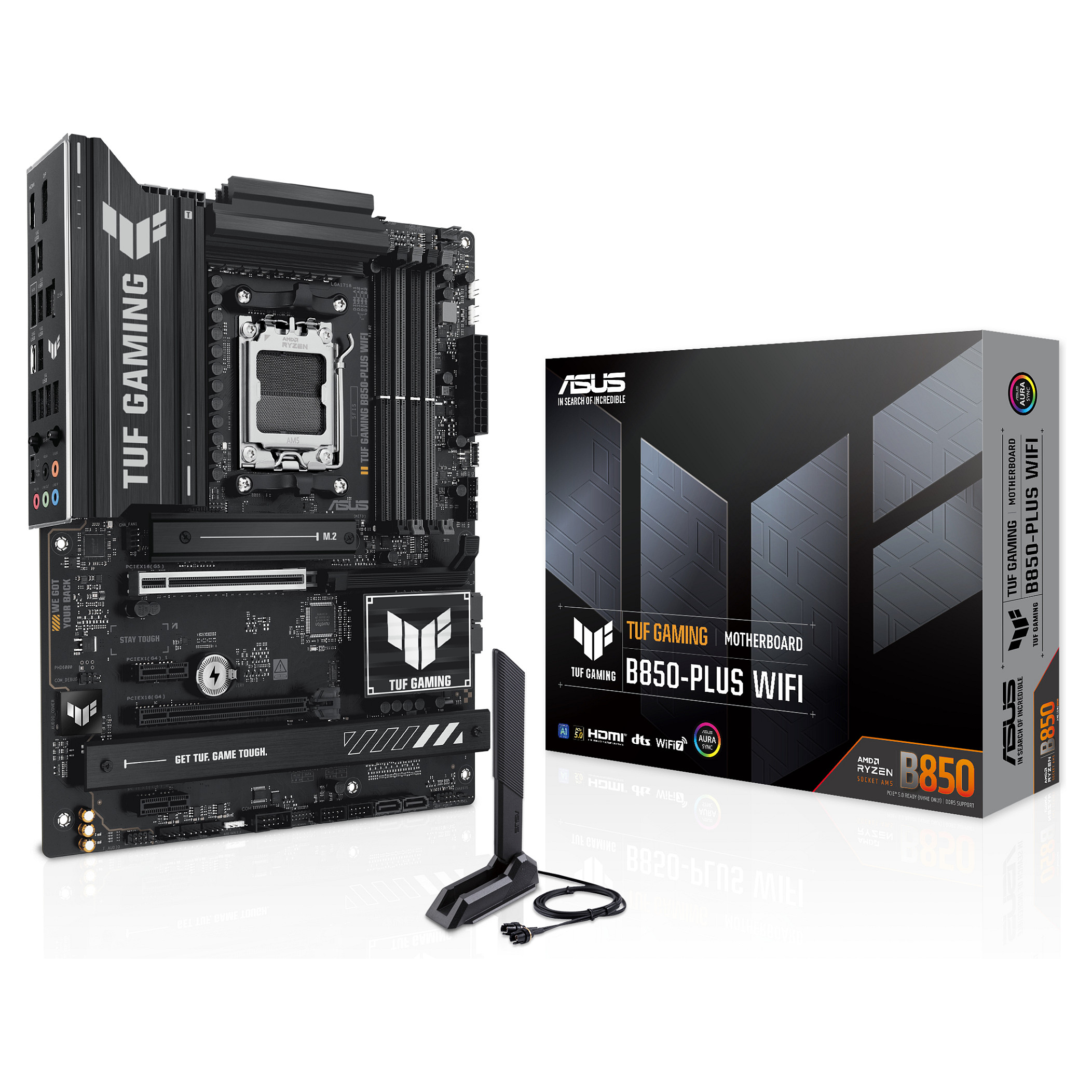

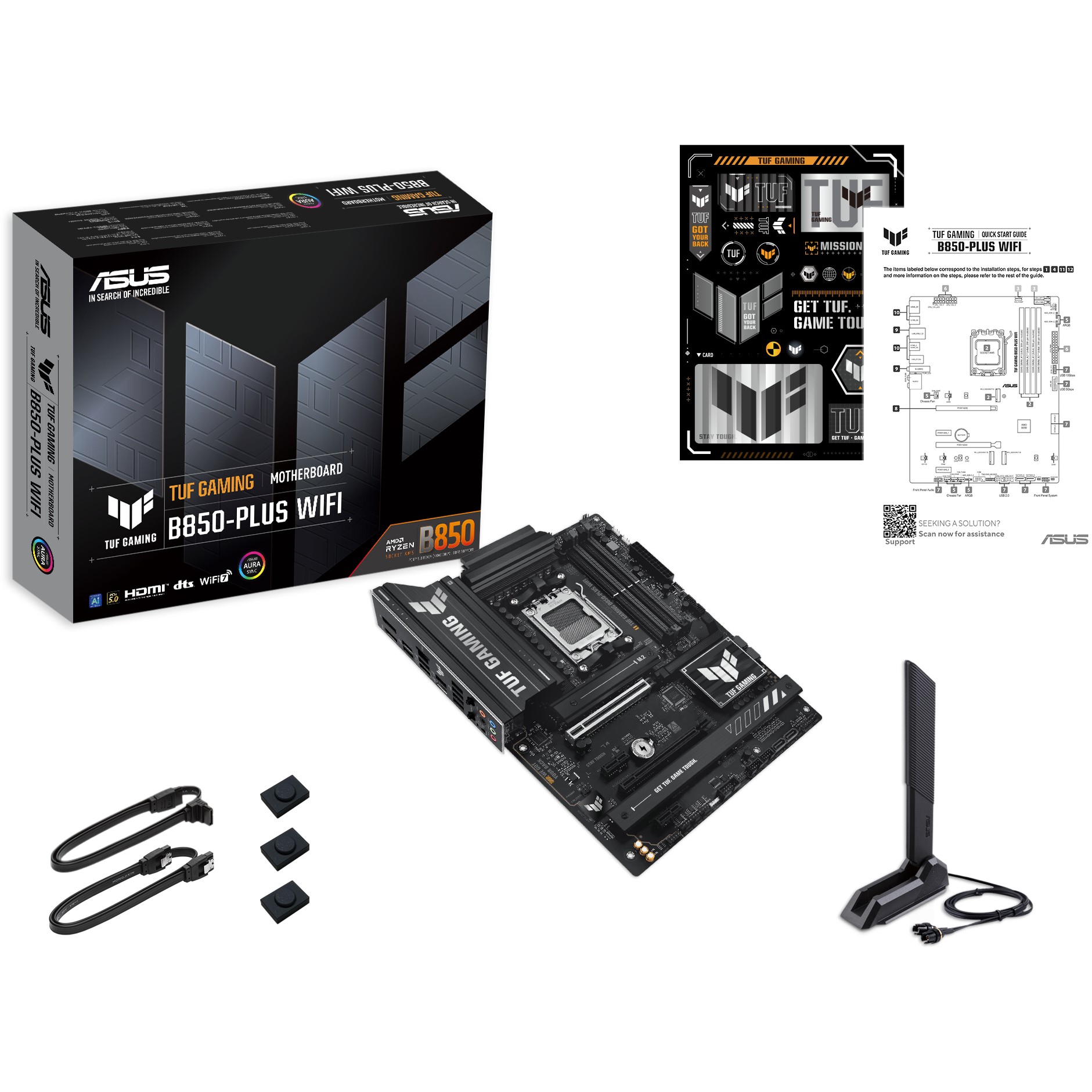

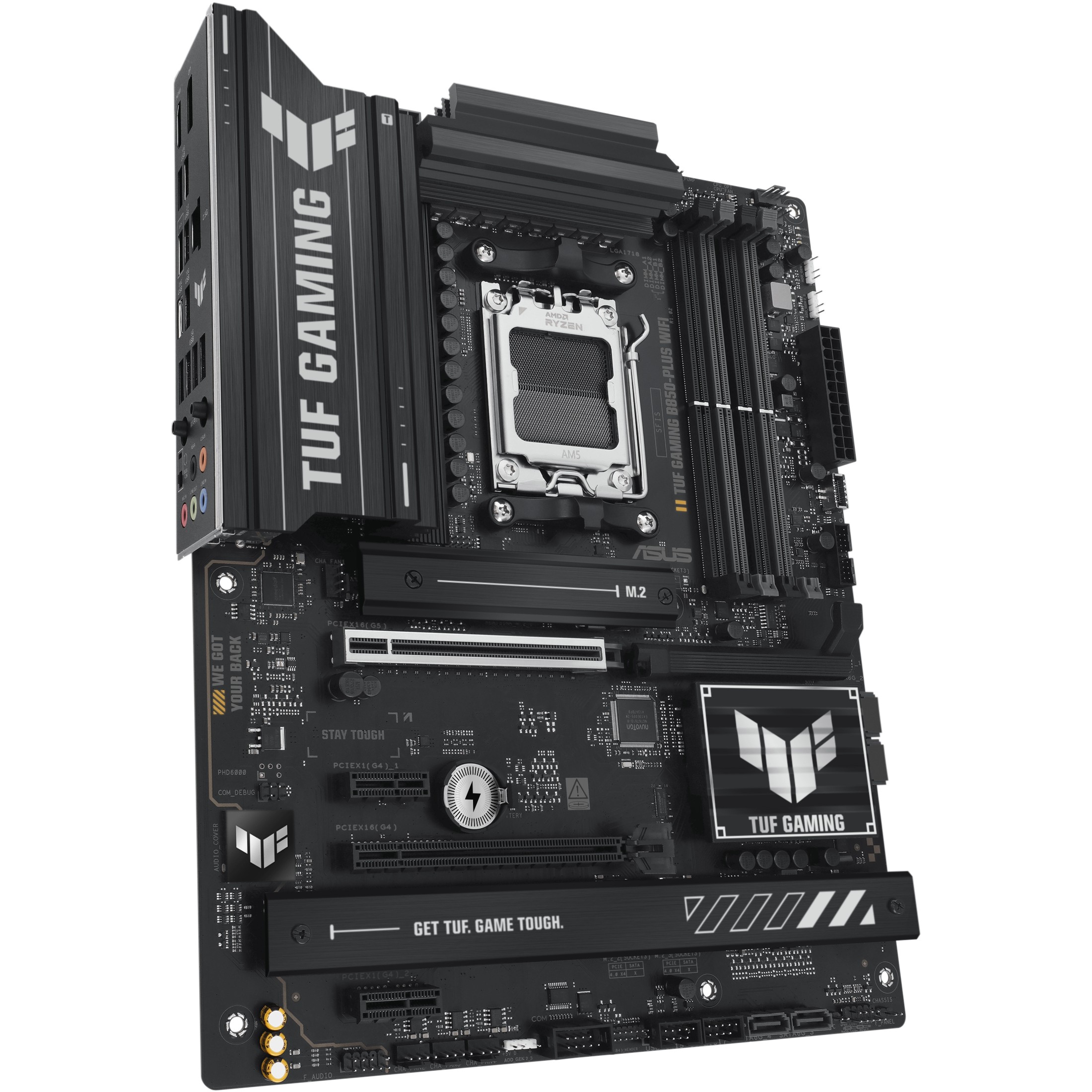

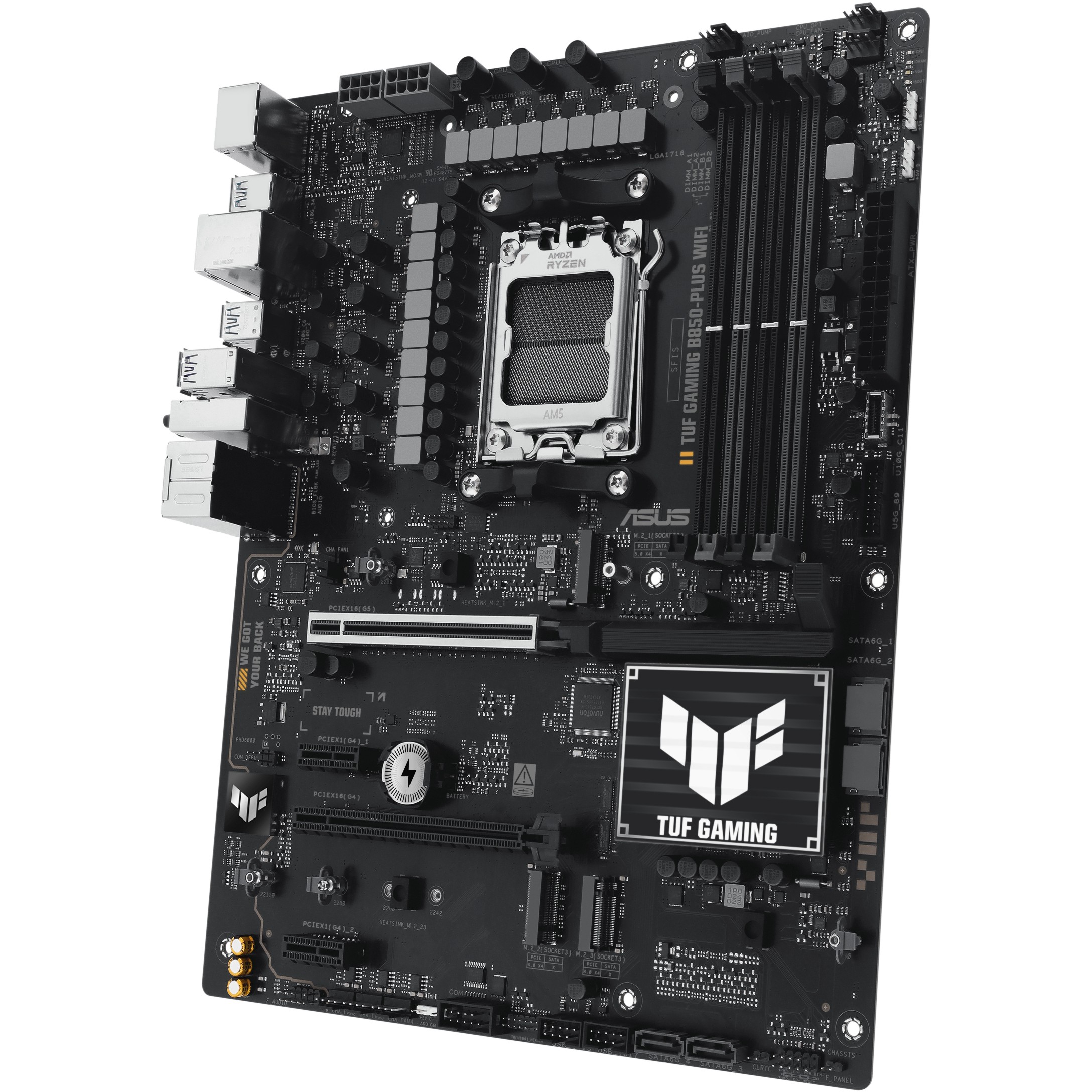

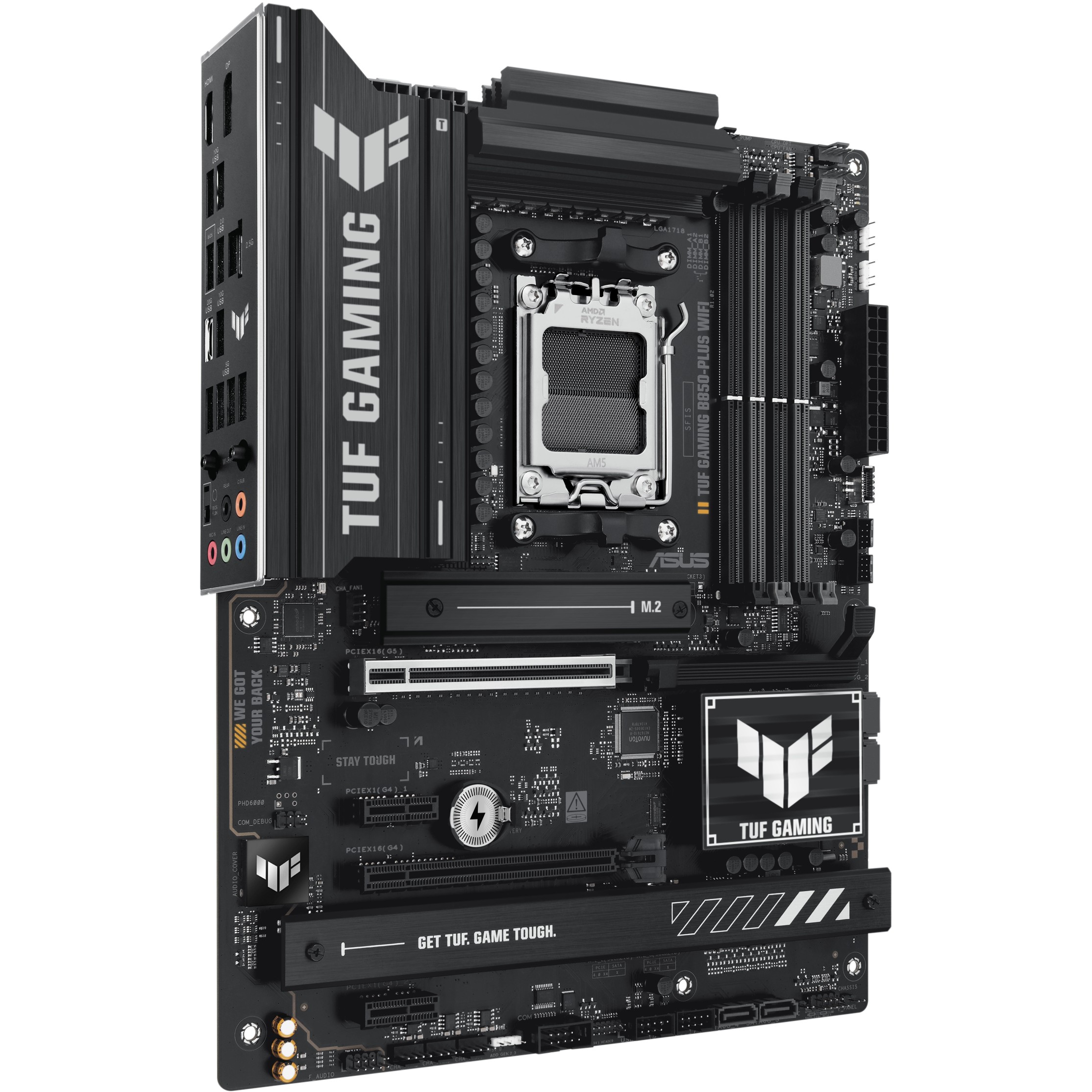

AM5 ASUS TUF B850-PLUS WIFI
In Stock
€206.99
VAT (19%) included
Description
AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series PC ATX AMD B850 Realtek ALC1220 7.1 channels DDR5-SDRAM 4 DIMM Maximum internal memory: 192 GB HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7 BIOS type: UEFI AMI 256 Mbit Clear CMOS button 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
Technical Specifications
SKU
K90MB1J30-M0EAY0
Processor Manufacturer
AMD
Processor Socket
Socket AM5
Compatible Processor Series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported Processor Sockets
Socket AM5
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
ECC & Non-ECC
Supported Memory Clock Speed (Max)
8000 MHz
Maximum Internal Memory
192 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Hdds Supported
4
Number Of Storage Drives Supported
7
Raid Levels
0, 1, 5, 10
Parallel Processing Technology Support
Not supported
Maximum Resolution
7680 x 4320 pixels
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors
1
Number Of Sata Iii Connectors
4
Number Of Cpu Fan Connectors
2
Number Of Chassis Fan Connectors
4
Number Of Eps Power Connectors (8-Pin)
2
Number Of Com Connectors
1
Thunderbolt Headers
1
Number Of Water Pump Connectors
1
Number Of Rgb Led Pin Headers
3
Usb 2.0 Ports Quantity
2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
4
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
3
Usb 3.2 Gen 2X2 Type-C Ports Quantity
1
Ethernet Lan (Rj-45) Ports
1
Hdmi Ports Quantity
1
Hdmi Version
2.1
Displayports Quantity
1
Displayport Version
1.4
Headphone Outputs
1
Wifi-Ap Antenna Jack
2
Ethernet Interface Type
2.5 Gigabit Ethernet
Top Wi-Fi Standard
Wi-Fi 7 (802.11be)
Wi-Fi Standards
Wi-Fi 7 (802.11be)
Bluetooth Version
5.4
Motherboard Chipset
AMD B850
Audio Chip
Realtek ALC1220
Audio Output Channels
7.1 channels
Product Colour
Black
Component For
PC
Motherboard Form Factor
ATX
Motherboard Chipset Family
AMD
Power Source Type
ATX
Windows Operating Systems Supported
Windows 11
Pci Express X1 (Gen 4.X) Slots
2
Pci Express X16 (Gen 4.X) Slots
1
Pci Express X16 (Gen 5.X) Slots
1
Number Of M.2 (M) Slots
3
1St M.2 Largest Key Size
2280
1St M.2 Highest Pci Express Generation
5.0
2Nd M.2 Largest Key Size
22110
2Nd M.2 Highest Pci Express Generation
4.0
3Rd M.2 Largest Key Size
2280
3Rd M.2 Highest Pci Express Generation
4.0
Bios Type
UEFI AMI
Bios Memory Size
256 Mbit
Package Width
353 mm
Package Depth
273 mm
Package Height
68 mm
Package Weight
1.81 kg
Width
305 mm
Depth
244 mm
Cables Included
SATA
Weight
1.32 kg
