Gigabyte

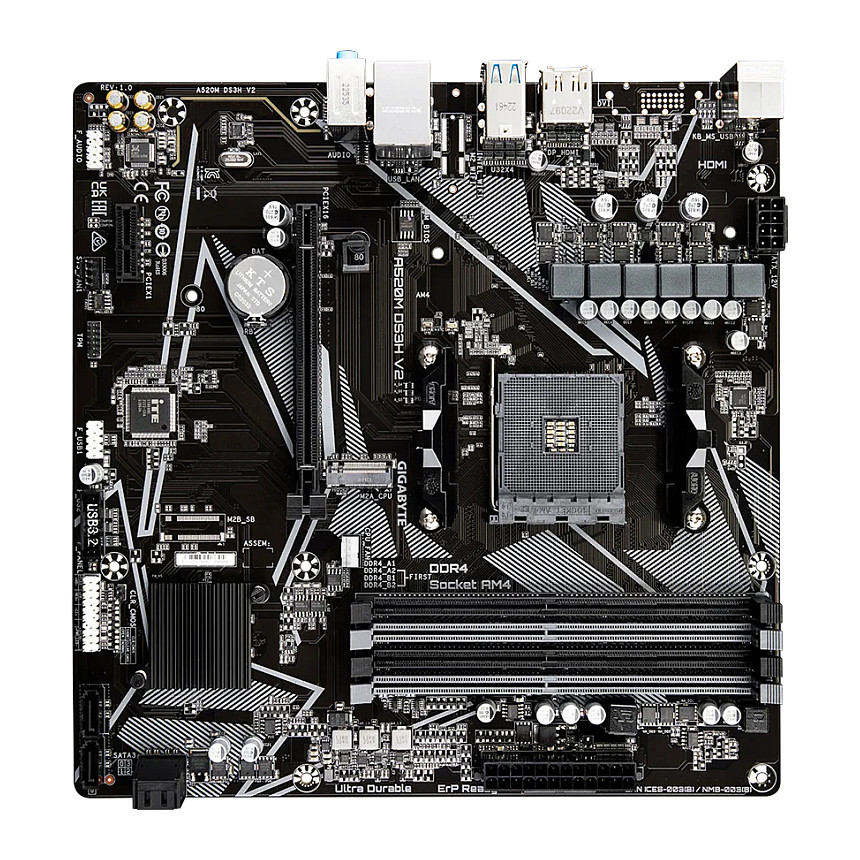

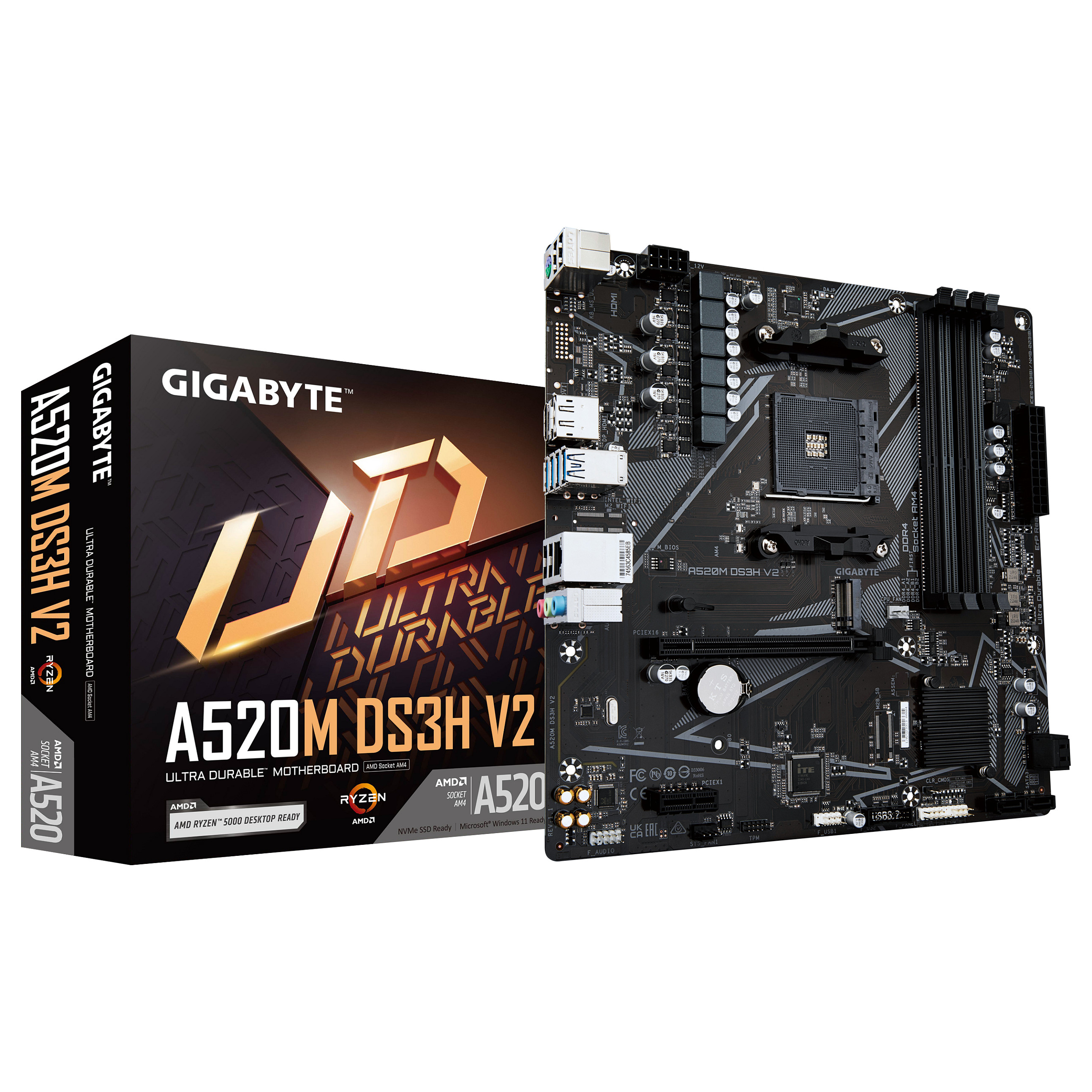

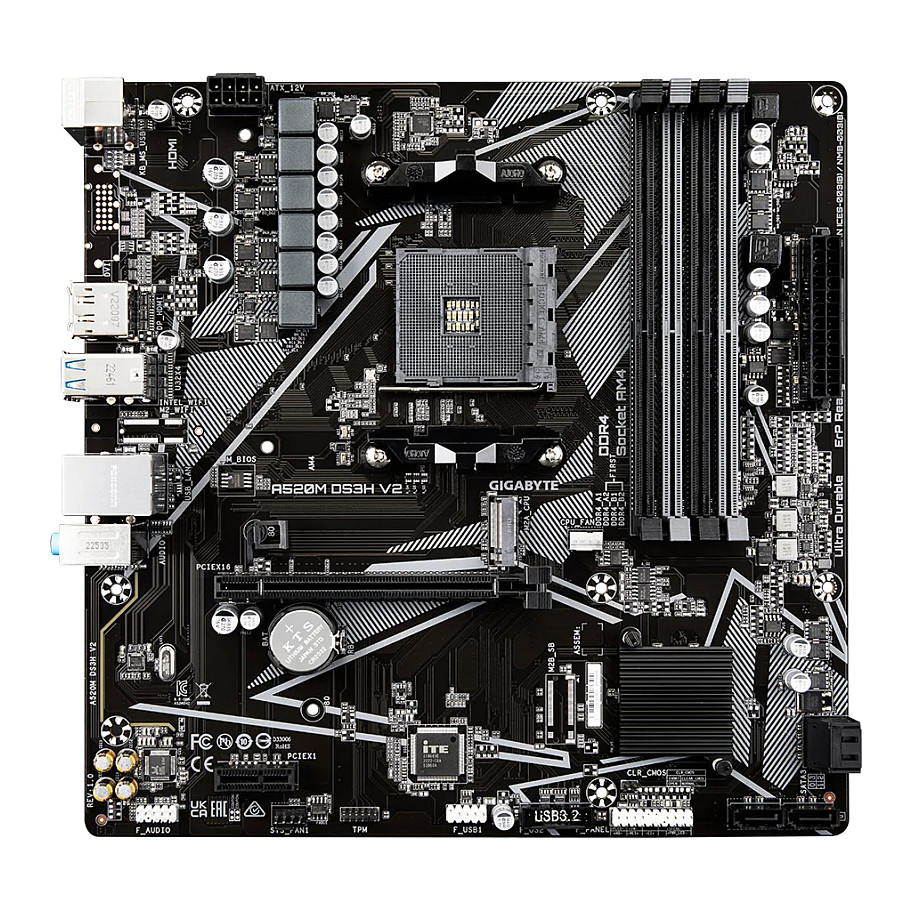

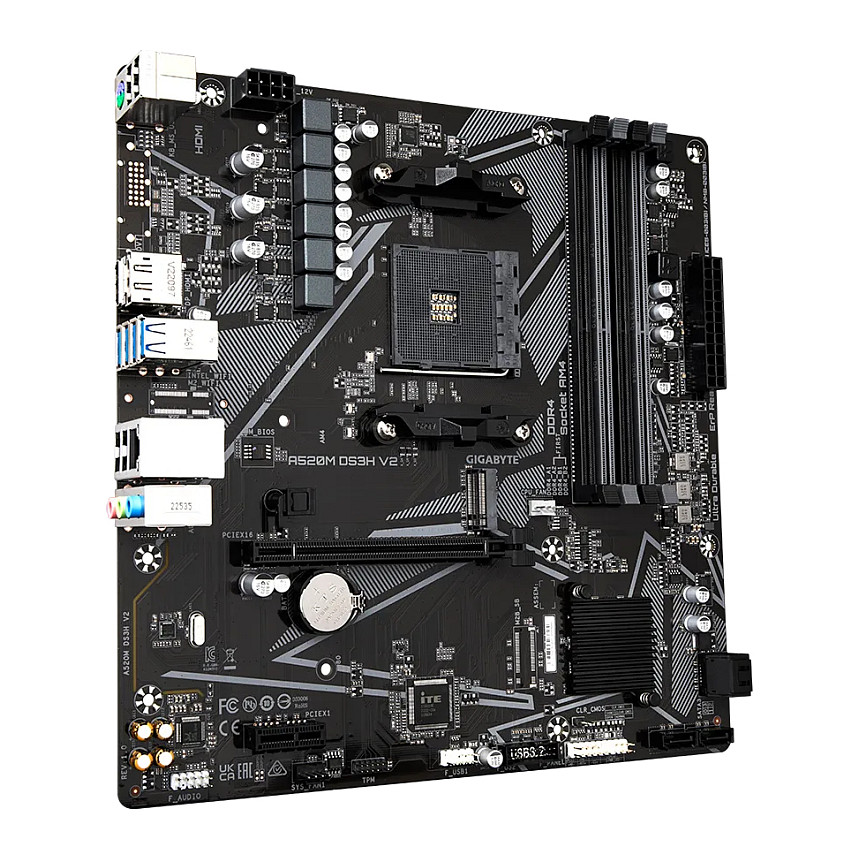

AM4 Gigabyte A520M DS3H V2 mATX
In Stock
€69.99
VAT (19%) included
Description
Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs Ultra Durable™ PCIe 3.0 x16 Slot NVMe PCIe 3.0 M.2 Connectors High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality GbE LAN with Bandwidth Management Rear DisplayPort and HDMI for Multi-display Support Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Anti-Sulfur Resistors Design
Technical Specifications
SKU
KA520M DS3H V2
Processor Manufacturer
AMD
Processor Socket
Socket AM4
Compatible Processor Series
AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series
Maximum Number Of Smp Processors
1
Supported Processor Sockets
Socket AM4
Maximum Internal Memory Supported By Processor
128 GB
Supported Memory Types
DDR4-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
ECC & Non-ECC
Supported Memory Clock Speeds
2133, 2400, 2667, 2933, 3200, 3333, 3600, 4000, 4400, 4733 MHz
Maximum Internal Memory
128 GB
Supported Memory Module Capacities
1GB, 2GB, 4GB, 8GB, 16GB, 32GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Hdds Supported
4
Number Of Storage Drives Supported
5
Raid Levels
0, 1, 10
Maximum Resolution
5120 x 2880 pixels
Number Of Displays Supported
3
Usb 2.0 Connectors
1
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Number Of Sata Iii Connectors
4
Total Number Of Sata Connectors
4
Number Of Eatx Power Connectors
1
Serial Port Headers
1
Usb 2.0 Ports Quantity
2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
4
Ethernet Lan (Rj-45) Ports
1
Ps/2 Ports Quantity
1
Hdmi Ports Quantity
1
Hdmi Version
2.1
Dvi-D Ports Quantity
1
Displayports Quantity
1
Displayport Version
2.0
Headphone Outputs
1
Digital Audio Optical Out
1
Usb Connector Type
USB Type-A
Ethernet Interface Type
Gigabit Ethernet
Audio Chip
Realtek ALC887
Audio Output Channels
7.1 channels
Product Colour
Black
Pc Health Monitoring
CPU, LED, Power supply, Temperature, Voltage
Component For
PC
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
AMD
Cooling Type
Active
Power Source Type
ATX
Windows Operating Systems Supported
Windows 10 x64
Pci Express X1 (Gen 3.X) Slots
2
Pci Express X16 (Gen 3.X) Slots
1
Number Of M.2 (M) Slots
1
Bios Type
UEFI AMI
Bios Memory Size
128 Mbit
Acpi Version
5.0
Desktop Management Interface (Dmi) Version
2.7
System Management Bios (Smbios) Version
2.7
Country Of Origin
China
Products Per Shipping (Inner) Case
1 pc(s)
Battery Weight
3 g
Lithium Weight Per Battery
0.07 g
Number Of Battery Cells
1
Battery Technology
Lithium-Manganese Dioxide (LiMnO2)
Battery Type
CR2032
Package Width
265 mm
Package Depth
265 mm
Package Height
54 mm
Package Weight
810 g
Width
244 mm
Depth
244 mm
Height
35 mm
Cables Included
SATA
Bundled Software
Norton Internet Security (OEM version) Realtek 8118 Gaming LAN Bandwidth Control Utility
Warranty Period
3 year(s)
