Gigabyte

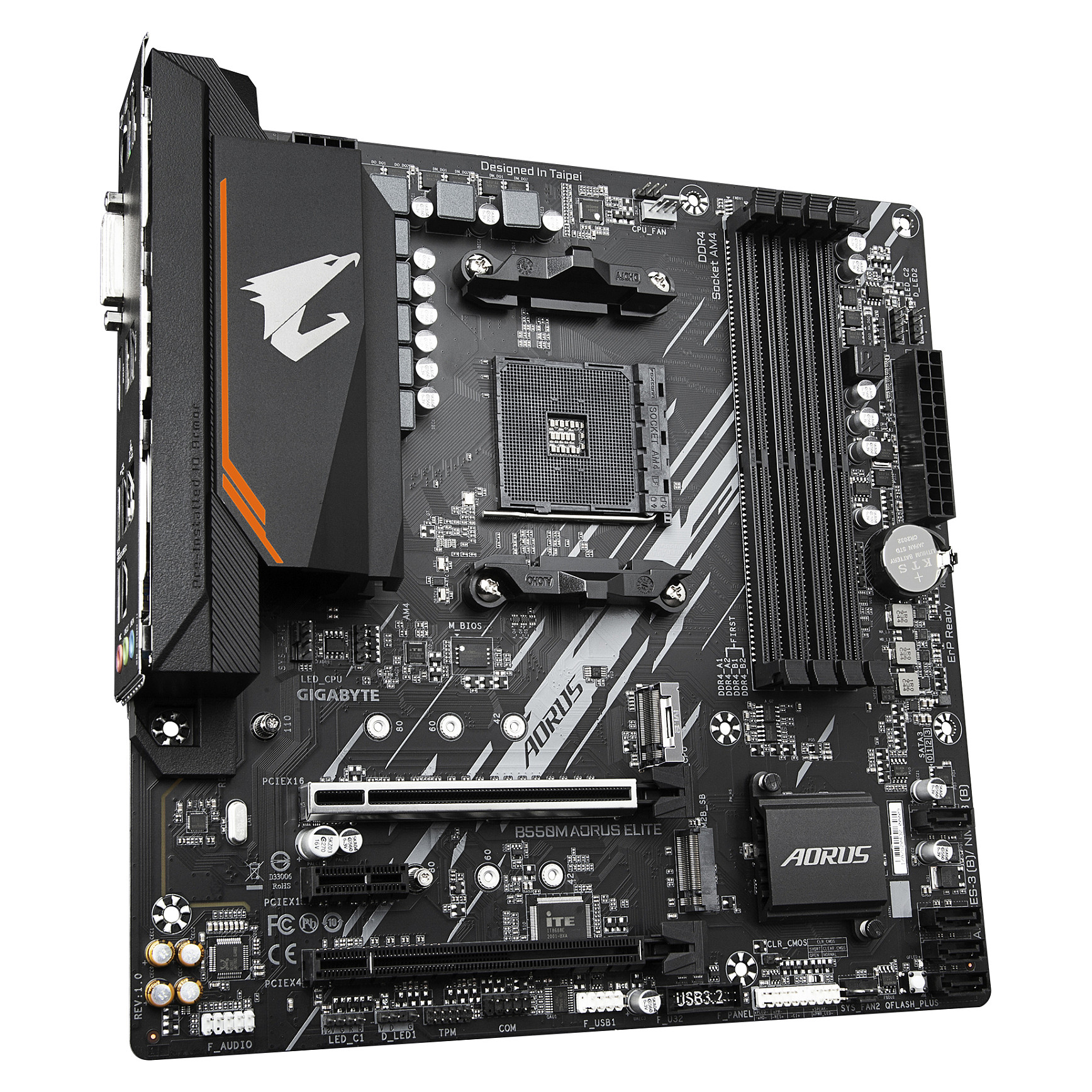

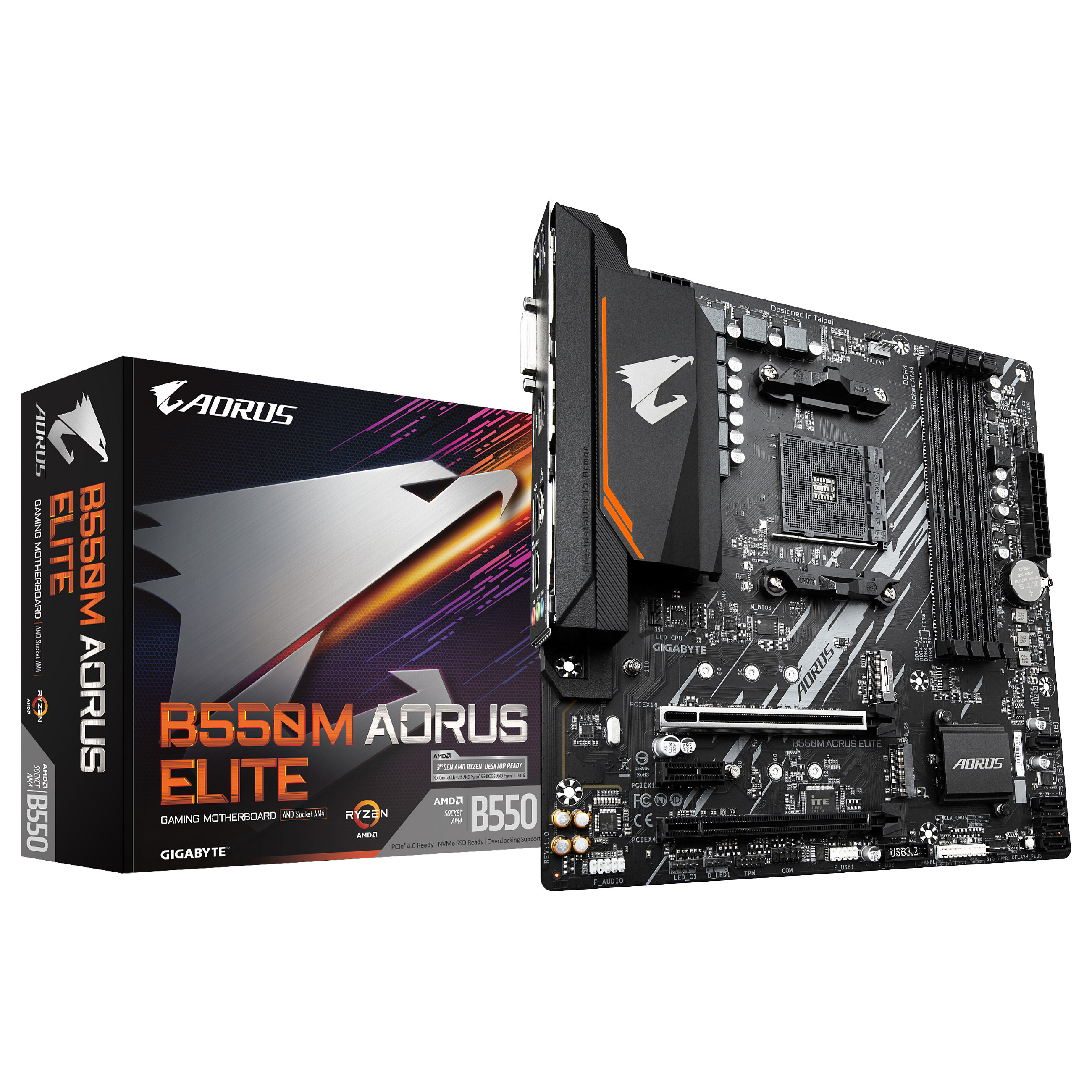

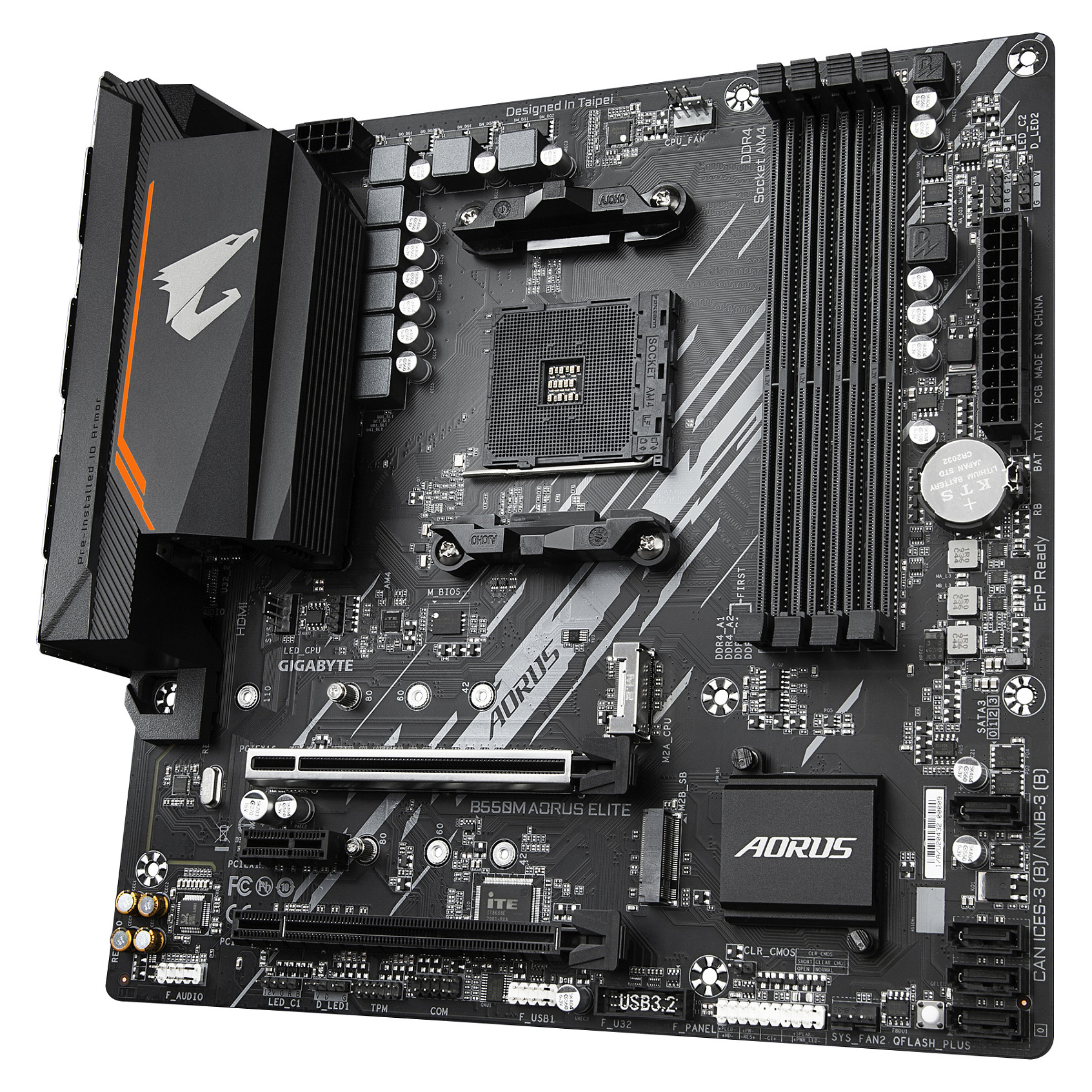

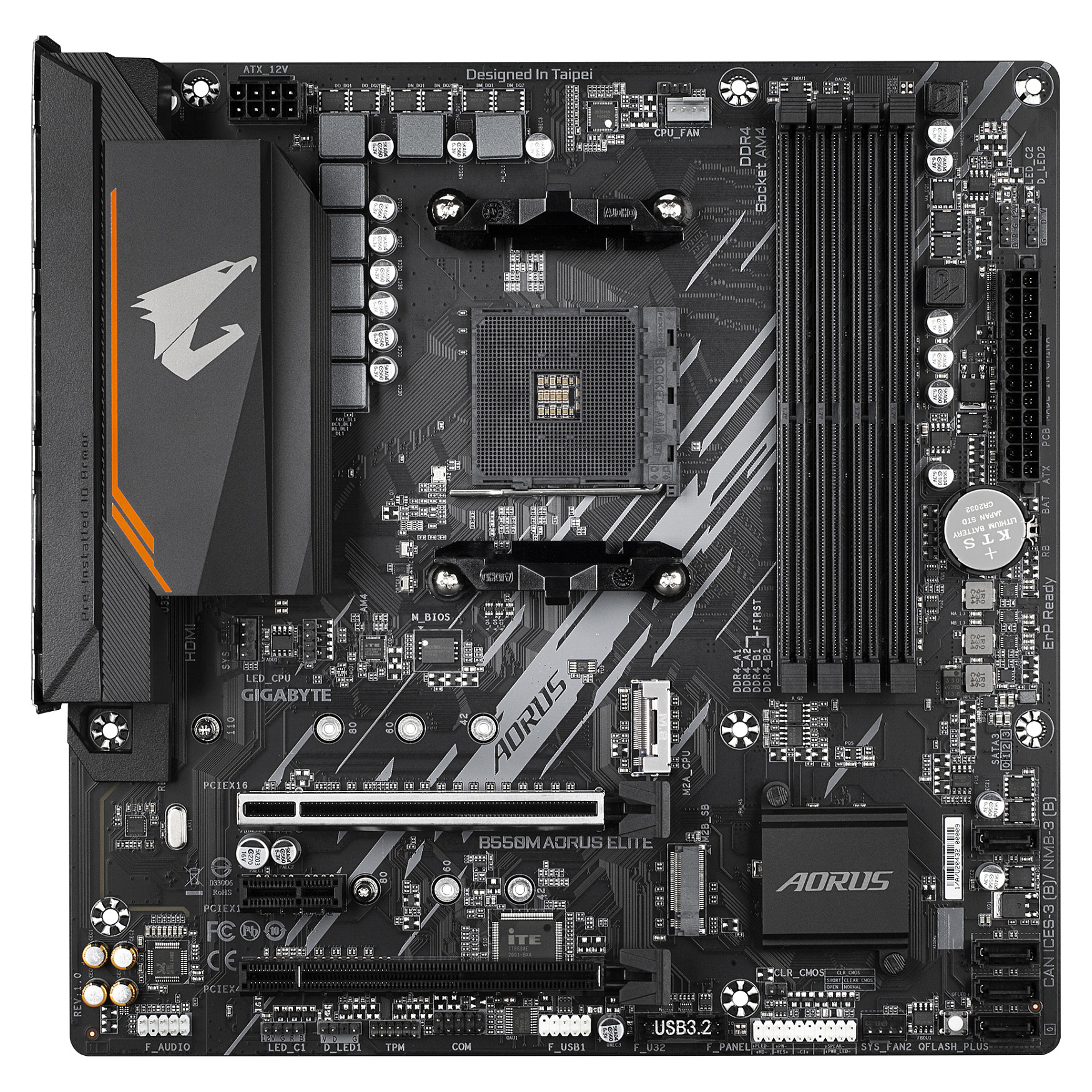

AM4 Gigabyte B550M AORUS ELITE mATX
Out of Stock
€95.99
VAT (19%) included
Description
Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series/ Ryzen 3000 and Ryzen 3000 G-Series Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs Ultra Durable™ PCIe 4.0 Ready x16 Slot Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality Realtek GbE LAN with Bandwidth Management Rear HDMI & DVI Support RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card Anti-Sulfur Resistors Design
Technical Specifications
SKU
KB550M AORUS ELITE
Processor Manufacturer
AMD
Processor Socket
Socket AM4
Compatible Processor Series
AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
Maximum Number Of Smp Processors
1
Supported Processor Sockets
Socket AM4
Supported Memory Types
DDR4-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
ECC & Non-ECC
Supported Memory Clock Speeds
4733, 4600, 4400, 4266, 4133, 4000, 3866, 3733, 3600, 3466, 3400, 3200, 2933, 2667, 2400, 2133 MHz
Supported Memory Clock Speed (Max)
4733 MHz
Maximum Internal Memory
128 GB
Maximum Internal Memory Per Slot
32 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Hdds Supported
4
Number Of Storage Drives Supported
6
Raid Levels
0, 1, 10
Parallel Processing Technology Support
Not supported
Maximum Resolution
4096 x 2160 pixels
Directx Version
12.0
Usb 2.0 Connectors
1
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Number Of Sata Iii Connectors
4
Number Of Cpu Fan Connectors
1
Number Of Chassis Fan Connectors
2
Number Of Eps Power Connectors (8-Pin)
1
Serial Port Headers
1
Number Of Water Pump Connectors
2
Number Of Rgb Led Pin Headers
5
Usb 2.0 Ports Quantity
4
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
4
Ethernet Lan (Rj-45) Ports
1
Ps/2 Ports Quantity
1
Hdmi Ports Quantity
1
Hdmi Version
2.1
Dvi-D Ports Quantity
1
Headphone Outputs
1
Ethernet Interface Type
Gigabit Ethernet
Lan Controller
Realtek RTL8111H
Motherboard Chipset
AMD B550
Audio Chip
Realtek ALC897
Audio Output Channels
7.1 channels
Product Colour
Brown
Pc Health Monitoring
Fan, Temperature, Voltage
Component For
PC
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
AMD
Cooling Type
Passive
Power Source Type
ATX
Windows Operating Systems Supported
Windows 10 x64, Windows 11 x64
Pci Express X1 (Gen 3.X) Slots
1
Pci Express X16 (Gen 3.X) Slots
1
Pci Express X16 (Gen 4.X) Slots
1
Number Of M.2 (M) Slots
2
1St M.2 Largest Key Size
22110
1St M.2 Highest Pci Express Generation
4.0
2Nd M.2 Largest Key Size
2280
2Nd M.2 Highest Pci Express Generation
3.0
Bios Type
UEFI AMI
Bios Memory Size
128 Mbit
Acpi Version
5.0
Desktop Management Interface (Dmi) Version
2.7
System Management Bios (Smbios) Version
2.7
Country Of Origin
China
Products Per Shipping (Inner) Case
1 pc(s)
Harmonized System (Hs) Code
84733020
Battery Weight
3 g
Lithium Weight Per Battery
0.07 g
Number Of Battery Cells
1
Battery Technology
Lithium-Manganese Dioxide (LiMnO2)
Battery Type
CR2032
Package Width
265 mm
Package Depth
265 mm
Package Height
65 mm
Package Weight
1.27 kg
Width
244 mm
Depth
244 mm
Height
35 mm
Bundled Software
Norton® Internet Security (OEM version) LAN bandwidth management software
Warranty Period
3 year(s)
