ASRock

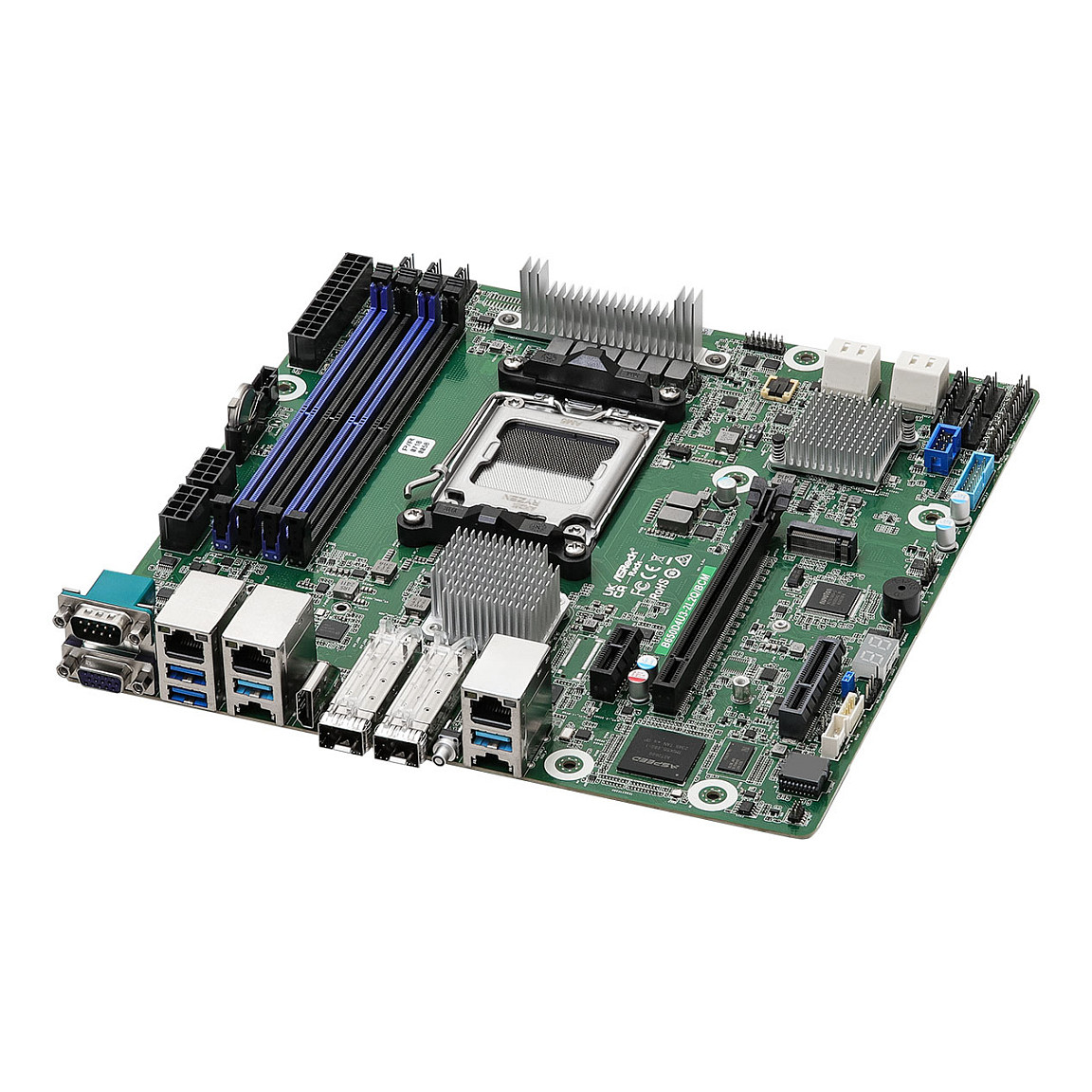

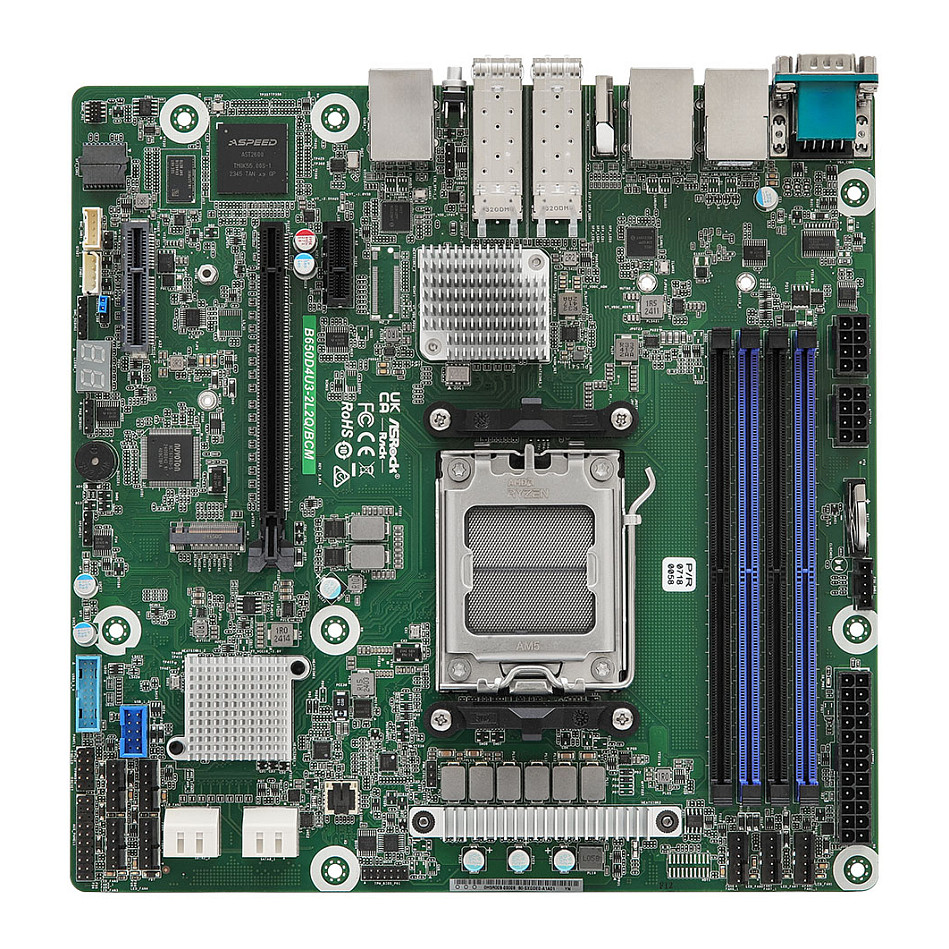

ASRock Mainboard B650D4U3-2L2Q/BCM micro-ATX Sockel AM5 Single
Pre-Order
€629.99
VAT (19%) included
Description
Micro-ATX (9.6" x 9.6") Supports AMD EPYC™ 4004 and AMD Ryzen™ 9000/8000/7000 Series Processors 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM 1 PCIe5.0 x16 1 PCIe4.0 x4, 1 PCIe4.0 x1 Supports 1 M.2 (PCIe5.0 x4) 4 SATA 6Gb/s 2 SFP28 (25GbE) by Broadcom BCM57502 2 RJ45 (1GbE) by Intel® i210 1 HDMI Remote management (IPMI)
Technical Specifications
SKU
KB650D4U3-2L2Q/BCM
Processor Manufacturer
AMD
Processor Socket
Socket AM5
Compatible Processor Series
AMD EPYC 4004, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Voltage
1.1 V
Ecc Сompatibility
Non-ECC
Supported Memory Clock Speeds
3600, 5600 MHz
Supported Memory Clock Speed (Max)
5600 MHz
Maximum Internal Memory
48 GB
Supported Storage Drive Interfaces
M.2, SATA III
On-Board Graphics Card Model
Aspeed AST2600
Usb 2.0 Connectors
1
Number Of Sata Iii Connectors
4
Number Of Com Connectors
1
Serial Port Headers
1
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
4
Ethernet Lan (Rj-45) Ports
2
Vga (D-Sub) Ports Quantity
1
Hdmi Ports Quantity
1
Motherboard Chipset
AMD B650 Express
Pc Health Monitoring
CPU, Fan, Voltage
Component For
Server
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
AMD
Pci Express X4 (Gen 4.X) Slots
1
Bios Type
UEFI
Bios Memory Size
256 Mbit
Acpi Version
6.4
System Management Bios (Smbios) Version
3.5
Storage Temperature (T-T)
-40 - 70 °C
Operating Temperature (T-T)
10 - 35 °C
Operating Relative Humidity (H-H)
20 - 90%
Storage Relative Humidity (H-H)
20 - 90%
Width
244 mm
Depth
244 mm
