Sparkle

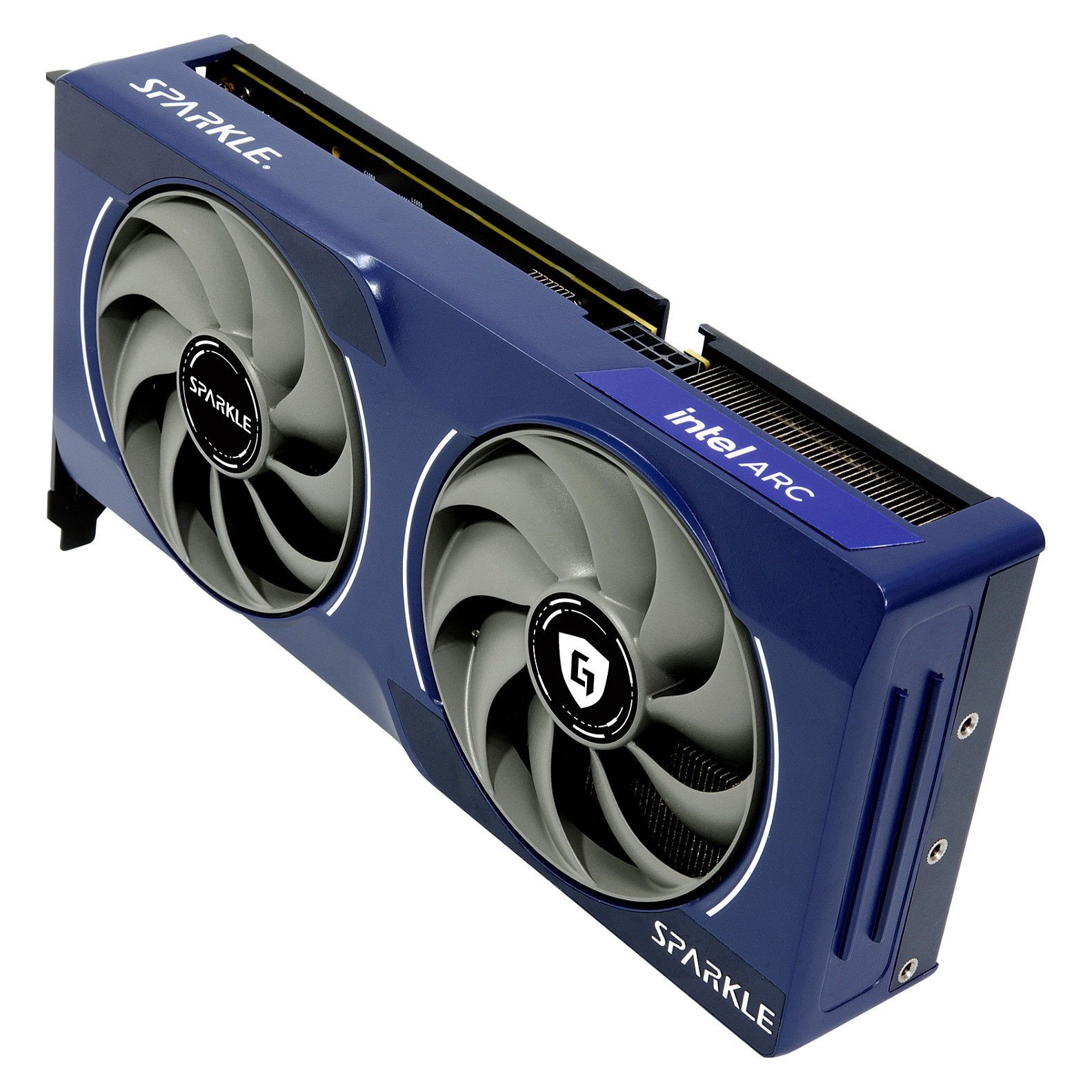

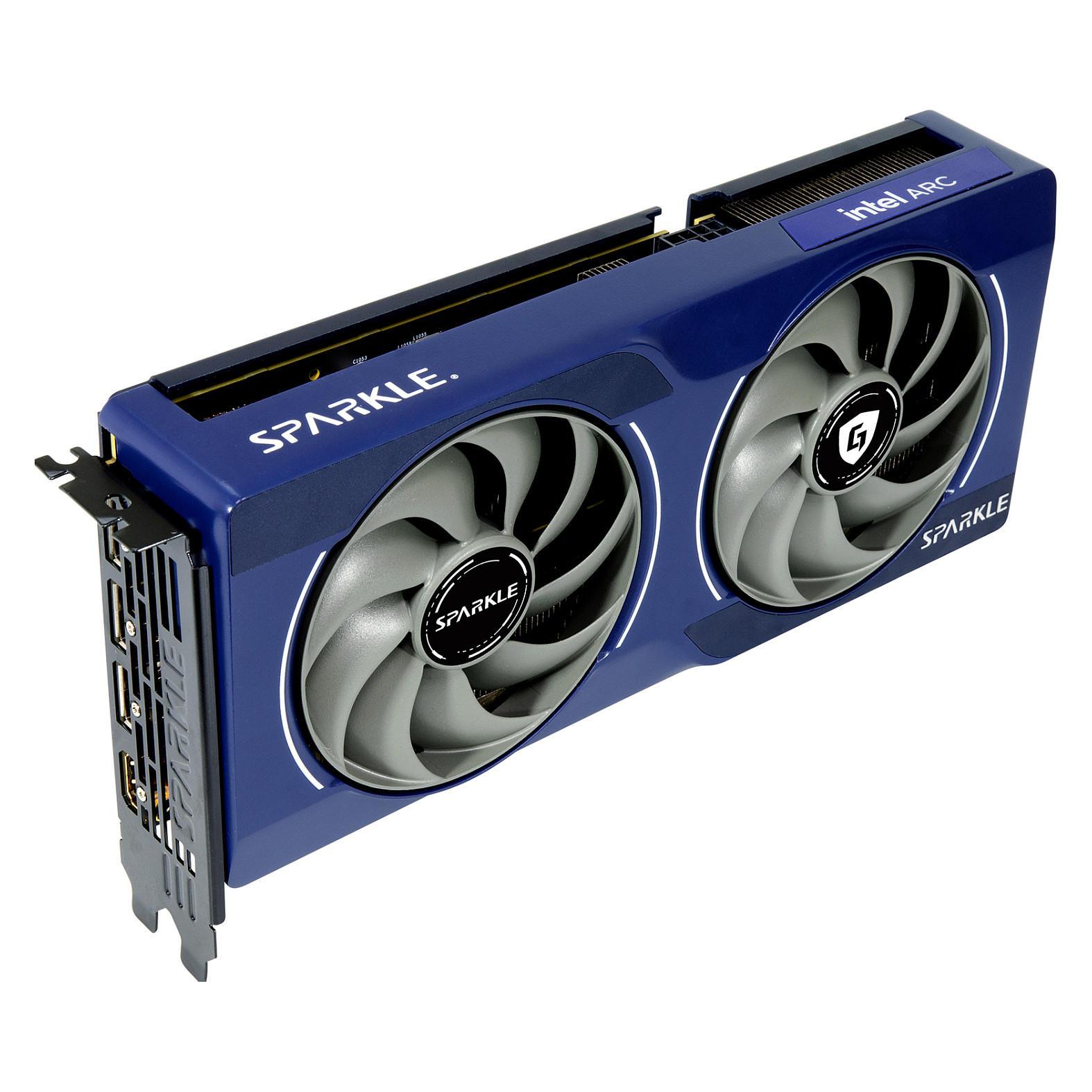

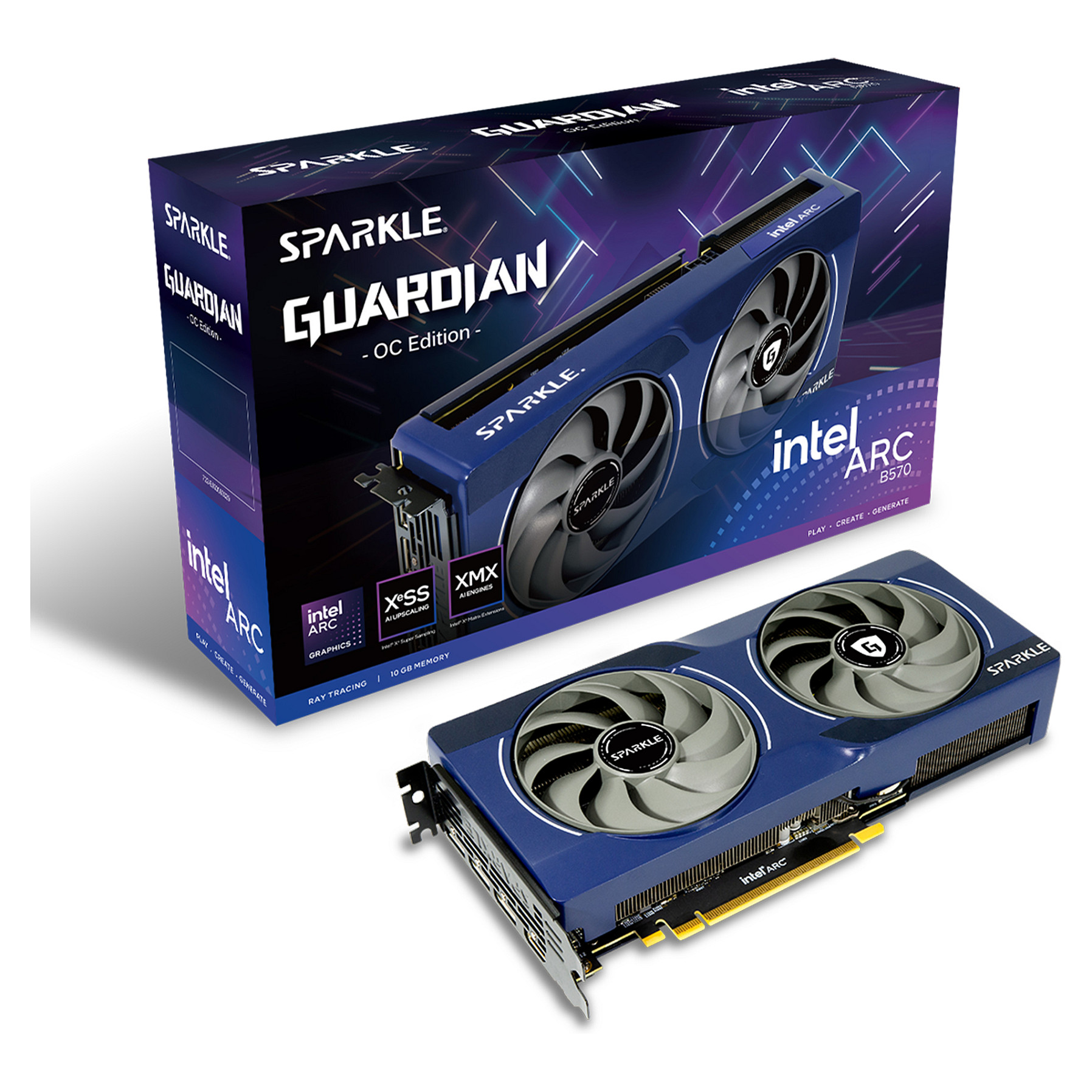

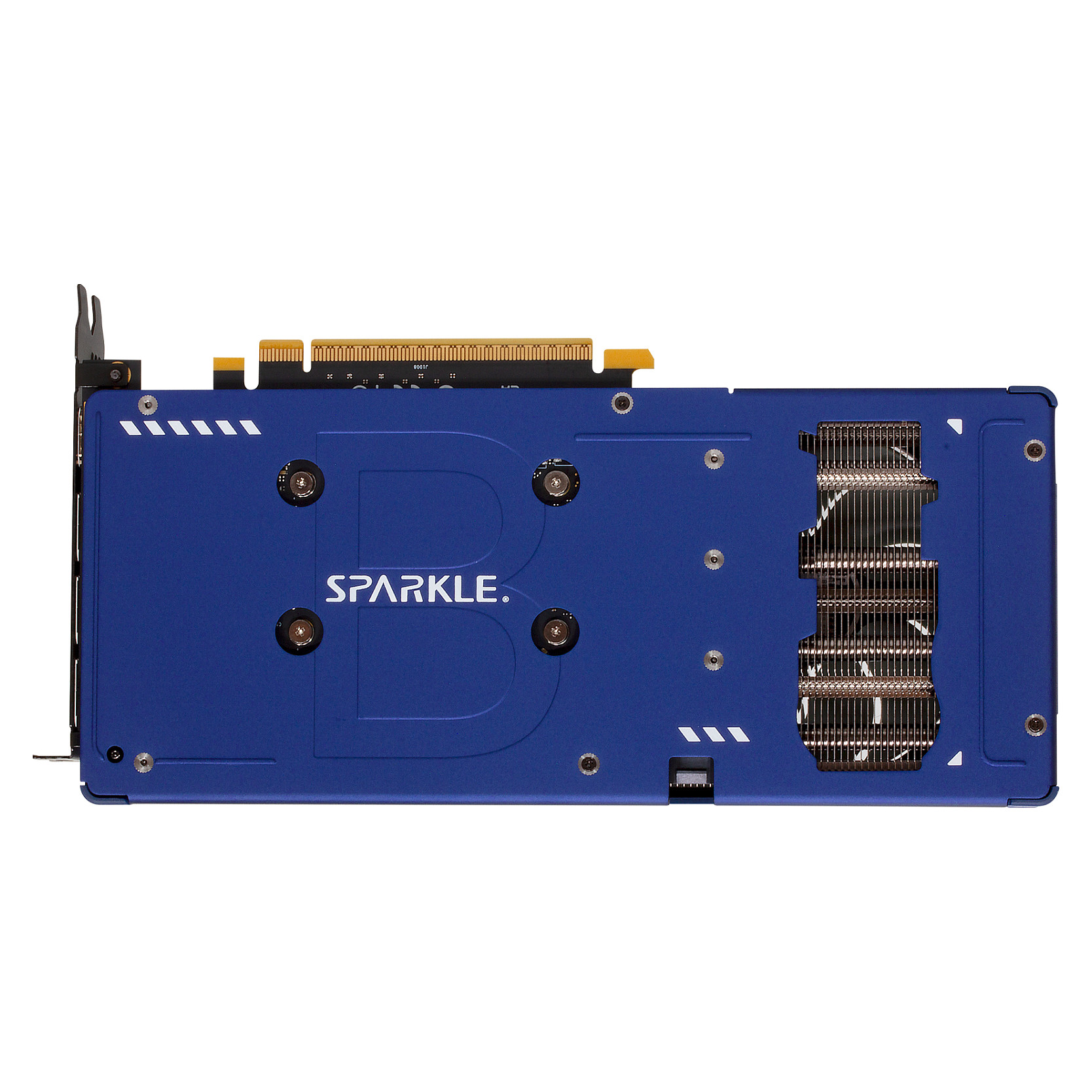

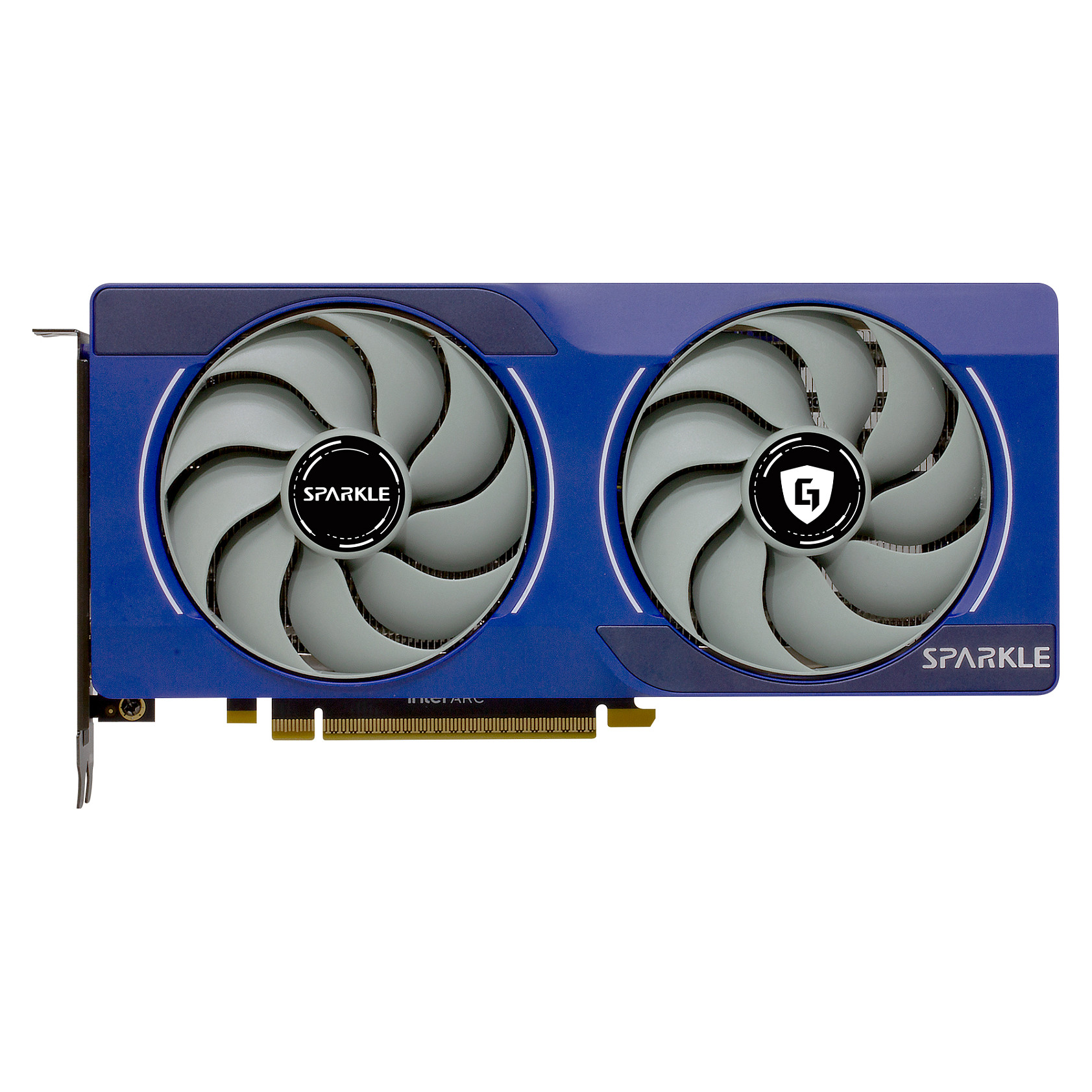

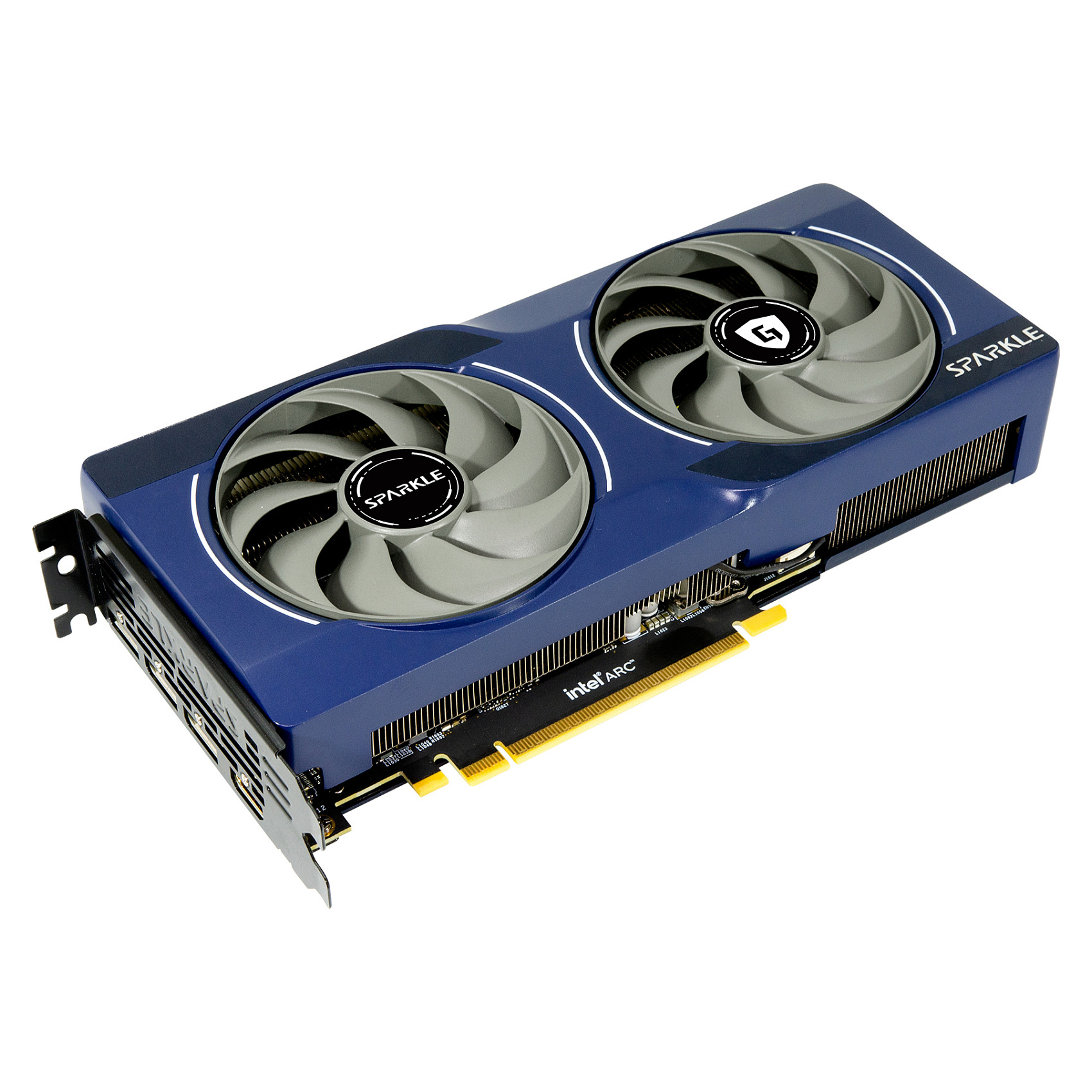

B570 10GB Sparkle Intel Arc Guardian OC GDDR6
Pre-Order
€372.99
VAT (19%) included
Arc B570
Description
TORN Cooling 2.0 Dual-fan, 2.2-slot, metal backplate Comapct Design Metal Backplate, Pre-Installed Ray Tracing Variable Rate Shading (VSR) DirectX 12 Ultimate Vulkan 1.3 OpenGL 4.6 OpenCL 3.0 Adaptive Sync
Technical Specifications
Graphics Card
Arc B570
SKU
KSB570G-10GOC
Graphics Processor Family
Intel
Processor Frequency
2500 MHz
Processor Boost Clock Speed
2660 MHz
Maximum Resolution
7680 x 4320 pixels
Parallel Processing Technology Support
Not supported
Maximum Displays Per Videocard
4
Ray Accelerators
18
Discrete Graphics Card Memory
10 GB
Graphics Card Memory Type
GDDR6
Memory Bus
160 bit
Memory Bandwidth (Max)
380 GB/s
Interface Type
PCI Express x8 4.0

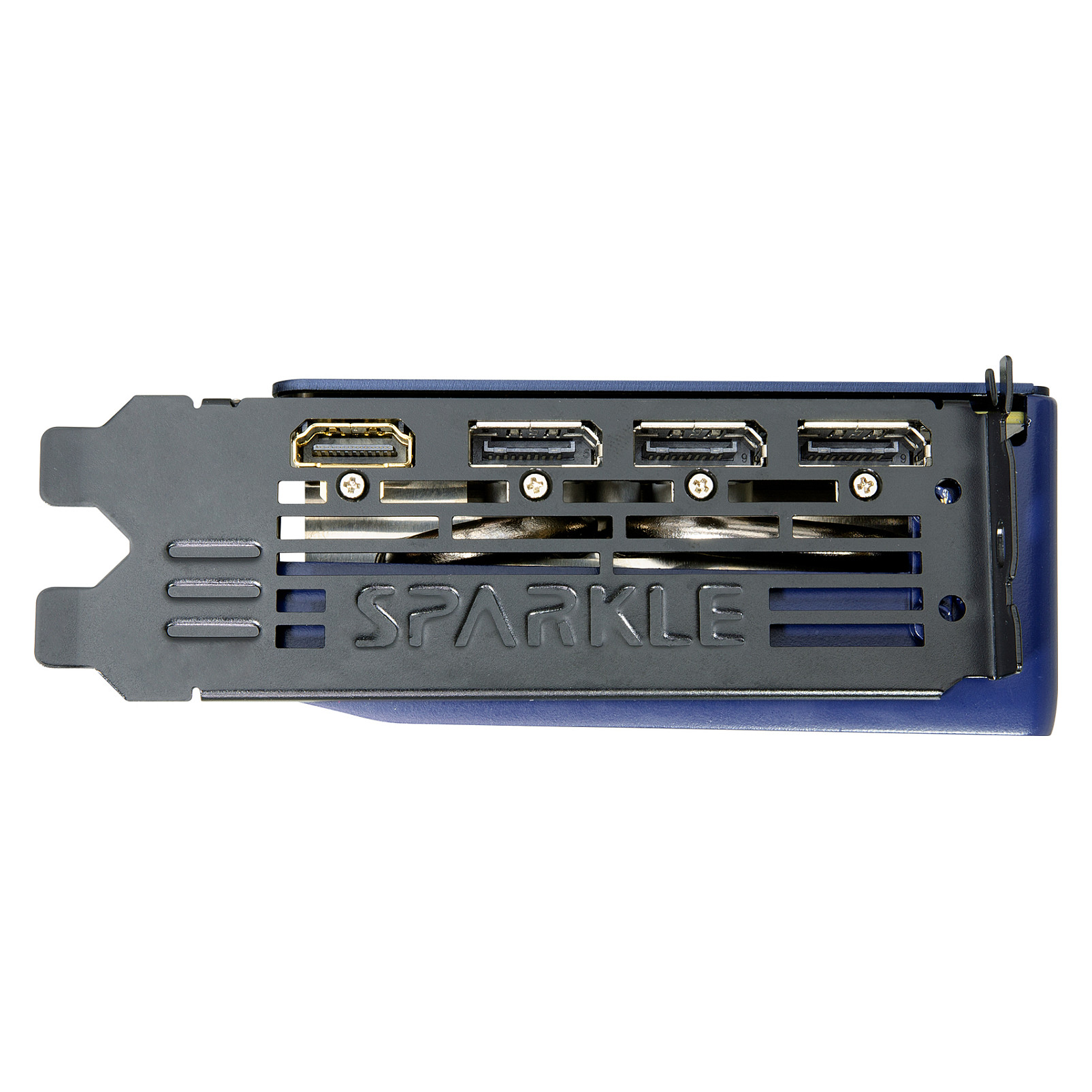

Hdmi Ports Quantity
1
Hdmi Version
2.1
Displayports Quantity
3
Displayport Version
2.1
Directx Version
12 Ultimate
Opengl Version
4.6
Opencl Version
3.0
Intel® Xe Matrix Extensions (Intel® Xmx) Engines
144
Xe-Cores
18
Npu Performance Up To
203 TOPs
Cooling Type
Active
Number Of Fans
2 fan(s)
Number Of Slots
2.2
Product Colour
Blue
Minimum System Power Supply
600 W
Power Consumption (Typical)
150 W
Supplementary Power Connectors
1x 8-pin
Power Consumption (Max)
170 W
Power Supply Location
Top
Windows Operating Systems Supported
Windows 10, Windows 11
Minimum System Requirements
PCI-Express compliant MB with one x16 PCIe slot
Minimum Processor
10th Gen Intel Core / AMD Ryzen 3000 Series Processors or newer with compatible motherboards supporting Resizable BAR / Smart Access Memory
Minimum Ram
8000 MB
Weight
796 g
Length
242 mm
Depth
44 mm
Height
105 mm
Package Type
Box
