ICY BOX

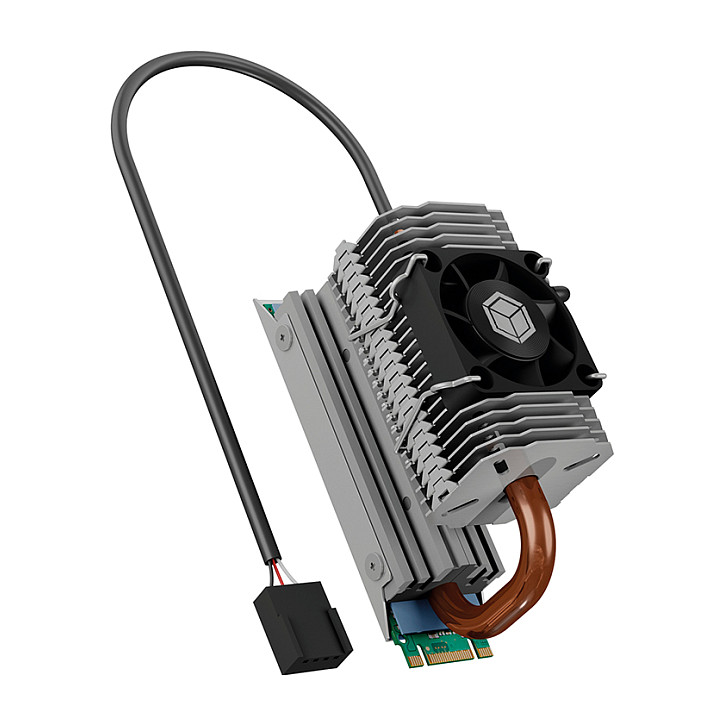

K Kühlkörper IcyBox SSD M.2 schwenkbar
Pre-Order
€27.99
VAT (19%) included
Description

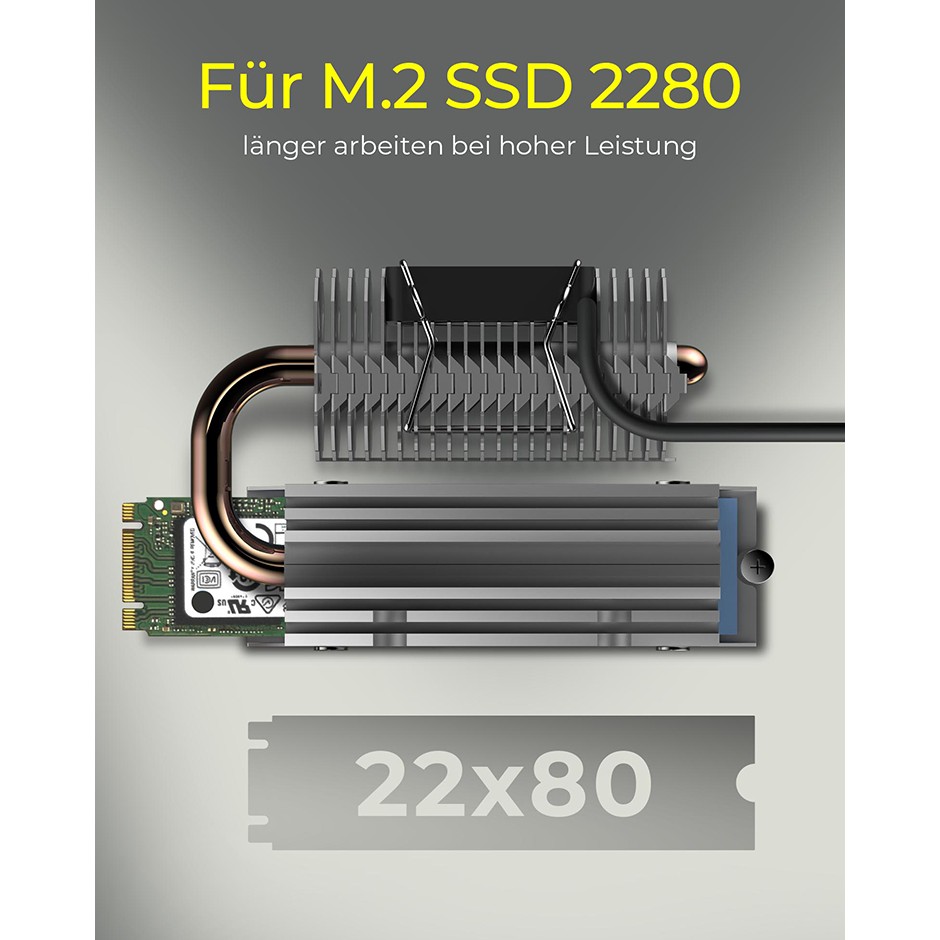

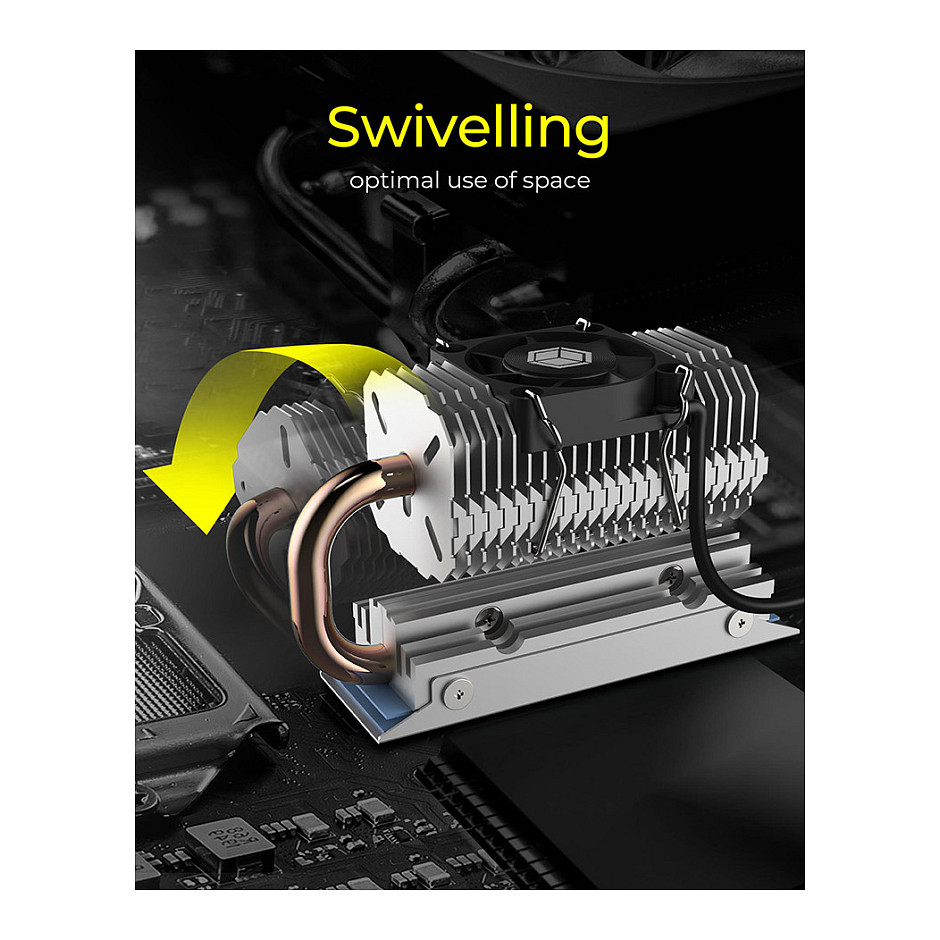

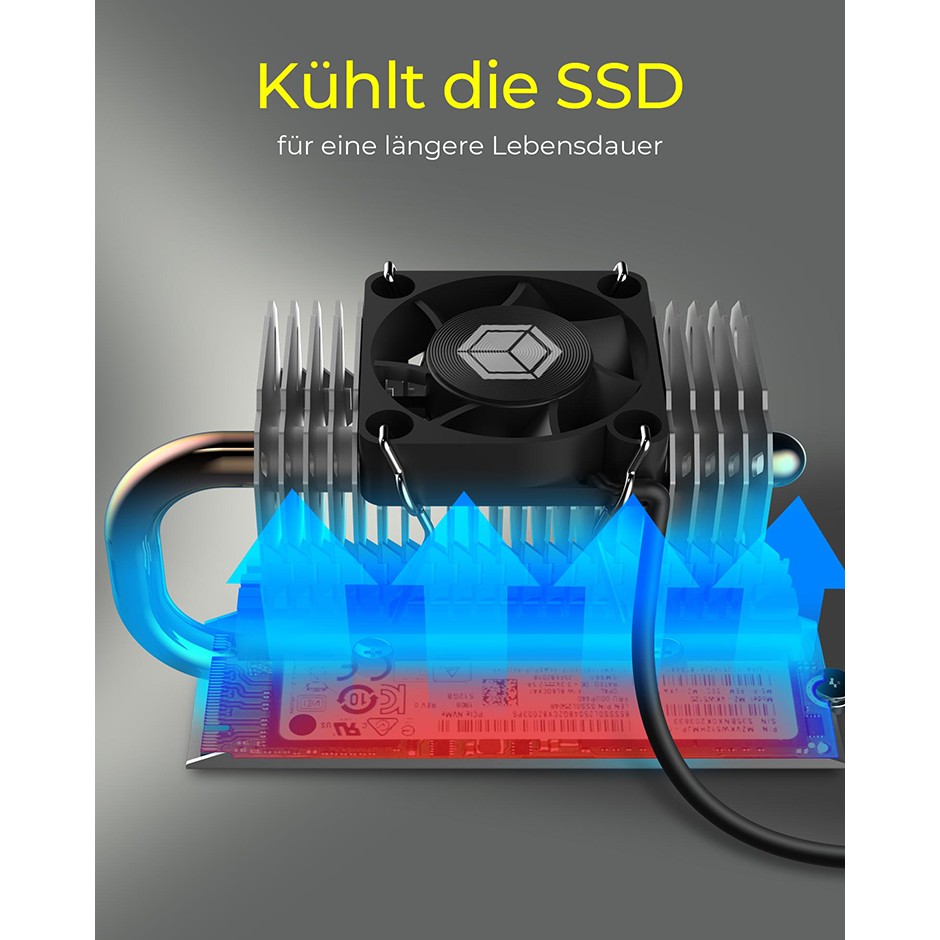

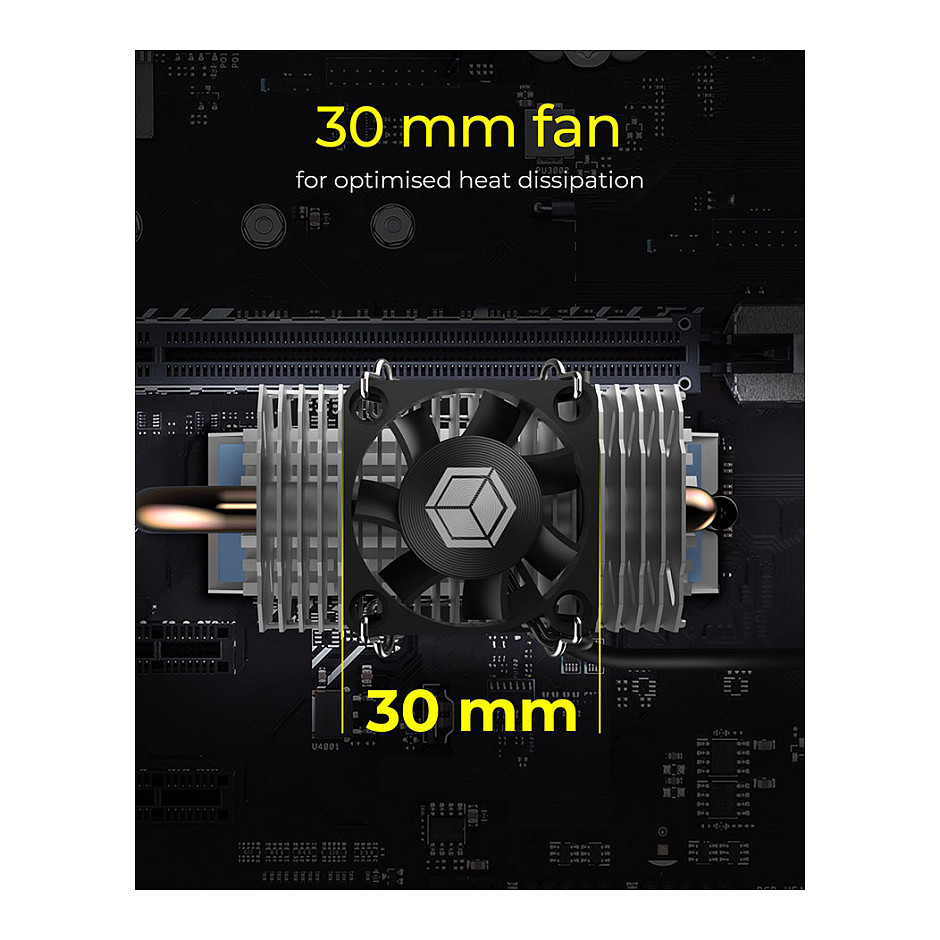

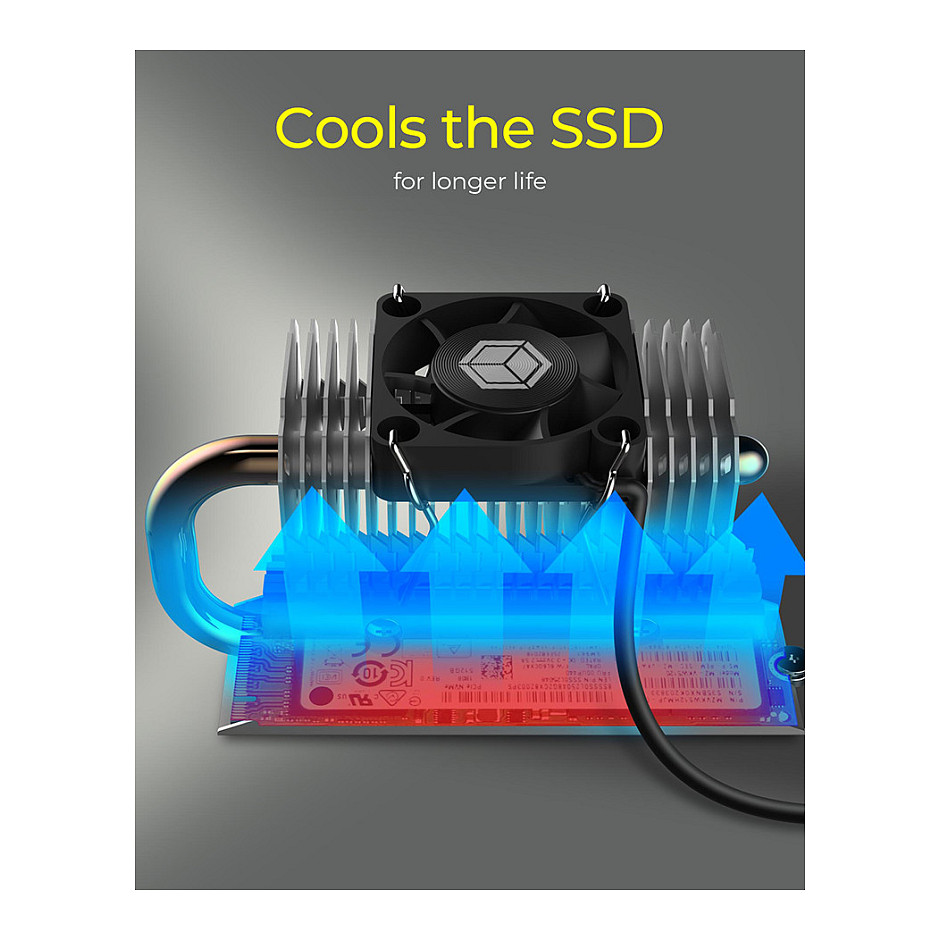

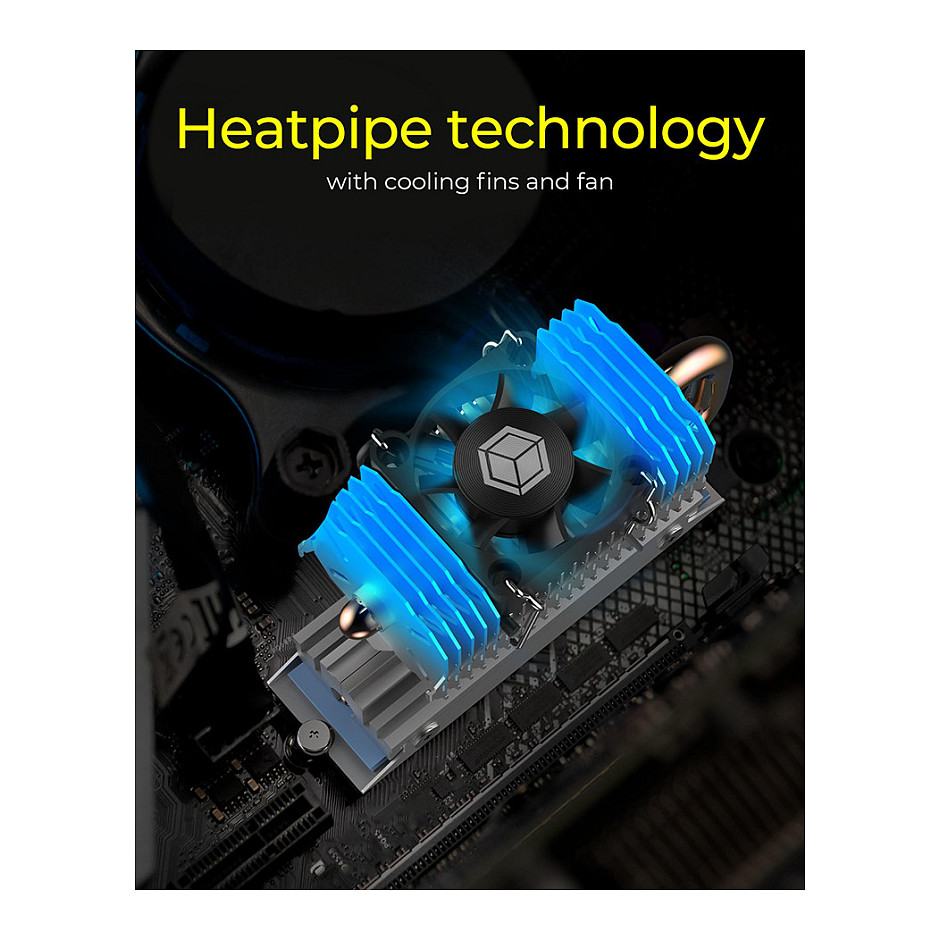

PERFECTLY POSITIONED: The ICY BOX heatpipe cooler can be swivelled. This creates space in the case for graphics cards or PCIe expansion cards. This way you can fit more performance into a small space POWERFUL COOLING PERFORMANCE: With the ICY BOX Heatpipe Cooler you reduce the heat of your M.2 SSD (form factor 2280) by up to 40%*. *Depending on SSD manufacturer, model and version, as well as load of the SSD OPTIMAL COMPONENTS: Copper heat pipe, aluminium heat sink and fan are optimally matched to each other. Together they achieve a cooling capacity of 23 W TDP - perfect for high performance SILENT FAN: The powerful 30 mm PVM fan runs at 8500 rpm and generates a volume flow of approx. 4.9 m³/h. It works pleasantly even under high load. It is pleasantly quiet even under high load WORK LONGER: SSDs are throttled at high temperatures. This protects the material. The ICY BOX heat pipe cooler lowers the temperature and SSDs can work longer at high performance
Technical Specifications
SKU
KIB-M2HSF-705
Suitable Location
Solid-state drive
Type
Heatsink/Radiator
Fan Diameter
3 cm
Number Of Speeds
1
Rotational Speed (Max)
8500 RPM
Maximum Airflow
2.87 cfm
Airflow
4.87 m³/h
Quantity Per Pack
1 pc(s)
Thermal Conductivity
1.5 W/m·K
Operating Temperature (T-T)
-20 - 180 °C
Product Colour
Silver
Material
Aluminium, Copper
Number Of Fans
1 fan(s)
Number Of Fins
22
Number Of Heat Pipes
1
Fan Connector
4-pin
Voltage
12 V
Rated Current
0.09 A
Thermal Design Power (Tdp)
23 W
Width
30 mm
Depth
75 mm
Height
50 mm
Weight
86 g
Fan Dimensions (W X D X H)
30 x 30 x 7 mm
Heat Pipes Diameter
6 mm
Fins Thickness
0.5 mm
Cable Length
0.5 m
Package Width
100 mm
Package Depth
200 mm
Package Height
40 mm
Package Weight
190 g
Country Of Origin
China
Harmonized System (Hs) Code
84145915
Master (Outer) Case Width
225 mm
Master (Outer) Case Length
440 mm
Master (Outer) Case Height
425 mm
Master (Outer) Case Gross Weight
7.6 kg
Products Per Master (Outer) Case
40 pc(s)
