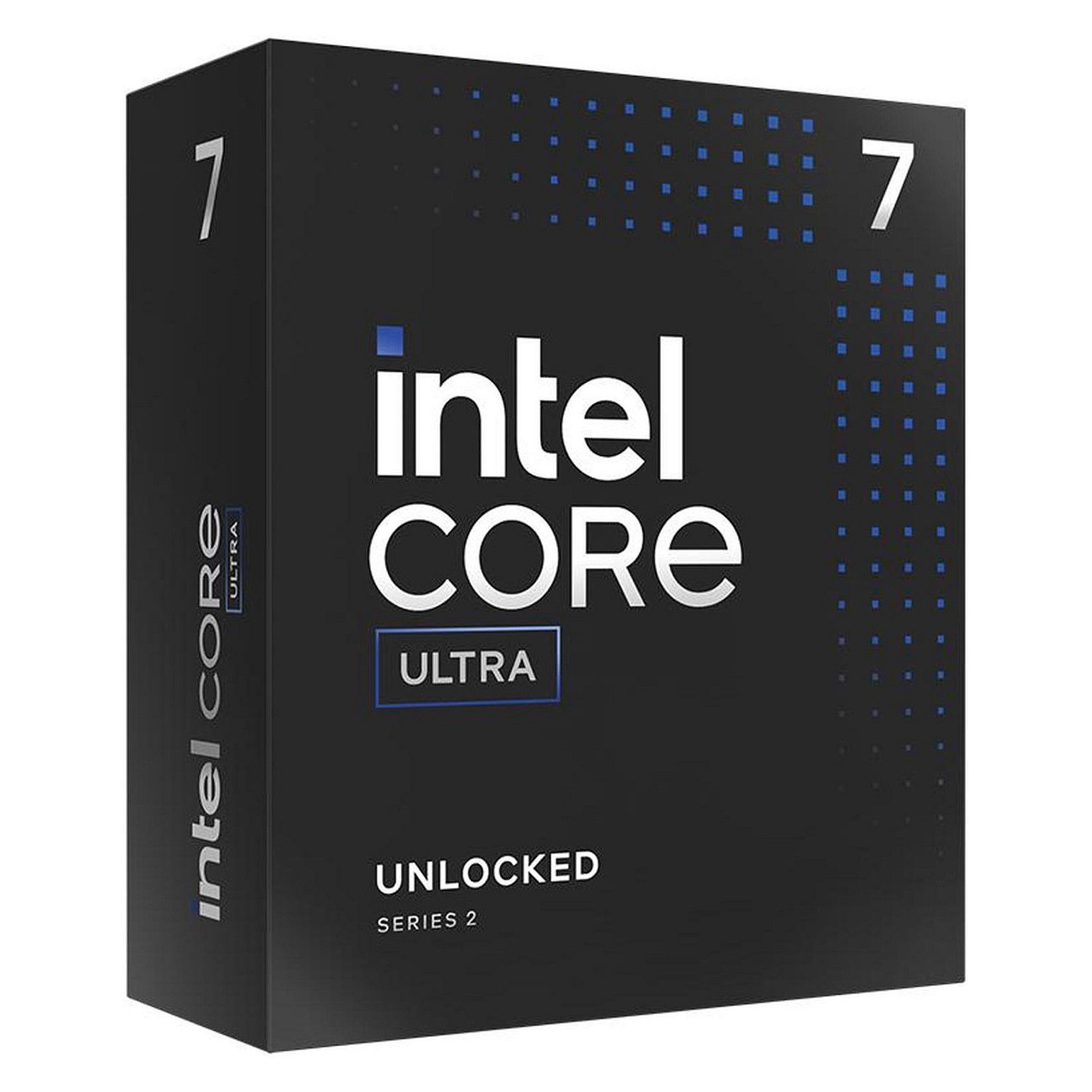

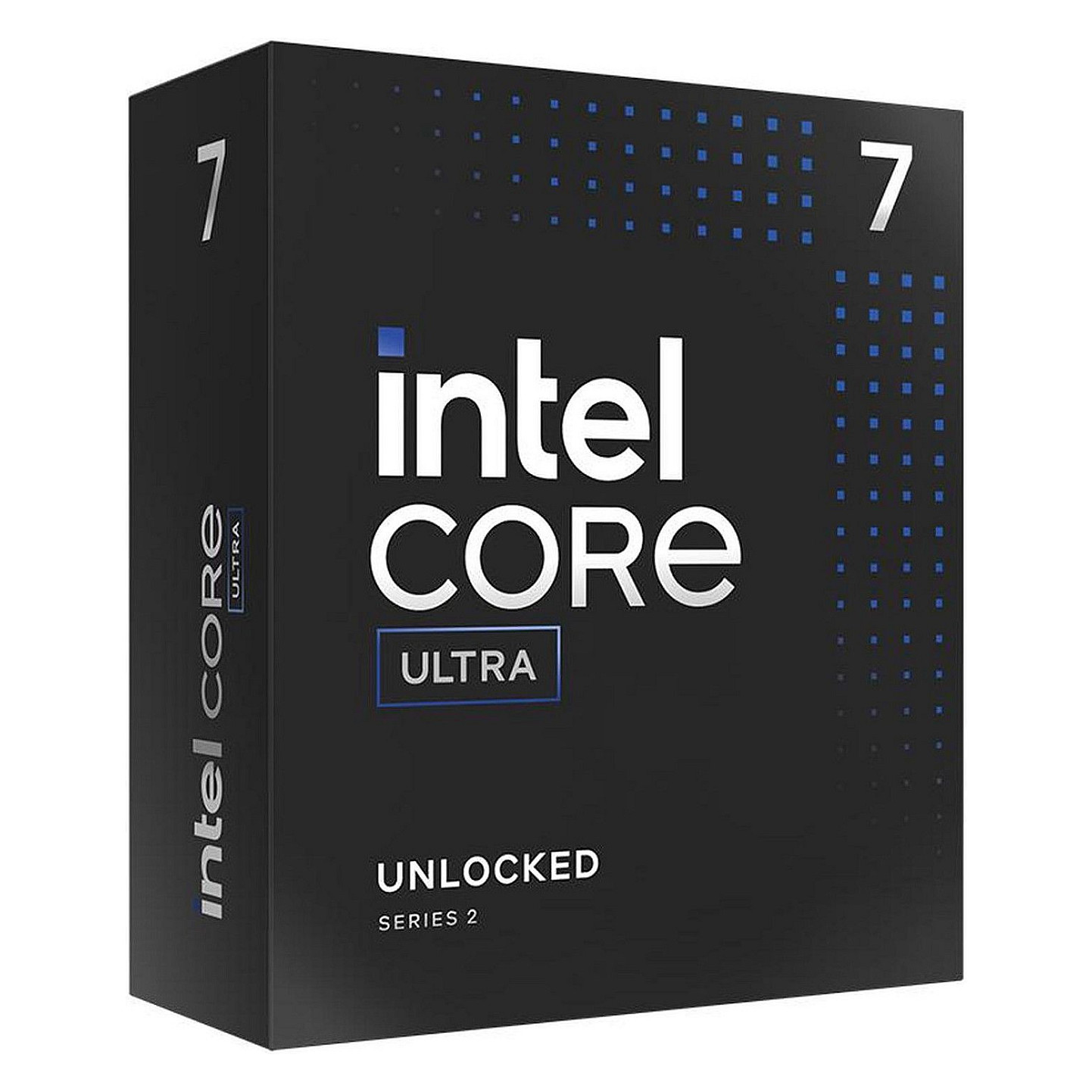

Intel S1851 CORE ULTRA 7 270K Plus 3.7 GHz BOX
Out of Stock
€348.99
VAT (19%) included
Description
Intel Core Ultra 7 270K Plus 36 MB Smart Cache LGA 1851 (Socket V1) Processor cores: 24 64-bit Maximum internal memory supported by processor: 256 GB DDR5-SDRAM On-board graphics card Intel® Graphics Box
Technical Specifications
SKU
KBX80768270K
Processor Manufacturer
Intel
Processor Generation
Intel Core Ultra (Series 2)
Processor Model
270K Plus
Processor Family
Intel Core Ultra 7
Processor Cores
24
Processor Socket
LGA 1851 (Socket V1)
Processor Threads
24
Processor Operating Modes
64-bit
Performance Cores
8
Efficient Cores
16
Processor Boost Frequency
5.5 GHz
Performance-Core Boost Frequency
5.4 GHz
Performance-Core Base Frequency
3.7 GHz
Efficient-Core Boost Frequency
4.7 GHz
Efficient-Core Base Frequency
3.2 GHz
Processor Cache
36 MB
Processor Cache Type
Smart Cache
Package Type
Box
Processor Base Power
125 W
Maximum Turbo Power
250 W
Ai Software Frameworks Supported By Cpu
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Maximum Number Of Dmi Lanes
8
Processor Codename
Arrow Lake
Processor Ark Id
245692
Neural Processor Unit (Npu)
Intel AI Boost
Ai Software Frameworks Supported By Npu
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total Processor Performance Up To
36 TOPs
Npu Performance Up To
13 TOPs
Gpu Performance Up To
8 TOPs
Maximum Internal Memory Supported By Processor
256 GB
Memory Types Supported By Processor
DDR5-SDRAM
Memory Channels
Dual-channel
On-Board Graphics Card Model
Intel® Graphics
On-Board Graphics Card Base Frequency
300 MHz
On-Board Graphics Card Dynamic Frequency (Max)
2000 MHz
Number Of Displays Supported (On-Board Graphics)
4
On-Board Graphics Card Directx Version
12.0
On-Board Graphics Card Opengl Version
4.5
On-Board Graphics Card Maximum Resolution (Displayport)
7680 x 4320 pixels
On-Board Graphics Card Refresh Rate At Maximum Resolution (Displayport)
60 Hz
On-Board Graphics Card Refresh Rate At Maximum Resolution (Edp - Integrated Flat Panel)
120 Hz
On-Board Graphics Card Refresh Rate At Maximum Resolution (Hdmi)
60 Hz
On-Board Graphics Card Id
0x7D67
Discrete Graphics Card Model
Not available
Hardware Encode/Decode Codecs Supported
H.264, H.265 (HEVC)
Xe-Cores
4
Ai Software Frameworks Supported By Gpu
DirectML, OpenVINO, Windows ML, ONNX RT, WebGPU
Market Segment
Desktop
Use Conditions
Workstation, PC/Client/Tablet
Maximum Number Of Pci Express Lanes
24
Pci Express Slots Version
4.0, 5.0
Supported Instruction Sets
AVX 2.0, SSE4.1, SSE4.2
Scalability
1S
Thermal Solution Specification
PCG 2020A
Direct Media Interface (Dmi) Revision
4.0
Intel® Turbo Boost Technology
2.0
Intel® Turbo Boost Max Technology 3.0 Frequency
5.5 GHz
Maximum Operating Temperature
105 °C
Opencl Version
3.0
Launch Date
Q1'26
Status
Launched
Processor Package Size
45 x 37.5 mm
L2 Cache
40960 KB
Maximum Internal Memory
256 GB
Graphics Output
eDP1.4b, DP 2.1 UHBR20, HDMI 2.1 FRL
