Intel

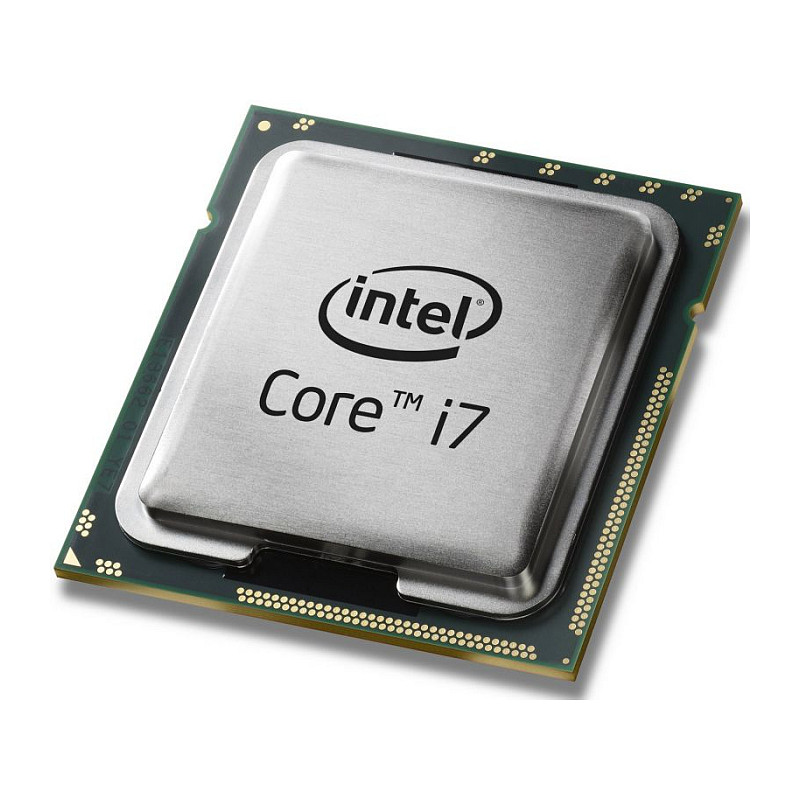

Intel S1150 i7 4790 TRAY
Pre-Order
€356.99
VAT (19%) included
Description
Intel® Core™ i7 i7-4790 3.6 GHz 8 MB Smart Cache LGA 1150 (Socket H3) Processor cores: 4 22 nm 64-bit 84 W Maximum internal memory supported by processor: 32 GB DDR3-SDRAM, DDR3L-SDRAM On-board graphics card Intel® HD Graphics 4600 Tray
Technical Specifications
SKU
KCM8064601560113
Processor Manufacturer
Intel
Processor Generation
4th gen Intel® Core™ i7
Processor Model
i7-4790
Processor Base Frequency
3.6 GHz
Processor Family
Intel® Core™ i7
Processor Cores
4
Processor Socket
LGA 1150 (Socket H3)
Component For
PC
Processor Lithography
22 nm
Processor Series
Intel Core i7-4700 Desktop series
Processor Threads
8
System Bus Rate
5 GT/s
Processor Operating Modes
64-bit
Processor Boost Frequency
4 GHz
Processor Cache
8192 KB
Processor Cache Type
Smart Cache
Thermal Design Power (Tdp)
84 W
Package Type
Tray
Vid Voltage Range
0.65 - 1.3 V
Generation
4th Generation
Compatible Chipsets
Intel® B85, Intel® H81, Intel® H87, Intel® Q85, Intel® Q87, Intel® Z87
Stepping
C0
Bus Type
DMI2
Memory Bandwidth Supported By Processor (Max)
25.6 GB/s
Processor Codename
Haswell
Processor Ark Id
80806
Maximum Internal Memory Supported By Processor
32 GB
Memory Types Supported By Processor
DDR3-SDRAM, DDR3L-SDRAM
Memory Clock Speeds Supported By Processor
1333, 1600 MHz
Memory Channels
Dual-channel
On-Board Graphics Card Model
Intel® HD Graphics 4600
Maximum On-Board Graphics Card Memory
2 GB
On-Board Graphics Card Outputs Supported
Embedded DisplayPort (eDP), DisplayPort, HDMI, DVI, VGA (D-Sub)
On-Board Graphics Card Base Frequency
350 MHz
On-Board Graphics Card Dynamic Frequency (Max)
1200 MHz
Number Of Displays Supported (On-Board Graphics)
3
On-Board Graphics Card Directx Version
11.2/12
On-Board Graphics Card Opengl Version
4.3
On-Board Graphics Card Maximum Resolution (Displayport)
3840 x 2160 pixels
On-Board Graphics Card Maximum Resolution (Edp - Integrated Flat Panel)
3840 x 2160 pixels
On-Board Graphics Card Maximum Resolution (Hdmi)
4096 x 2304 pixels
On-Board Graphics Card Maximum Resolution (Vga)
1920 x 1200 pixels
On-Board Graphics Card Refresh Rate At Maximum Resolution (Displayport)
60 Hz
On-Board Graphics Card Refresh Rate At Maximum Resolution (Edp - Integrated Flat Panel)
60 Hz
On-Board Graphics Card Refresh Rate At Maximum Resolution (Hdmi)
24 Hz
On-Board Graphics Card Refresh Rate At Maximum Resolution (Vga)
60 Hz
On-Board Graphics Card Id
0x412
Market Segment
Desktop
Maximum Number Of Pci Express Lanes
16
Pci Express Slots Version
3.0
Pci Express Configurations
1x16, 2x8, 1x8+2x4
Supported Instruction Sets
SSE4.1, SSE4.2, AVX 2.0
Scalability
1S
Cpu Configuration (Max)
1
Graphics & Imc Lithography
22 nm
Thermal Solution Specification
PCG 2013D
Export Control Classification Number (Eccn)
5A992C
Commodity Classification Automated Tracking System (Ccats)
G077159
Intel® Turbo Boost Technology
2.0
Intel® Turbo Boost Technology 2.0 Frequency
4 GHz
Intel Identity Protection Technology Version
1.00
Intel Secure Key Technology Version
1.00
Intel Small Business Advantage (Sba) Version
1.00
Intel Stable Image Platform Program (Sipp) Version
1.00
Intel Tsx-Ni Version
0.00
Tcase
72.72 °C
Maximum Resolution & Refresh Rate (Integrated Flat Panel)
3840x2160@60Hz
Bus Bandwidth
5
Bus Type Units
GT/s
Launch Date
Q2'14
Maximum Resolution & Refresh Rate (Displayport)
3840x2160@60Hz
Maximum Resolution & Refresh Rate (Hdmi)
4096x2304@24Hz
Product Type
Processor
Maximum Resolution & Refresh Rate (Vga)
1920x1200@60Hz
Supported Memory Types
DDR3-SDRAM, DDR3L-SDRAM
Number Of Graphics Cores
20
Status
Discontinued
Maximum Memory
32 GB
Processor Brand Name
Intel Core i7 Intel Core i7 Processor
Last Change
63903513
Product Family
4th Generation Intel Core i7 Processors
Bus Speed
5 GT/s
Maximum Graphics Card Memory
2 GB
Processor Id
0x412
Harmonized System (Hs) Code
8542310001
Processor Package Size
37.5 x 37.5 mm
Intel® Virtualization Technology (Intel® Vt)
VT-d, VT-x
Maximum Internal Memory
32768 MB
Graphics Output
eDP/DP/HDMI/DVI/VGA
