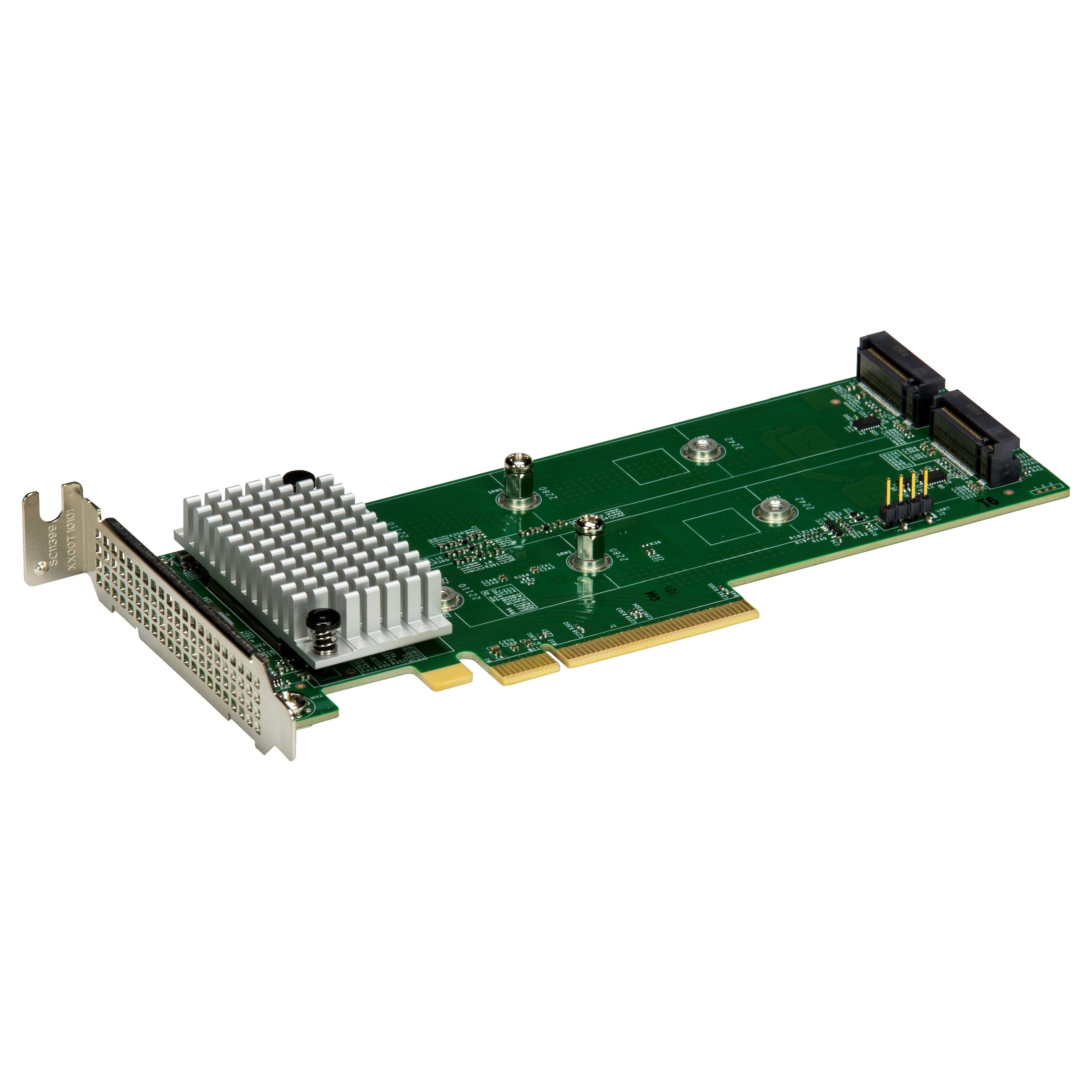

Supermicro AOC-SLG4-2H8M2-O 2x Hybrid Gen 4 NVMe/SATA M.2 RAID 0/1 Carrier, Standard
Pre-Order
Usually ready in 3-5 business days
+ €30 Supplier Shipping
€389.99
VAT (19%) included
Description
Broadcom 3808 SAS Hardware RAID controller, dual M-Key sockets, 16 Gb/s per port, with RAID 0 and 1. Broadcom SAS3808 I/O RAID Controller x8 PCIe Gen4 Host interface Dual M-Key sockets (for 2x M.2 SSD) Adjustable stand-offs supporting 22110, 2280, & 2242 M.2 SSD form factors Supports NVMe Gen 4 (16 Gbps) M.2 modules and SATA Gen 3 (6 Gbps) M.2 modules Supports RAID 0 and RAID 1 Supports MCTP over PCIe/ I2C Supports BMC-enabled management Supports SAA (SuperServer Automation Assistant) management Supports secure erase Supports hardware secure boot Supports on-board LEDs for SSD Activity and Status UEFI Configuration utility OS Support: Windows, Linux, and VMWare Power Consumption: 7W (AOC only, maximum; M.2 power consumption excluded) Thermal operating range: System dependent (55°C or higher w/ enough airflow)
Technical Specifications
SKU
KAOC-SLG4-2H8M2-O
Supported Storage Drive Interfaces
SAS
Host Interface
PCI Express x8
Pci Express Slots Version
4.0
Internal Sas Ports
2
Raid Levels
0, 1
Data Transfer Rate
16 Gbit/s
Certification
RoHS
Width
167.7 mm
Depth
68.8 mm
