Intel

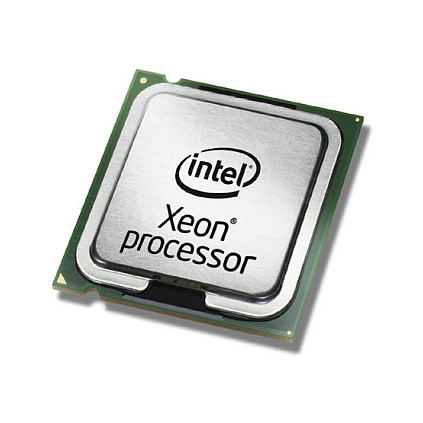

Intel S2011 XEON E5-2643V4 TRAY 6x3,4 135W
Pre-Order
Usually ready in 3-5 business days
+ €30 Supplier Shipping
€1588.99
VAT (19%) included
Description
Intel® Xeon® E5 v4 E5-2643V4 3.4 GHz 20 MB Smart Cache LGA 2011-v3 Processor cores: 6 14 nm 64-bit 135 W Maximum internal memory supported by processor: 1.53 TB DDR4-SDRAM Tray
Technical Specifications
SKU
KCM8066002041500
Processor Manufacturer
Intel
Processor Model
E5-2643V4
Processor Base Frequency
3.4 GHz
Processor Family
Intel® Xeon® E5 v4
Processor Cores
6
Processor Socket
LGA 2011-v3
Component For
Server/workstation
Processor Lithography
14 nm
Processor Series
Intel Xeon E5-2600 v4
Processor Threads
12
System Bus Rate
9.6 GT/s
Processor Operating Modes
64-bit
Processor Boost Frequency
3.7 GHz
Processor Cache
20480 KB
Processor Cache Type
Smart Cache
Thermal Design Power (Tdp)
135 W
Package Type
Tray
Vid Voltage Range
0 - 0 V
Stepping
R0
Bus Type
QPI
Number Of Qpi Links
2
Memory Bandwidth Supported By Processor (Max)
76.8 GB/s
Processor Codename
Broadwell
Processor Code
SR2P4
Processor Ark Id
92989
Maximum Internal Memory Supported By Processor
1.53 TB
Memory Types Supported By Processor
DDR4-SDRAM
Memory Clock Speeds Supported By Processor
1600, 1866, 2133, 2400 MHz
Memory Channels
Quad-channel
Market Segment
Server
Maximum Number Of Pci Express Lanes
40
Pci Express Slots Version
3.0
Supported Instruction Sets
AVX 2.0
Scalability
2S
Cpu Configuration (Max)
2
Physical Address Extension (Pae)
46 bit
Pci Express Cem Revision
3.0
Export Control Classification Number (Eccn)
5A992C
Commodity Classification Automated Tracking System (Ccats)
G077159
Intel® Turbo Boost Technology
2.0
Intel® Turbo Boost Technology 2.0 Frequency
3.7 GHz
Intel Identity Protection Technology Version
0.00
Intel Secure Key Technology Version
1.00
Intel Tsx-Ni Version
1.00
Tcase
75 °C
Bus Bandwidth
9.6
Bus Type Units
GT/s
Launch Date
Q1'16
Product Type
Processor
Status
Launched
Processor Brand Name
Intel Xeon
Supported Memory Types
DDR4-SDRAM
Last Change
63903513
Product Family
Intel Xeon Processor E5 v4 Family
Bus Speed
9.6 GT/s
Servicing Status
End of Servicing Updates
End Of Servicing Updates Date
Thursday, June 30, 2022
Harmonized System (Hs) Code
85423119
Processor Package Size
45mm x 52.5mm
Compatibility
Intel Server System R1208WT2GSR Intel Server System R1208WTTGSR Intel Server System R1304WT2GSR Intel Server System R1304WTTGSR Intel Server System R2208WTTYSR Intel Server System R2208WT2YSR Intel Server System R2208WTTYC1R Intel Server System R2308WTTYSR Intel Server System R2312WTTYSR Intel Server System R2224WTTYSR Intel Server Board S2600CW2R Intel Server Board S2600CW2SR Intel Server Board S2600CWTR Intel Server Board S2600CWTSR Intel Server Board S2600KPR Intel Server Board S2600KPFR Intel Server Board S2600KPTR Intel Server Board S2600TPR Intel Server Board S2600TPFR Intel Server Board S2600WTTR Intel Server Board S2600WT2R Intel Server Board S2600WTTS1R Intel Compute Module HNS2600KPFR Intel Compute Module HNS2600KPR Intel Compute Module HNS2600TP24R Intel Compute Module HNS2600TPFR Intel Compute Module HNS2600TPR Intel Compute Module HNS2600TP24SR
Maximum Internal Memory
1572864 MB
Processor Socket
LGA2011
