Kingston

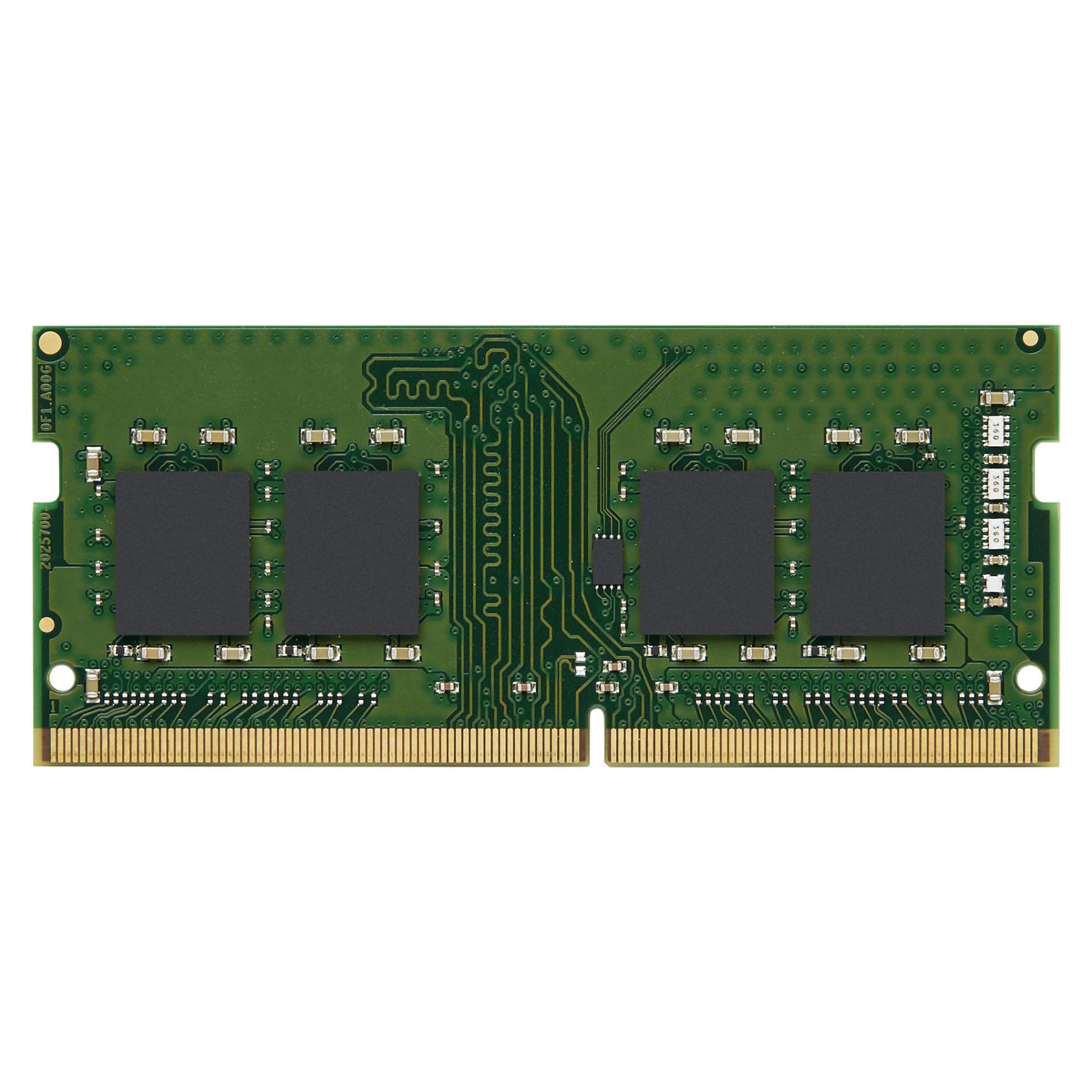

SO 3200 8GB Kingston KVR32S22S8/8 Value DDR4
Out of Stock
€109.99
VAT (19%) included
Description
Power Supply: VDD = 1.2V Typical VDDQ = 1.2V Typical VPP = 2.5V Typical VDDSPD = 2.2V to 3.6V Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals Low-power auto self refresh (LPASR) Data bus inversion (DBI) for data bus On-die VREFDQ generation and calibration Single-rank On-board I2 serial presence-detect (SPD) EEPROM 16 internal banks; 4 groups of 4 banks each Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS) Selectable BC4 or BL8 on-the-fly (OTF) Fly-by topology Terminated control command and address bus PCB: Height 1.18” (30.00mm) RoHS Compliant and Halogen-Free
Technical Specifications
SKU
KKVR32S22S8/8
Cas Latency
22
Internal Memory
8 GB
Memory Layout (Modules X Size)
1 x 8 GB
Internal Memory Type
DDR4
Memory Data Transfer Rate
3200 MT/s
Component For
Laptop
Memory Form Factor
260-pin SO-DIMM
Buffered Memory Type
Unregistered (unbuffered)
Memory Voltage
1.2 V
Row Cycle Time
45.75 ns
Refresh Row Cycle Time
350 ns
Row Active Time
32 ns
Lead Plating
Gold
Operating Temperature (T-T)
0 - 85 °C
Storage Temperature (T-T)
-55 - 100 °C
Compliance Certificates
RoHS
Width
69.6 mm
Height
30 mm
Harmonized System (Hs) Code
84733020
Country Of Origin
Taiwan
Doesn'T Contain
Halogen
