Kingston

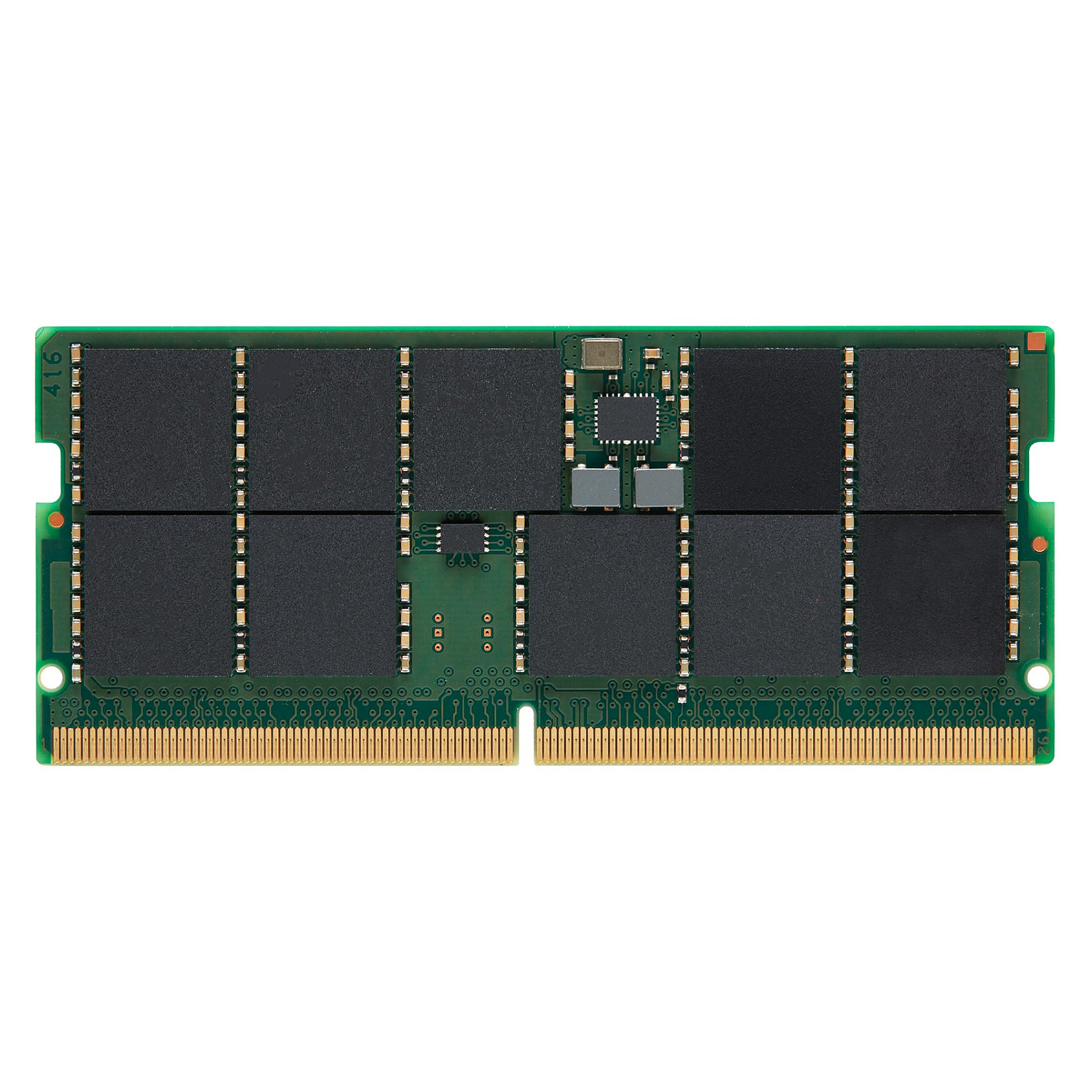

SO KINGSTON 16GB 5600MT/s DDR5 ECC CL46 SODIMM 1Rx8 Hynix A
Pre-Order
€710.99
VAT (19%) included
Description
Power Supply: VDD = 1.1V Typical VDDQ = 1.1V Typical VPP = 1.8V Typical VDDSPD = 1.8V to 2.0V On-Die ECC x72 ECC (x36, 2 independent I/O sub channels) 32 internal banks Hard/Soft Post Package Repair Sideband access with I3C/I2C PCB: Height 1.23” (31.25mm) RoHS Compliant and Halogen-Free
Technical Specifications
SKU
KKSM56T46BS8KM-16HA
Cas Latency
46
Internal Memory
16 GB
Memory Layout (Modules X Size)
1 x 16 GB
Internal Memory Type
DDR5
Memory Data Transfer Rate
5600 MT/s
Component For
Server
Memory Form Factor
262-pin SO-DIMM
Buffered Memory Type
Unregistered (unbuffered)
Memory Ranking
1
Memory Voltage
1.1 V
Module Configuration
2048M x 72
Row Cycle Time
48 ns
Refresh Row Cycle Time
295 ns
Row Active Time
32 ns
Row Precharge Time (Trp)
16
Programming Power Voltage (Vpp)
1.8 V
Product Colour
Black, Green
Lead Plating
Gold
Operating Temperature (T-T)
0 - 95 °C
Storage Temperature (T-T)
-55 - 100 °C
Compliance Certificates
RoHS
Width
69.6 mm
Depth
3.7 mm
Height
31.2 mm
Doesn'T Contain
Halogen
